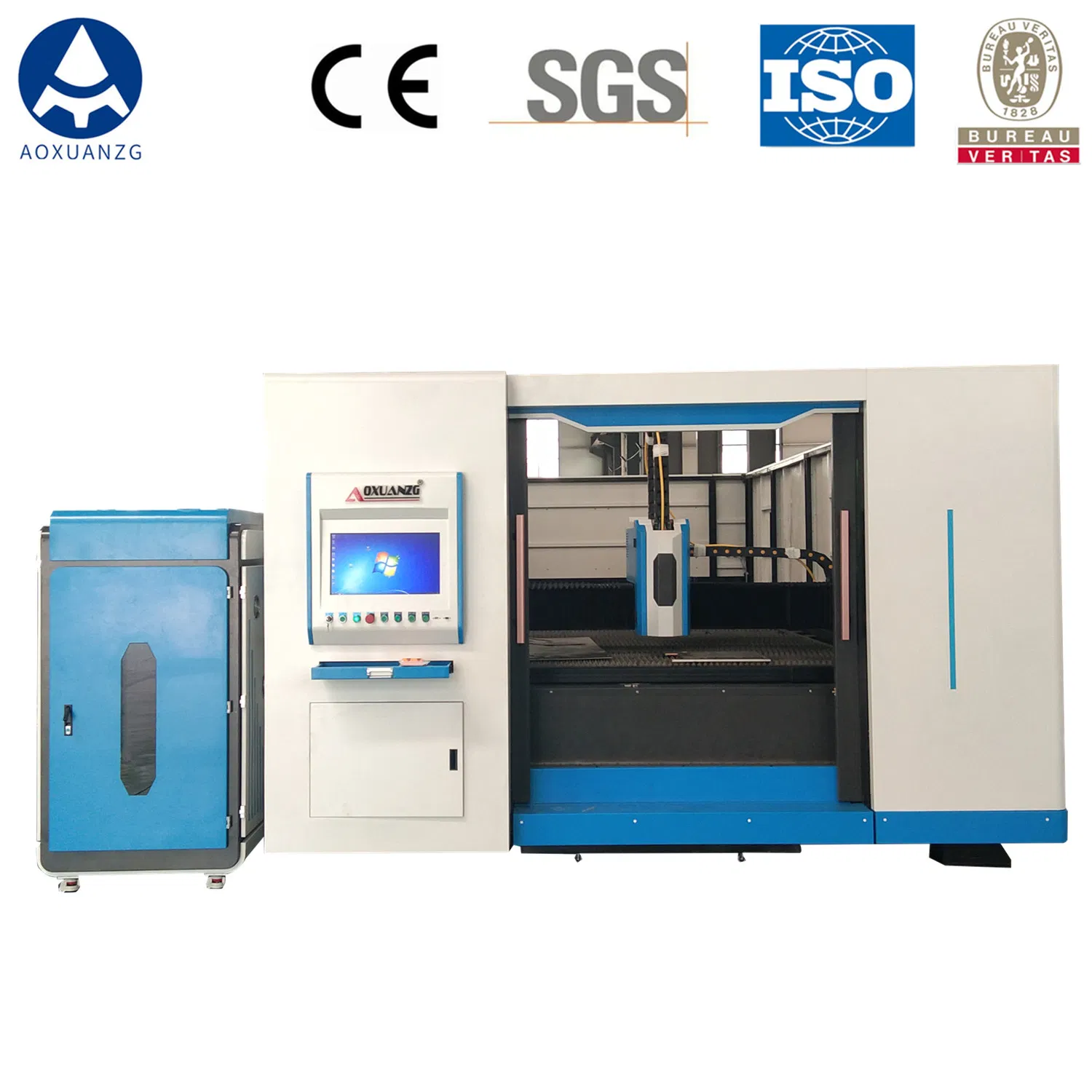

1000W Excellent Rigidity Steel Sheet Metal Fiber Laser Cutting Machine for Stainless Aluminum

Customization: Available
After-sales Service: Offer Online Guidence
Warranty: Offer Online Guidence

Product Description

Basic Specifications

Model NO.
3015
Cooling System
Water Cooling
Technical Class
Fiber Laser
Applicable Material
Metal, Carbon Steel, Stainless, Aluminum
Structure Type
Full Closed Type
Control System
Bochu Laser Cutting System
Working Area
3000*1500mm
Laser Power
1000W / 1500W / 2000W / 3000W
Positioning Accuracy
0.03mm/M
Max Cutting Speed
60m/Min
Cutting Thickness
0.2-40mm
Transmission
Hiwin Linear Rail + Belt

Excellent Rigidity Fiber Laser Cutting Machine

High-performance solution for Stainless, Aluminum, and Steel sheet metal processing.

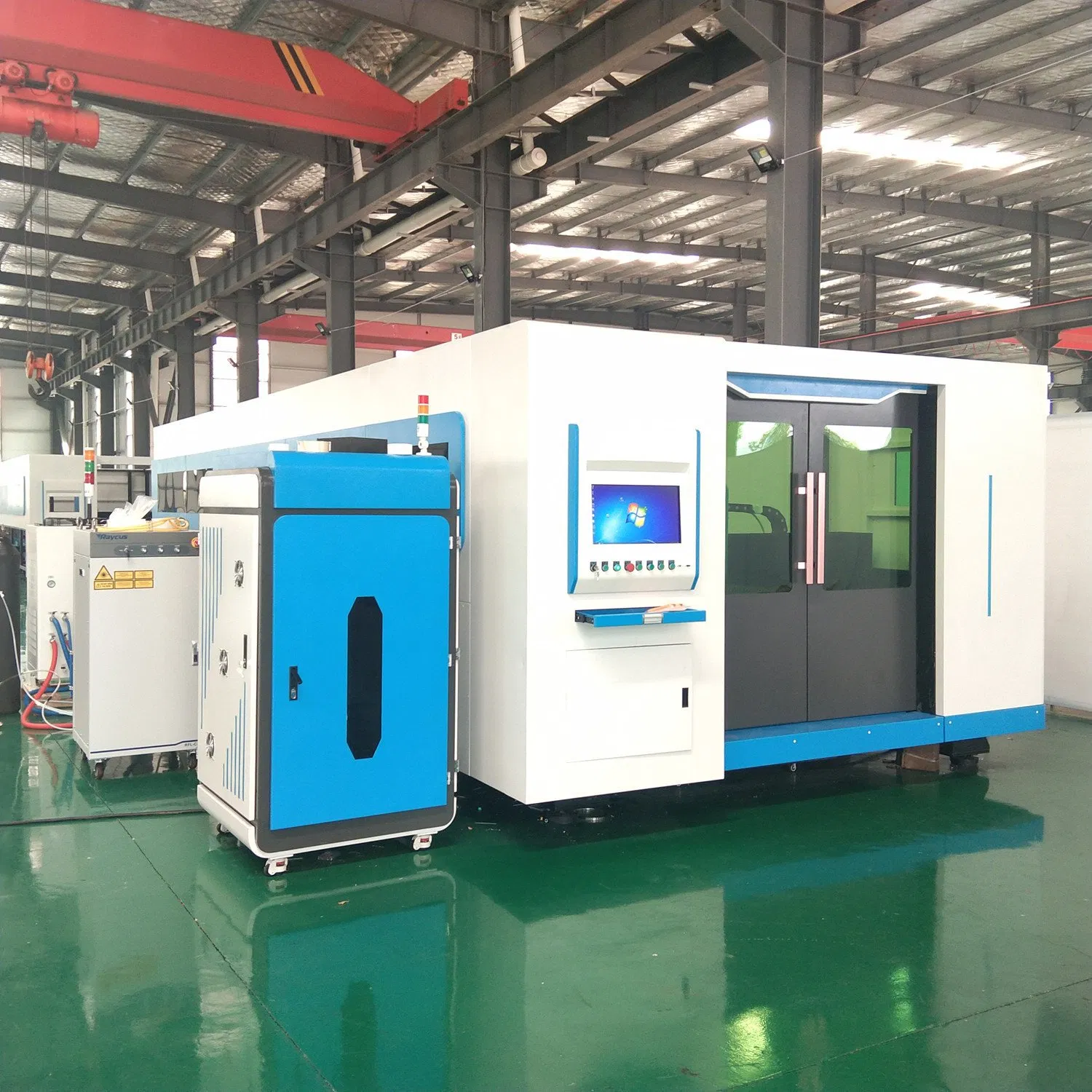

Fiber Laser Machine View 1

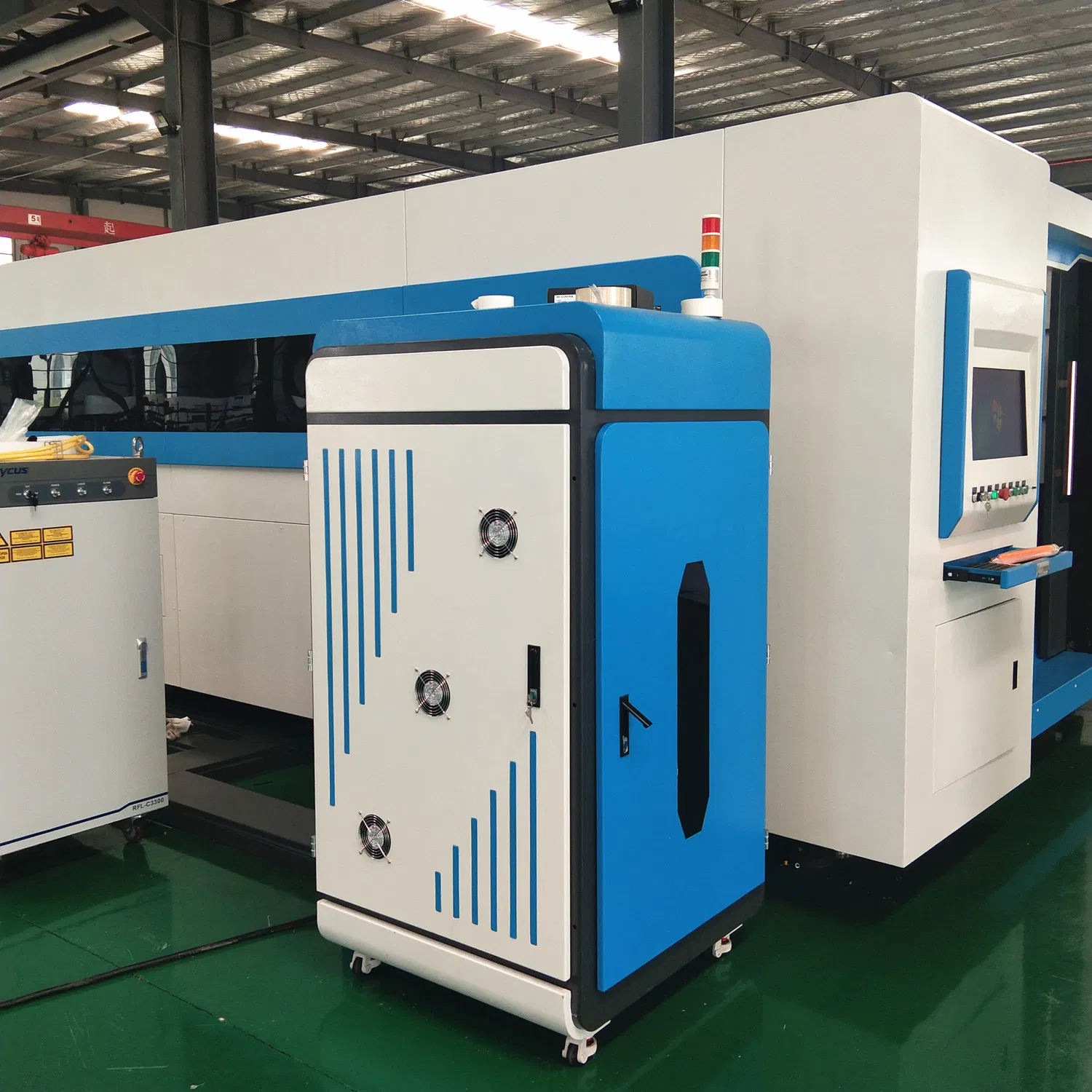

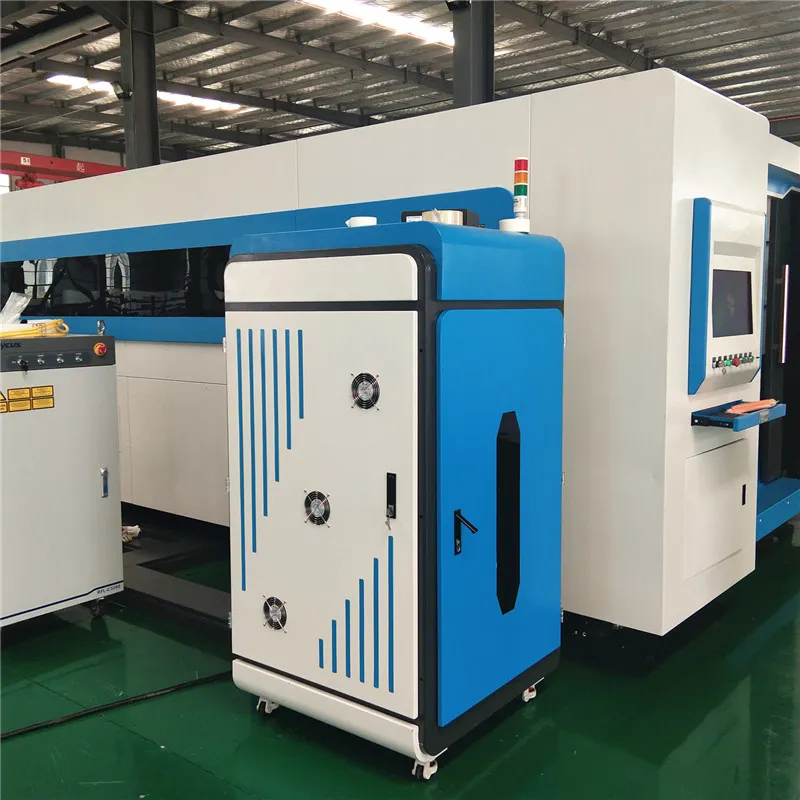

Fiber Laser Machine View 2
Advanced Integration: Perfect fusion of fiber laser technology and digital CNC control for professional industrial results.
High Stability: Gantry structure with a high damping bed and excellent rigidity to withstand high acceleration.
Efficiency: Exchange workbench configuration reduces standby time and improves efficiency by over 30%.
Precision Motion: Imported AC servo drive and gear rack transmission with fully sealed rails to prevent dust pollution.
Smart Cutting Head: Non-contact height tracking system avoids collisions and ensures stable focus.

Detailed Configuration

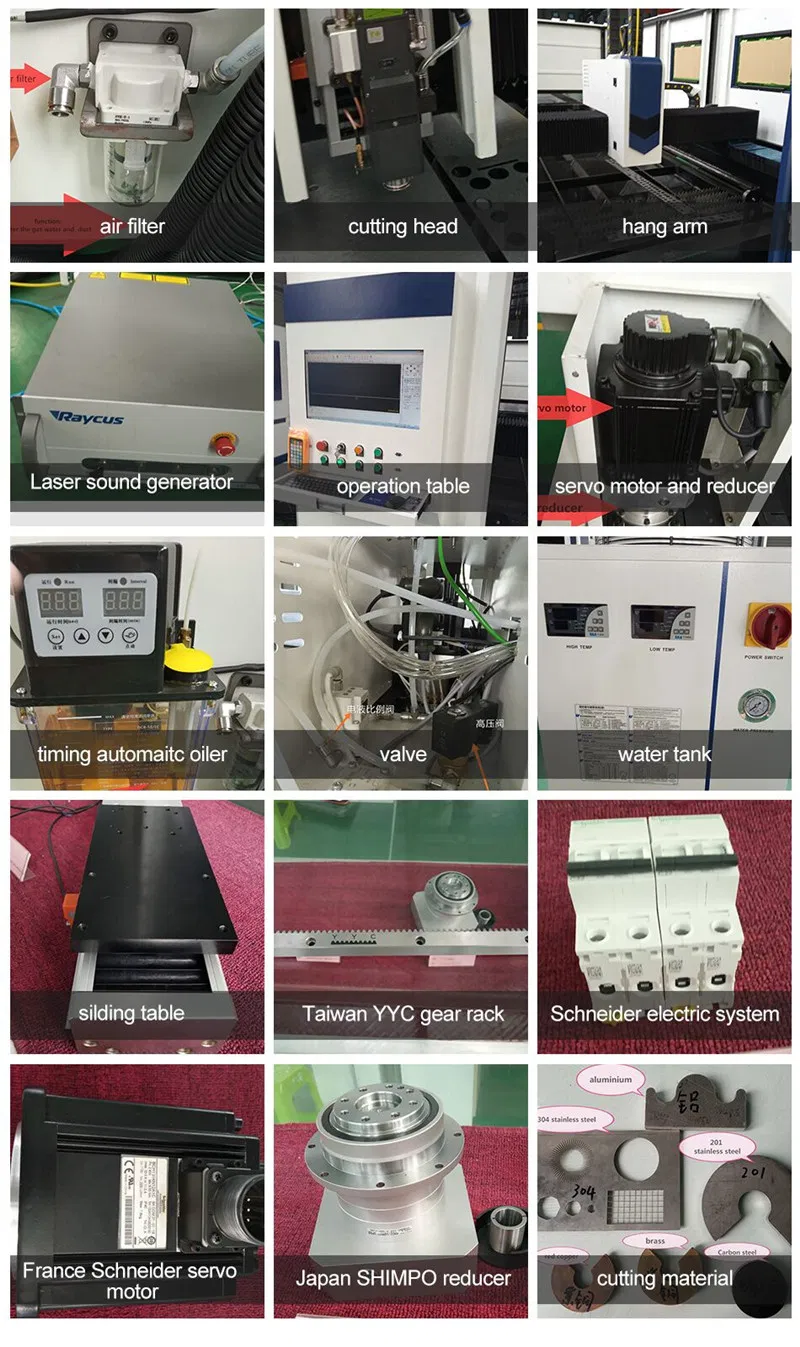

Machine Internal Details

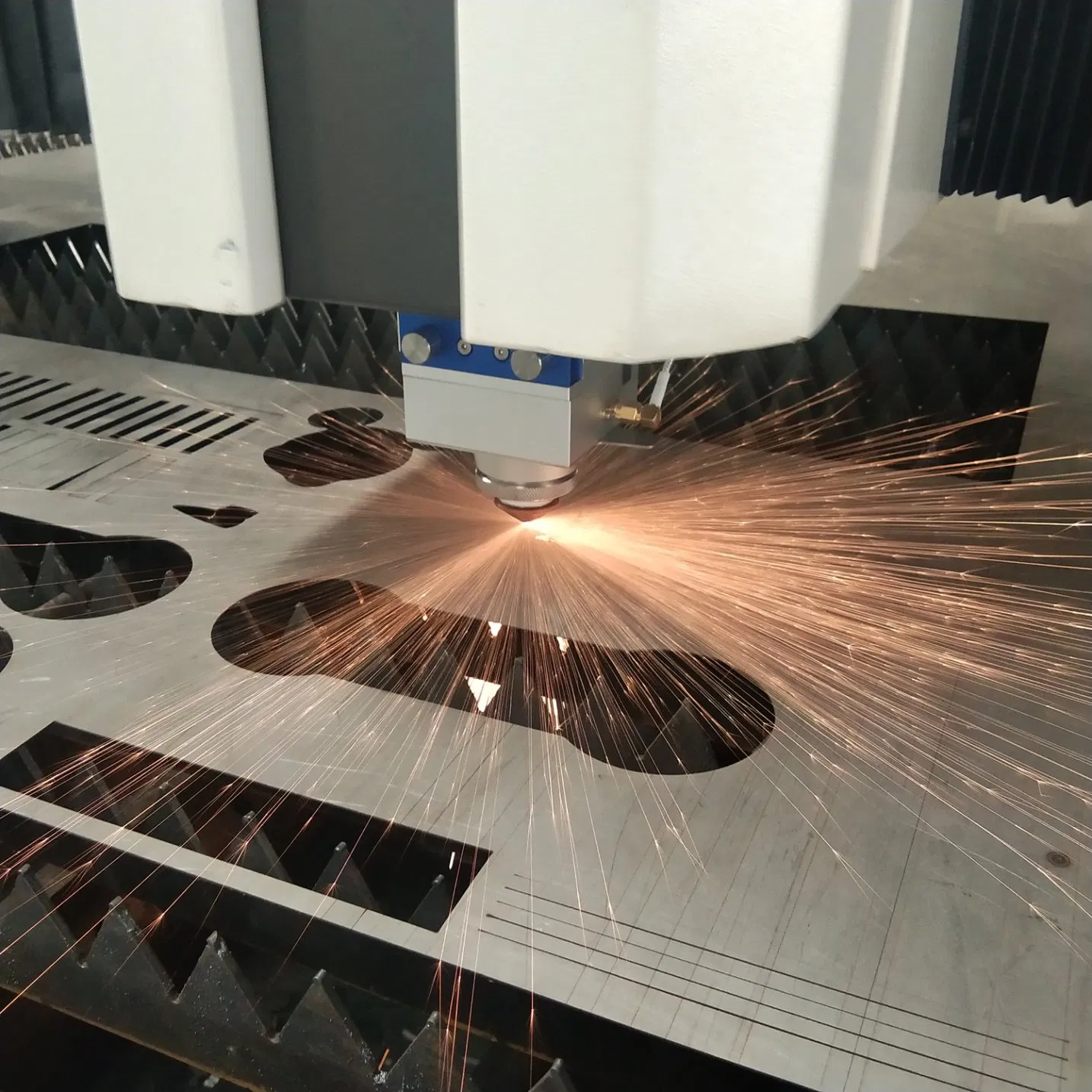

Laser Head Detail
Control System Detail
  • Laser Generator: Raycus Fiber Laser (IPG Optional)
  • Cutting Head: Swiss Raytools
  • Reducer: Alpha Reducer (Germany)
  • Control System: Bochu CNC System
  • Servo Drive: Schneider (France)
  • Linear Guide: Taiwan Hiwin

Technical Parameters

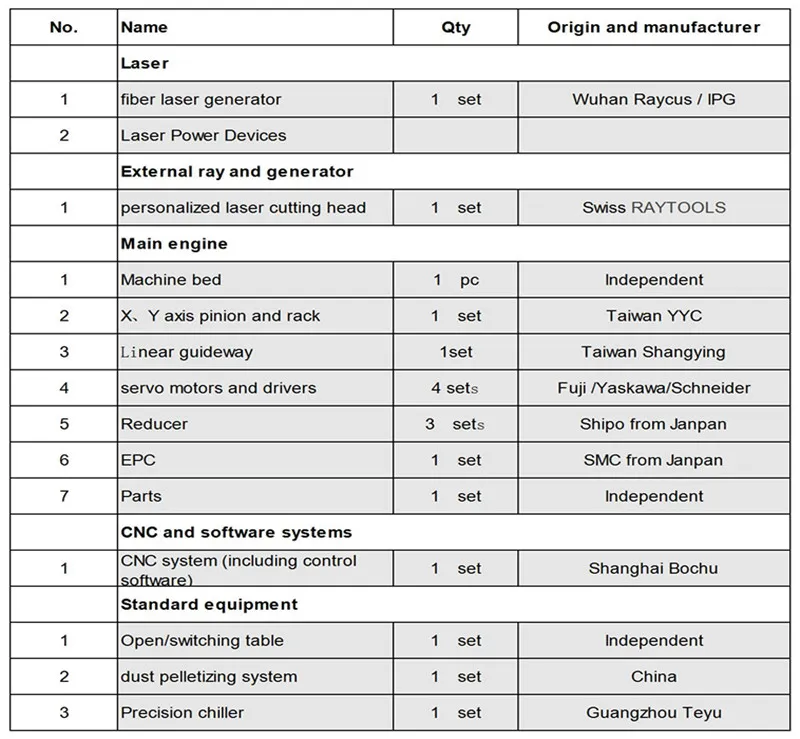

Technical Specifications Table

Quality & Packaging

Certifications

Packing Detail: Wrapped in plastic film and secured in a fumigation wooden case with foam filling for safe overseas transport.

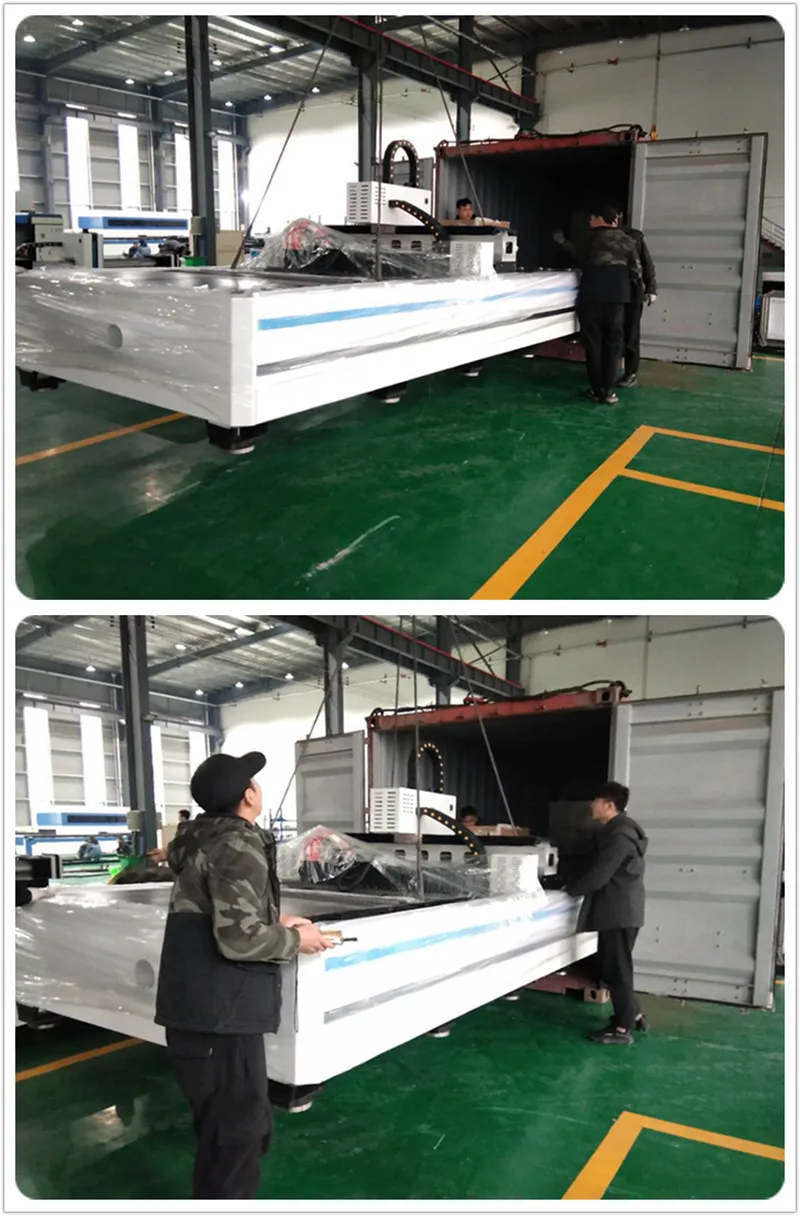

Shipping and Packing

Production Capability

Factory Facility

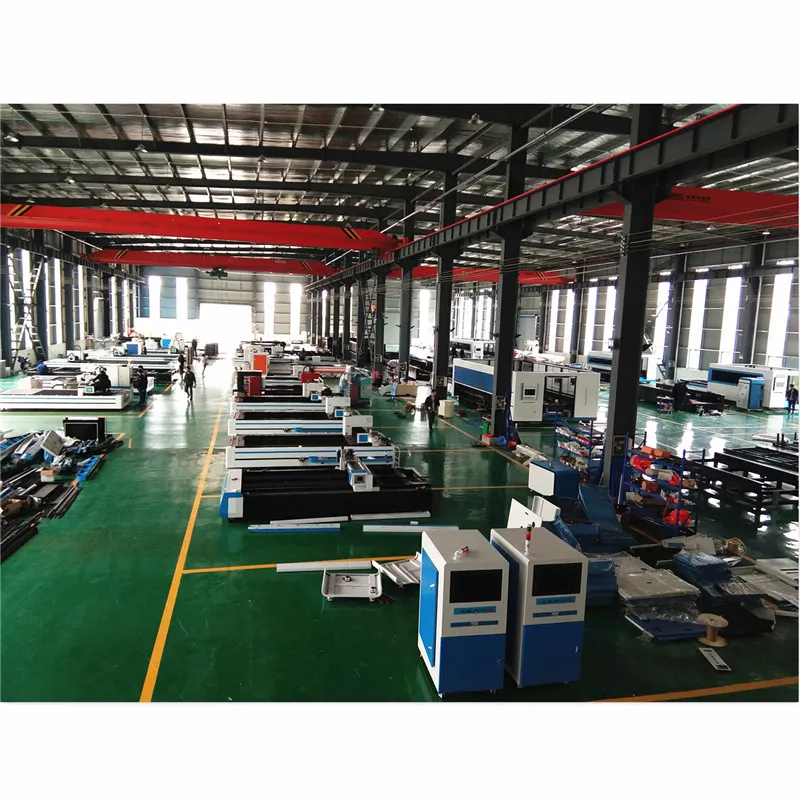

Workshop
Exhibition

Frequently Asked Questions

1 Are you the manufacturer?
Yes, we are a professional manufacturer with our own design team. You are welcome to visit our factory and check our machine quality on-site.
2 What are the advantages of your machines?
Our machines feature top-tier imported components such as Siemens motors and Schneider electronics, ensuring precision, stability, and a long service life.
3 How is the after-sales service provided?
We provide training videos, free replacement of non-human damaged parts, and our technical staff is available for overseas guidance.
4 What are the payment terms?
We accept T/T, L/C, Western Union, and PayPal. Typically, a 30% deposit is required to start the order, with the remaining 70% paid before shipment.
5 How long is the warranty period?
We offer a 13-month free warranty and life-long maintenance support for all our machines.
6 Do you accept customization?
Yes, we accept various types of customization, including custom logos and specific machine configurations to meet your production needs.
