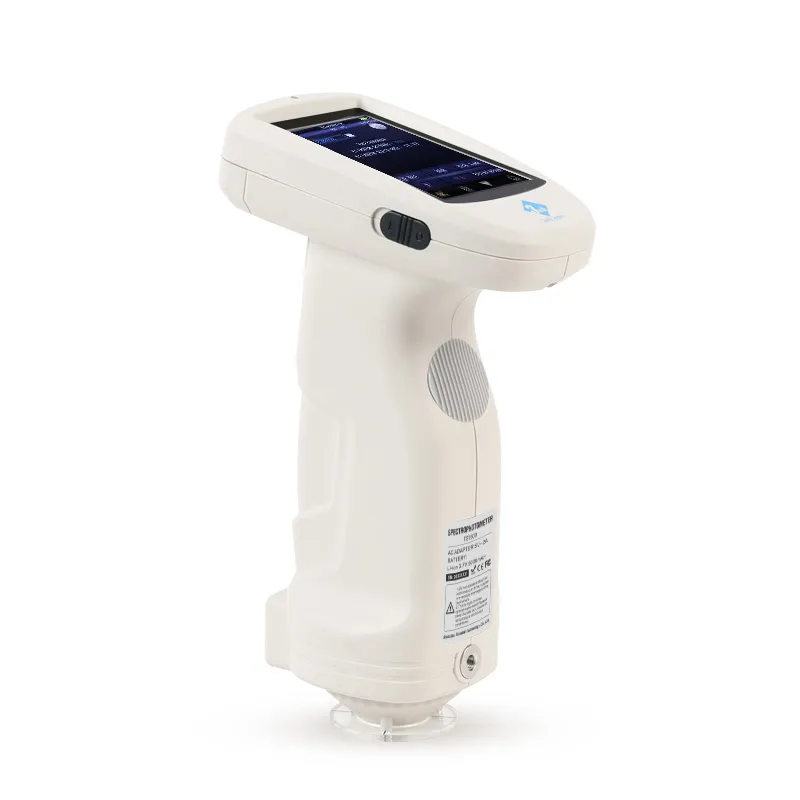

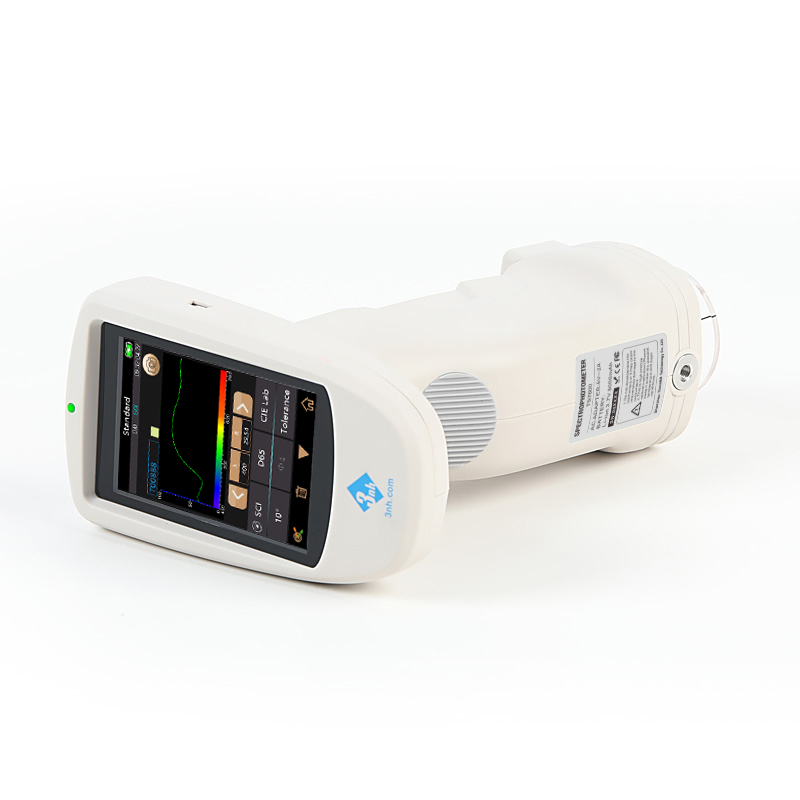

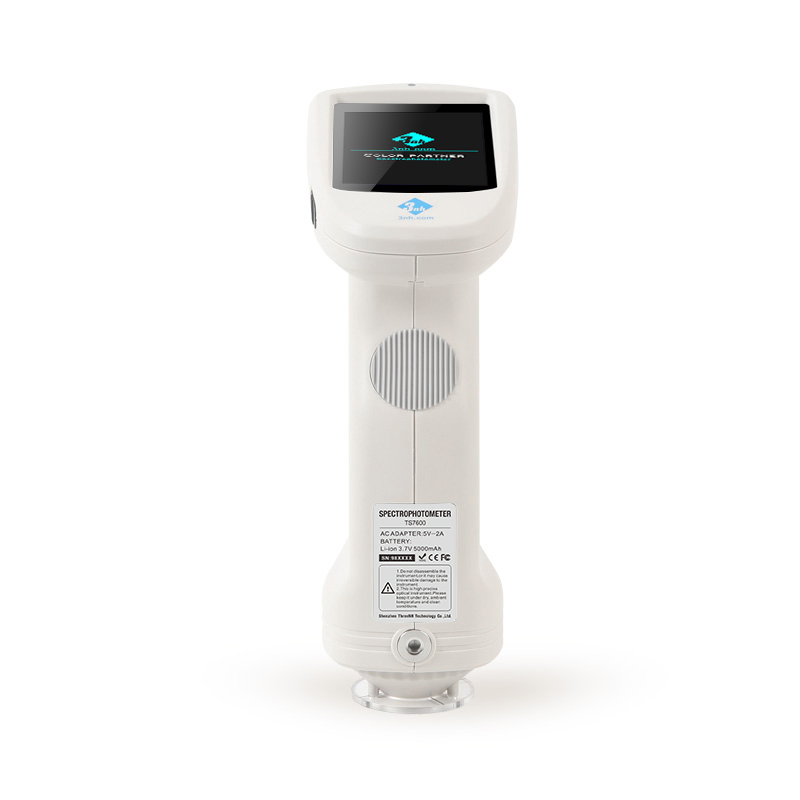

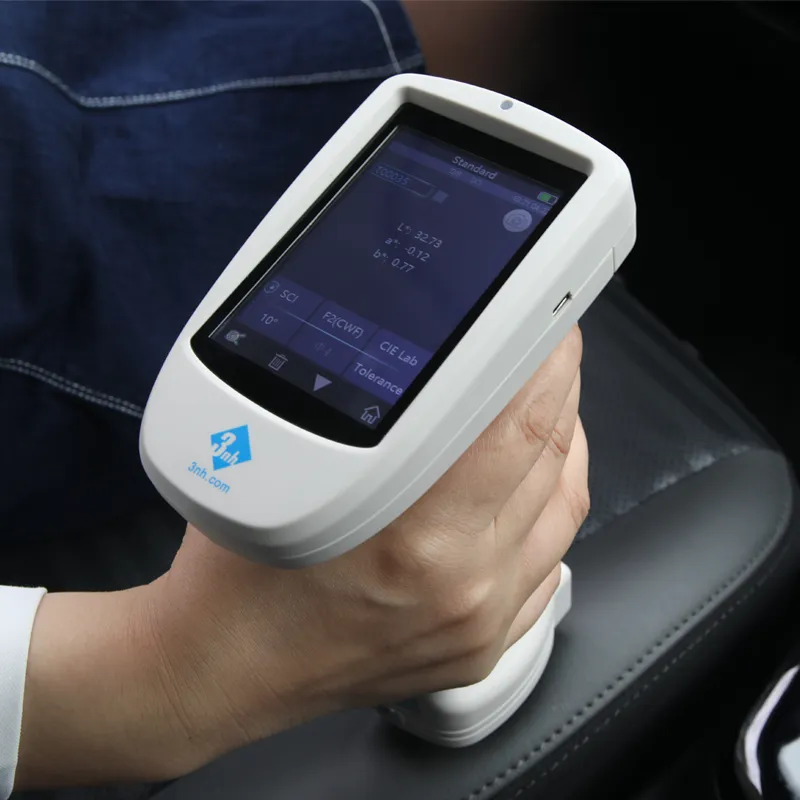

The TS7x series is a grating spectrophotometer developed with independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range.

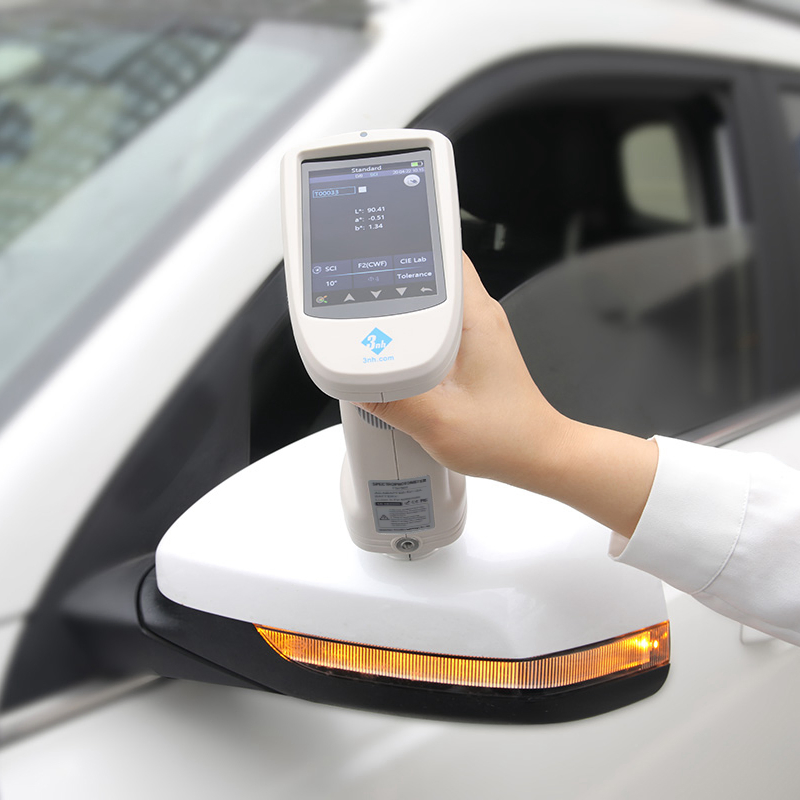

Under the condition of d/8 geometric optical illumination recommended by CIE, the TS7600 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. It can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.
| Model | TS7600 |
| Optical Geometry | Reflect: di:8°, de:8°; SCI & SCE; Conforms to CIE No.15, ISO7724-1, ASTM E1164. |
| Integrating Sphere Size | Φ40mm |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |

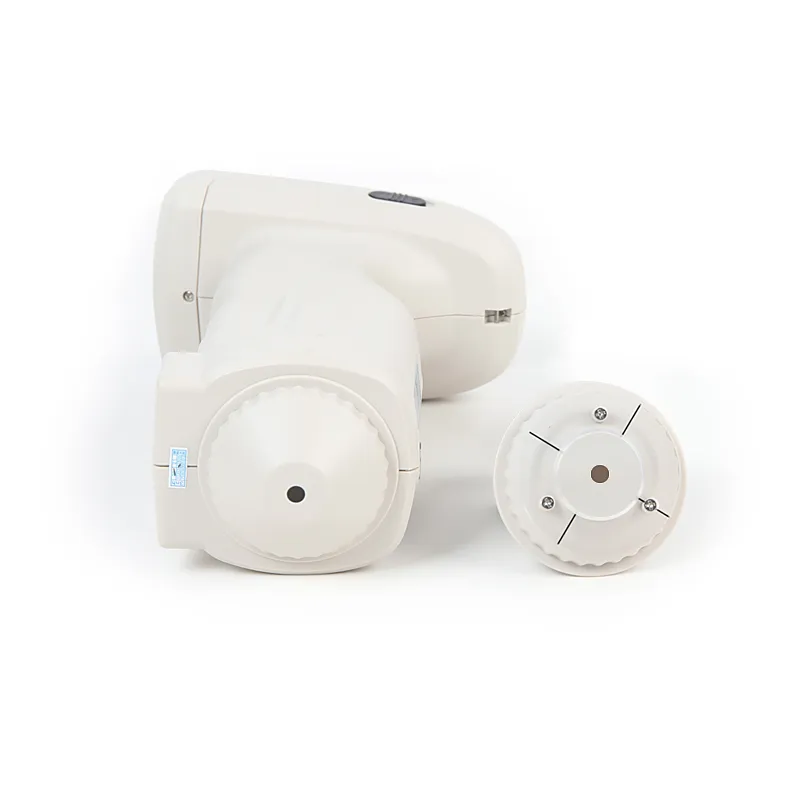

| Measuring Aperture | MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*00 |
| Measuring Time | About 1.5s (SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.04 |
| Dimension | 129X76X217mm |
| Battery | 3.7V, 5000mAh Li-ion battery |
Began in 1998, we operate three factories totaling approximately 15,000 square meters. We specialize in the R&D, production, and sales of colorimeters, spectrophotometers, color density meters, and gloss meters. We are a national high-technology enterprise with more than 30 patents and certifications including CE, ISO 9001, ROHS, FCC, and TUV. We support professional services for customers worldwide.
