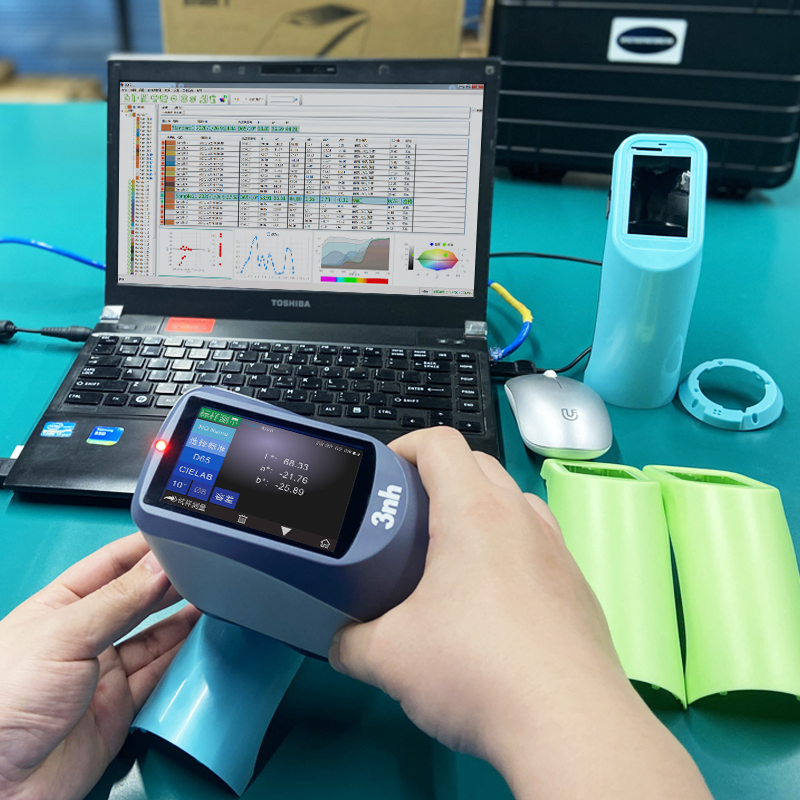

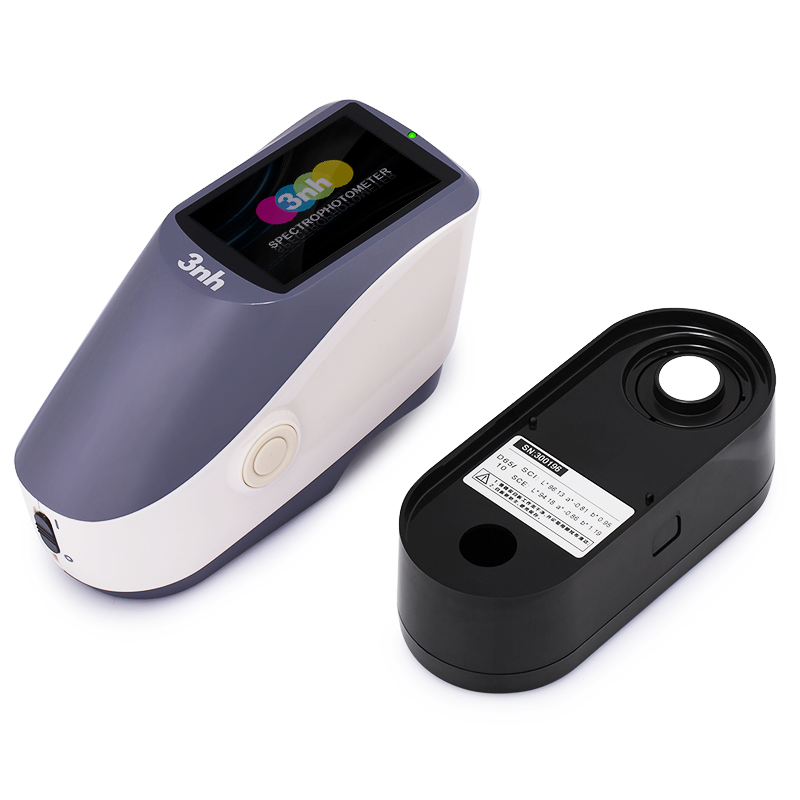

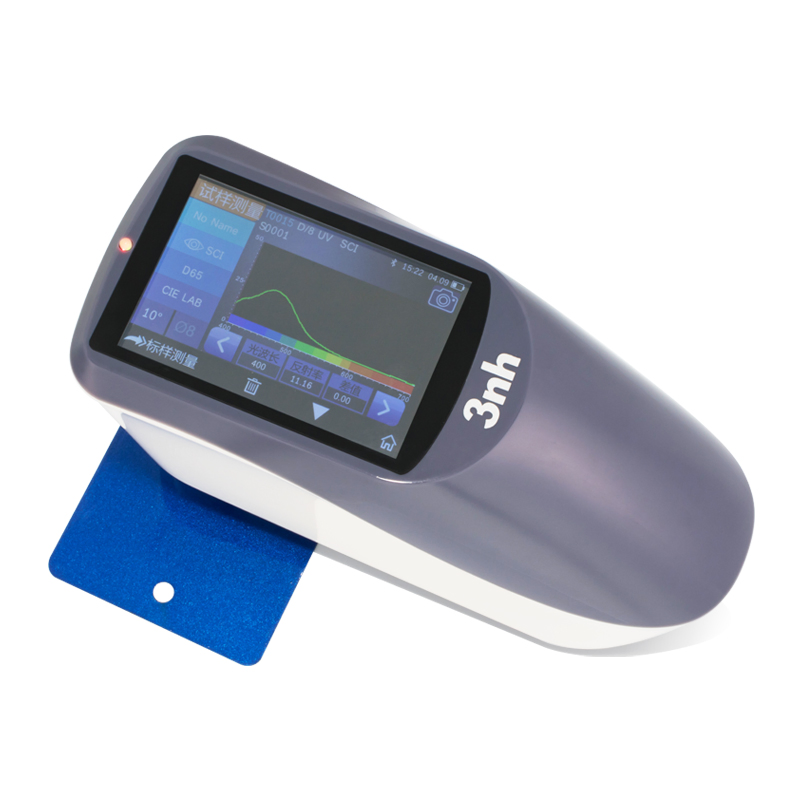

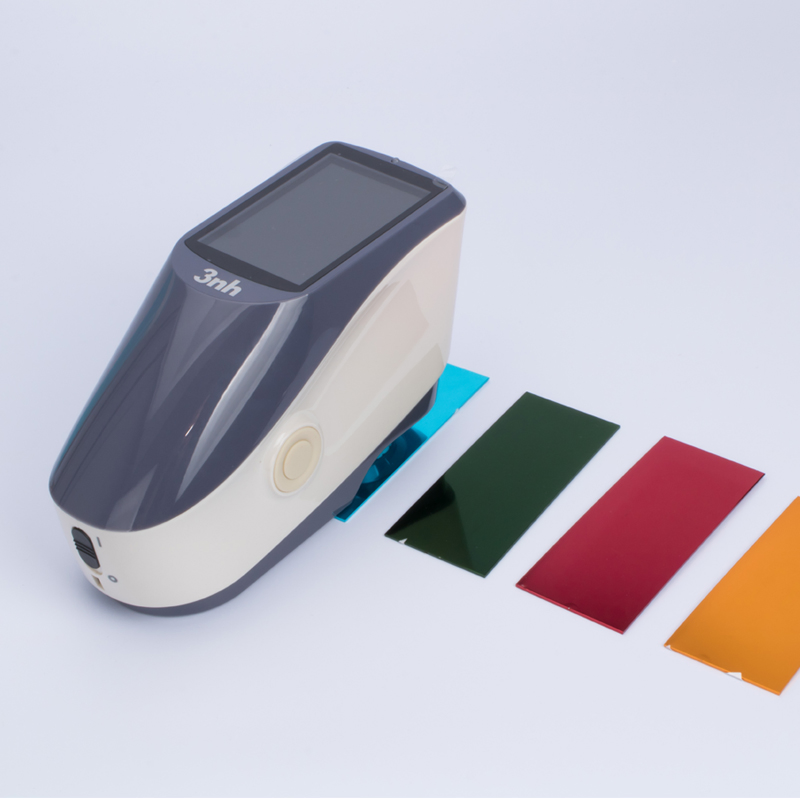

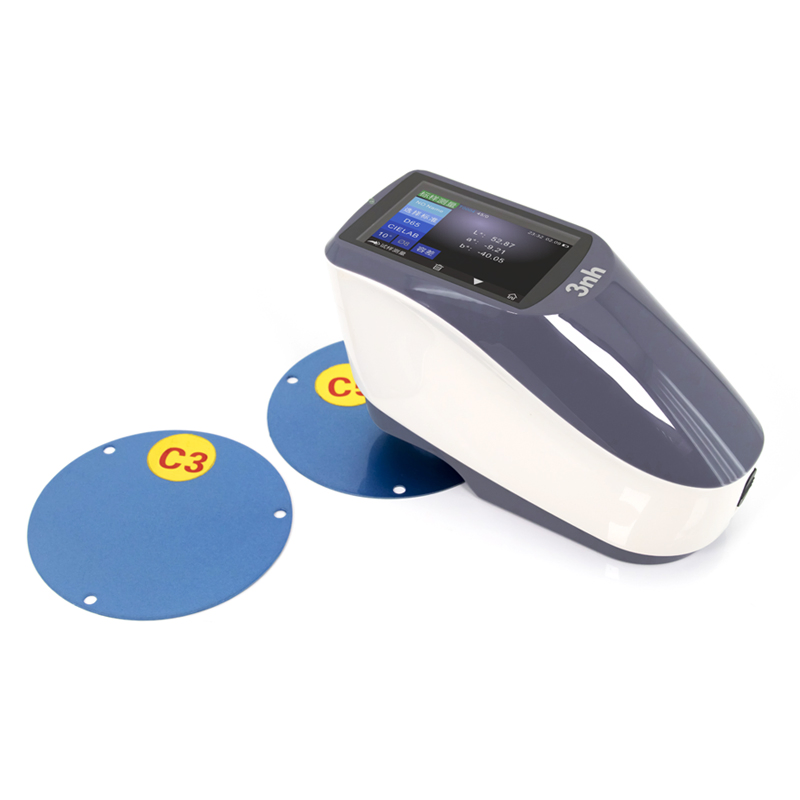

The YS4503 spectrophotometer adopts an advanced 45/0 geometric optical structure, which ensures that the angle conditions of the human eye observing the color of the object can be accurately simulated during the measurement process, so as to accurately capture the sample reflectance and various chromaticity data. Covering the 400-700nm spectral range and supporting color evaluation under a variety of light source environments.
| Model | YS4503 45/0 Spectrophotometer |
| Illumination/Observation | 45/0(45 ring-shaped illumination, vertical viewing) |
| Wavelength Range | 400~700nm |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Measuring Aperture | MAV:Φ8mm/Φ10mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, βxy |
| Measurement Time | About 1.5s |
| Repeatability | ΔE*ab 0.05 |

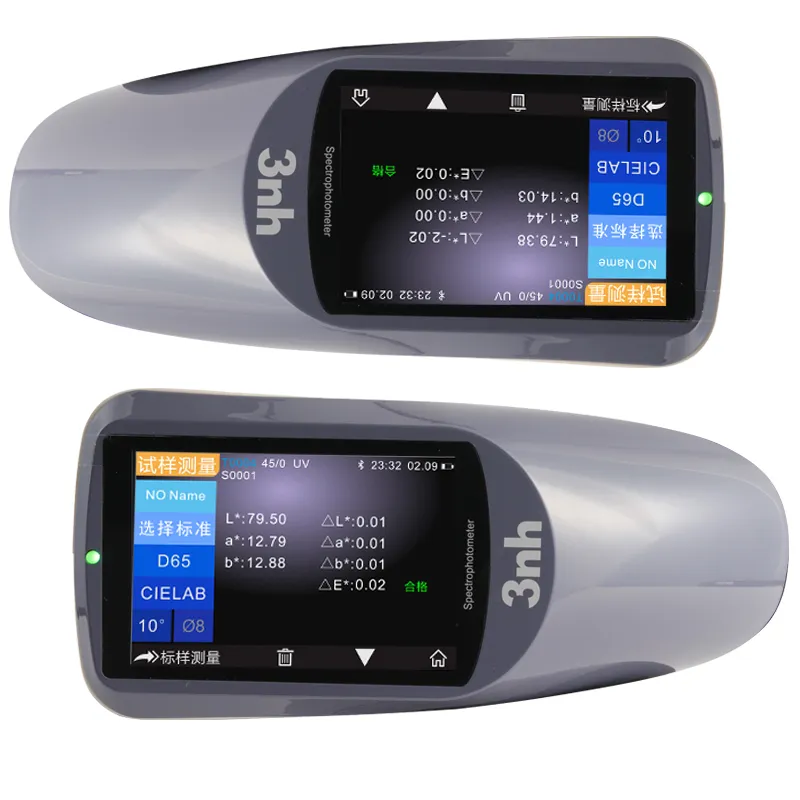

| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
