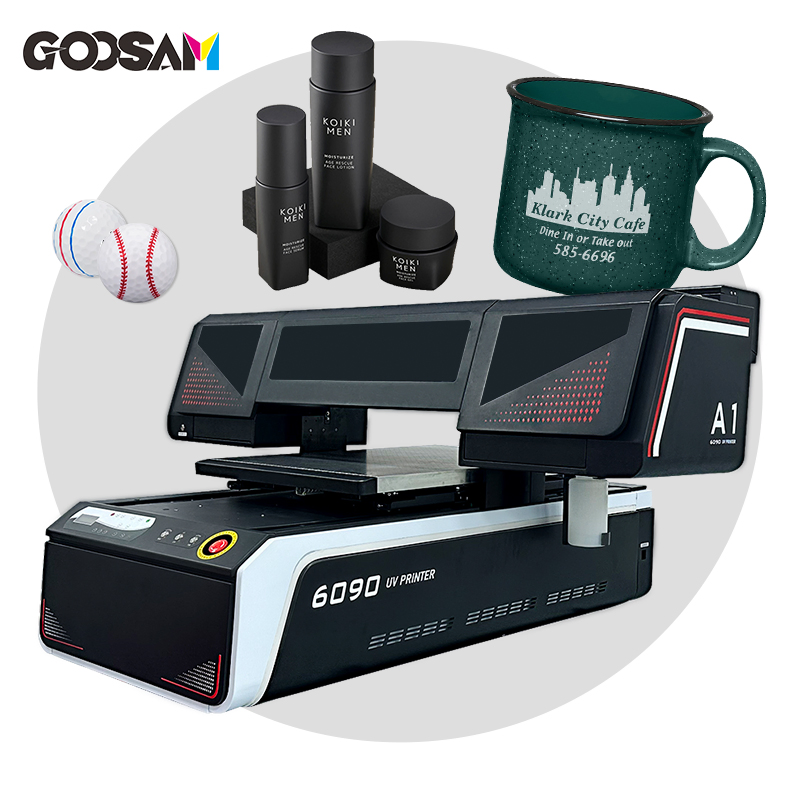

6090 Digital Flatbed LED UV Printer 60X90 Big 3D UV Flatbed Printer Tx800/XP600 for MDF

1 / 5

6090 Digital Flatbed LED UV Printer 60X90 Big 3D UV Flatbed Printer Tx800/XP600 for MDF

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

Product Overview

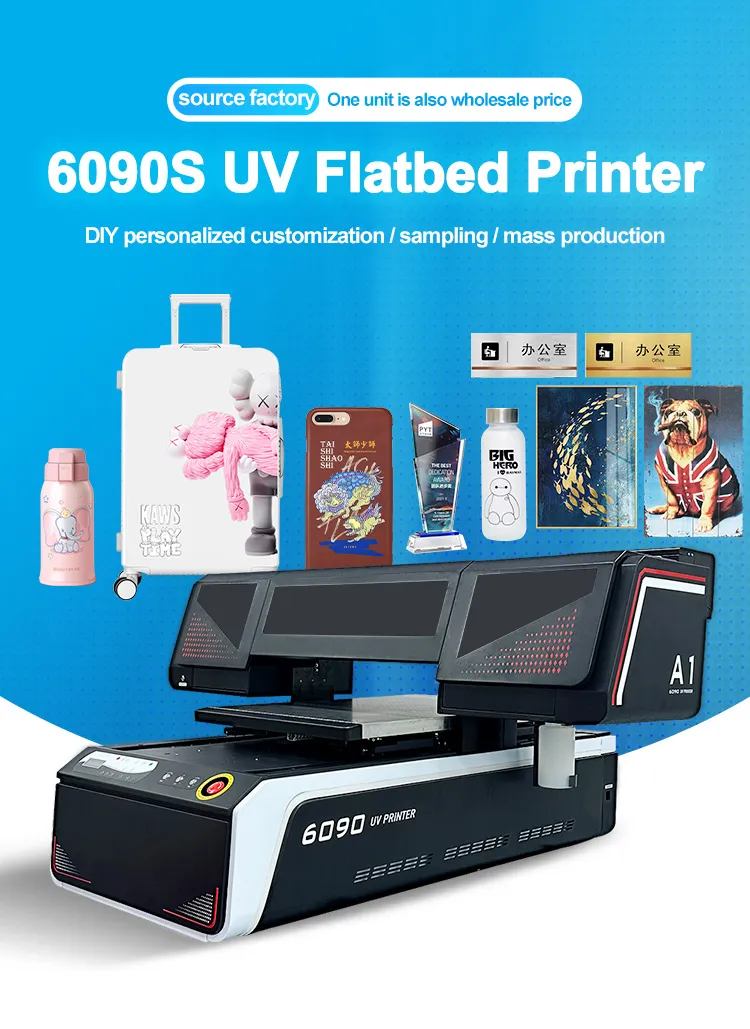

A1 60*90 UV Flatbed Printing Machine
Digital Bottle Glass Acrylic Printing Machine with XP600 / I3200 Head

Model NO.

GS6090 MAX

Plate Type

Flat-Bed Cylinder Press

Color

Multi-Colour Printing

Automatic Grade

Automatic

Printing Speed

8-20 Sqm/H

Print Head

XP600 / Tx800 / I3200 / I1600

Thickness

0-200mm

Ink Type

UV Ink (CMYK + W + V)

System

Win7 / Win10 / Win11

Voltage

AC110V/220V, 50-60Hz

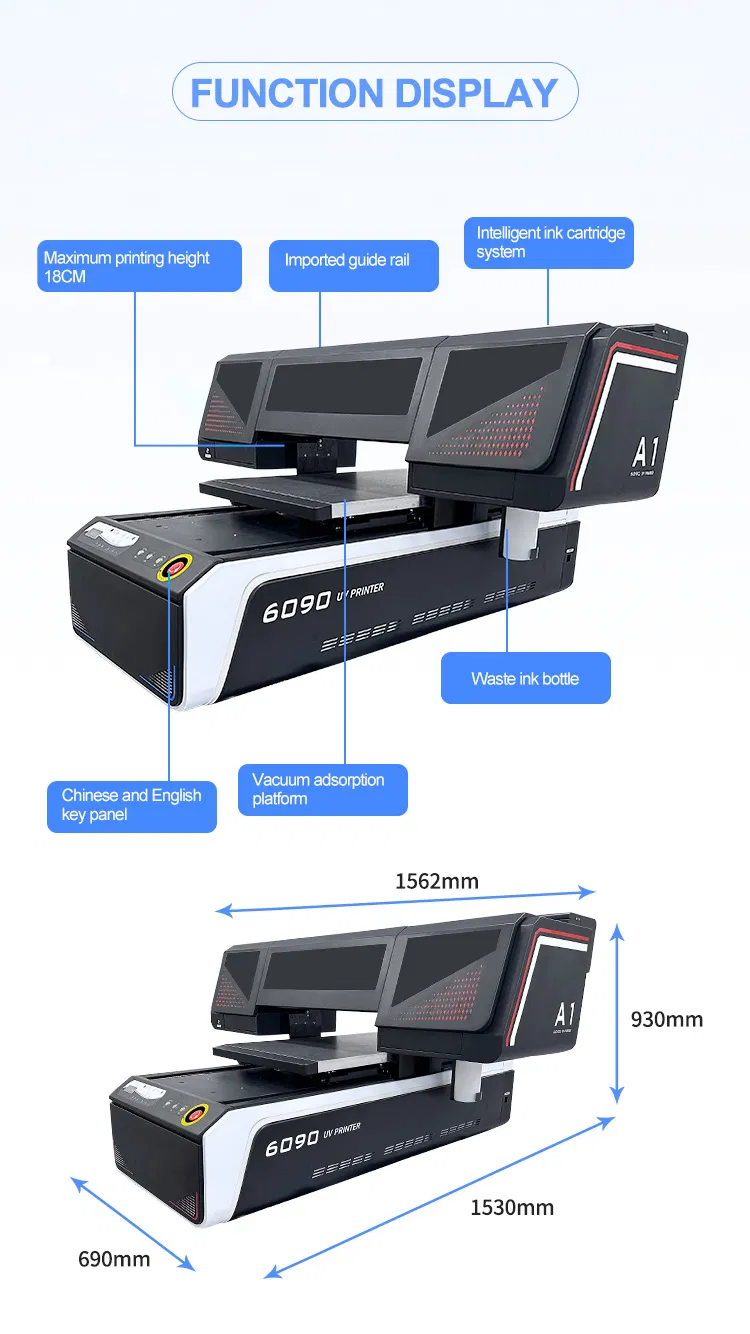

Technical Specifications

A1 6090 MAX UV Printer Details
Print Width	60*90cm	Max Thickness	0-200mm
Compatible Media	Phone case, Acrylic, Signage, Glass, Stainless steel, Ceramic tiles, KT board, Leather, Handicrafts, Wine bottle
Software	Maintop / PP / RIIN	Interface	Gigabit Ethernet Port
Gross Weight	255kg	Power	250W

Key Machine Configurations

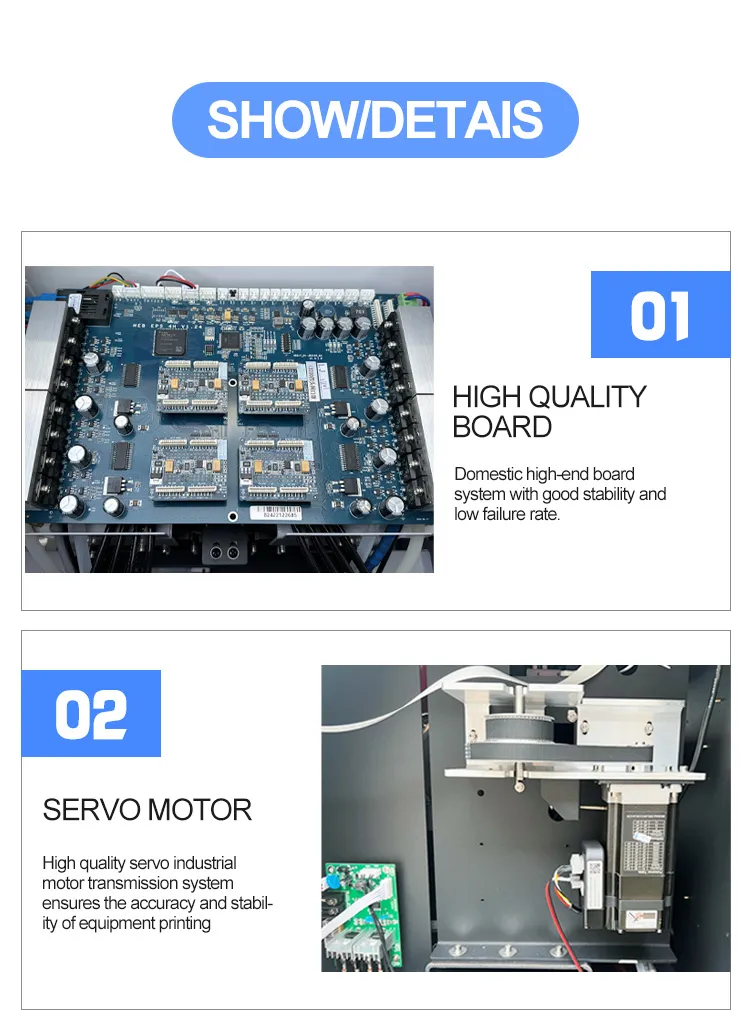

HOSON High-performance motherboard
Original Epson Print Heads
Leadshine Servo Motor System

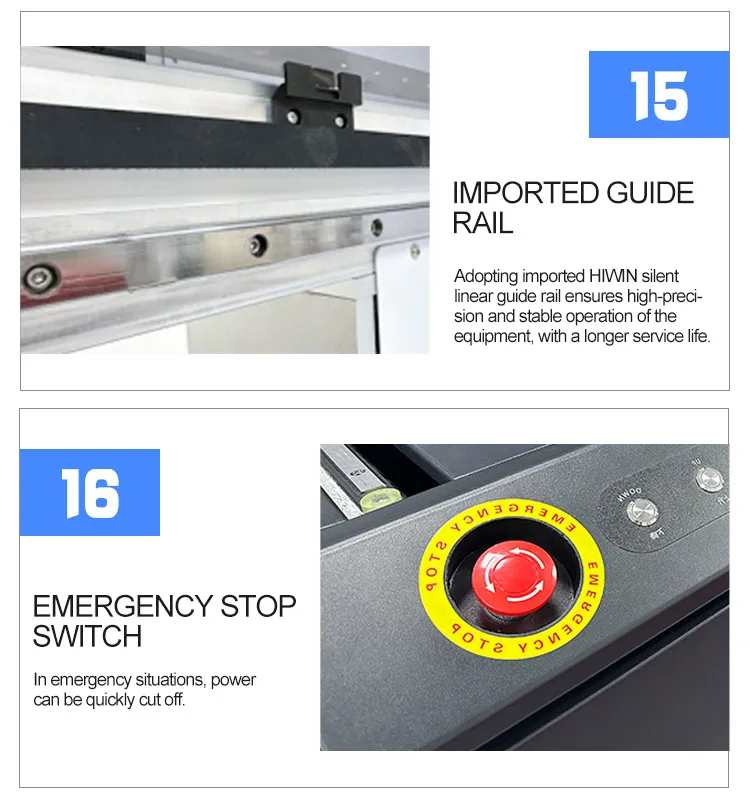

HIWIN Imported Guide Rails

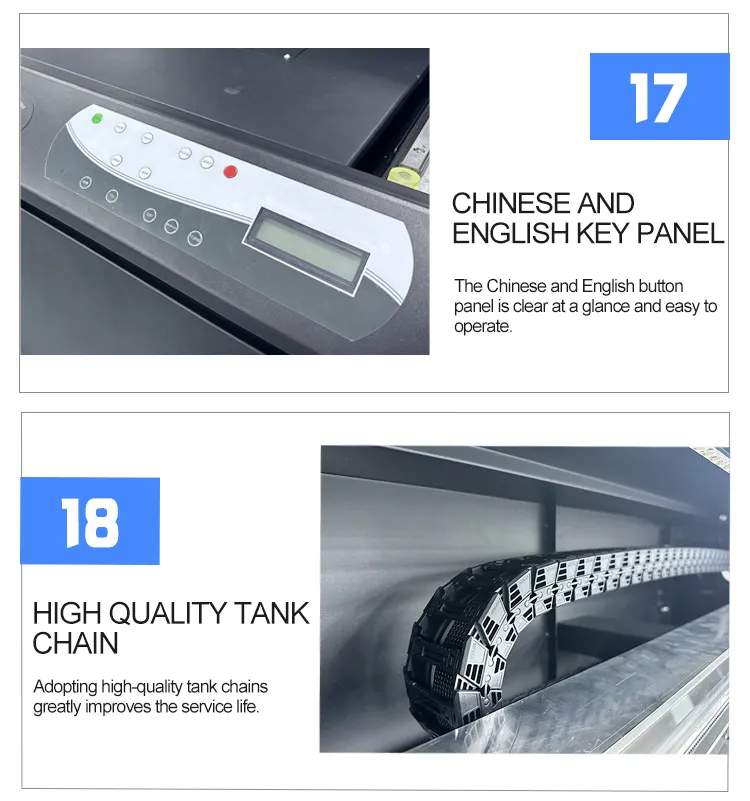

IGUS Silent Drag Chain
CNC Machined Aluminum Alloy Integrated Beam

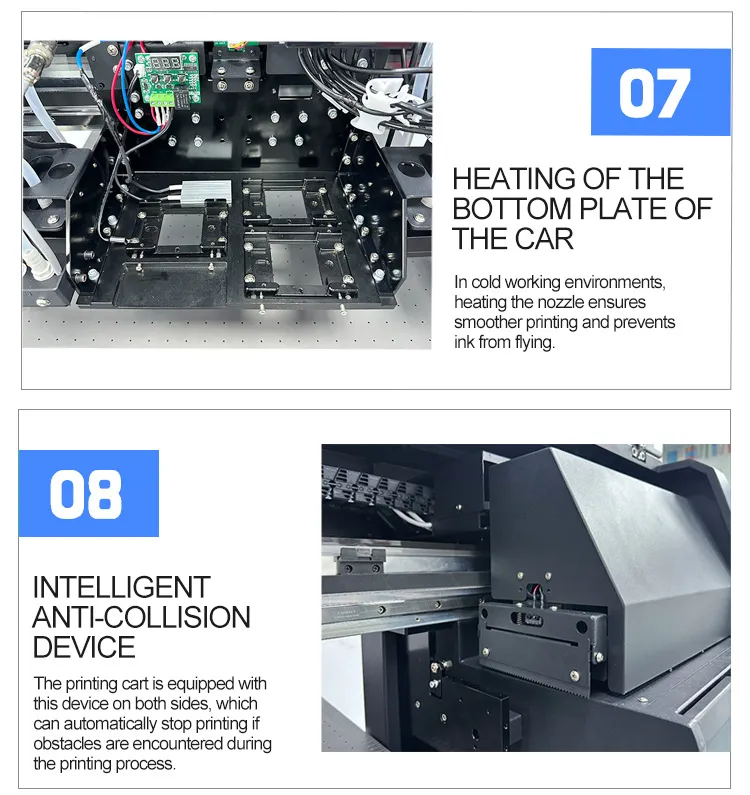

Printhead Anti-collision Device

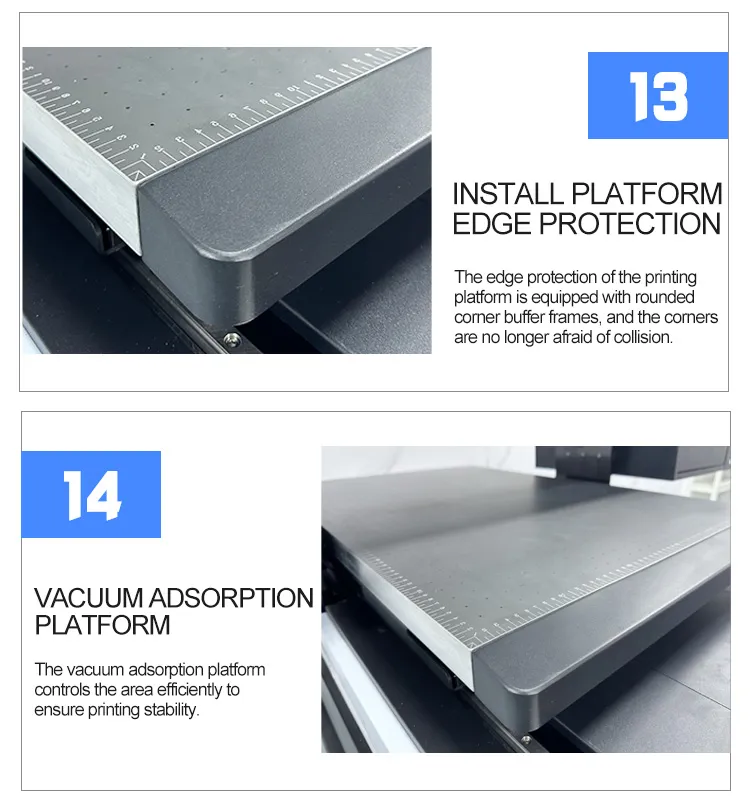

Precision Platform Suction System

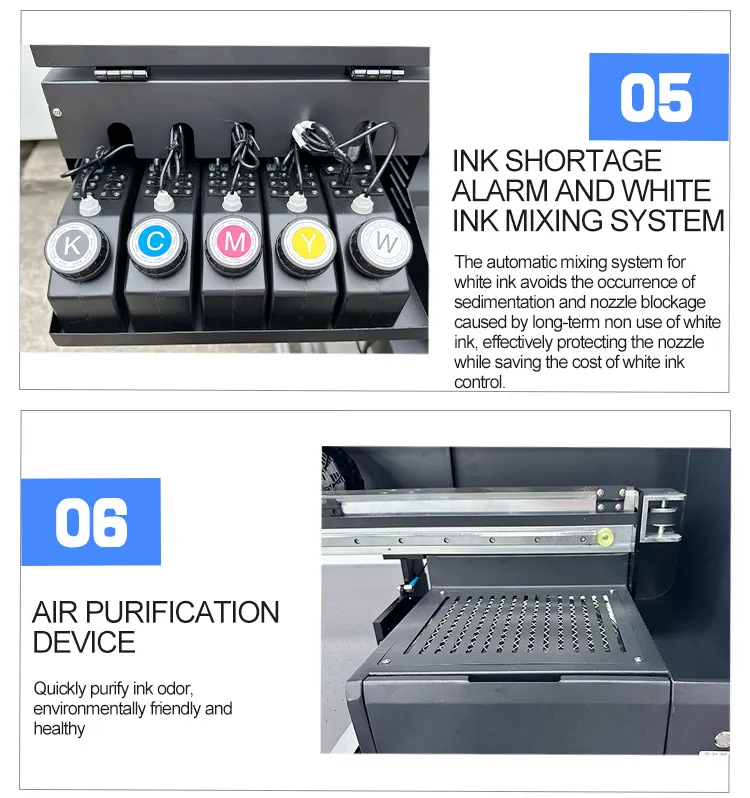

Automatic Ink Shortage Alarm

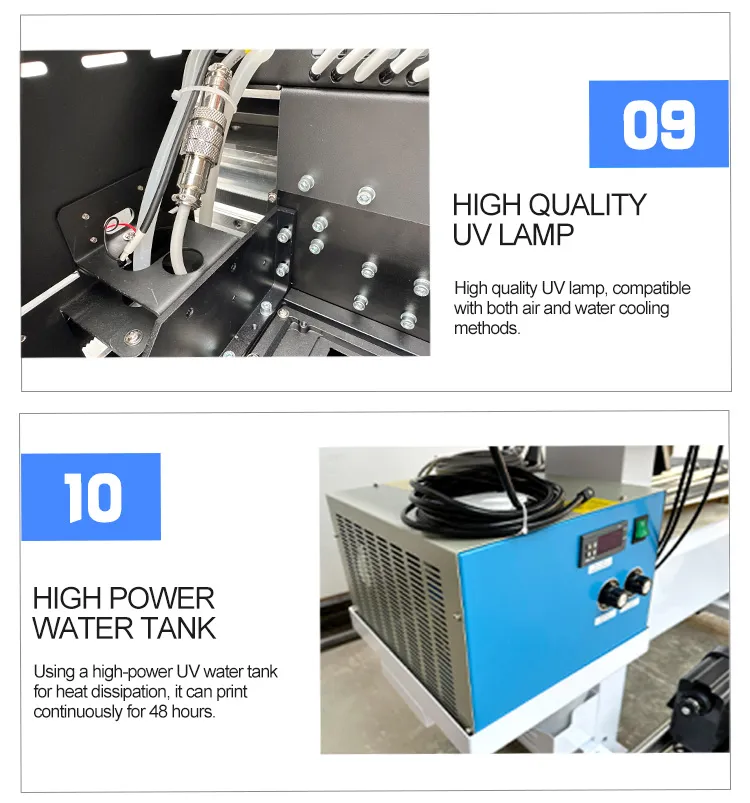

Air Purification & Water Cooling UV Lamp

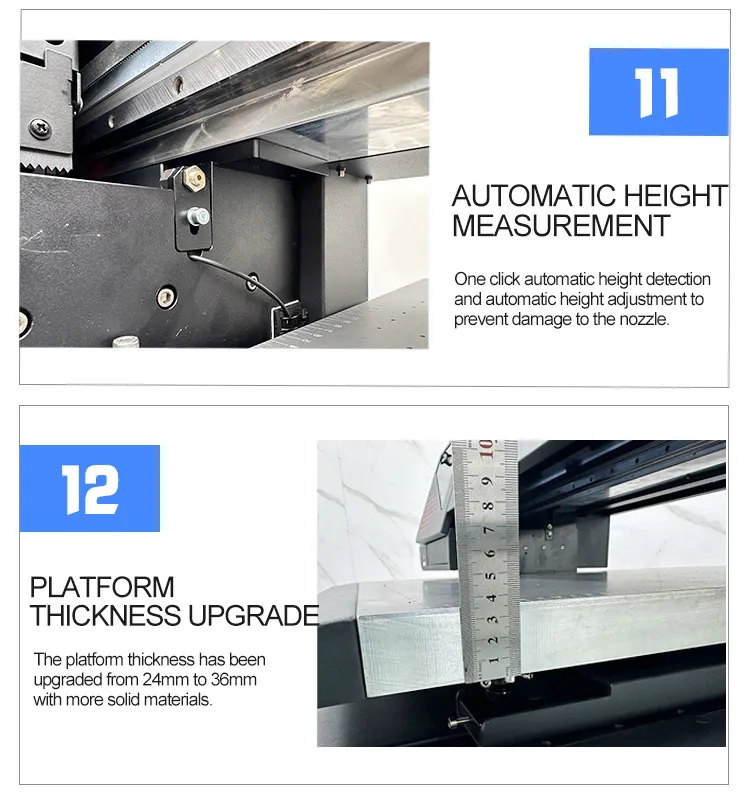

Automatic Height Measurement
White Ink Circulation & Stirring

Detailed Gallery

Frequently Asked Questions

What materials can this UV flatbed printer work on?

The GS6090 MAX is highly versatile and can print on phone cases, acrylic, signage, glass, stainless steel, ceramic tiles, KT boards, leather, handicrafts, and even wine bottles.

What is the maximum printing size and thickness?

The maximum printing area is 60x90cm (A1 size), and it supports a printing thickness ranging from 0 to 200mm, allowing for bulky items.

Which print heads does the machine support?

The machine is compatible with several industry-standard print heads, including Epson XP600, TX800, I3200, and I1600, depending on your speed and quality requirements.

Does the machine have an automatic cleaning system?

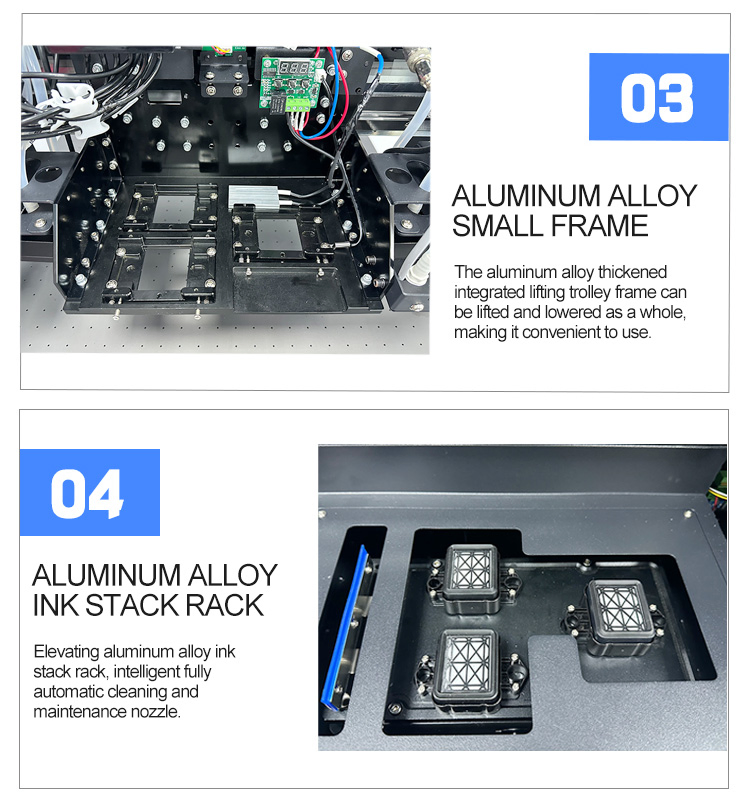

Yes, it features a one-key automatic cleaning function and an integrated auto-lifting ink station, making maintenance simple and efficient.

How does the printer prevent ink clogging?

It utilizes a white ink circulation and stirring system along with an ink stack core heating device to keep the ink flowing smoothly and maintain constant printhead temperatures.

What kind of software and operating systems are needed?

The printer supports RIP software like Maintop, PhotoPrint (PP), and RIIN. It is compatible with Windows 7, Windows 10, and Windows 11 operating systems.
