Technical Class
Fiber Laser
Laser Classification
Semiconductor Laser
Raw Material
Sheet / Plate Rolling
Material Processed
Carbon Steel
Control System
Bochu Laser Cutting System
Positioning Accuracy
0.03mm/M
Max Cutting Speed
120m/Min
Transmission
Hiwin Linear Rail + Belt
Cutting Thickness
0.2-40mm
Package Size
388.00cm * 215.00cm * 200.00cm

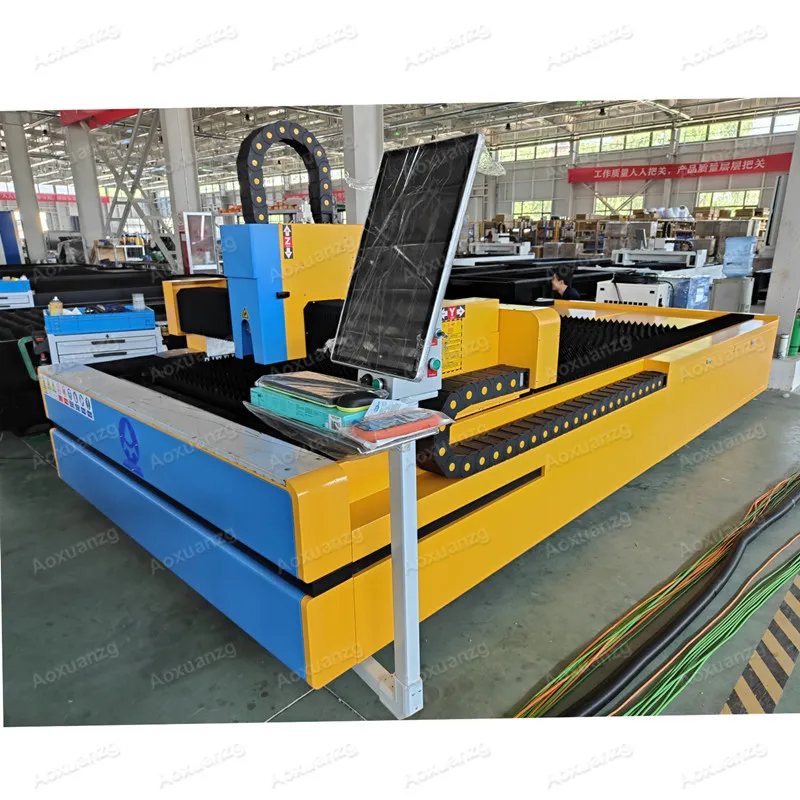

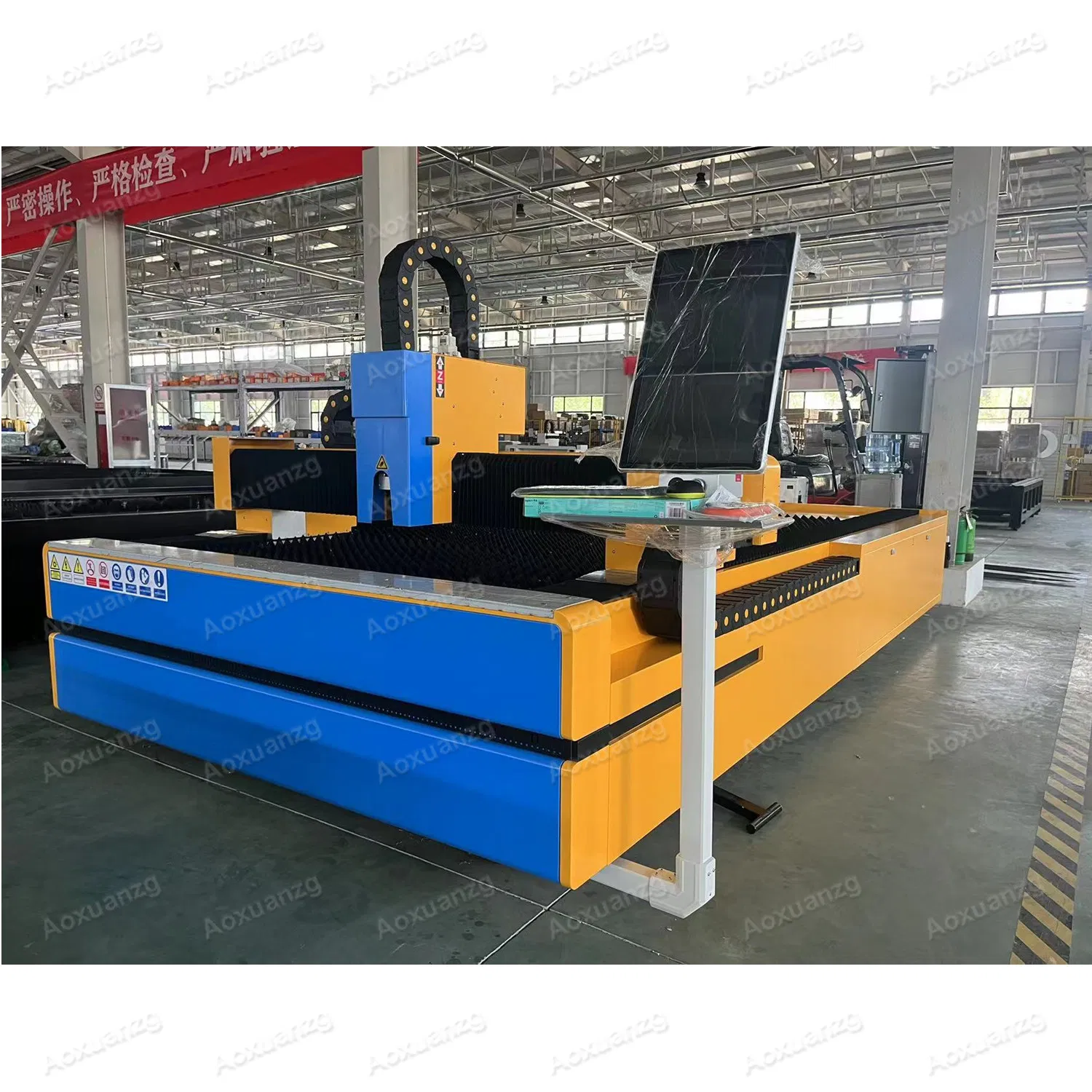

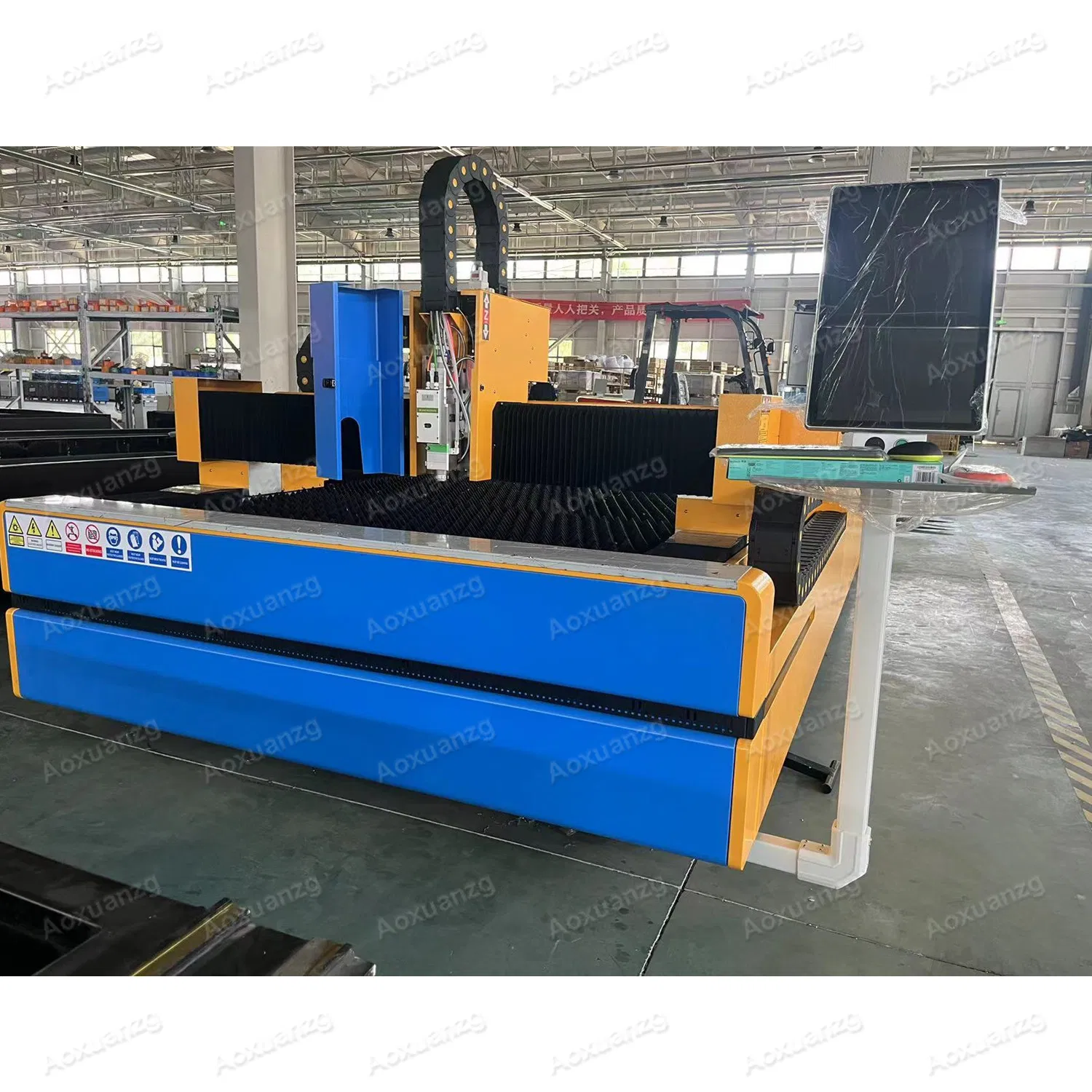

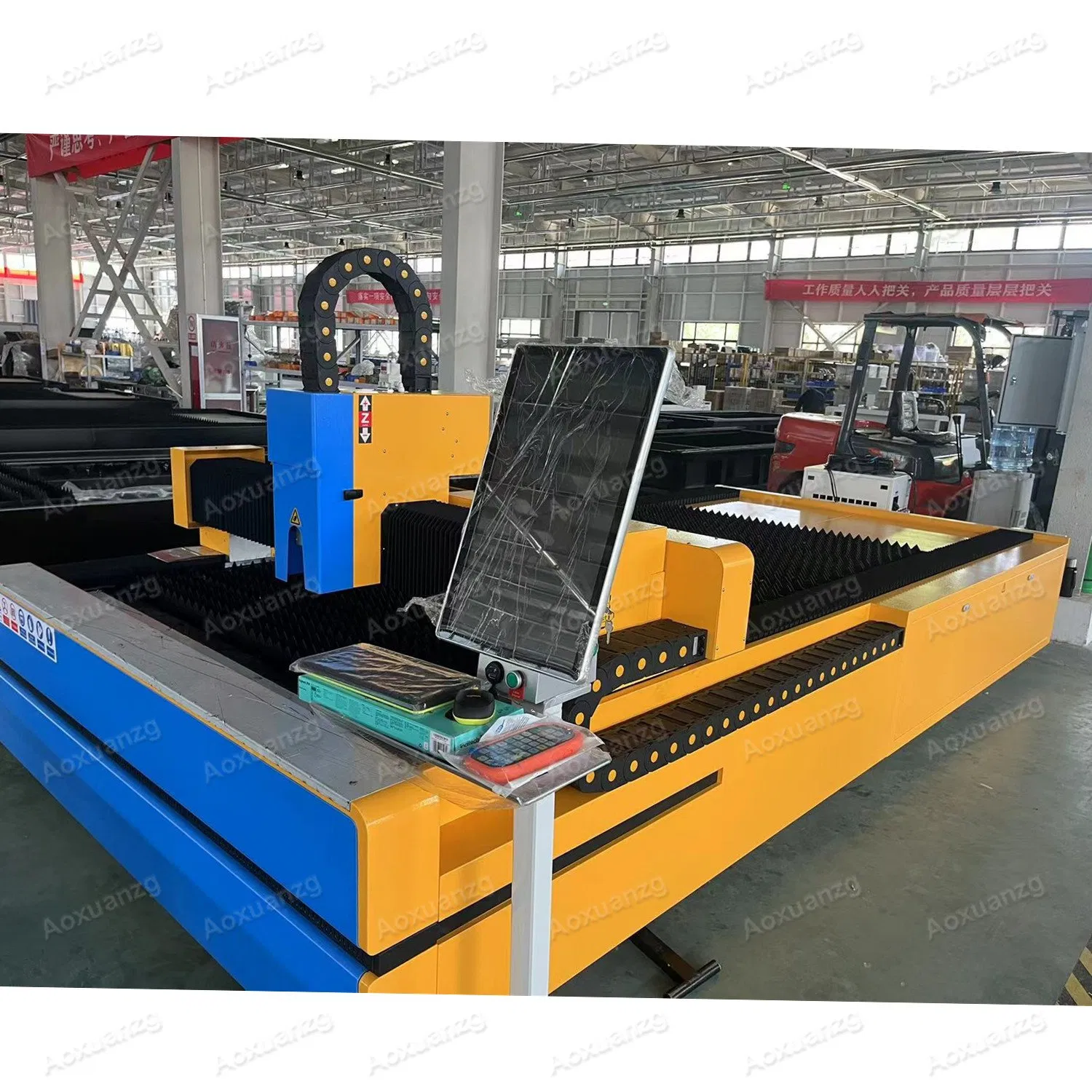

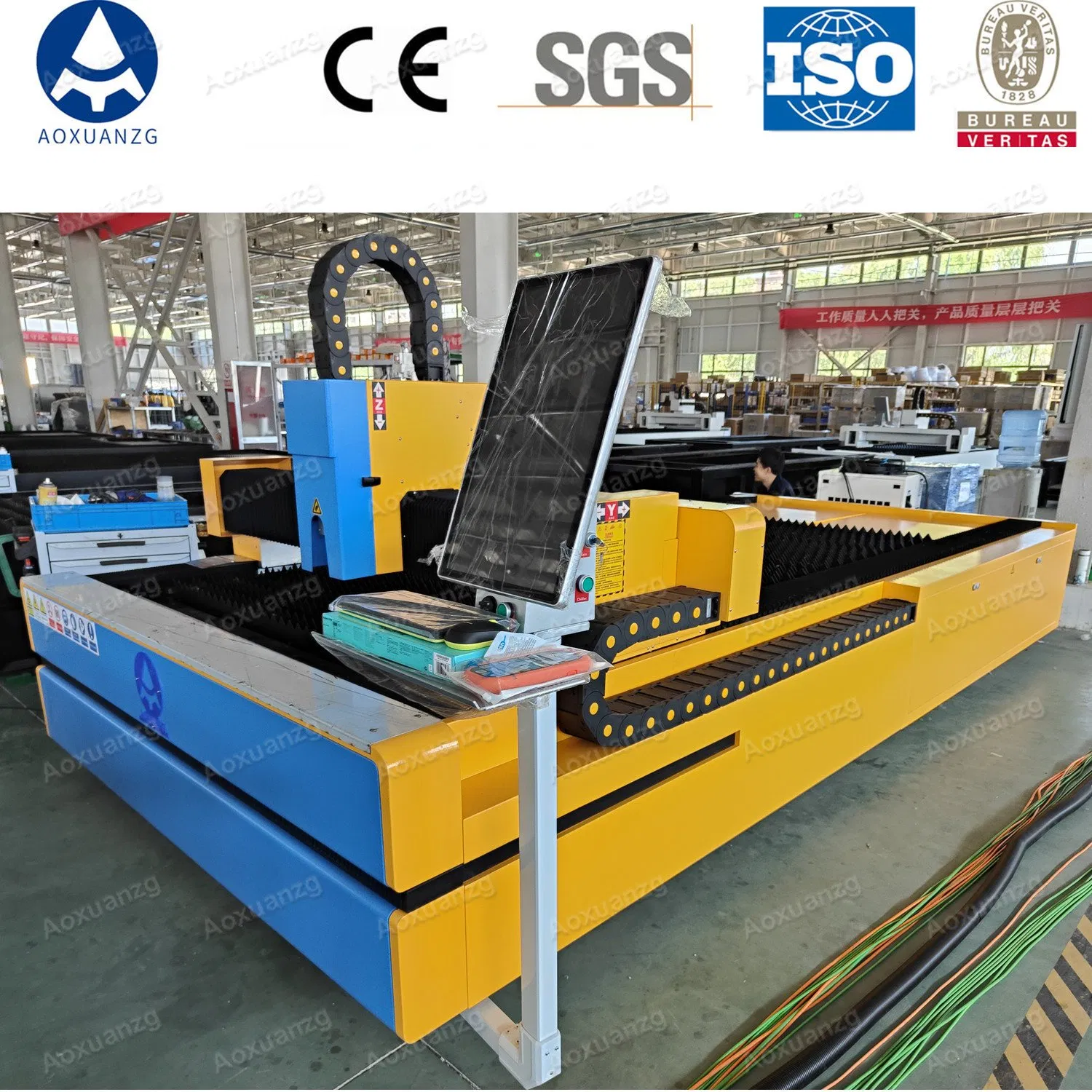

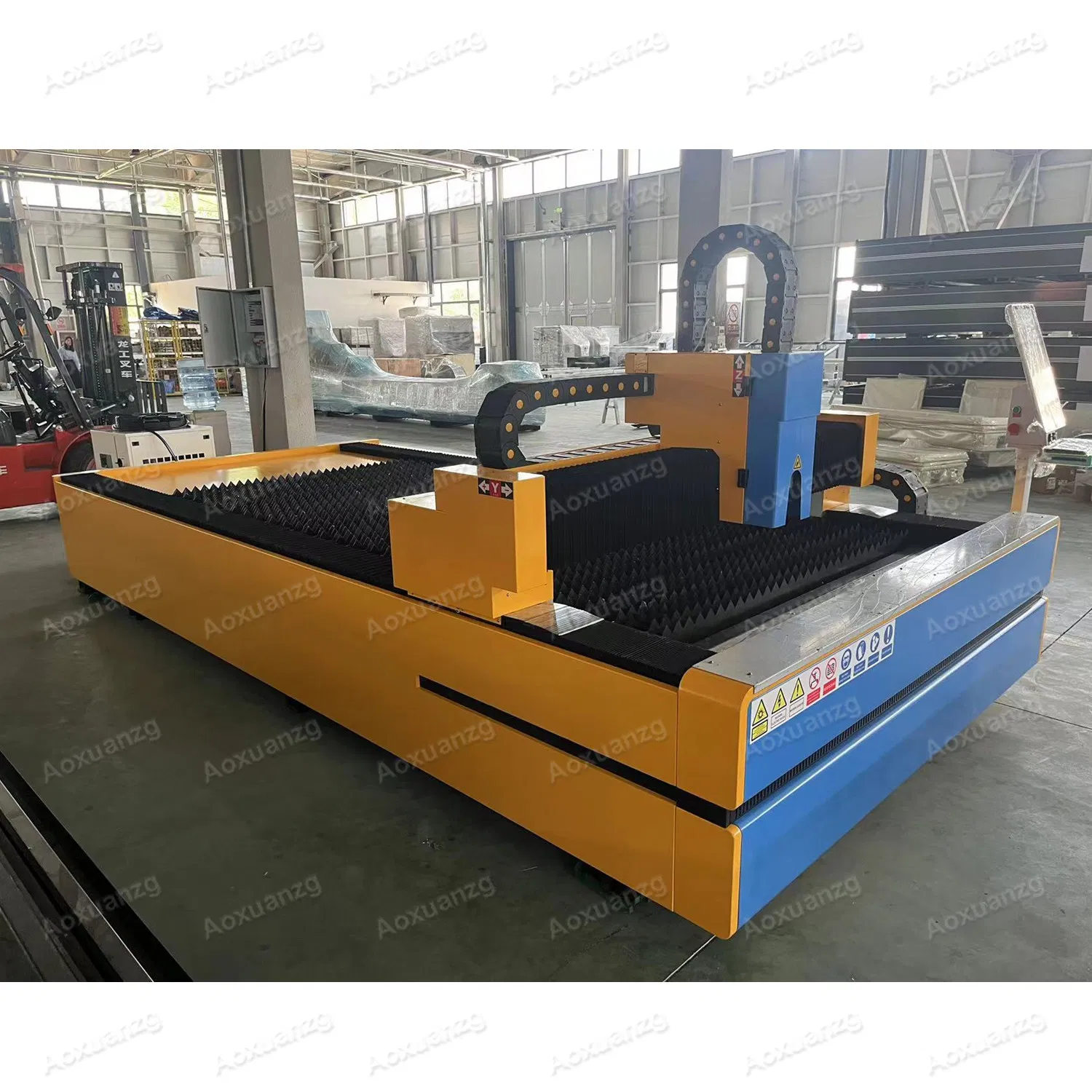

Automatic Laser CNC Fiber Optic Cutting Machine for Metal Cast Iron Carton Steel Brass Aluminum Cutting
Application Field
Widely used in aviation, aerospace, weapons, ships, automobiles, petrochemicals, medical, mechanical parts, electrical meter parts, saw blades, spring-chip, hardware, knife-volume, sheet metal structures, high-low-voltage electrical cabinet production, advertising signs, metal crafts, kitchenware, and decorating industries.
Key Features
Fusion of cutting-edge fiber laser and digital control technology for professional-grade computer operation.
Gantry structure with a high damping bed and excellent rigidity for high speed and acceleration.
Exchange workbench configuration improves work efficiency by more than 30%.
Imported AC servo system and gear rack transmission ensure high precision and reliability.
Fully sealed rack and guide rails prevent dust pollution and extend transmission part life.
Non-contact height tracking system avoids collisions and ensures stable focus.
Withstands 2.0Mpa gas pressure for cutting stainless steel and difficult materials.
Automatic partition smoke exhaust system for low pollution.
Highly integrated system with a small footprint, ideal for 24-hour industrial production.
Technical Details

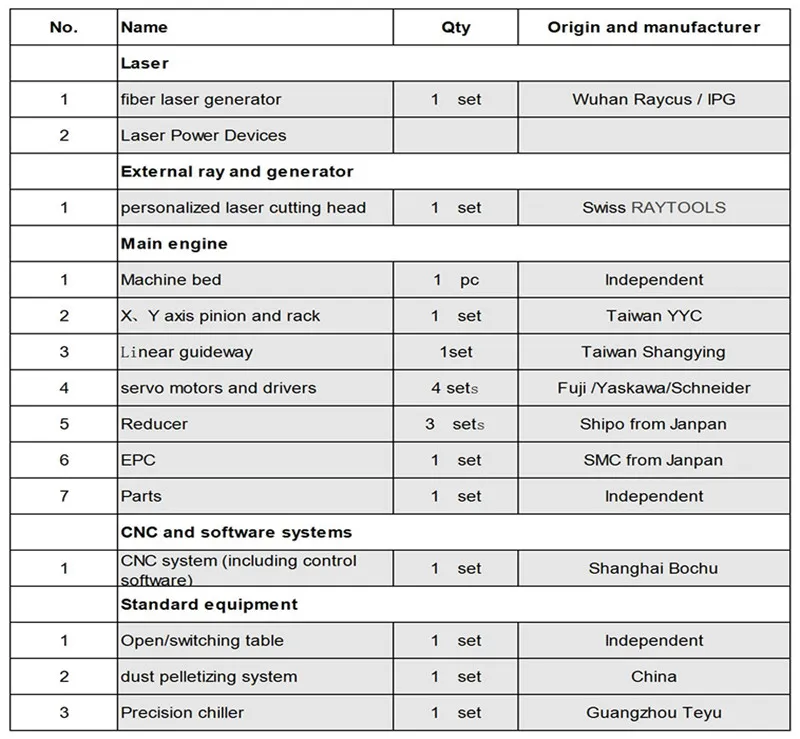

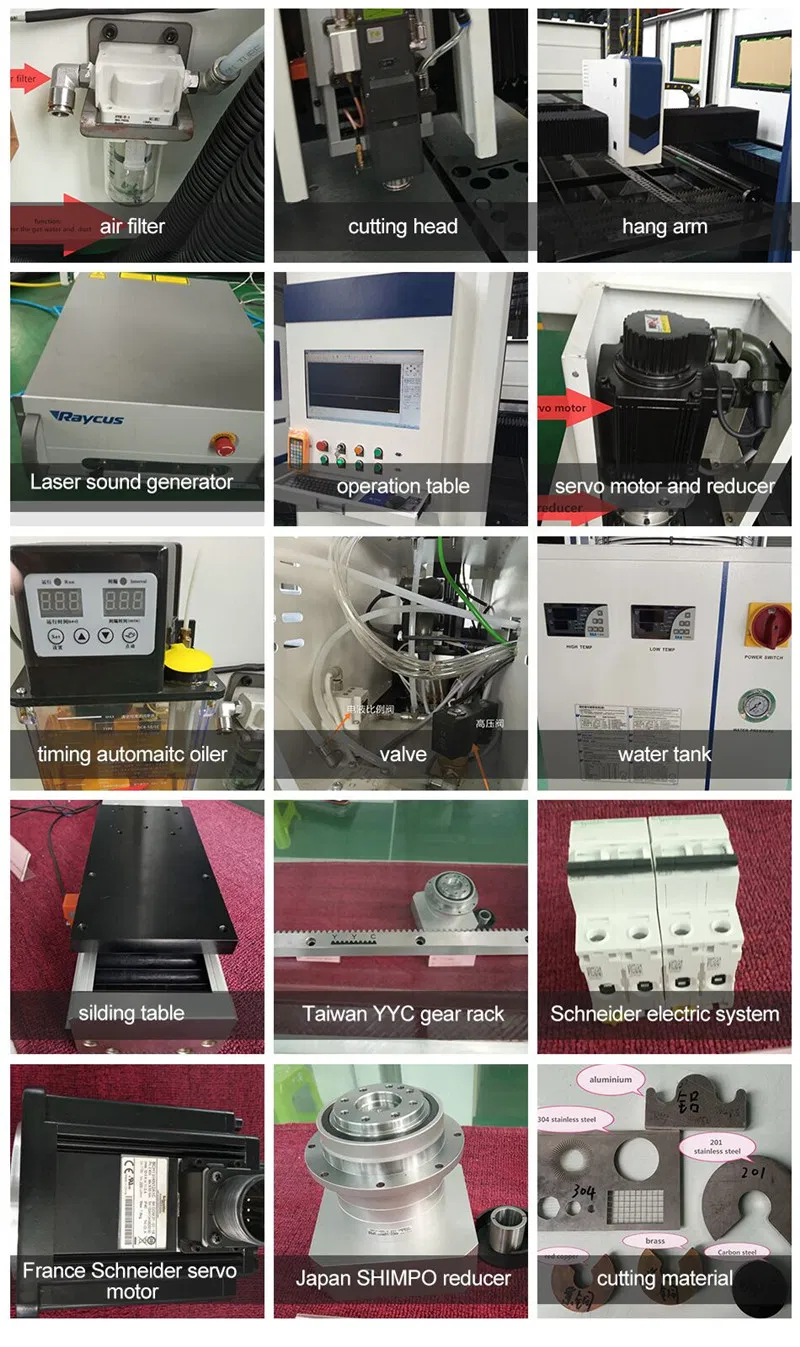

Standard Configuration:
1. Reci Fiber Laser Generator (IPG optional)
2. Swiss Raytools Laser Cutting Head
3. Alpha Reducer From Germany
4. Bochu/Weihong Laser Cutting System
5. Servo Drive From France
6. Taiwan SMG Linear Guider

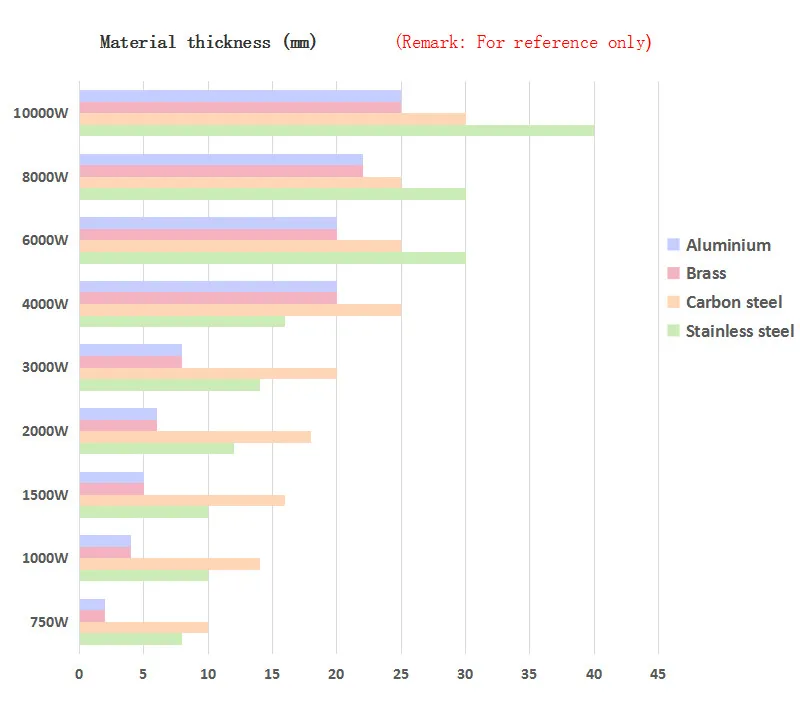

Technical Parameters
Packaging & Service

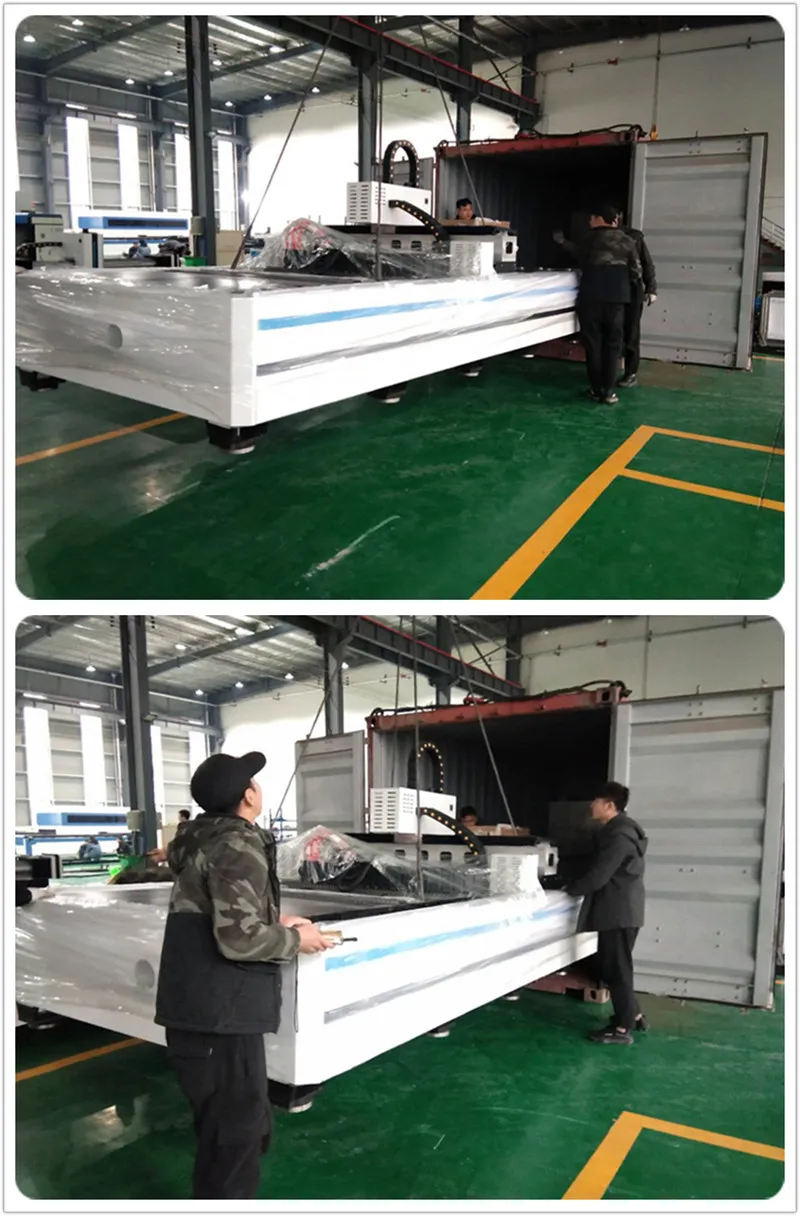

Packing Detail: Wrapped in plastic film and secured in a wooden case with foam filling. Shipped via heavy trucks to terminal for container loading. Delivery within 30 days after payment.
Our Services:
Pre-sales: Project design, technical agreements, and sample testing support.
In-sales: Regular updates on assembly, packaging, and transportation progress.
After-sales: Free accessories for non-human damage, installation training via video, and overseas technical guidance available.
Frequently Asked Questions
What materials can this machine cut?
The fiber laser cutting machine is designed for metal materials, including carbon steel, stainless steel, aluminum, brass, and various alloys.
How do you ensure the quality of the machine?
We use high-quality imported components such as German laser heads and reducers. Every machine undergoes a professional inspection and testing process before shipment to ensure stability and precision.
What are the payment terms for orders?
We accept T/T, L/C, Western Union, and Paypal. Generally, a 30% deposit is required to start the order, with the remaining 70% paid before shipment.
What kind of after-sales support do you provide?
We provide a 13-month warranty and life-long maintenance. We offer installation training videos and our technical staff can travel abroad to provide guidance if needed.
Can the machine be customized?
Yes, we accept various types of customization, including specific configurations, machine colors, and customer logos.
How long is the delivery time?
Typically, machines are shipped within 30 days after the payment is confirmed.
