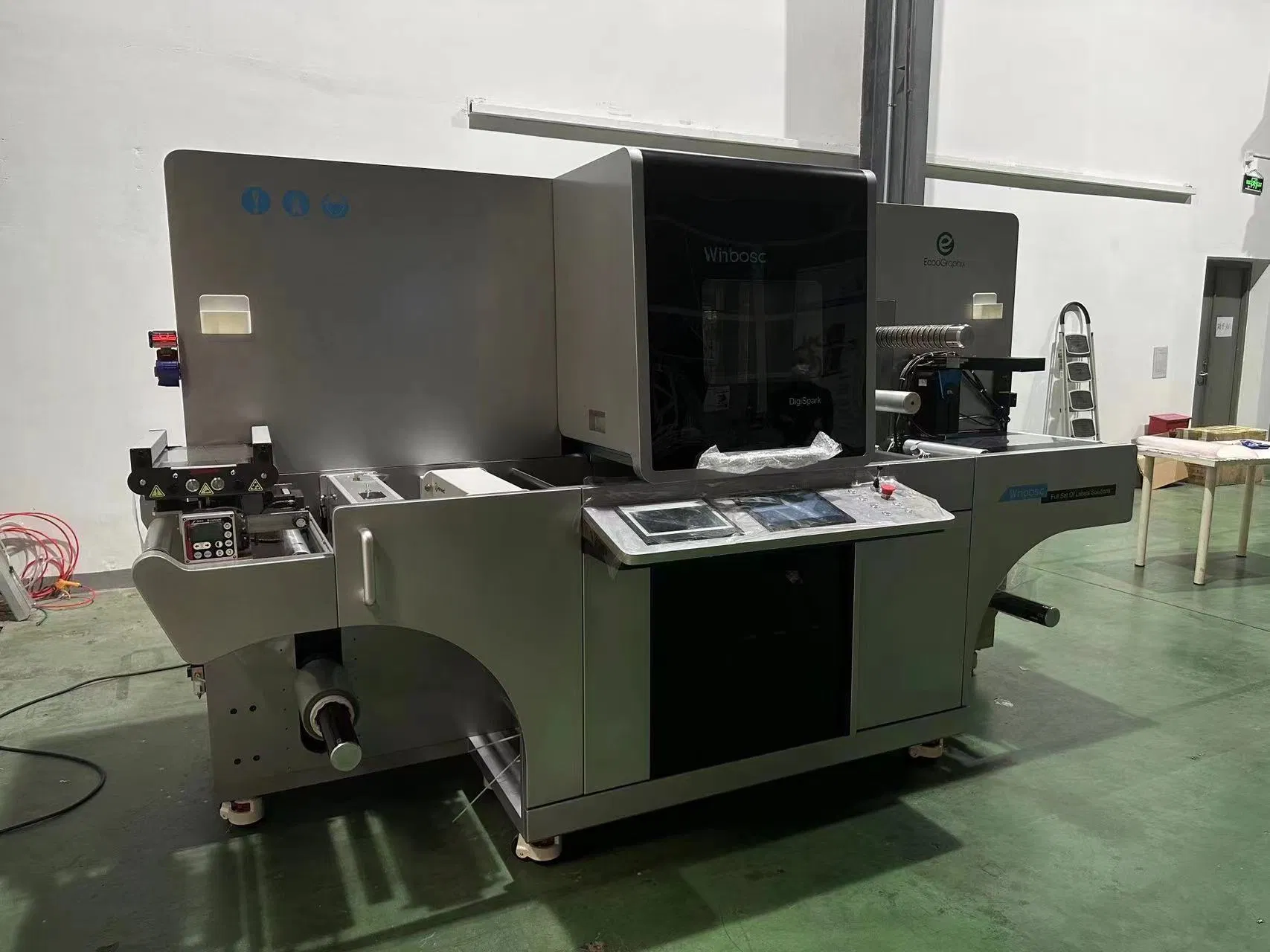

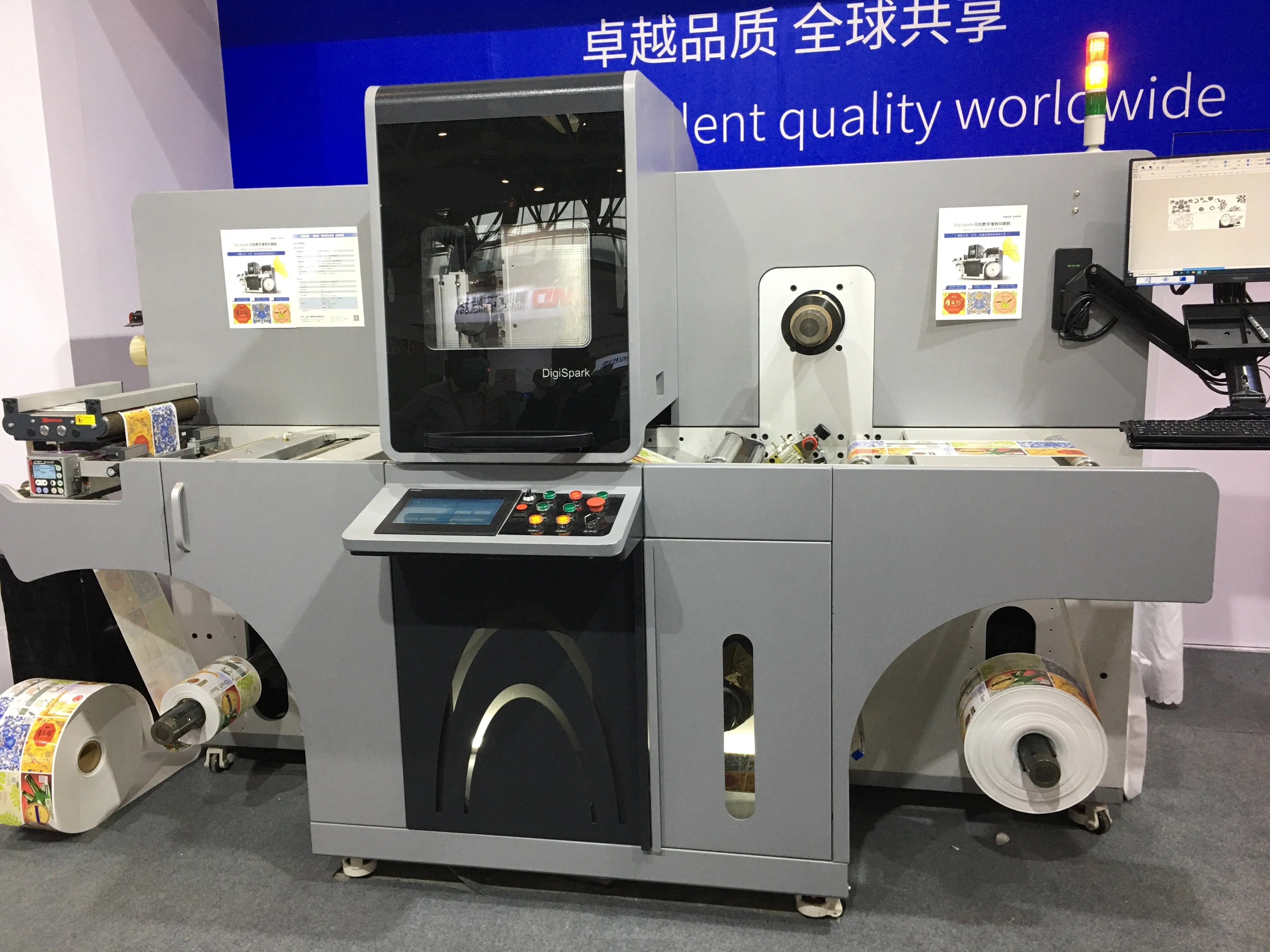

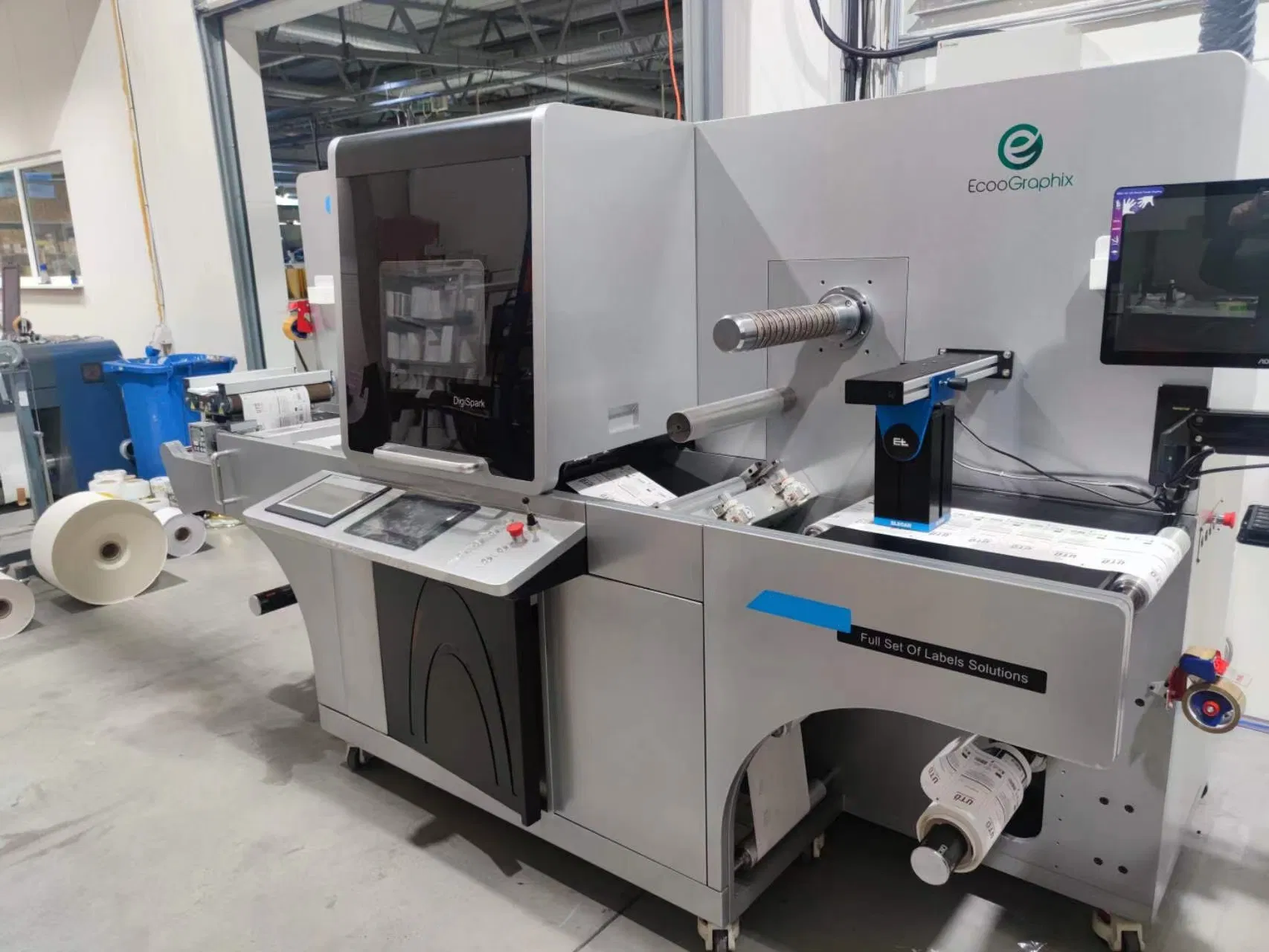

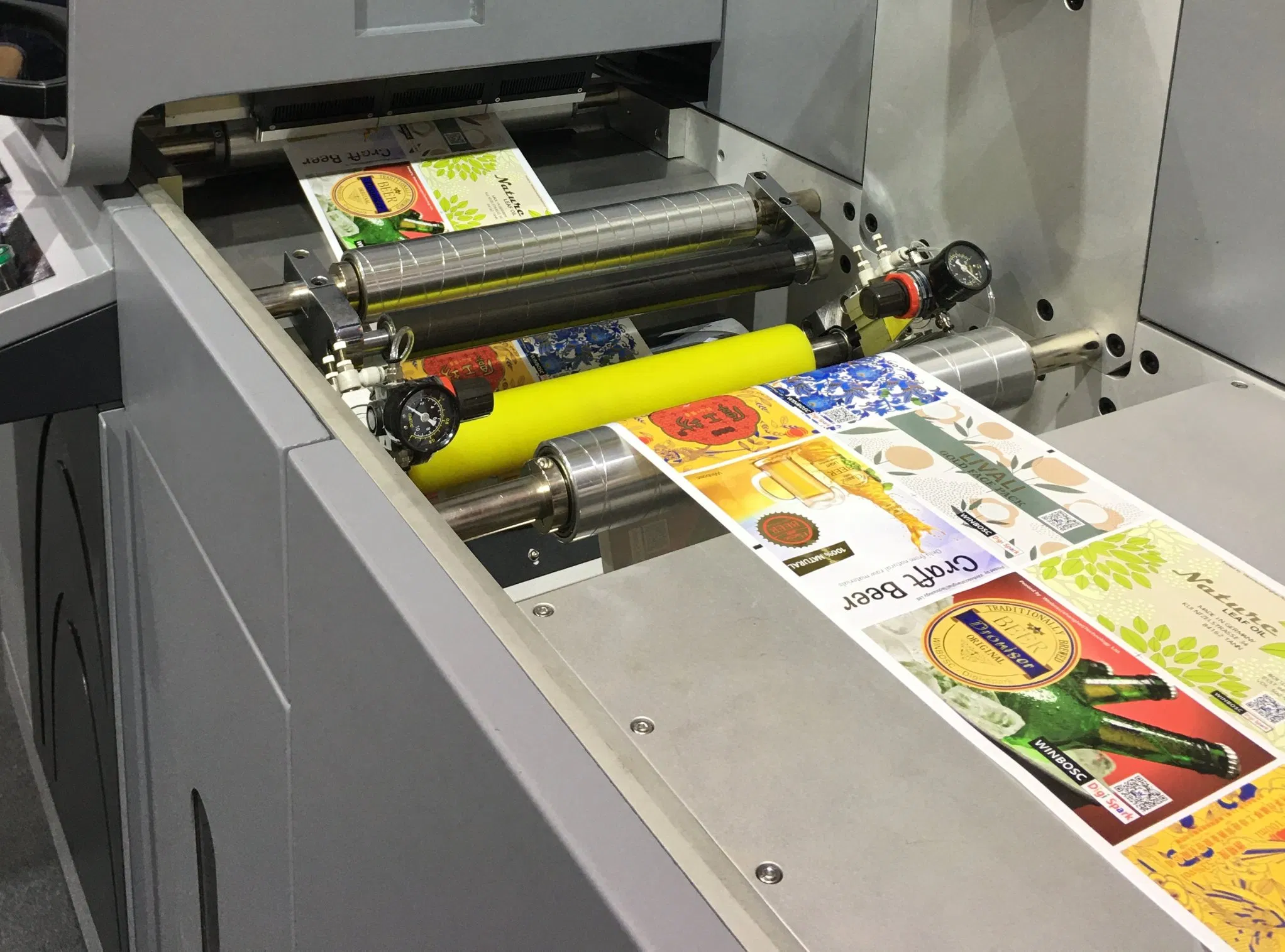

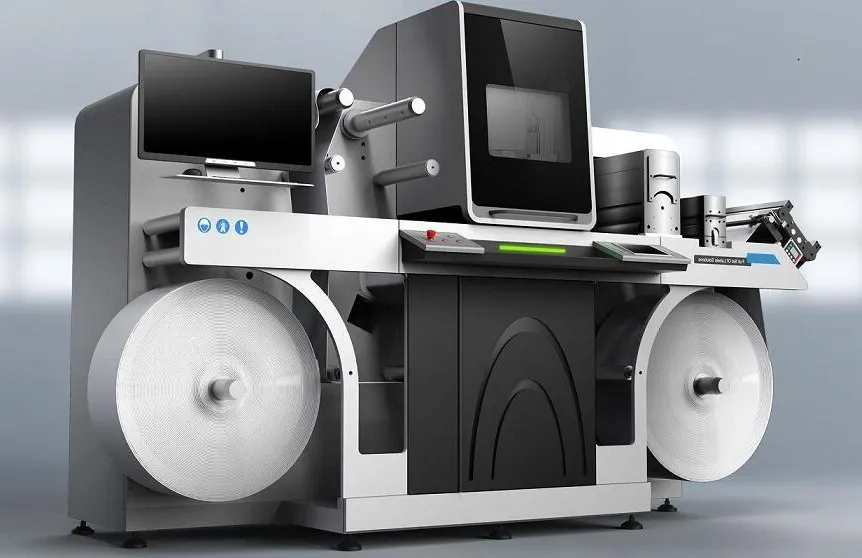

Digispark is a label digital post-press effect enhancement machine. It specializes in spot UV varnishing, embossing, 3D shining effects, digital foil, and variable data enhancements.

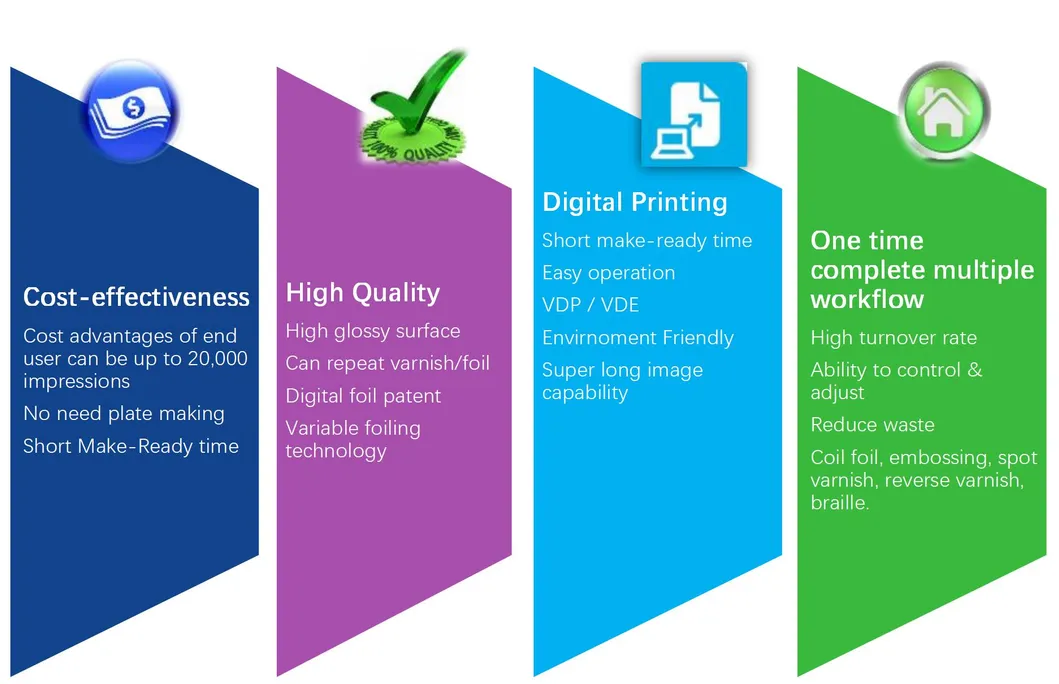

This machine is far more versatile and value-adding than normal varnishing and foil stamping. As a roll-to-roll digital machine, it offers unique positioning for label printers looking for premium features.

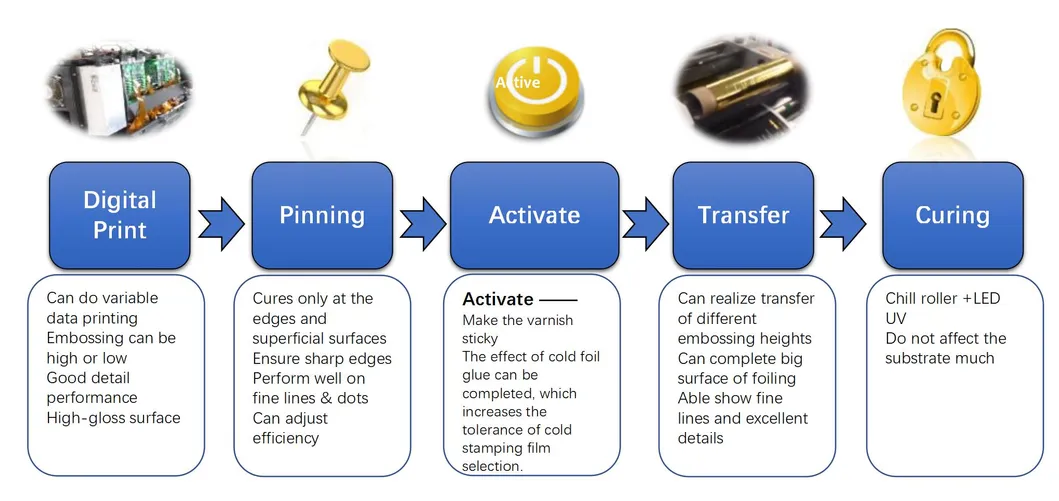

Short production procedures from computer to label. High added value for short to medium length orders.
Precisely vary coating thickness on each sheet. Adapt to customer needs flexibly and on demand.
Drop-on-Demand Piezoelectric print heads ensure consistent quality from the first page to the last.
| DigiSpark Digital Label Foil Stamping and Varnishing Machine | |
|---|---|
| Printing Technology | UV Piezo DoD (drop on demand) inkjet |
| Resolution | up to 1440*360 dpi |
| Printing Speed | Max. 60m/min (depend on polymer layer thickness) |
| Variable Image System | PDF, optimized PDF, Optional barcode system |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing Image Width | 288mm (extendable to 320 mm) |
| Polymer Layer Thickness | From 10 up to 200 microns |
| Ink Curing | Inter UV-LED Pre-curing / Full curing by UV-LED |
| Unwind/Rewind Diameter | Max. 700mm, Core 76mm |
| Substrates Thickness | 30-400 micro |
| Machine Dimensions | 3500mm x 1900mm x 1800mm (LxHxW) |
| Weight | 2800kg |
