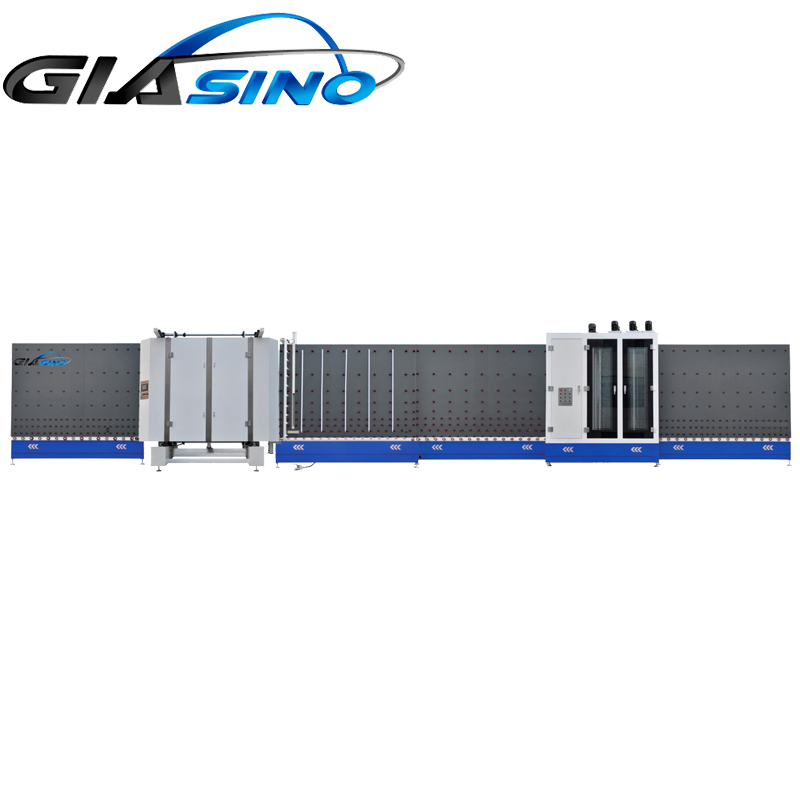

Double Glazing Glass Making Machine Double Glaze Insulating Glass Machine

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Basic Info.

Model NO.

LB2530/2500/2000/1800

Machine Type

Insulating Glass Production Line

Function

Glass Production Line

Usage

Making Double Glass

Key Word

Insulating Glass Production Line

Marketing Typ

Window Door Machine

Type

Insulating Glass Production Line

Structure

Vertical

Condition

New

Warranty

24 Hours

After-sales Service

24 Hours

Transport Package

Film Package

Specification

22750*2300*3400mm

Origin

China

Production Capacity

800 Sets/Year

Product Description

Automatic Insulating Glass Production Line glass processing machine

Equipment Features

1PLC control touch screen human-machine interface.

2Automatic identification of coated glass and LOW-E glass film layer.

3Application of imported vacuum generator and suction cup for better glass catching.

4Three pairs of glass cleaning hairbrushes with frequency conversion speed control.

5Big/small sized and three layer hollow glass production capabilities.

6Digital controlled assembling line to improve efficiency and save time.

7Plastic spraying processed production panel for durability and appearance.

8Cleaning machine made with stainless steel and resistance material.

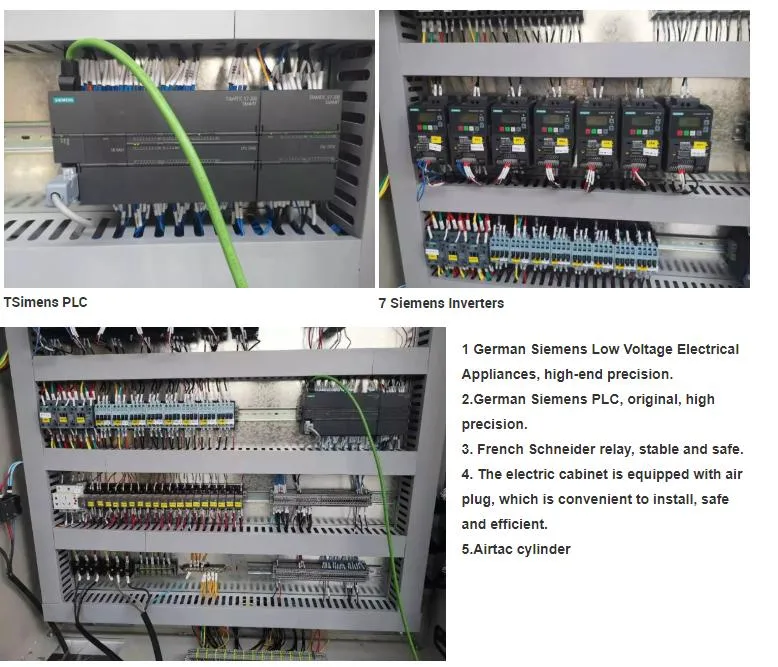

9Electrical appliances selected from famous international brands.

10Optional press section with 450mm big stroke for easy maintenance.

11Plate press adopts central location way for exterior conjunction.

12Free alternative between interior and exterior conjunction.

13Opening-door style press section for convenient overhaul.

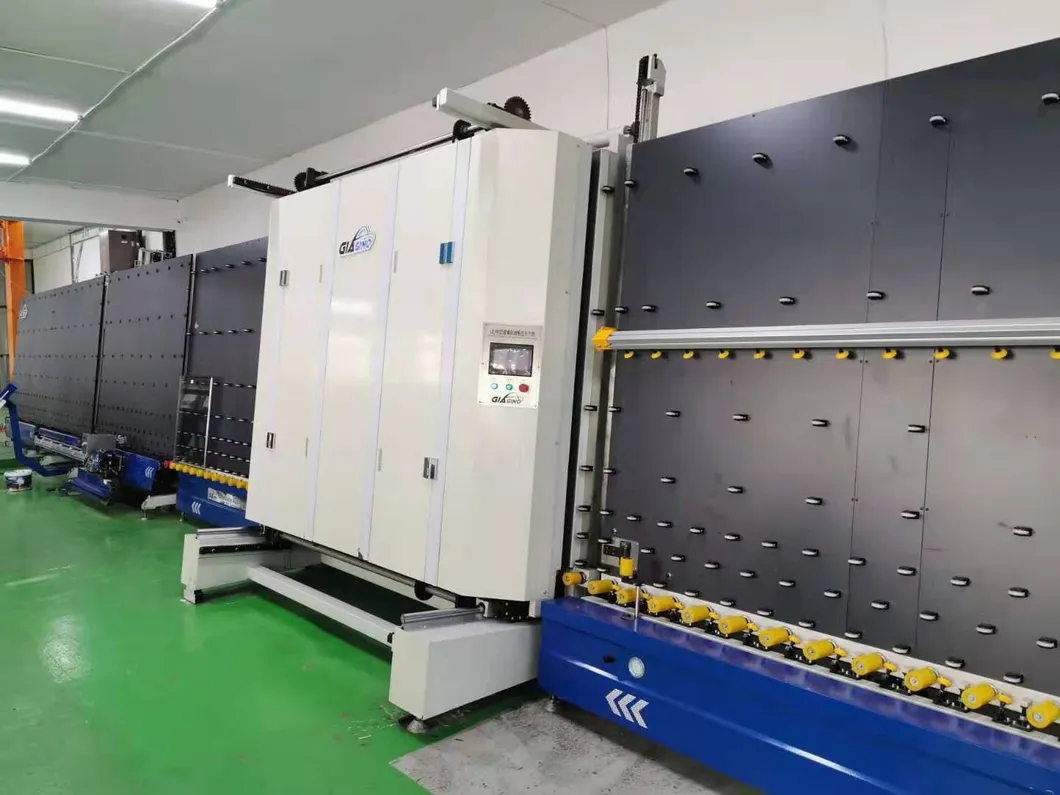

Washing & Drying Section Details

• Industrial Construction: Stainless steel shell and brush bearing base. High-precision self-aligning bearings for long life.

• Advanced Brushing: 3 soft brushes (front) and 3 hard brushes (back), specifically equipped for LOW-E glass.

• Independent Motors: 6 independent motors using coupling links instead of belts to prevent slippage.

• Water System: 6-bristle water purification spray system with stainless steel baffles to prevent cross-contamination.

• Drying Technology: German technology air knife with water mist separation device, adjustable based on glass thickness.

Product Parameters

Model	LB 2530	LB 2535	LB 1825	LB 2025	LB 2030
Power	27.25 KW	34.25kw	15.86kw	20.87kw	24.5kw
Max Glass size	2500*3000mm	2500*3500mm	1800*2500mm	2000*2500mm	2000*3000mm
Min Glass size	300*450mm		300*540mm
Pane Thickness	3-12mm
Max IG thickness	12-50mm		12-40mm
Washing speed	0-8m/min
Working speed	0-45m
Air Pressure	0.8m³/min
Overall Dimension	2275023003400 mm	2650023003400mm	1863021002850mm	1863021003050mm	2164021003050mm

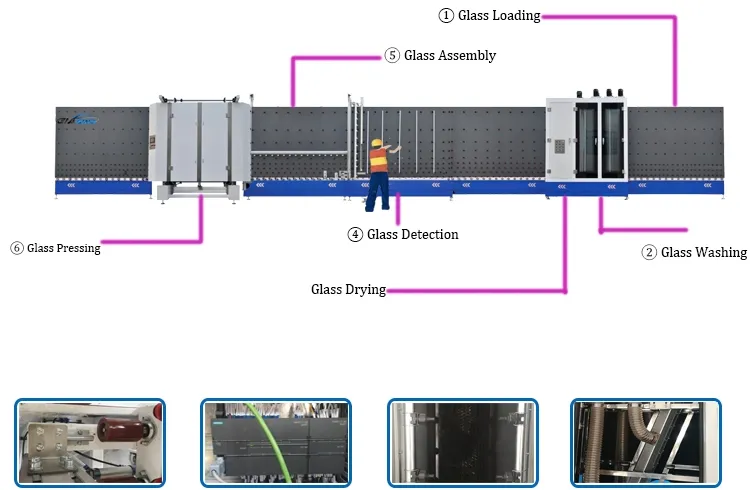

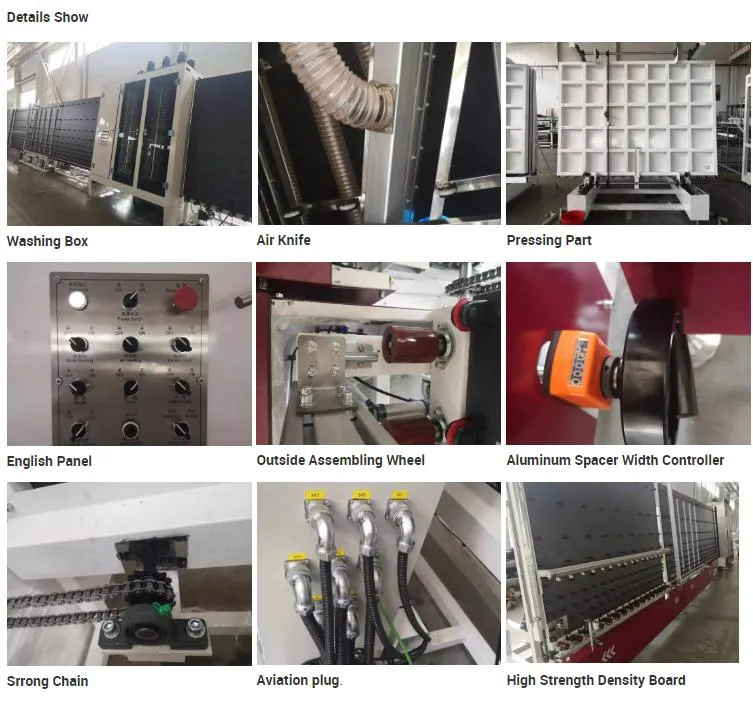

Detailed Photos

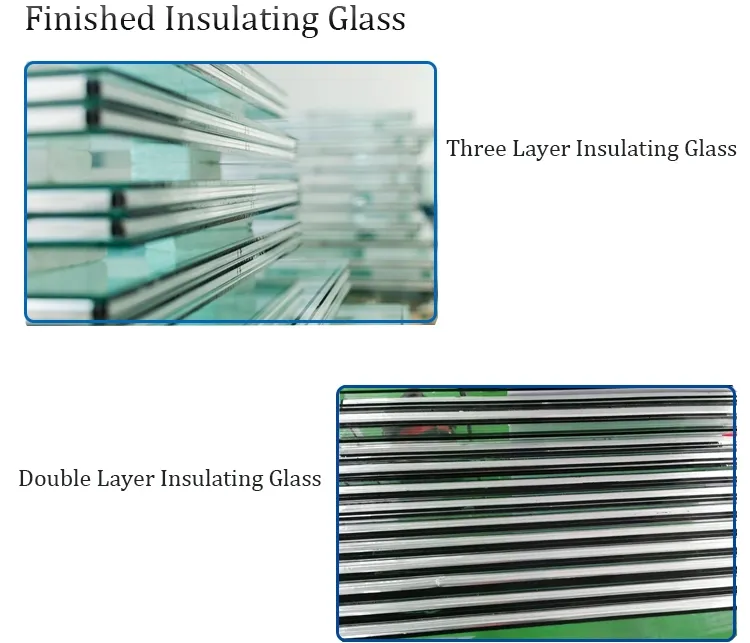

Product Samples

Company Overview

Founded in 2003, we are a high-tech enterprise specializing in the production of CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our production line includes Laminated glass cutting machines, Automatic glass cutting lines, Multi-functional glass cutting machines, and CNC sealing machines. We have achieved European CE certification, Switzerland SGS certification, and ISO 9001:2008 quality control standards. We continuously research and develop advanced technology to meet market needs, prioritizing quality as the life of our enterprise.

Frequently Asked Questions

When can we arrange shipment?

We usually arrange shipment within 15 days after getting the deposit, but customized machines may take more than 25 days.

What can you do if my machines have problems?

1) We can send free components to you if your machines are within the guarantee time. 2) We can send our engineers to repair your machines.

Do you provide equipment operation training?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers hold passports for international travel.

How does your pricing compare to other factories?

While prices vary, we focus on quality components and service. We use reliable, world-famous brand electrical parts to minimize breakdowns and ensure long-term stability.

Is the machine suitable for LOW-E glass?

Yes, the production line features automatic identification for coated glass and LOW-E glass film layers, including specialized soft brushes for cleaning.

What is the warranty period for this production line?

The machine comes with a standard warranty, and we provide 24-hour after-sales support to ensure your production remains uninterrupted.
