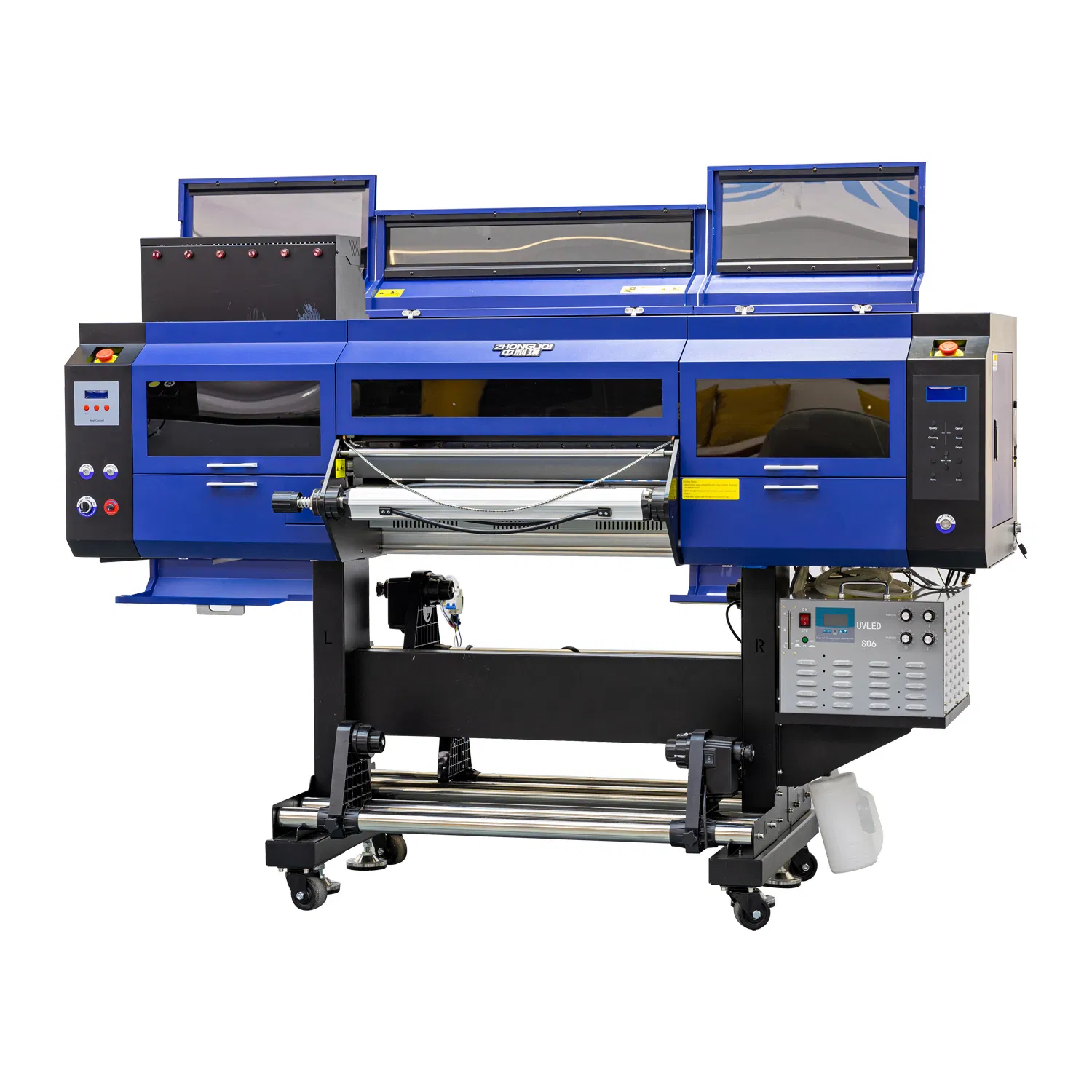

Embroidery Roll UV Printer Dtf Film UV Printing Machine for Textile Printing

1 / 5

Embroidery Roll UV Printer Dtf Film UV Printing Machine for Textile Printing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

UV DTF printer

Plate

Digital Printing

Structure

Roll-to-Roll

Color & Page

Multi-Colour Printing Press

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

10m2/H, 7m2/H, 4m2/H

Print Head

I3200/I1600

Ink Type

UV Ink

Available Width

0-600mm

Voltage

220V, 2000W

Package Size

212.00cm * 75.00cm * 76.00cm

Product Description

3D embroidery UV DTF (Direct-to-Film) printing is an innovative technique that combines elements of 3D embroidery and UV printing to create highly detailed and textured designs on various fabrics. This method allows for vibrant, durable prints with a raised effect that mimics the look of embroidery.

Design Creation: Create your design using graphic design software suitable for 3D effects.

Film Printing: Print the design onto a special film and UV Ink using a UV printer.

Heat Transfer: Place the printed film onto the fabric and use a heat press to transfer.

Peeling: Carefully peel away the film, leaving the 3D embroidered effect design.

Re-press: Put the waste A film on the design and re-press for increasing firmness.

Technical Parameters

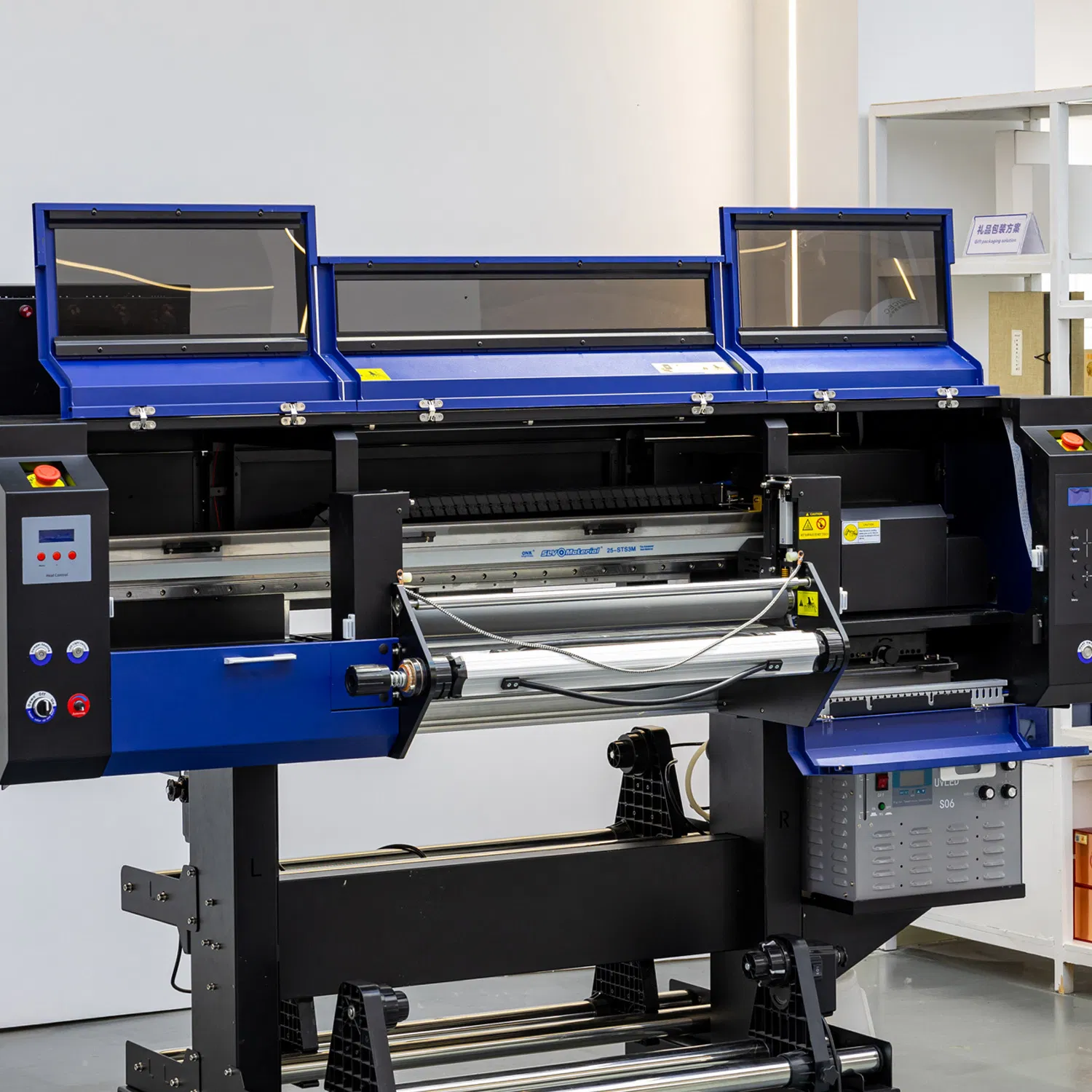

UV DTF Textile Printer Specifications
Print width	600mm

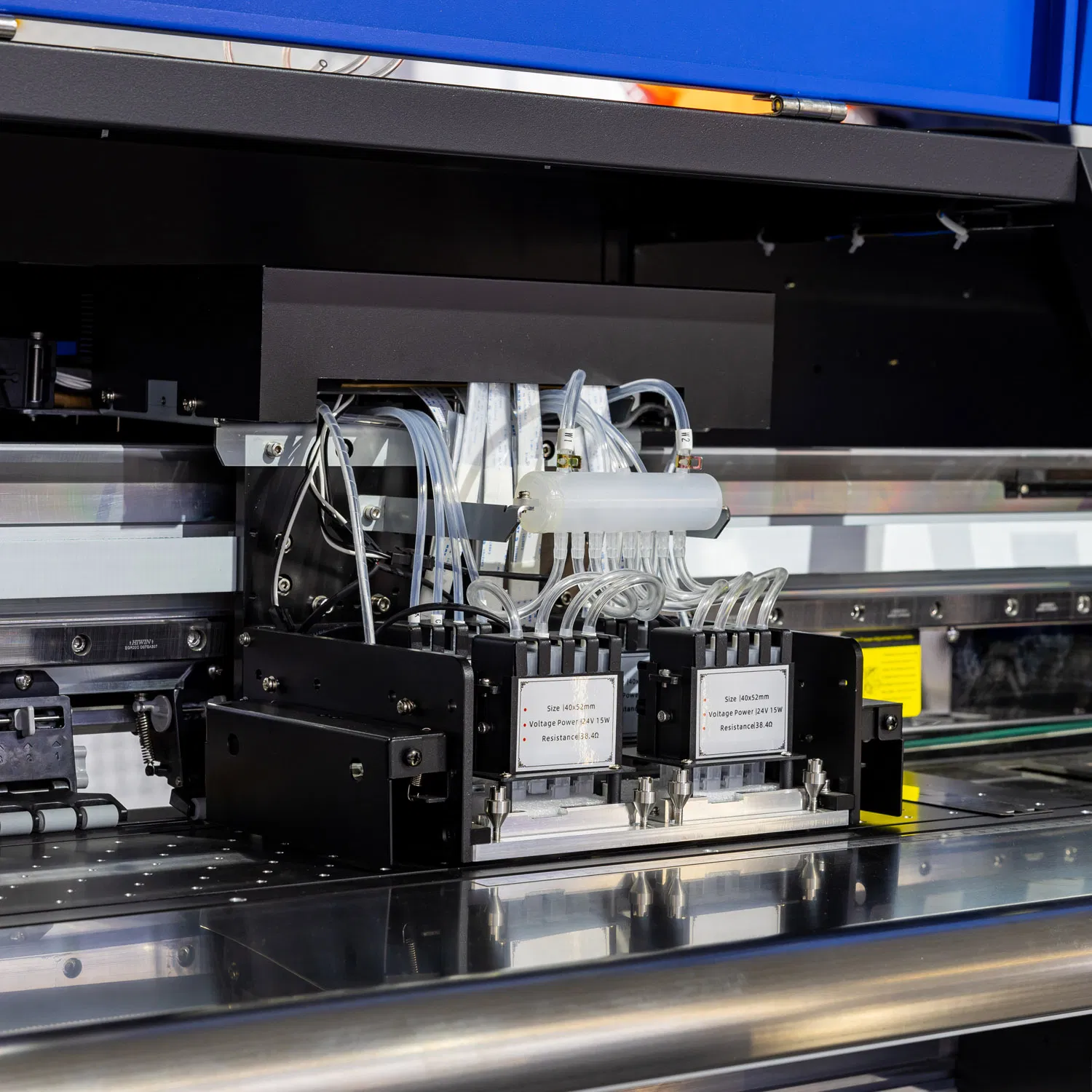

Printer head	i3200-U1 * 3pcs
Data transmission	High-speed gigabit network cable
Power supply	ZC220 50-60HZ / 2000W
Working condition	Temp: 15-30°C, Humidity: 40-60%
Ink type	Eco-friendly UV ink

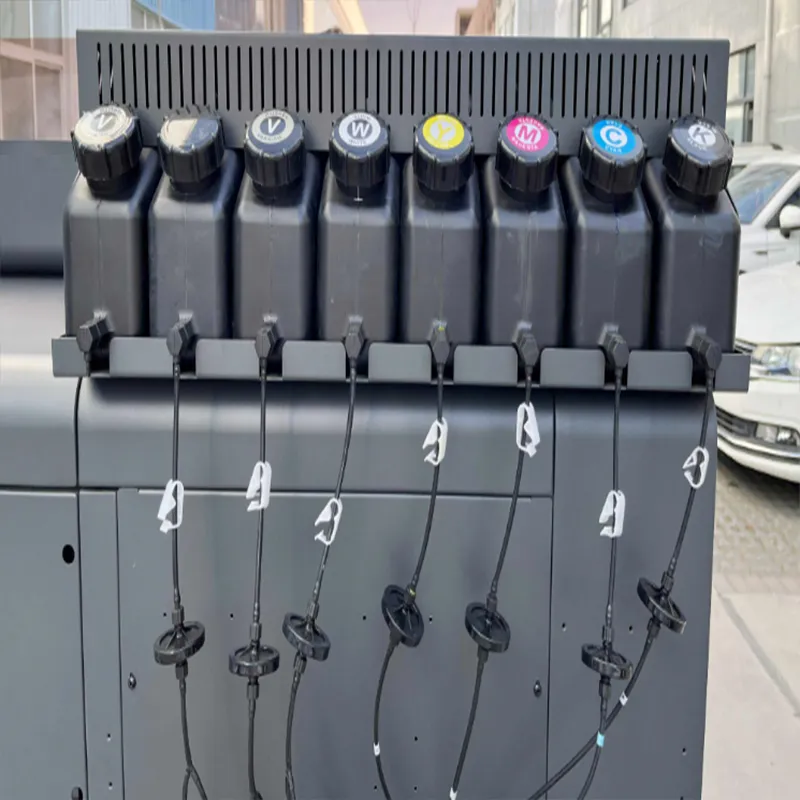

Ink color	CMYK, Lc, Lm, White

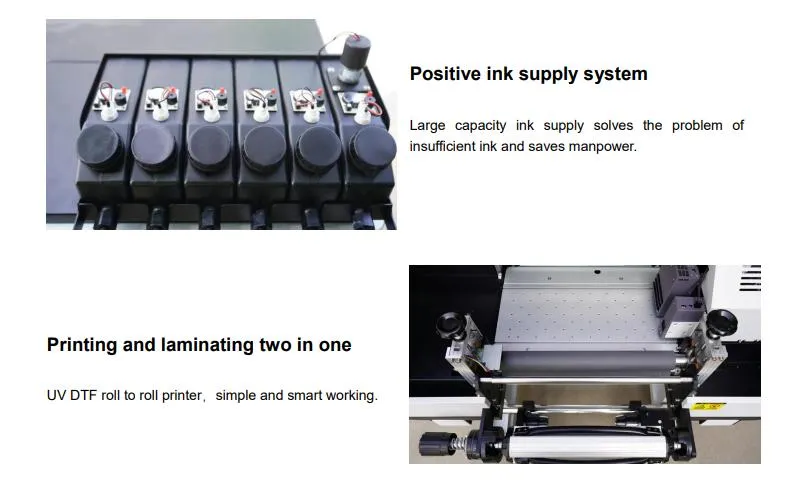

White ink system	Automatic circulation system

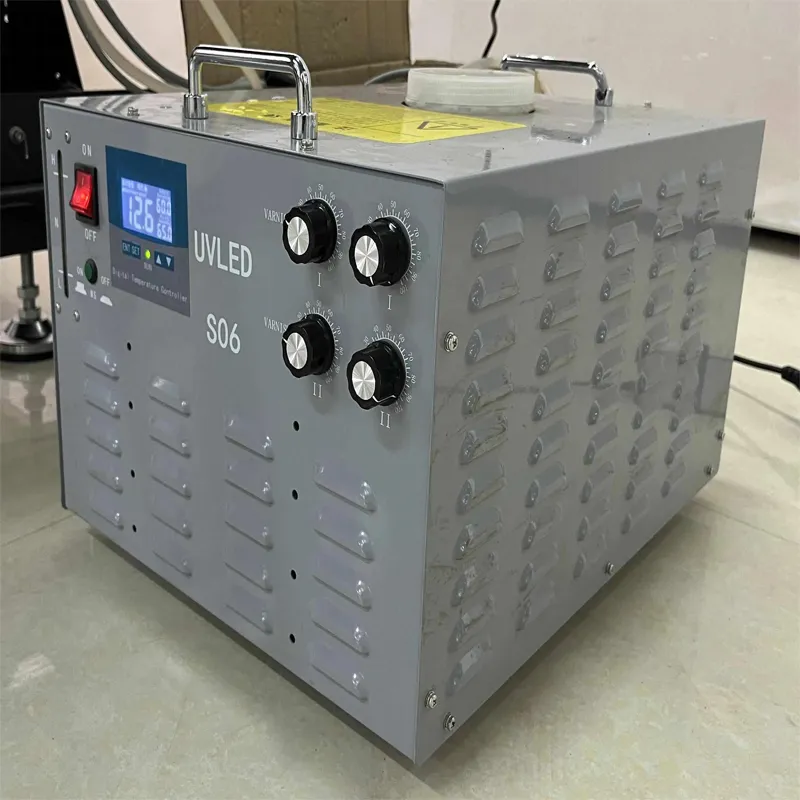

Dry system	UV lamps
Print speed (4 pass)	10 m²/h
Print speed (6 pass)	7 m²/h
Print speed (8 pass)	4 m²/h

Key Features

★ UV lamp ensures ink dries instantly.

★ Integrated water cooling system.

★ White ink output for embossment effects.

★ Non-plate printing, no pre-coating required.

★ Waterproof, UV-proof, and scratch-proof.

★ Simple one-person operation process.

Application Range

Suitable for a wide variety of materials including Fabric, Textile, Bags, T-shirts, Jeans, Clothes, Glass, Wooden items, and more.

Frequently Asked Questions

What is 3D embroidery UV DTF printing?

It is an innovative technique that combines UV printing with specialized films to create textured, raised designs that mimic the look and feel of traditional embroidery on various surfaces.

What materials can this printer work on?

This printer is highly versatile and can be used on textiles, fabrics, T-shirts, bags, jeans, as well as hard surfaces like glass, wood, and metal.

Is the printed design durable?

Yes, the output is waterproof, UV-resistant, and scratch-proof, ensuring long-lasting quality even with regular use.

Does it require a printing plate or pre-coating?

No, this is a non-plate digital printing process that does not require pre-coating, which significantly saves time and production costs.

What is the maximum printing width and speed?

The maximum printing width is 600mm. The speed varies by quality settings: 10m²/h (4 pass), 7m²/h (6 pass), and 4m²/h (8 pass).

Does the machine have an ink management system?

Yes, it features an automatic circulation system for white ink and an alarm system for ink and paper shortages.
