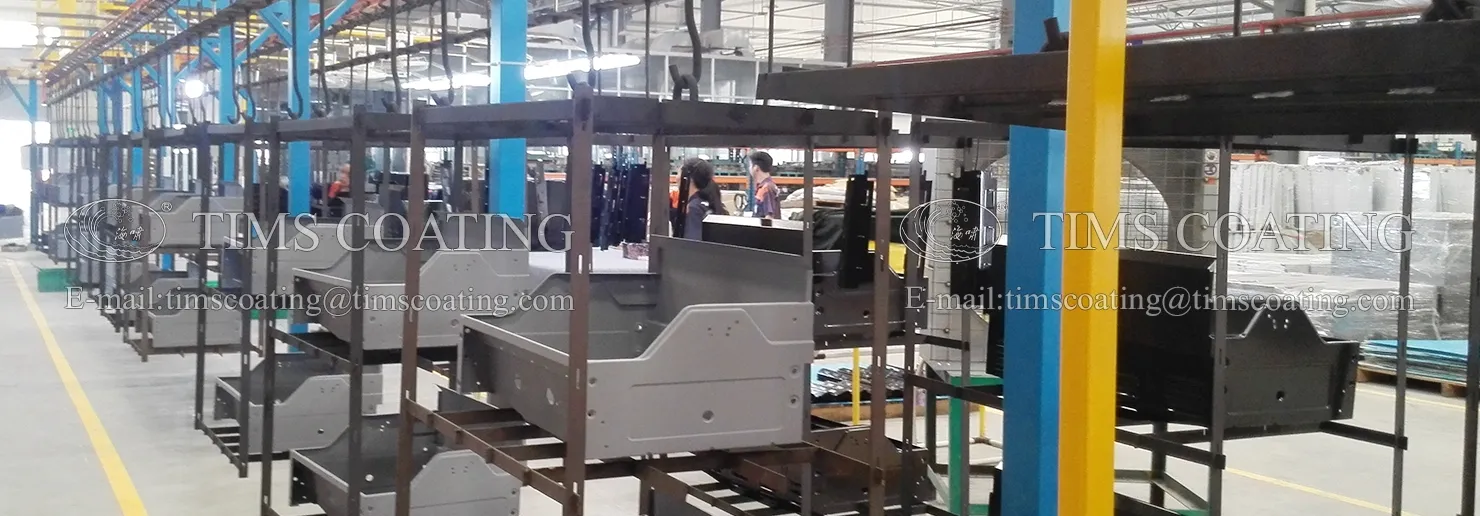

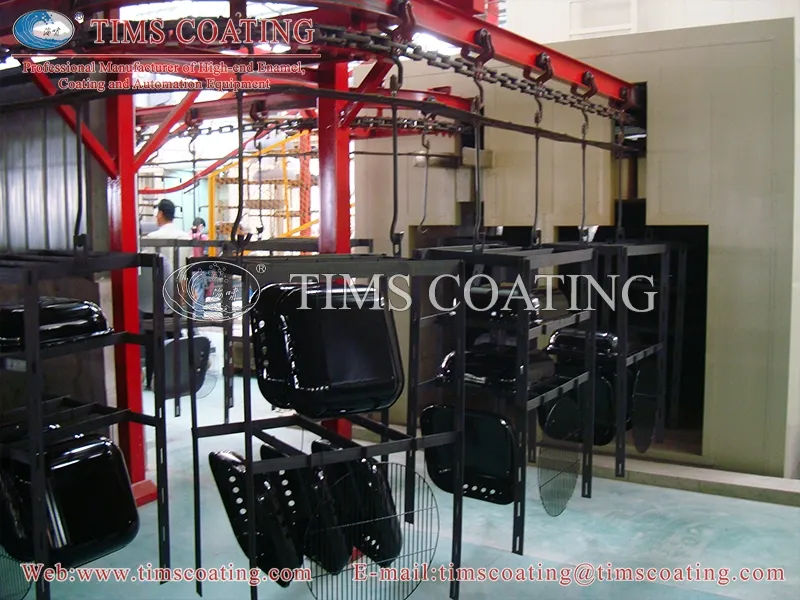

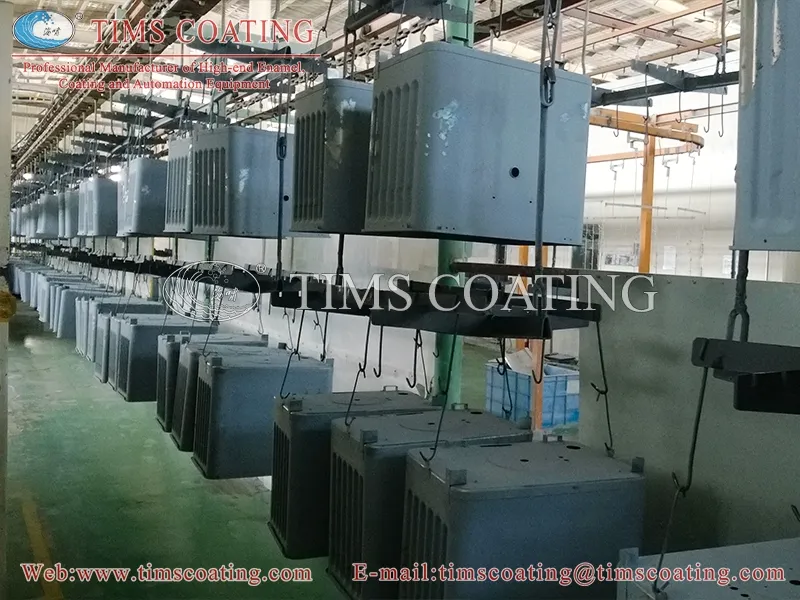

This integrated automated enamel processing production line is specifically designed for oven cavities, oven doors, cooktop panels, grill racks, and other cookware components. It encompasses the entire process of pre-treatment, enamel coating, drying, firing, and inspection, making it ideal for batch production in the home appliance industry.
Dual-mode coating module including electrostatic coating for flat parts and servo-driven roller coating for curved parts, achieving a qualification rate of over 99.6%.
Features adjustable temperature curves to satisfy distinct firing demands. Temperature uniformity is maintained within ±5℃ by PLC regulation.
Equipped with high-alumina refractory brick and waste heat recovery systems, reducing heat loss by 40% and increasing utilization by ≥72%.
Automated loading, degreasing, drying, coating, and firing reduces labor costs by 85%. Features "one-touch switching" for different models.
Includes degreasing at 50-55°C, 2-stage rinsing with online water quality monitoring, and a hot air circulation drying tunnel with SUS304 stainless steel lining.
Features 2 servo-driven roller coating machines for irregular workpieces and electrostatic machines for flat surfaces (60-80kV). The firing zone operates between 750~850°C with gas radiant tubes or electric heating.
