Gas Electric Drying Oven Powder Enamel Coating Line

Customization:	Available
Application:	Aerospace Industry, Appliance Industry, Automotive Industry, Construction Industry, Electronics Industry, Furniture Industry
Coating Type:	Anti-corrosion Coating

Send Inquiry

Product Description

Basic Information

Heating system	Diesel, electric, gas, LPG
Warranty	One-Year Warranty
Enamel Layer Thickness	60-100μm (Flat Workpieces) 80-120μm (Cavity Workpieces)
Firing Temperature	820-900℃ (Optimal Range for Enamel Fusion)
Temperature Control Accuracy	±2℃
Temperature Uniformity	≤±5℃
Firing Time	3-6min (Adjusted Based on Workpiece Thickness)
Power Supply	440V/380V/50Hz/60Hz
Certifications	CE ISO9001 SGS
Furnace Thermal Efficiency	≥86% (Includes Waste Heat Recovery)
Production Capacity	76 sets / Year

★

Product Description

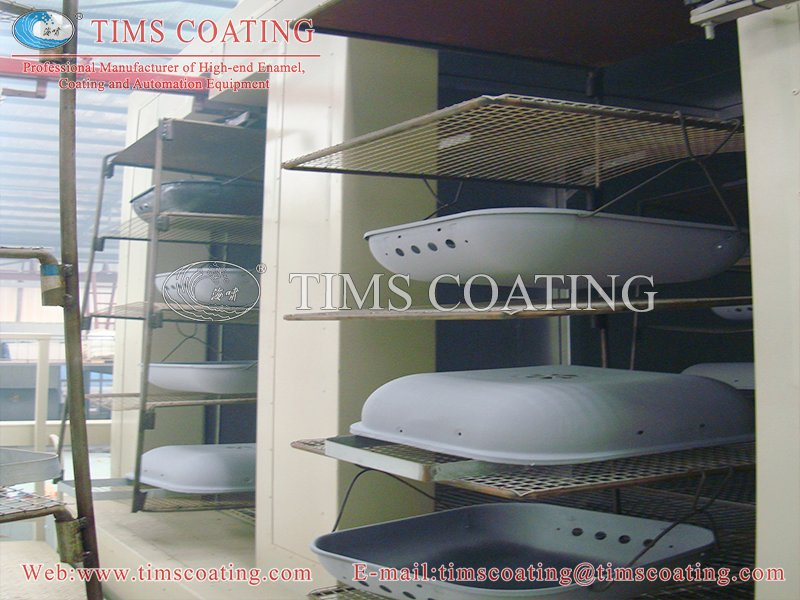

Product Name: Oven Enamel Production Line (Comprising a fully automatic pre-treatment system, wet automatic enamel spraying/dry electrostatic automatic enamel spraying modules, wet enamel drying, high-temperature firing, cooling, and inspection units).

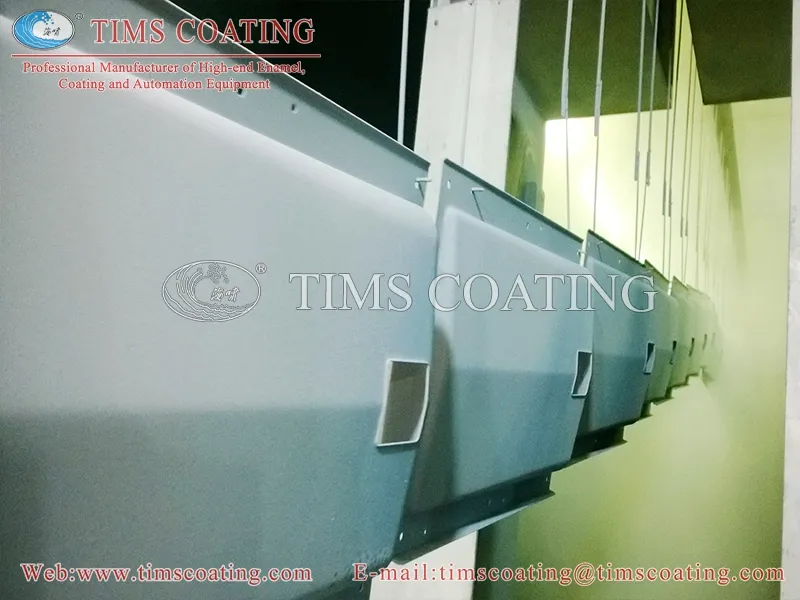

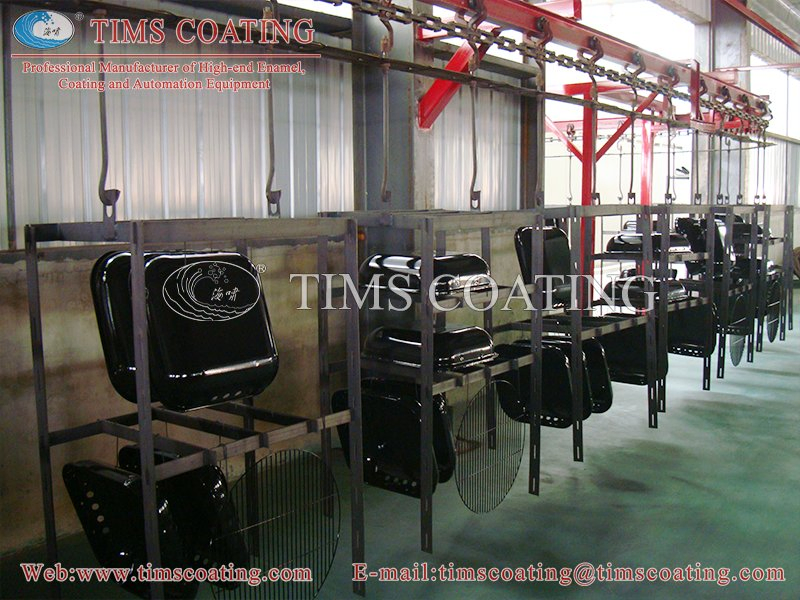

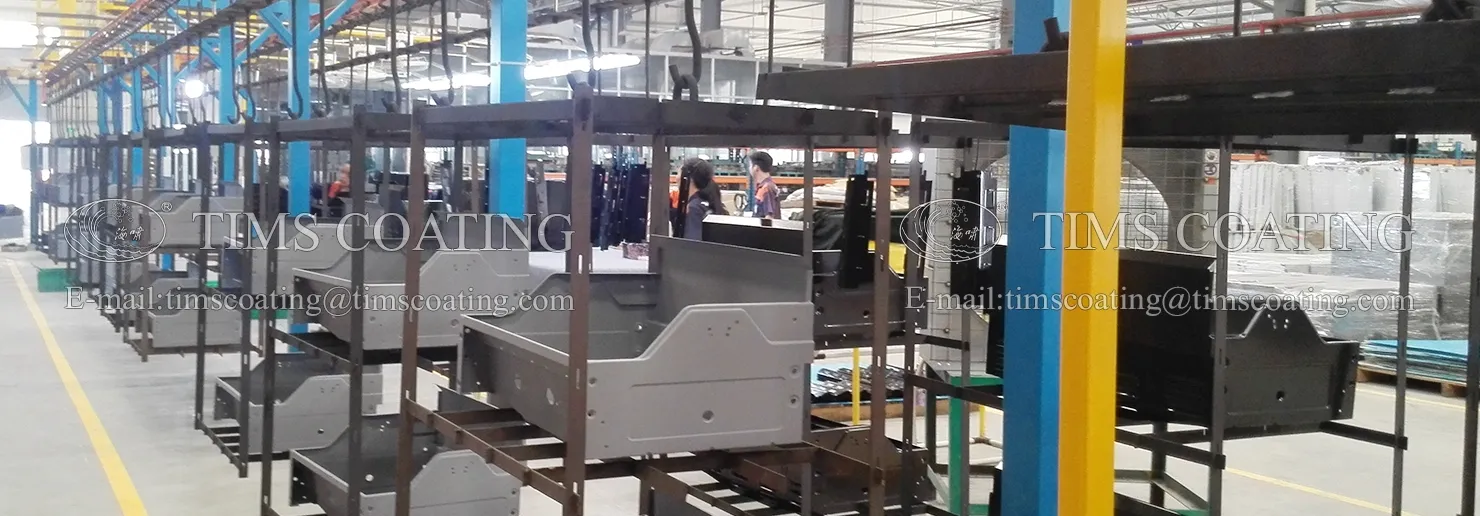

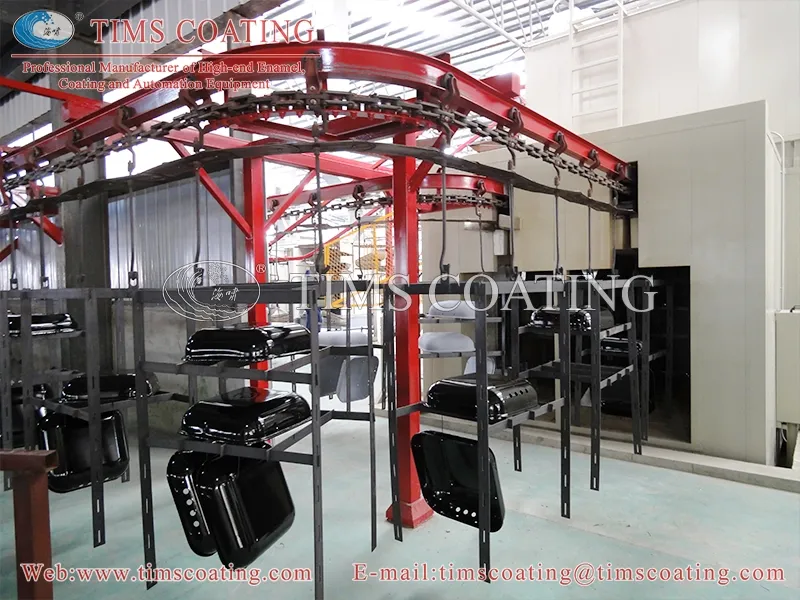

Applicable Workpieces: Oven liners, oven door glass frames, grill racks (wire mesh), and oven outer casing panels. Compatible with Cold-rolled carbon steel and Stainless Steel (grade 304).

Core Advantages

✔

Specialized Solutions: For complex structures such as rounded corners of oven liners, a dual-mode coating module is used. Component qualification rate consistently exceeds 99.6%.

✔

Flexible Temperature Control: Multi-zone control allows customizable temperature curves to satisfy distinct firing requirements. Temperature uniformity within ±5℃.

✔

Energy Efficiency: High-alumina refractory brick and flue gas waste heat recovery achieving a utilization rate of ≥72%. Reduces energy consumption by 40% compared to traditional equipment.

✔

Automation & Quality: Entire process is fully automated, reducing labor costs by 85%. Equipped with online coating thickness gauges and visual defect detection systems.

⚙

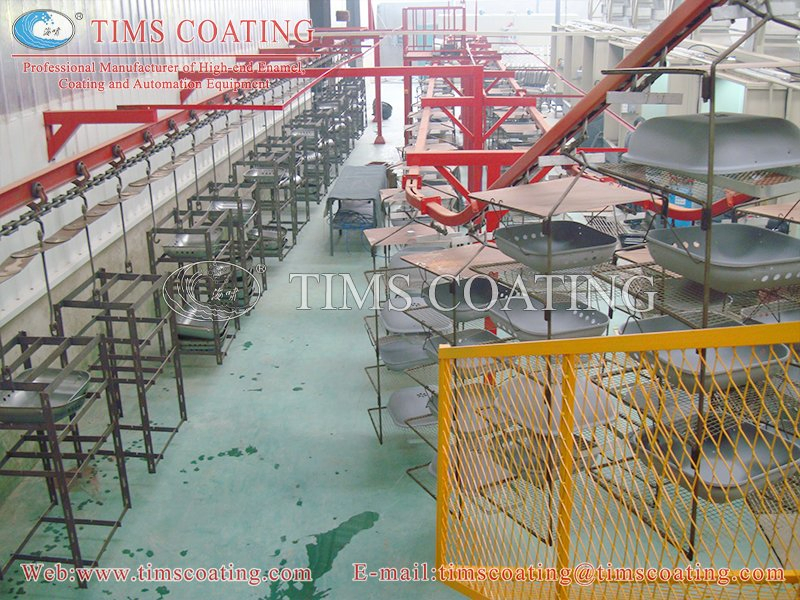

System Composition

1. Pre-treatment Module: Includes degreasing (50-55°C), 2-stage rinsing with online water quality monitoring, and hot air circulation drying (90-200°C).

2. Enameling Module: 2 servo-driven roller coating machines for irregular workpieces and electrostatic coating units for flat parts operating at 60-80kV.

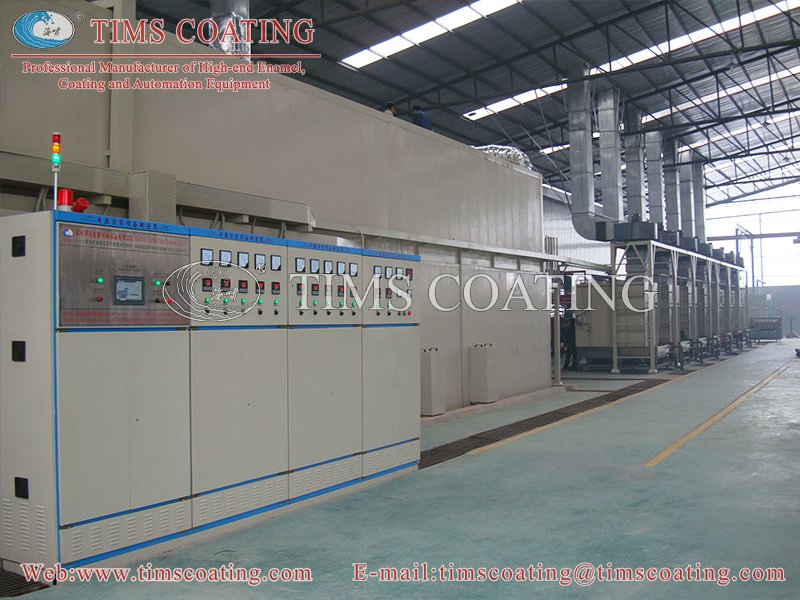

3. Firing/Curing Module: Continuous gas radiant tube or electric heating furnace with cold-hot workpiece exchange zones.

4. Control & Environmental Module: 12-inch touch screen PLC, MES data interaction, and integrated wastewater/exhaust treatment units.

⚡

Key Features

Appliance-Specific Design	Customized high-temperature firing curves for casing and liners to strengthen enamel adhesion.
Modular & Expandable	Functional modules can be added or separated without replacing the entire line.
Intelligent Monitoring	Real-time data display for conveyor speed, furnace temperature, and safety alarms.
High Stability	Robotic automatic changeover enables "one-piece flow AI intelligent" production.
Excellent Quality	Smooth enamel layer with impact resistance and adhesion ≥5N/cm (ASTM D3359 standard).

🏢

Manufacturing Capabilities

Frequently Asked Questions

1. How long does the equipment production take?

The standard production cycle is 30-70 days depending on customization. Detailed timelines are provided after technical plan confirmation.

2. What information is needed for a customized quote?

Please provide workpiece type, dimensions, weight, expected daily output, coating process requirements, and available factory space.

3. Is on-site installation provided?

Yes, professional engineers provide turnkey installation and commissioning (typically 30-60 days) until the equipment operates stably.

4. What is the warranty and after-sales support?

We offer a 12-month warranty, remote technical debugging within 2 hours, and on-site support for major mechanical failures.

5. What is the temperature control accuracy of the furnace?

The system maintains a temperature control accuracy of ±2℃, with uniformity within the furnace kept at ≤±5℃.

6. How does the system achieve energy saving?

Through a composite insulation layer (high-alumina refractory brick) and a flue gas waste heat recovery exchanger that preheats combustion air, reaching a utilization rate of ≥72%.
