Inspecting Green Base Convey Line with Dedust System

1 / 5

Inspecting Green Base Convey Line with Dedust System

Customization:	Available
Robot Quantity:	Robot or Convey Line
Capacity:	800-1400PCS/Day

Send Inquiry

Product Description

Basic Specifications

Model NO.SCS

PLCSiemens

Electric ElementsSchneider or Omron

DedustPluse Dedust or Water Curtain

Glazing Methodby Robot

Robot BrandFanuc From Japan

Pneumatic ElementsSMC Brand

Carry Weight50kgs for Transport

HS Code8424899990

Production Capacity800-1400PCS

Product Description

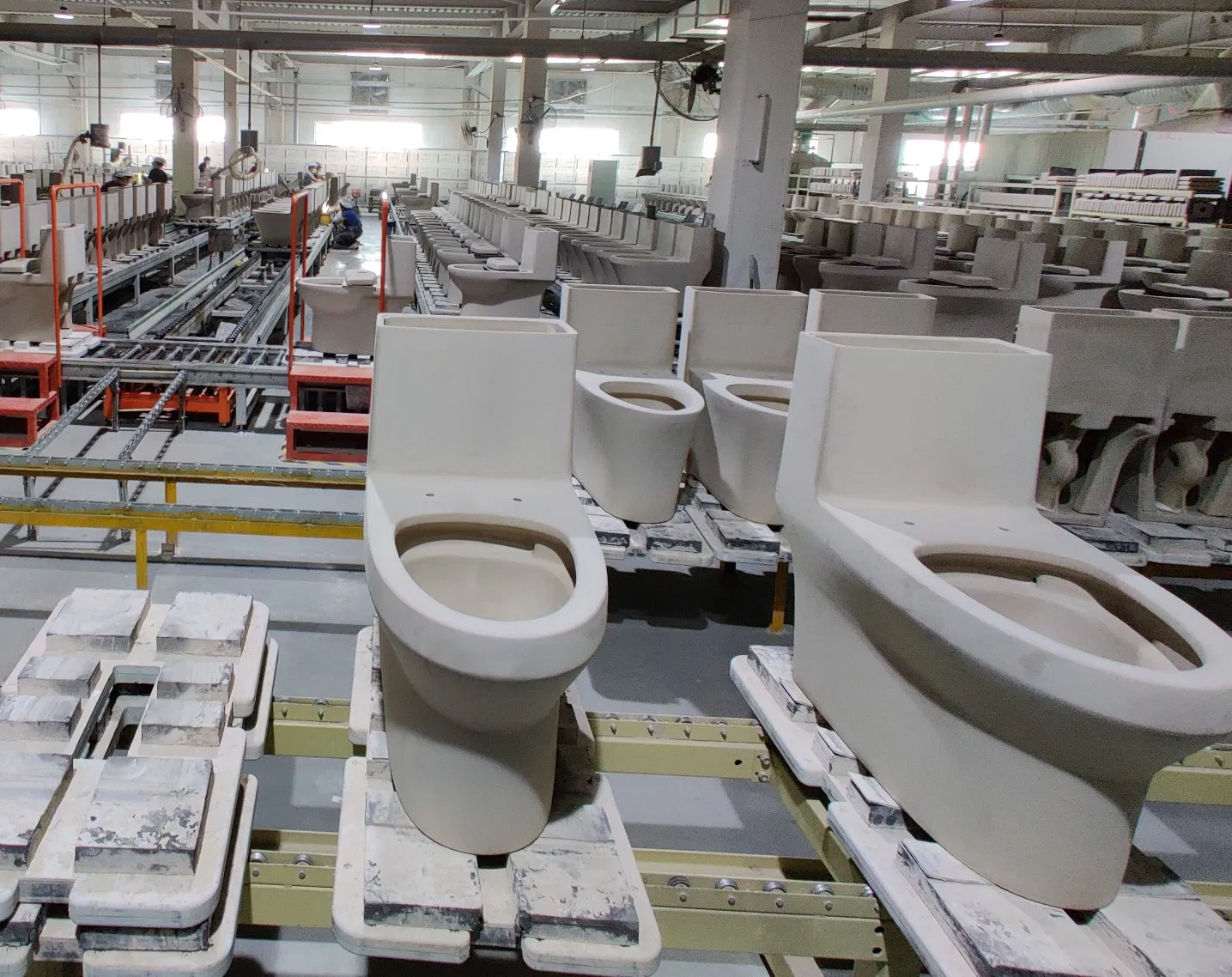

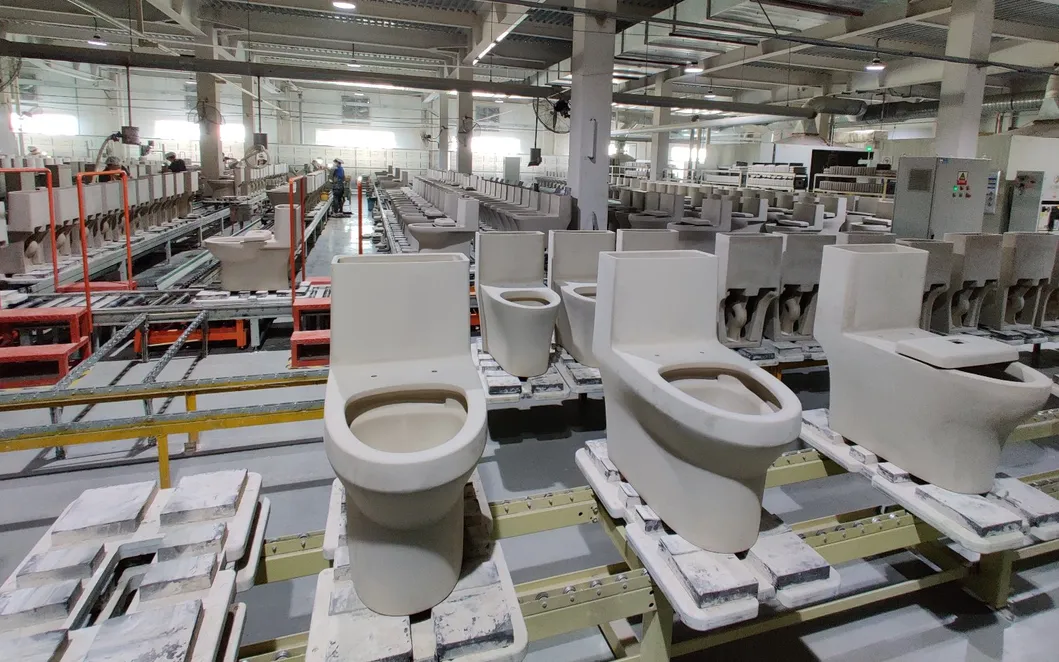

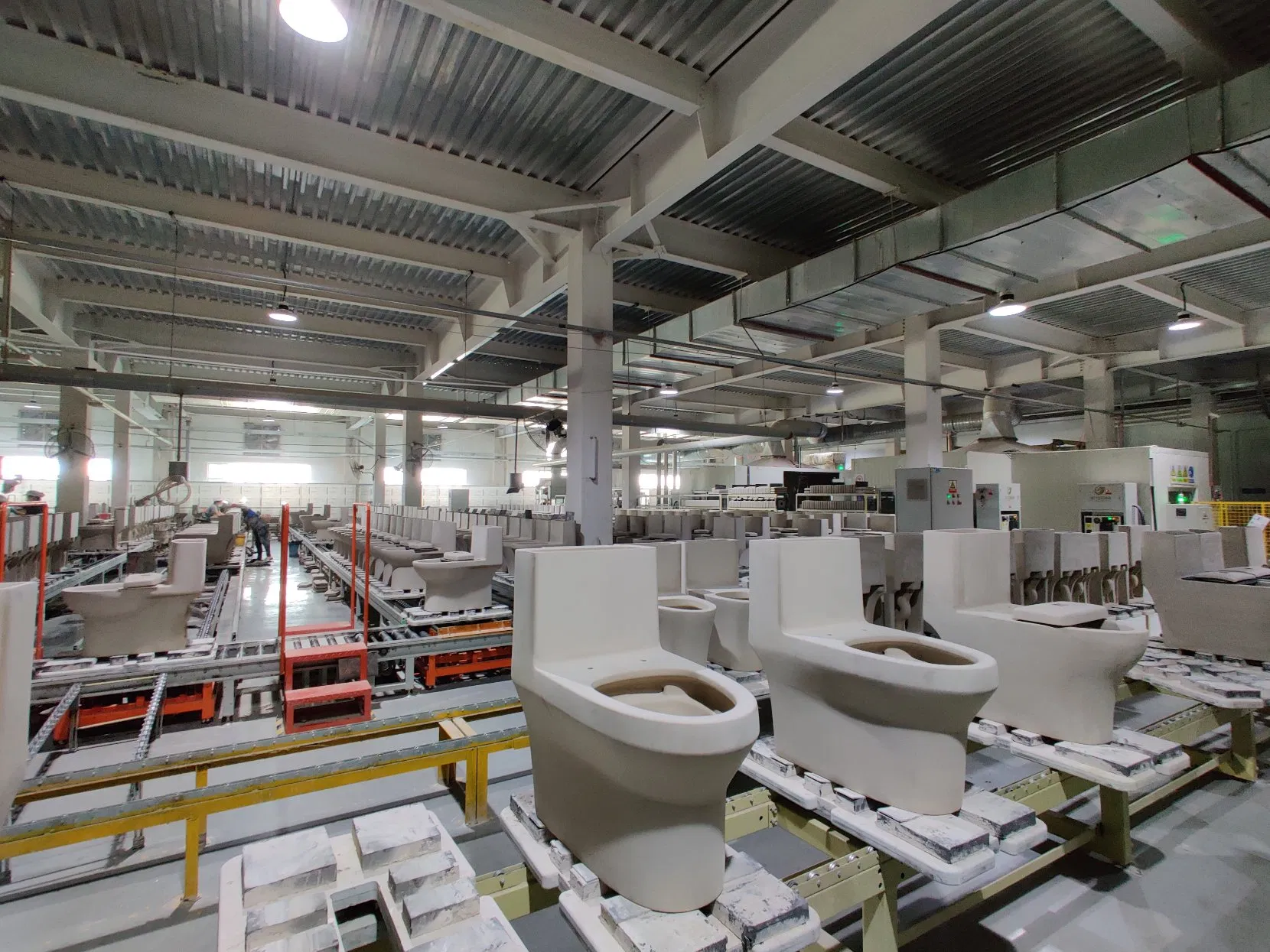

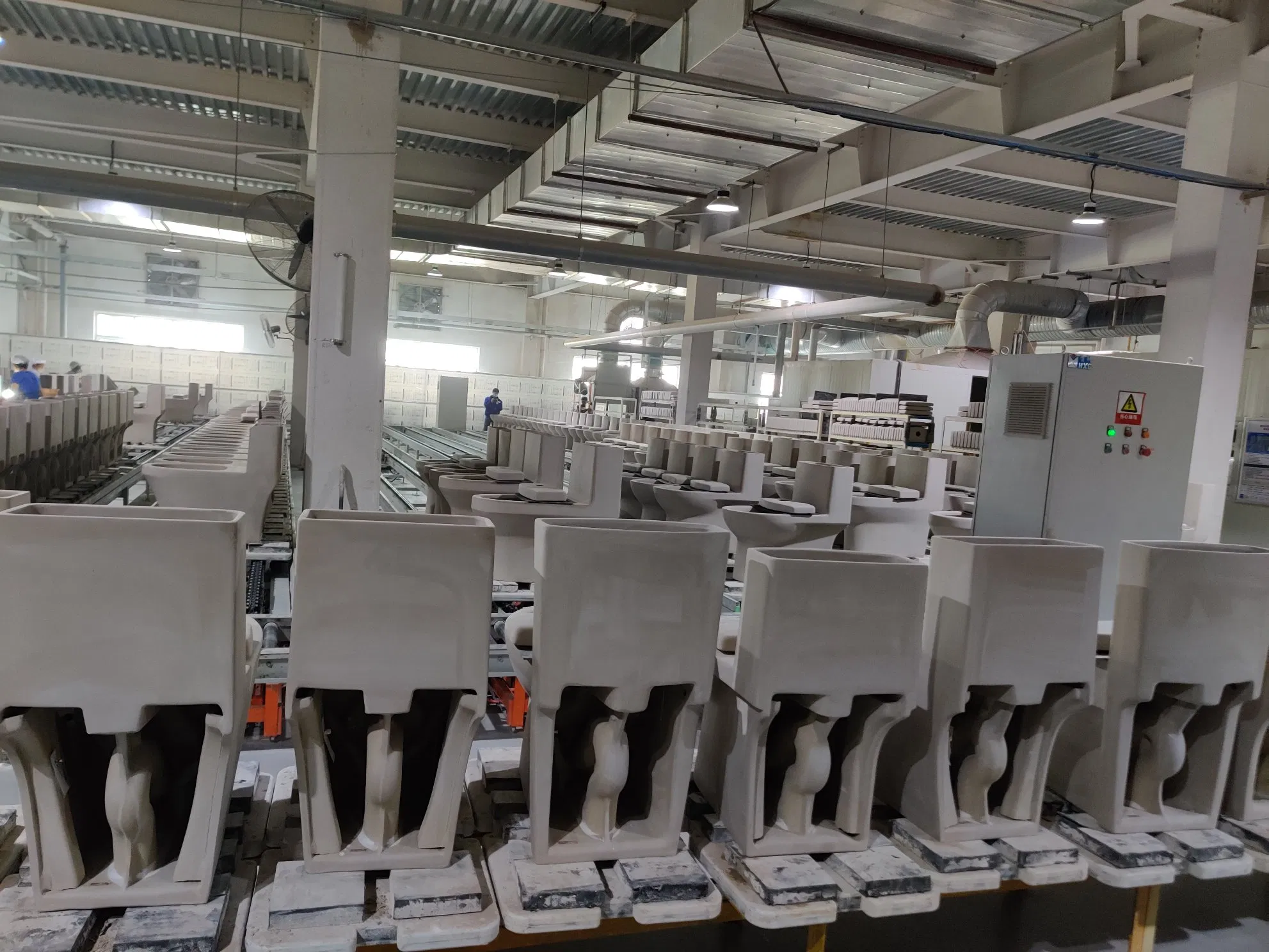

Green body semi checking and repair conveying system:

The conveying form of the body conveying system includes: AGV trolley conveying; multiple-speed chain conveying; side roller conveying; hanging basket conveying; synchronous belt conveying.

The main system includes:

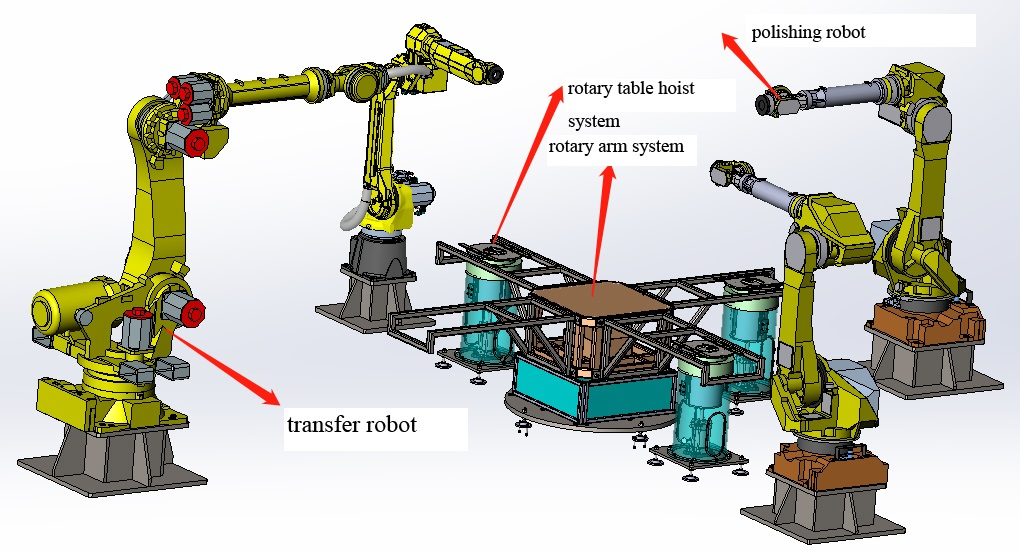

Polishing machine & Turning table
Semi checking conveying line

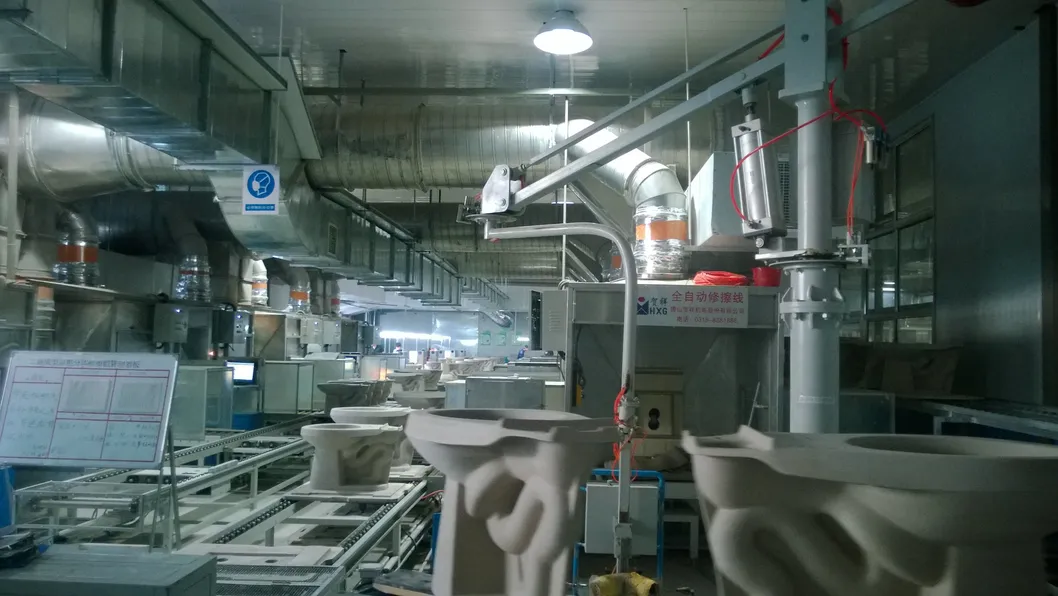

Dedust system
Electric control
Checking booth

Technical Parameters:

PLC control for automatic conveying and manual operation integration.
Max weight of products: 70KG per unit.

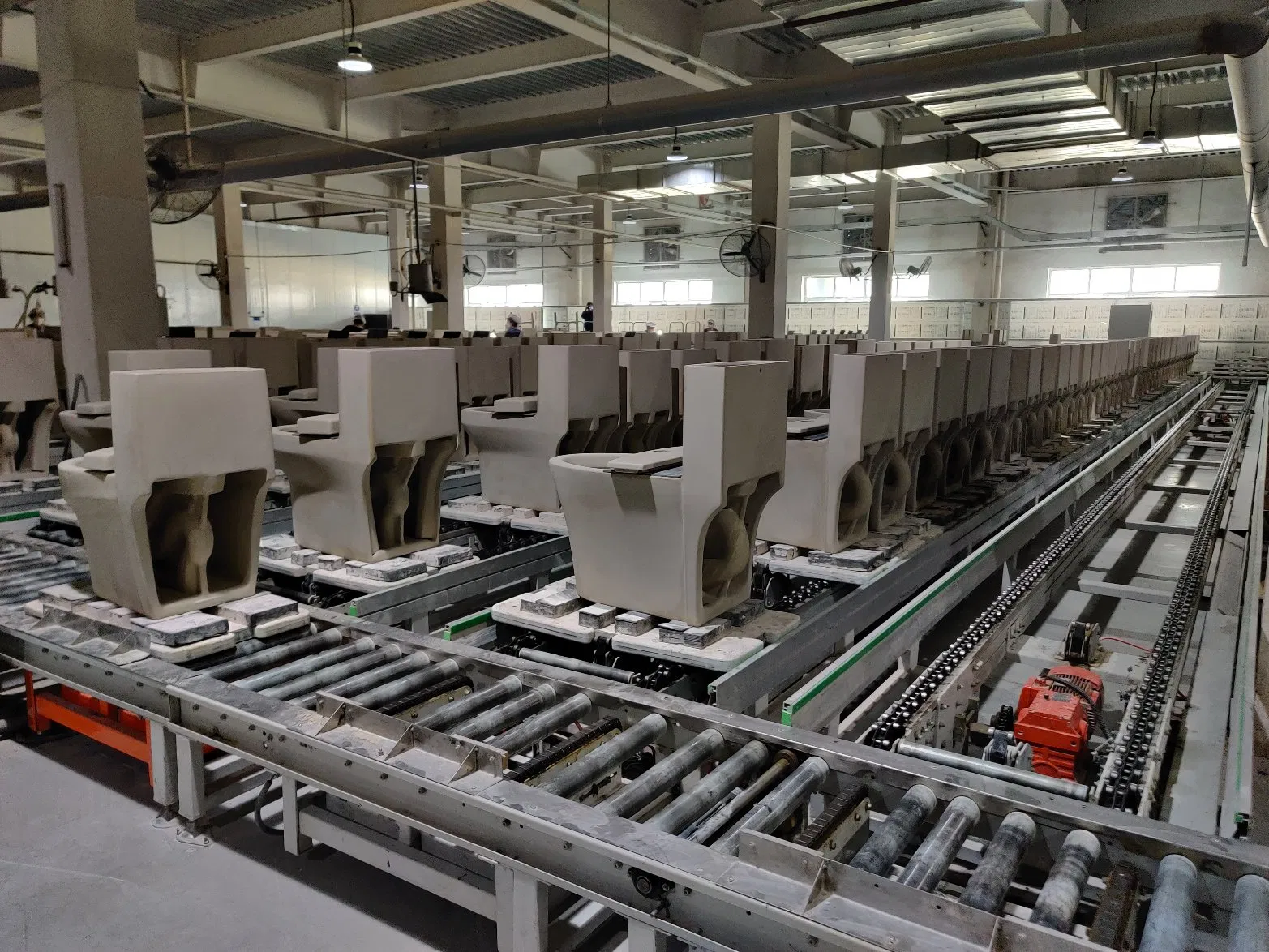

Conveyor line structure: side roller conveyor + power roller conveyor with aluminum profiles.
Conveying speed: 2-8 m/min (frequency control regulation).
Premium Components: SKF bearings, SMC pneumatic parts, SEW motors, SIEMENS/SCHNEIDER electrical parts.
Advanced Interface: SIEMENS KT900 touch screen and PLC control.

Product Characteristics

Optimized Chain: Short-pitch side roller chain (19.05mm) with heat treatment for high strength.
Aluminum Guide Rail: Open-type aluminum profile for easy dust cleaning and durability.
Vibration Control: Transition rollers used in connected sections to increase stability.
Scalability: Control cabinets reserve 20% space for future process debugging and adjustment.
Safety Systems: SIEMENS 1500 PLC with self-check function and real-time fault alarms.
Data Acquisition: Entire line features data collection and quantity memory for output counting.

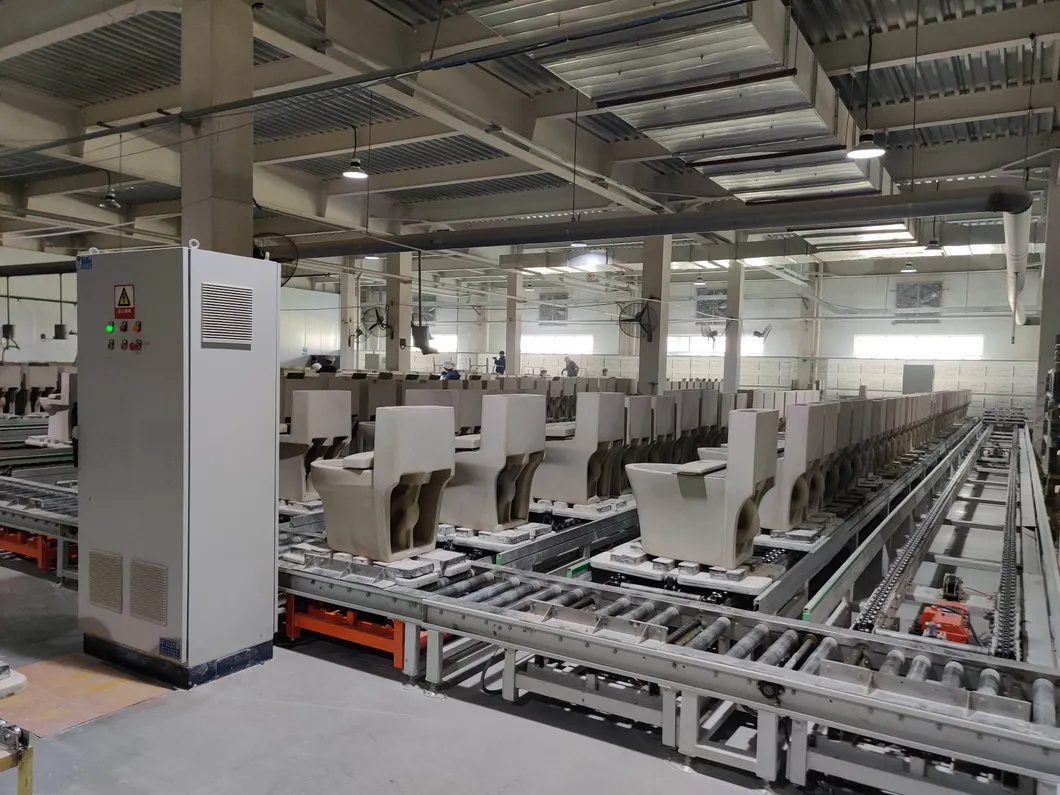

Robust Enclosure: Standard RITTAL control cabinets ensure safe operation of electrical components.

Our Advantages

Supply turnkey tailor design of sanitary ware producing line.

Supply sanitary ware slip and glaze formula service.

High pressure casting technical training and mold making services.

Supply high-quality production machinery with installation and commissioning.

Production team building and management support.

Production Flow & Quality

Frequently Asked Questions

Q: What types of conveying forms are supported by the system? A: Our system supports AGV trolley conveying, multiple-speed chain conveying, side roller conveying, hanging basket conveying, and synchronous belt conveying.

Q: What is the maximum weight capacity for the products? A: The system is designed to handle a maximum product weight of up to 70KG per unit.

Q: Which brands of electrical and pneumatic components are used? A: We use world-renowned brands including SIEMENS (PLC and Touch Screen), SMC (Pneumatic elements), SEW (Motors), and SKF (Bearings) to ensure stability.

Q: How is the speed of the conveyor line regulated? A: The conveying speed is adjustable between 2-8 m/min using frequency control regulation through the PLC system.

Q: Does the system include fault detection? A: Yes, the SIEMENS PLC features a self-check function. If an overload or element failure occurs, the system triggers an alarm and identifies the fault location.

Q: Do you offer services beyond equipment supply? A: Yes, we provide turnkey tailor designs, sanitary ware slip and glaze formulas, technical training, and full installation/commissioning services.
