Product Description

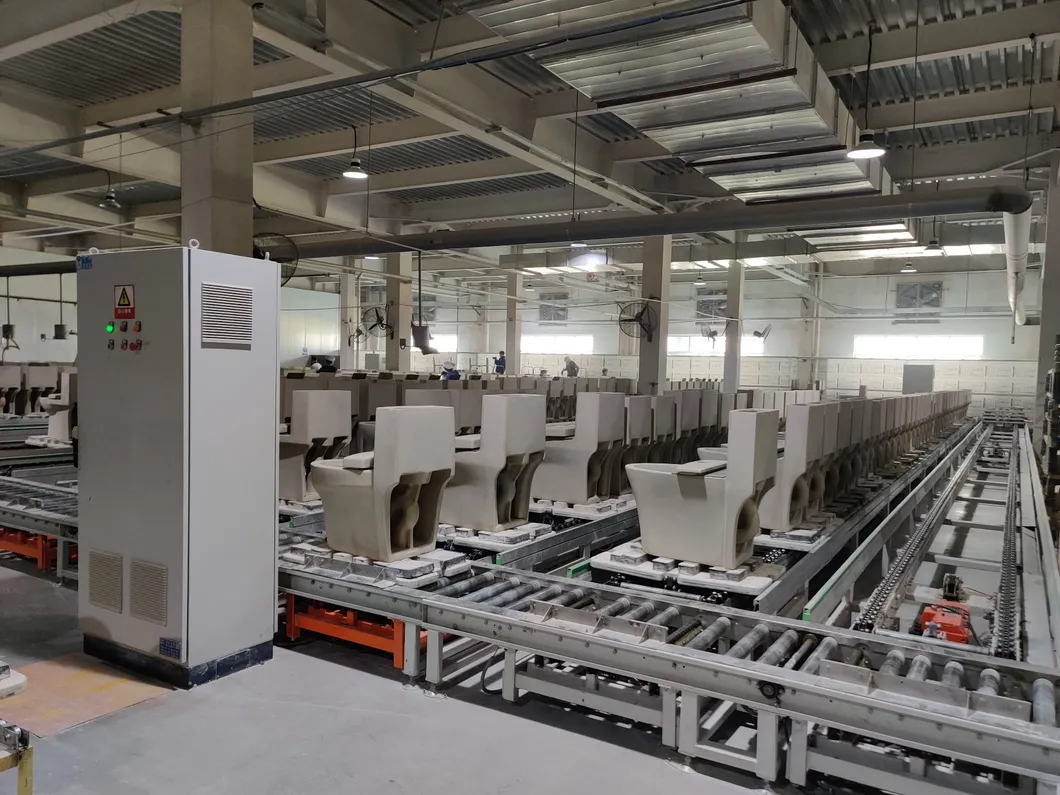

Body conveying system:
The conveying form of the body conveying system: including AGV trolley conveying; multiple-speed chain conveying; side roller conveying; hanging basket conveying; synchronous belt conveying.
System includes:

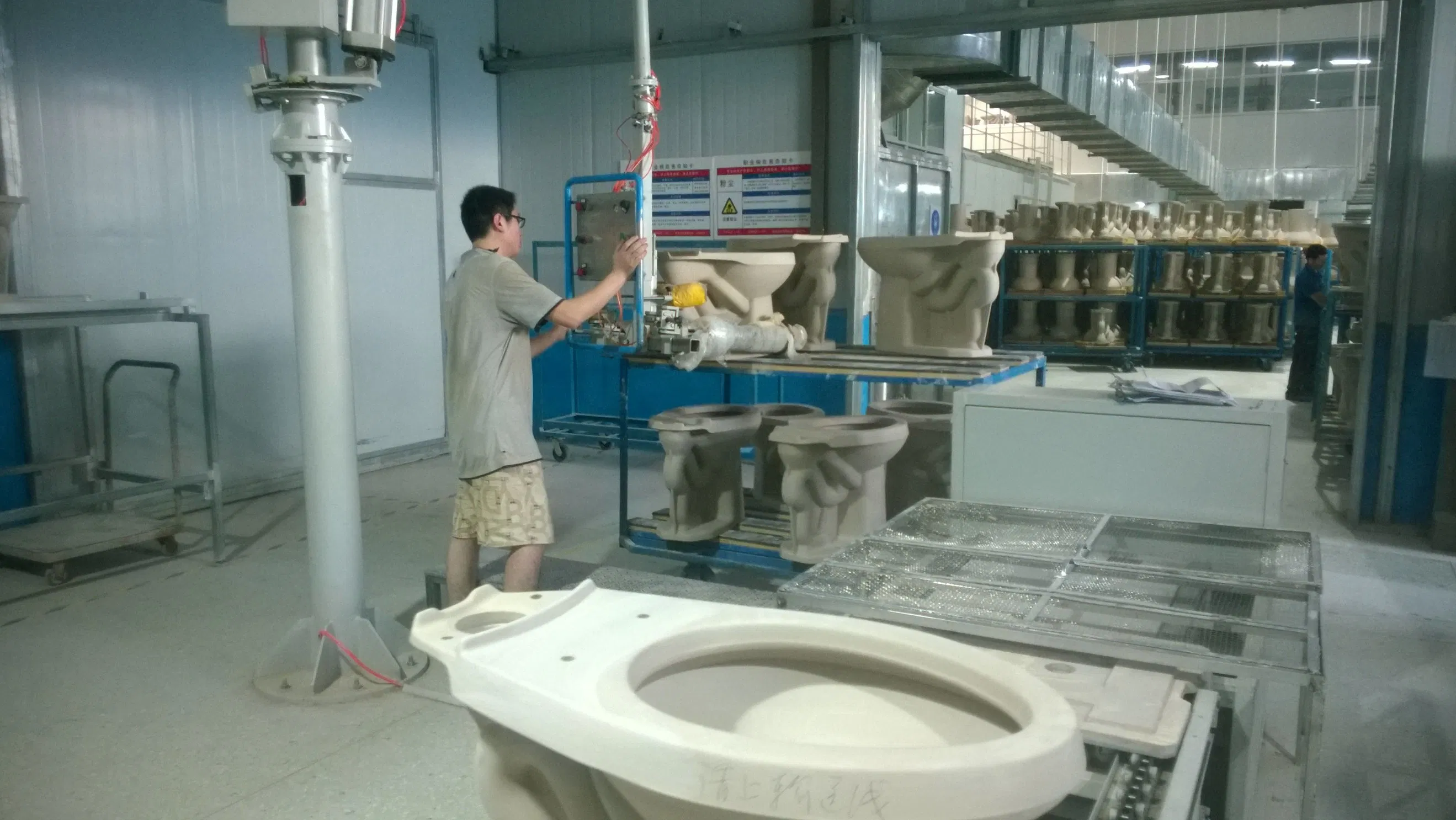

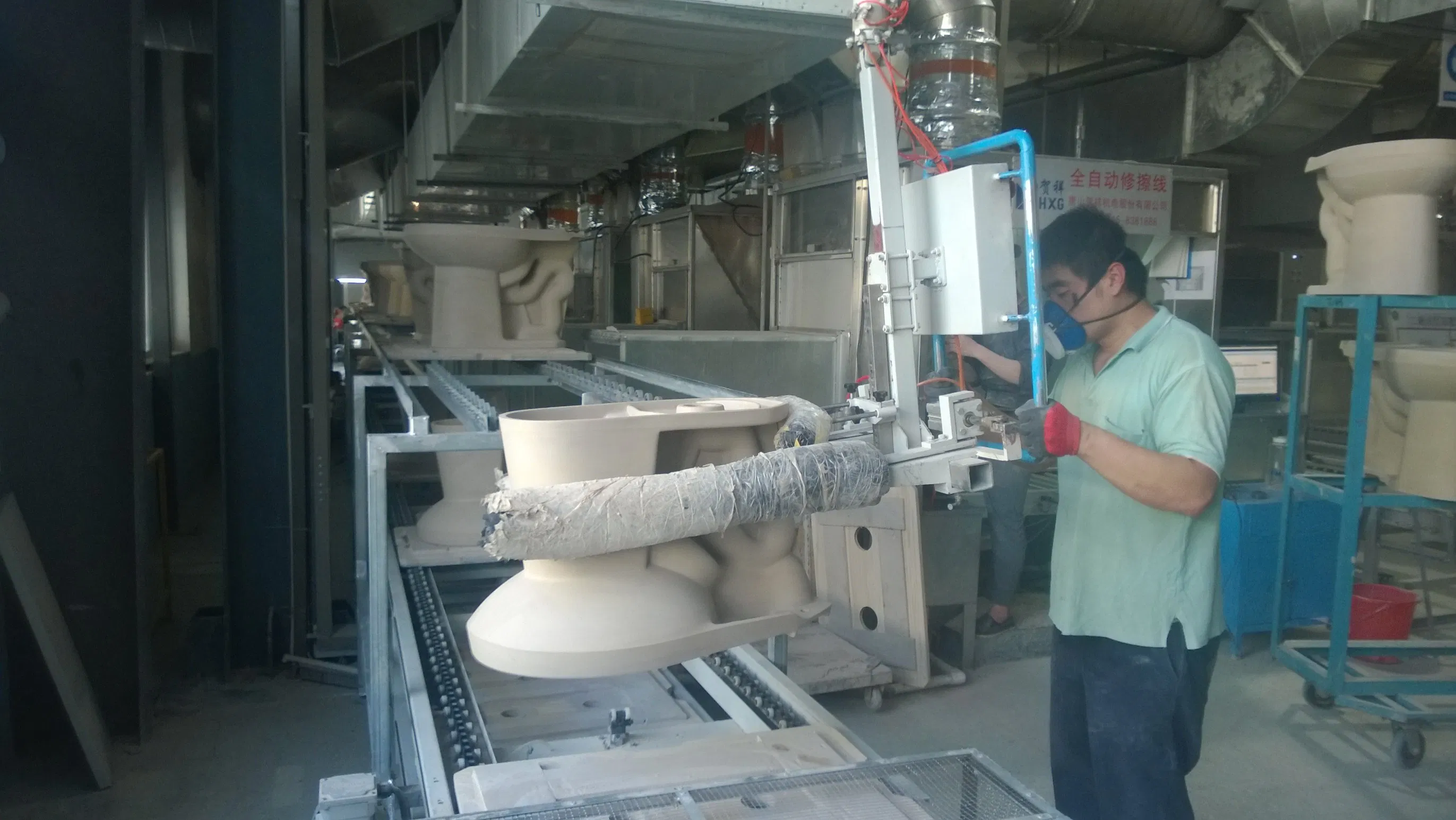

- Polishing machine
- Turning table

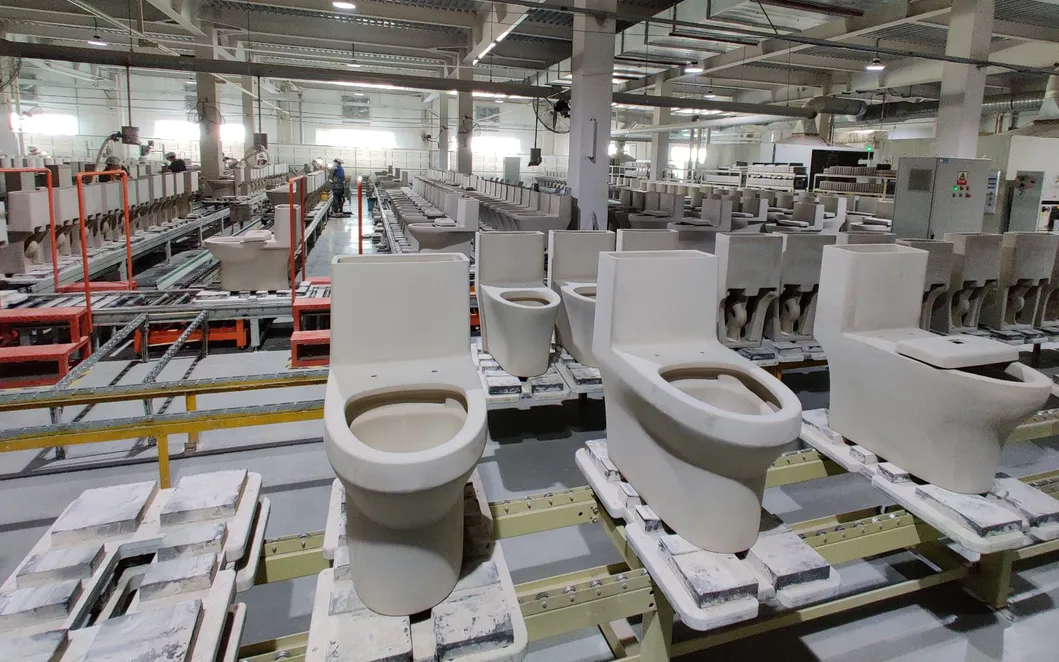

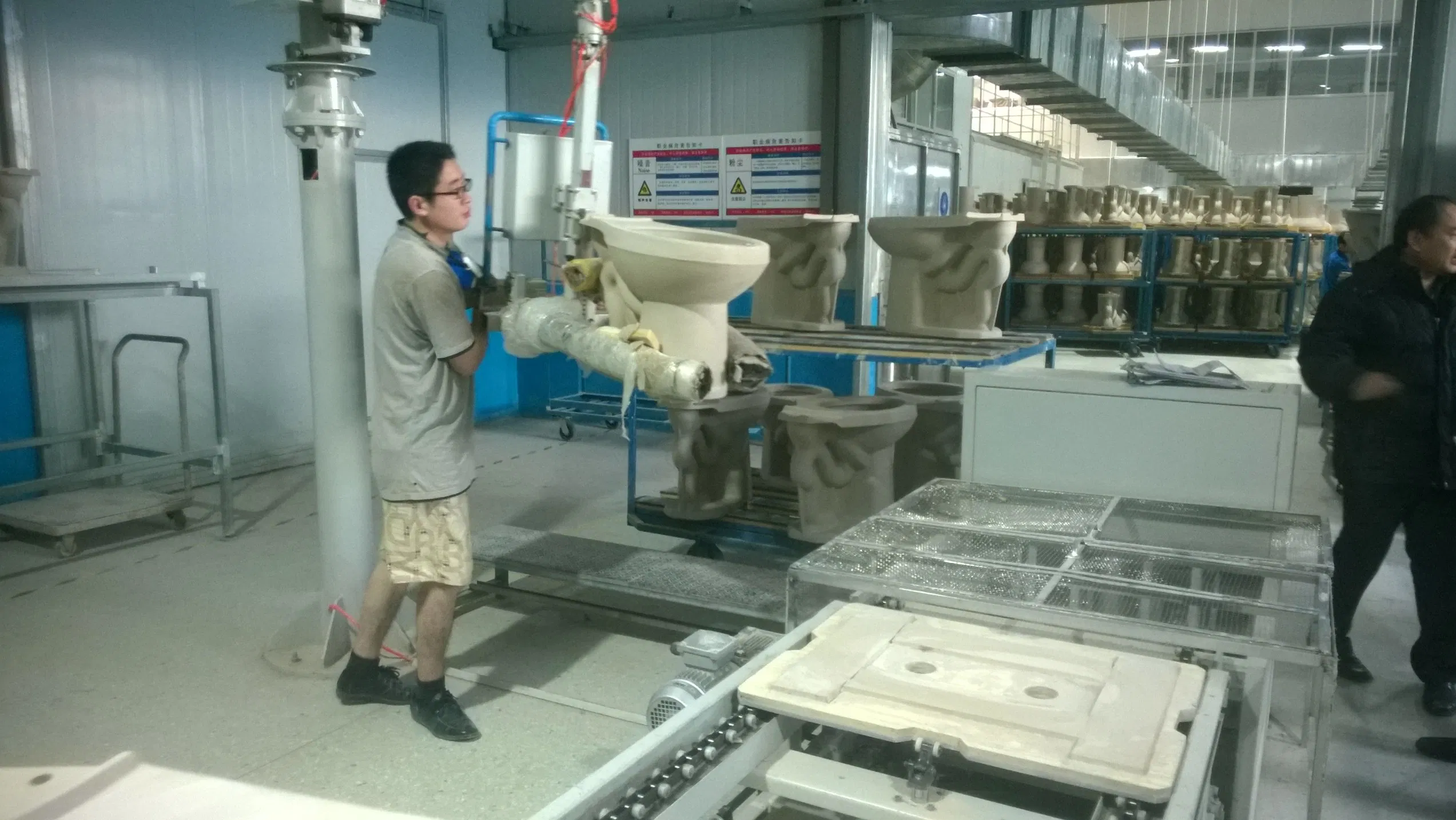

- Semi checking conveying line

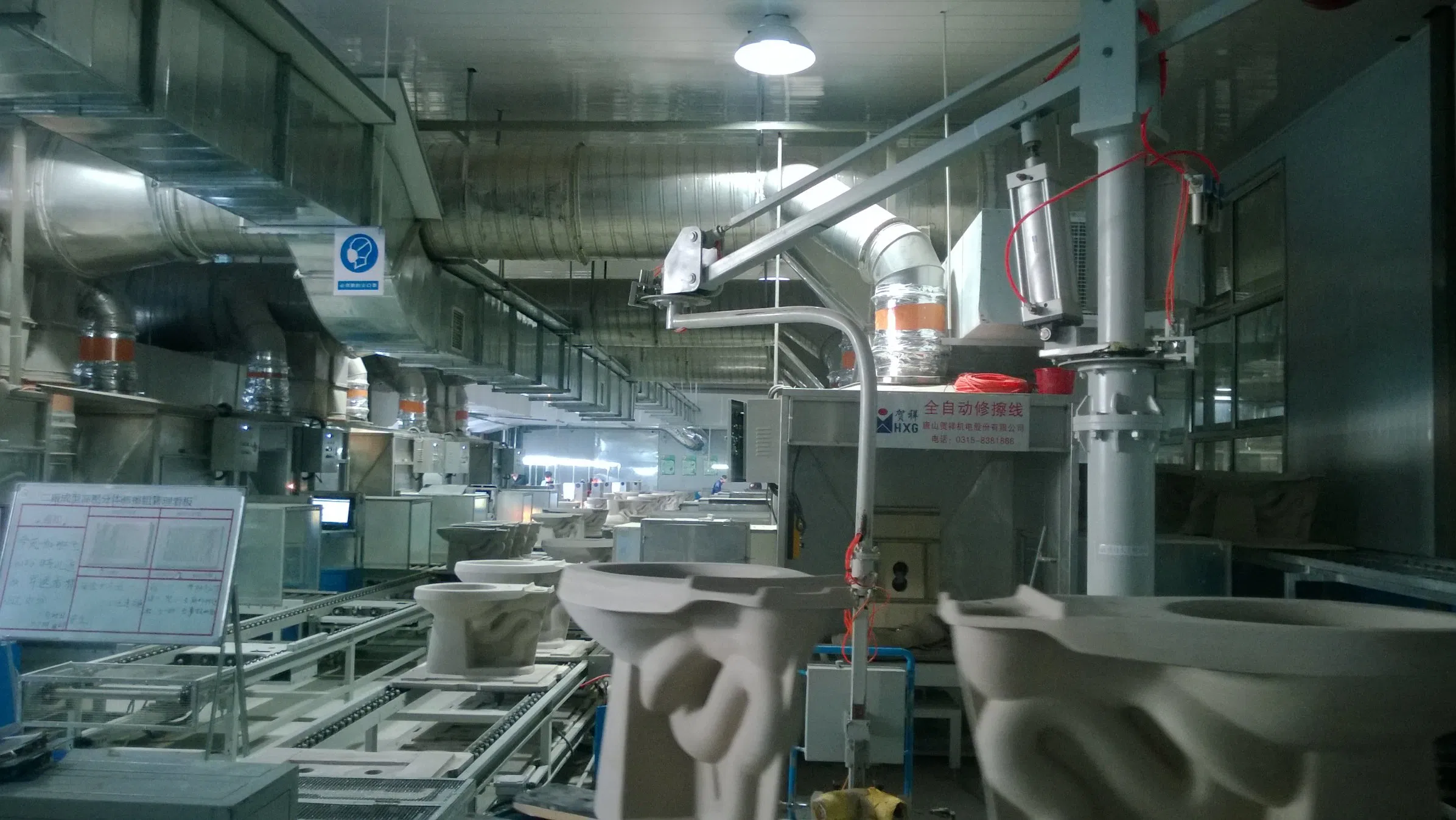

- Dedust system
- Electric control
- Checking booth
The conveying line requires PLC control, to realize the effect of combining both automatic conveying and human operation.
- Max weight of products: 70KG/each
- Pallet size: L880mm, W500mm, H40mm

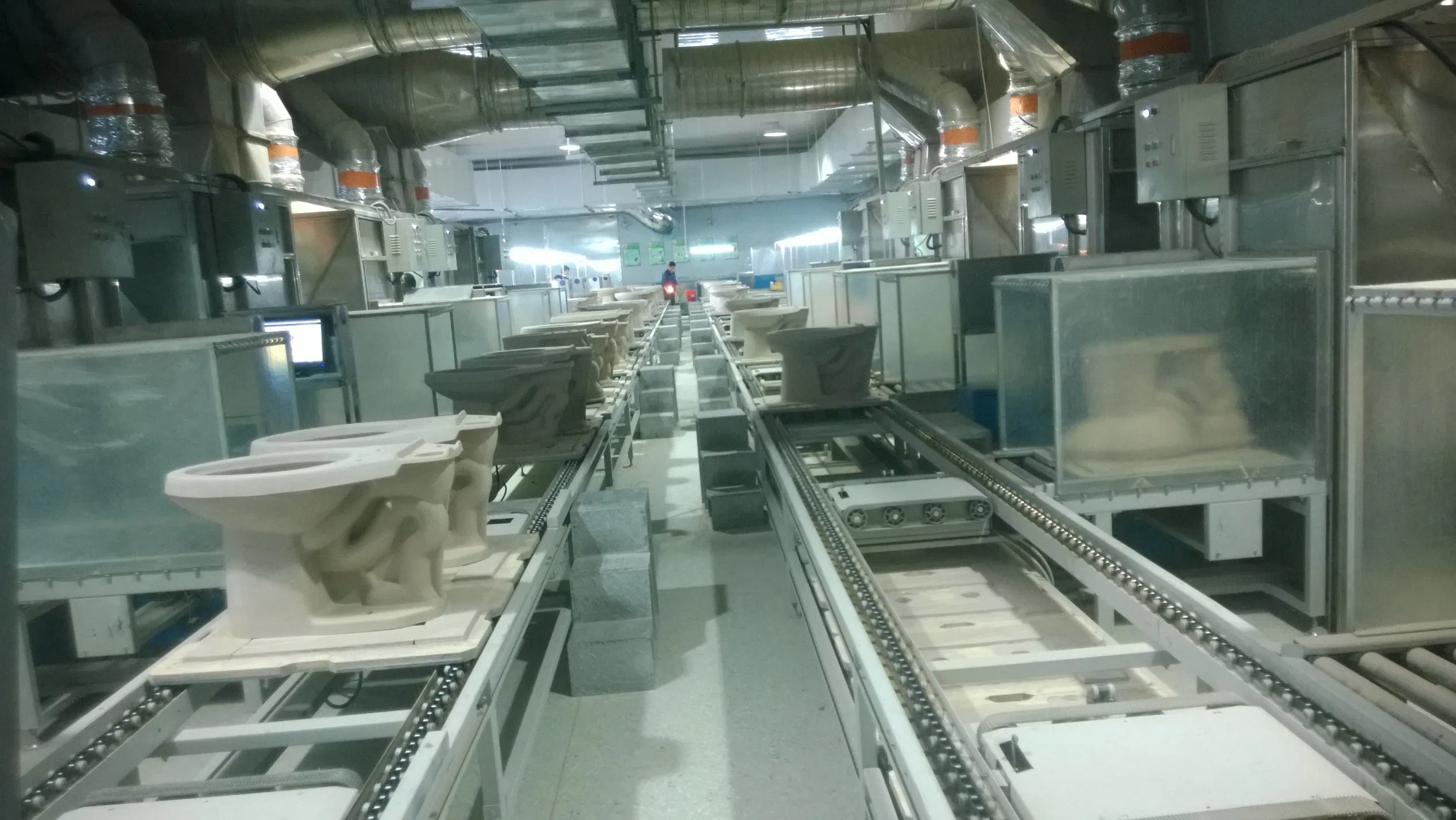

- Structure: Side roller conveyor + Power roller conveyor with aluminum profiles.
- Speed: Linear 2-8 m/min (frequency control)
- Bearings: SKF brand parts
- Components: SIEMENS, SCHNEIDER, SMC, SEW, IGUS, LEYBOLD
- Robot: FANUC
Products Characteristics
Short-pitch side roller chain (19.05mm) with heat-treated links for increased strength.
Open type aluminum profile chain guide rail for easy cleaning and durability.
Transition rollers to reduce vibration and increase stability.
SIEMENS 1500 PLC controller with self-check and fault alarm functions.
Standard RITTAL control cabinet for safety and tightness.
Data acquisition system for output counting and pass rate analysis.
Equipped with feedback systems to stop operation and alarm upon fault detection.
Frequently Asked Questions
What types of conveying methods are available in this system?
The system supports various forms including AGV trolley conveying, multiple-speed chain, side roller, hanging basket, and synchronous belt conveying.
Which brands of electrical components are used for the control system?
We use world-renowned brands such as SIEMENS for PLC and touch screens, SCHNEIDER or OMRON for low-voltage components, and SMC for pneumatic elements.
What is the maximum load capacity for the conveying line?
The conveying line is designed to handle products with a maximum weight of 70KG per unit.
How does the system handle fault detection and diagnostics?
The SIEMENS 1500 PLC features a self-check function. If an overload or element failure occurs, the system triggers an alarm and displays the exact fault location on the interface.
Are your systems customizable for specific sanitary ware production needs?
Yes, we provide turnkey tailor-made designs for sanitary ware production lines, including glaze formula services and technical training.
Is the conveying speed adjustable?
Yes, the conveying speed is frequency-controlled and can be regulated within a range of 2 to 8 meters per minute.
