High Efficiency Enamel Coating Production Line for Oven and BBQ

Customization:	Available
Application:	Appliance Industry
Coating Type:	Anti-corrosion Coating

Basic Specifications

Heating System	Diesel, electric, gas, LPG
Warranty	One-Year Warranty
Enamel Layer Thickness	60-100μm (Flat Workpieces) 80-120μm (Cavity)
Firing Temperature	820-900℃ (Optimal Range for Enamel Fusion)
Control Accuracy	±2℃
Uniformity	≤±5℃
Firing Time	3-6min (Adjusted Based on Workpiece Thickness)
Power Supply	440V/380V/50Hz/60Hz
Certifications	CE ISO9001 SGS
Thermal Efficiency	≥86% (Includes Waste Heat Recovery)
Capacity	76 sets / Year

Product Description

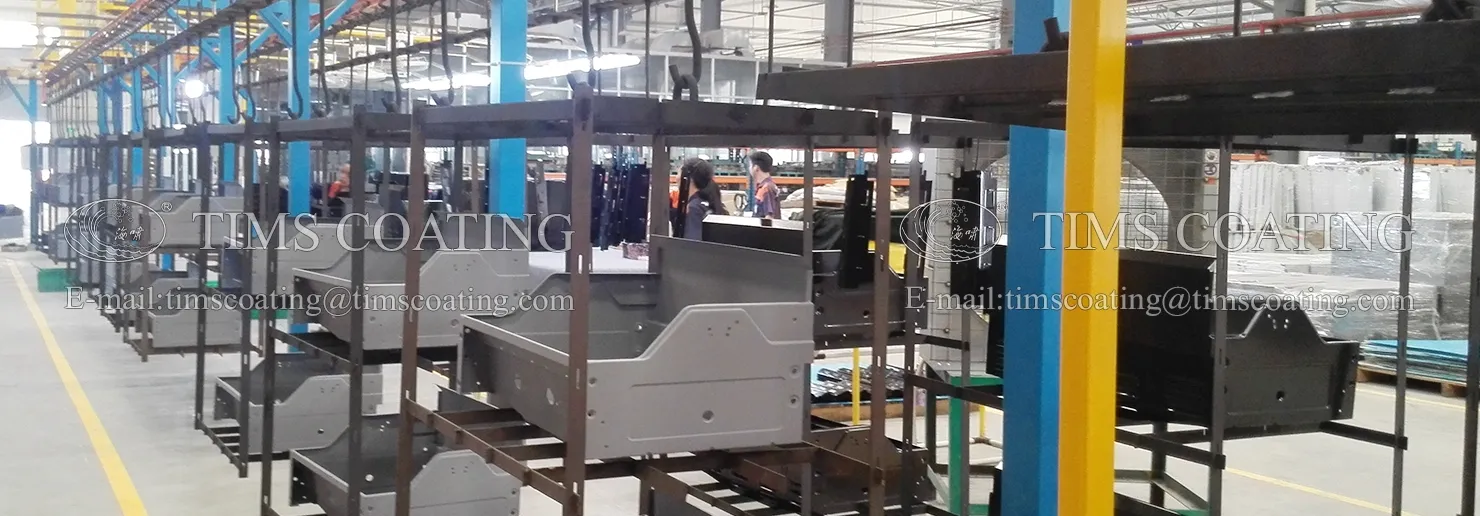

Oven Enamel Production Line: Comprising a fully automatic pre-treatment system, wet automatic enamel spraying/dry electrostatic automatic enamel spraying modules, wet enamel drying, high-temperature firing, cooling, and inspection units. Complete lines or individual modules can be customized to meet specific requirements.

Applicable Workpieces

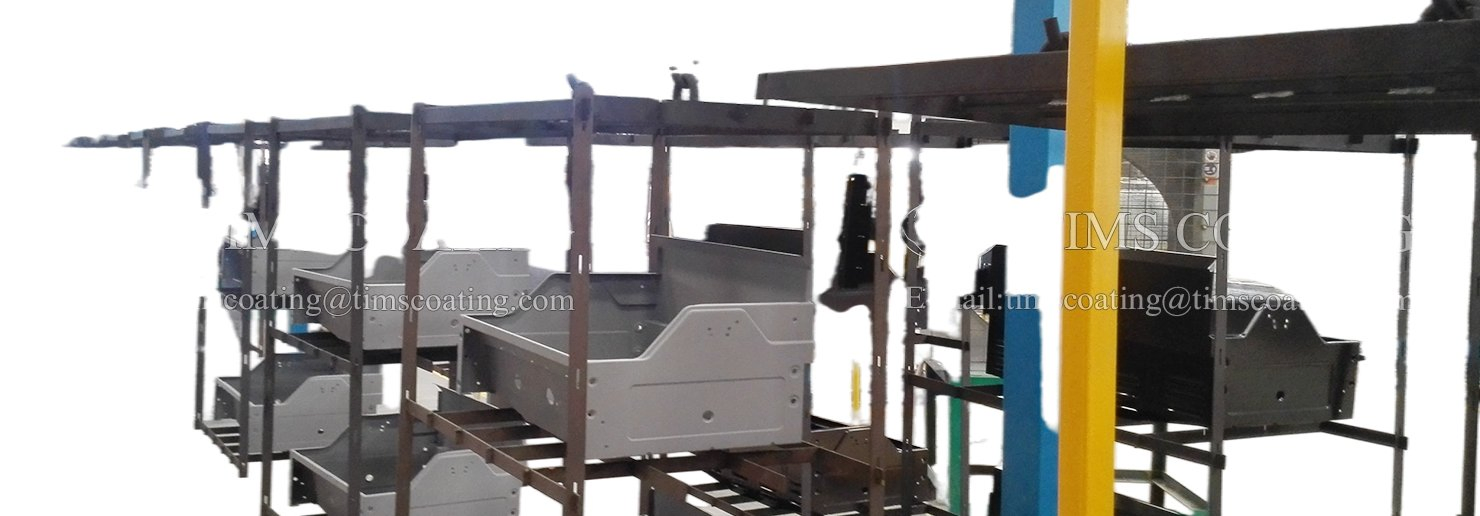

Categories: Oven liners (rectangular and curved), oven door glass frames, grill racks (wire mesh), and oven outer casing panels.
Materials: Cold-rolled carbon steel and Stainless Steel (grade 304).
Specifications: Compatible dimensions from 300mm x 200mm x 100mm to 1200mm x 600mm x 400mm.

Key Advantages

Specialized Coating for Complex Shapes

For complex structures such as rounded corners of oven liners and gaps in grill rack mesh, a dual-mode coating module is utilized. This includes electrostatic coating for flat parts and servo-driven roller coating for curved parts. Component qualification rate consistently exceeds 99.6%.

Energy Efficiency & Waste Heat Recovery

Equipped with a flue gas waste heat recovery heat exchanger achieving a utilization rate of ≥72%. The system reduces heat loss by 40% compared to traditional equipment, significantly lowering operating costs and supporting green production.

Full Process Automation

From loading to inspection, the entire process is automated. Only two personnel are required for material feeding and handling, reducing labor costs by up to 85% compared to manual lines. Supports "one-touch switching" for different models in ≤3 minutes.

System Composition

Pre-treatment Module

Degreasing (50-55°C) with stirring system.
2-stage rinsing with water quality monitoring.
Hot air circulation drying tunnel (90-200°C).
SUS304 stainless steel interior lining.

Enameling Module

Servo-driven roller coating (8-25 r/min).
Electrostatic coating unit (60-80kV).
Precise enamel slurry delivery pump (±1.5 mL/min).
Automatic spray gun positioning (±0.05mm).

Core Functions

Automated Processing	Continuous operation from degreasing to inspection, eliminating manual errors.
Recipe Storage	Supports process recipes for over 10 oven models for flexible production.
Precise Control	PLC monitoring of flow rates, temperatures, and firing times for consistent gloss ≥90GU.
Traceability	QR code and FRD system documenting data for over 1 year.
Modular Design	Independently separable modules for easy expansion and capacity upgrades.

Technical Capability

With manufacturing bases covering over 100,000 square meters, the facility specializes in R&D and manufacturing of high-end enamel equipment. Holding over 100 utility model and invention patents, the enterprise provides intelligent pre-treatment coating lines and automated enamel firing production lines. The production system is certified under IATF16949:2015 Quality Management Standards.

Global Partnerships

Frequently Asked Questions

What is the standard production lead time for a complete coating line? The standard production cycle is 30-70 days, depending on customization requirements and specific functional modules.

What information is needed to get an accurate procurement quote? Please provide workpiece type, maximum dimensions (L×W×H), weight range, expected daily output, coating process requirements, and available factory space.

How is the equipment installation and commissioning handled? We provide turnkey services where engineers perform on-site installation and testing. This process typically takes 30-60 days.

What after-sales technical support is available? We offer remote debugging within 2 hours, on-site mechanical support within 5-10 days, and a 12-month warranty on all equipment.

How does the system ensure enamel coating uniformity on irregular workpieces? We use a dual-mode system combining electrostatic spraying for flat parts and servo-driven roller coating with specialized nozzles for curved liners and wire racks.

Is the production line compliant with food safety standards? Yes, the finished products are tested for adhesion and salt spray resistance, ensuring compliance with food contact safety standards like GB 4806.10.
