• Suitable to press veneer, fireproofing-board, decorating-paper etc.
• Perfect for lamination of furniture panels, building partitions, wooden doors, and man-made boards.
• Capable of drying or leveling veneer effectively.
• Solid Steel Heat Conduction Board: Utilizes deep-hole drilling technology for superior performance.
• Automatic Operation: Integrated device for controlling open and close sequences.
• Enhanced Safety: Equipped with a pedal emergency switch and quadric temperature protection.
• Premium Components: Hydraulic cylinders and composites sourced from high-end suppliers; high-quality electrical parts.
• Electric heating with circulating heat-transmission oil for uniform temperature distribution.
| Specification Item | Details |
|---|---|

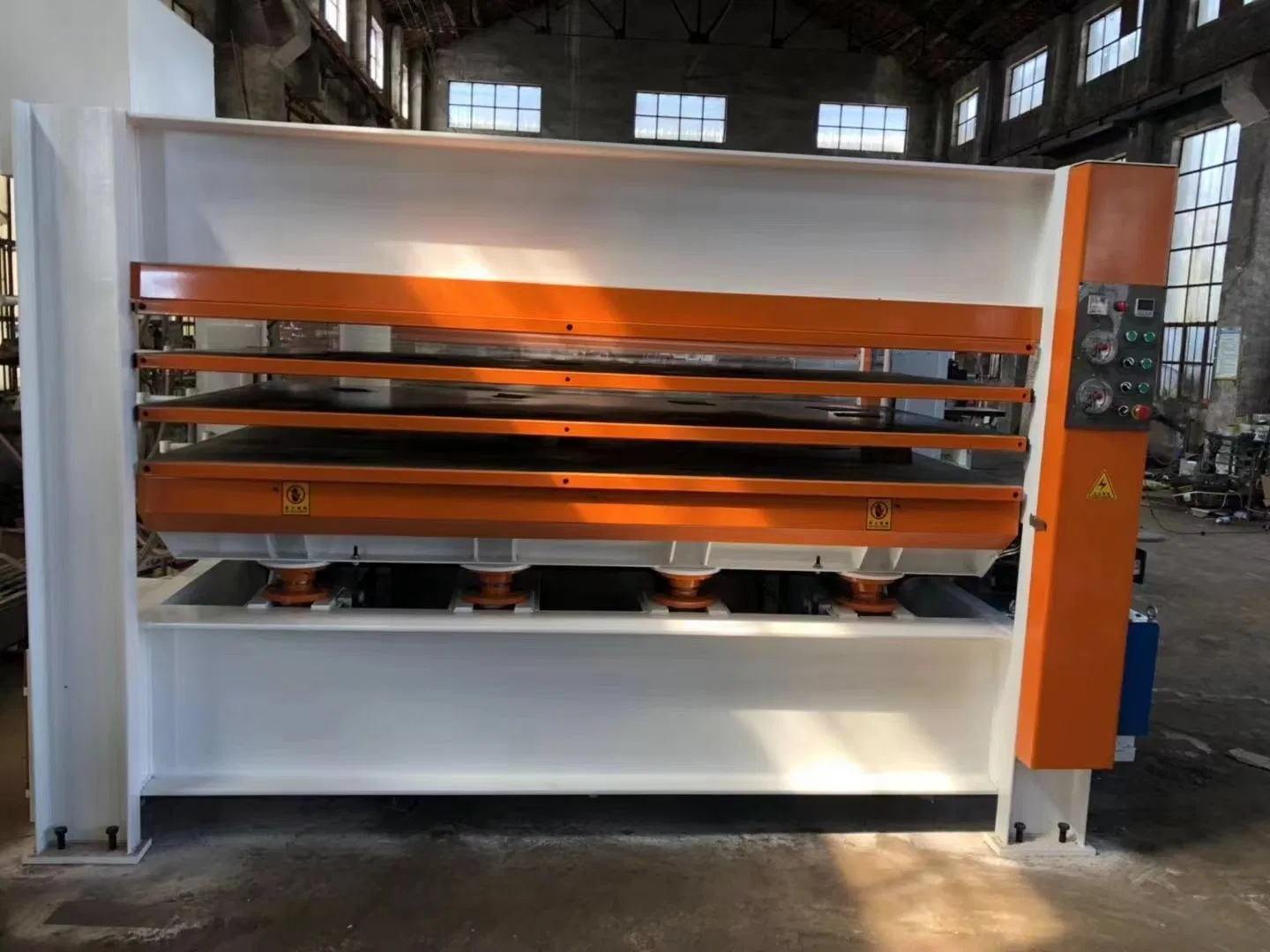

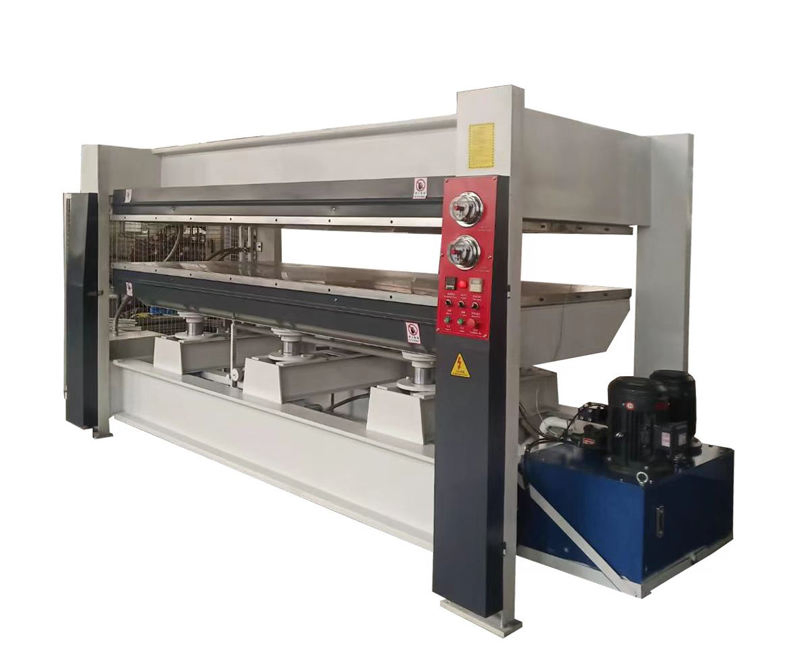

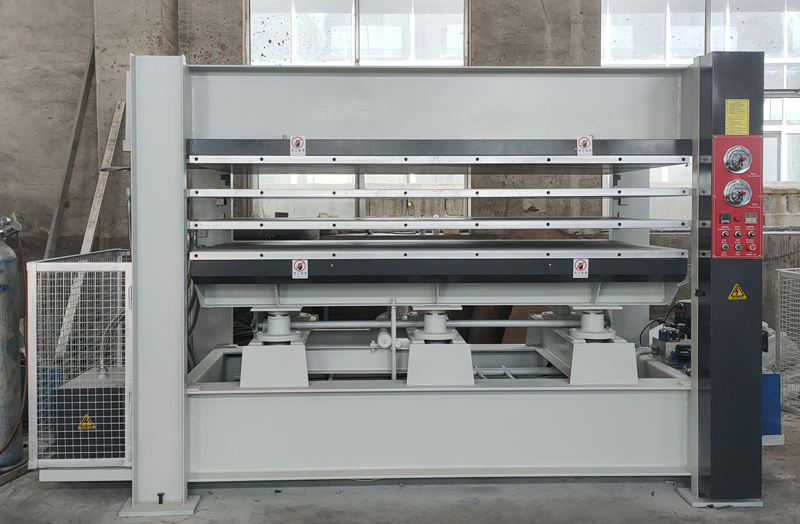

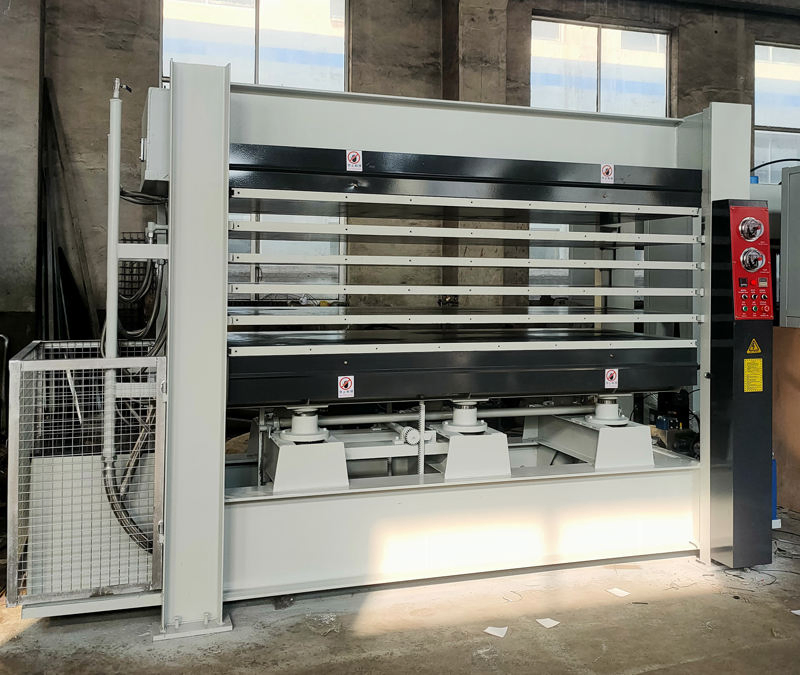

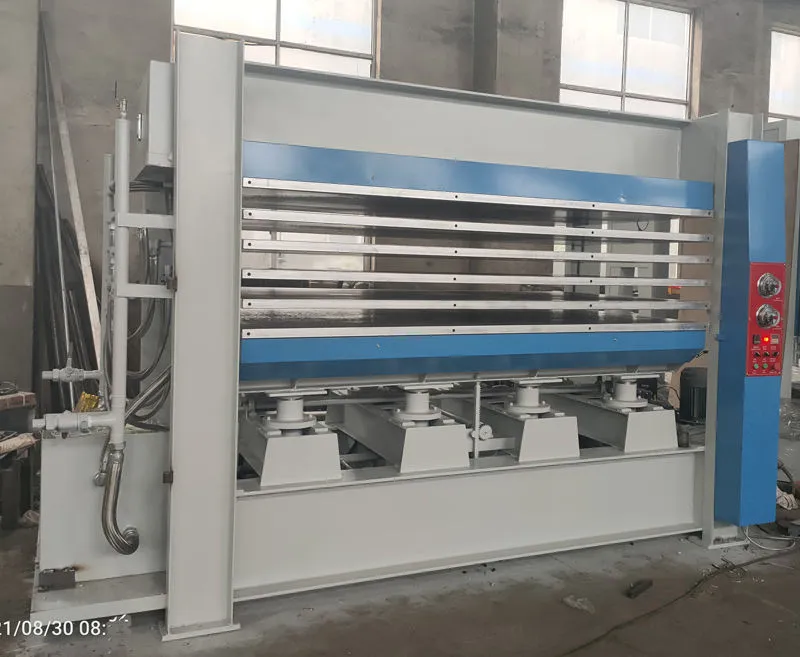

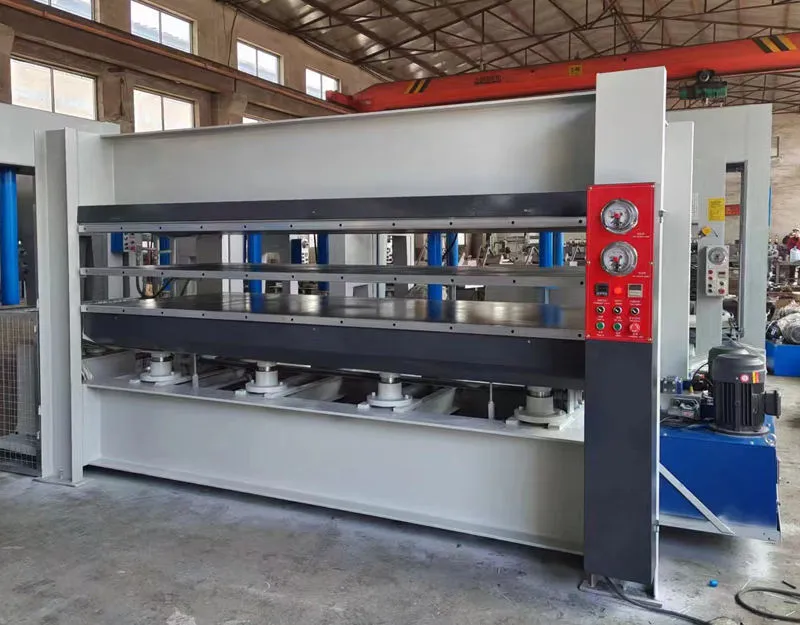

| Product Name | 3 Layers Hot Press Machine |
| Number of Hot Plates | 4* 2500x1300x42mm |
| Unit Face Pressure | 3.12kg/cm² |
| Number of Cylinders | 8 Sets |
| Cylinder Diameter | 100mm |
| Closing Speed | 40mm/s |
| Distance Between Heat Plates | 100mm |
| Rated Oil Pressure | 25mpa |
| Max Temperature | 180°C |
| Machine Power | Hydraulic 7kw / Heating 36kw / Thermal conduction 4kw |

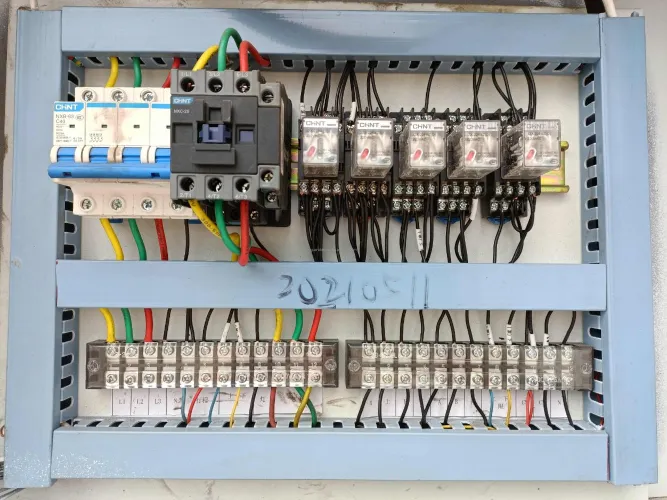

Excellent Electrical Appliances: High-stability solenoid valves and organized internal wiring ensure consistent machine performance.

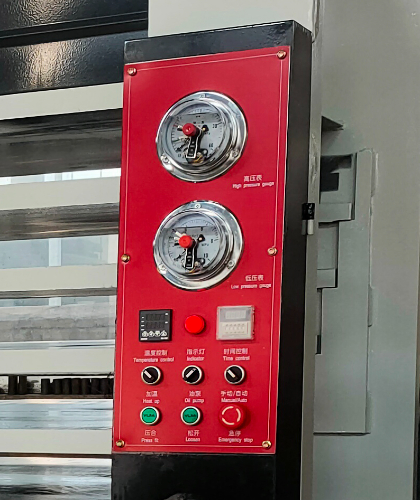

Intuitive Control Panel: Push-button operation with digital display timers and graduated pressure gauges for convenient monitoring.

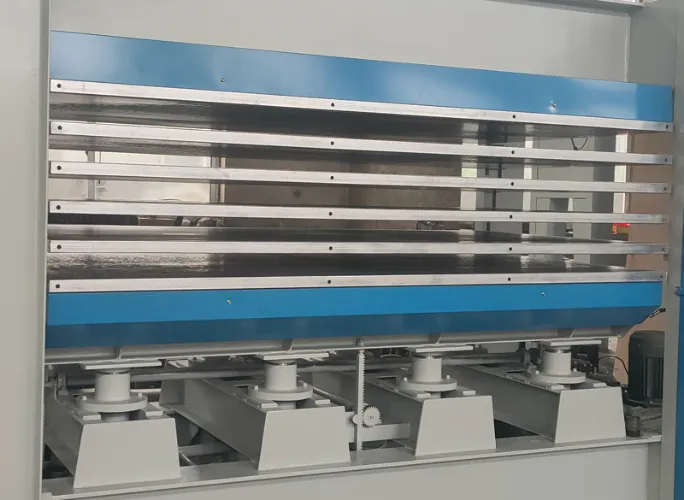

Alloy Steel Table: Minimizes adhesive pollution and protects plates from corrosion through high-grade alloy surface finishing.
Efficiency: Rapid heating of coolant through integrated oil boiler ensures equal heat distribution across all plates.
1. Delivery: Machines are securely packed in containers or sealed wooden cartons to ensure safe transportation.
2. Warranty: 12-month standard warranty. Free spare parts provided for issues under normal maintenance conditions.
3. Technical Support: Comprehensive manuals and video illustrations provided. 24-hour online technical assistance available.
4. ODM/OEM: We accept custom design and manufacturing requests to meet specific production needs.
