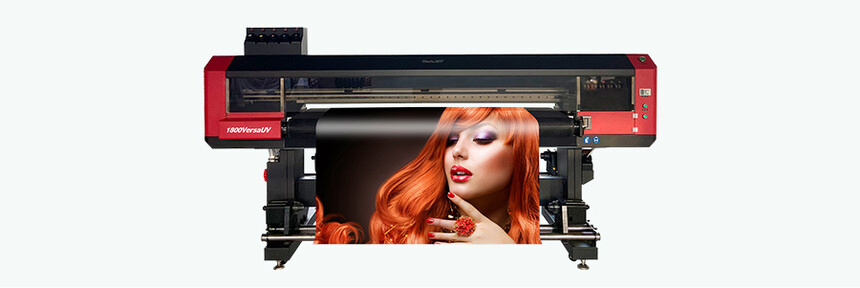

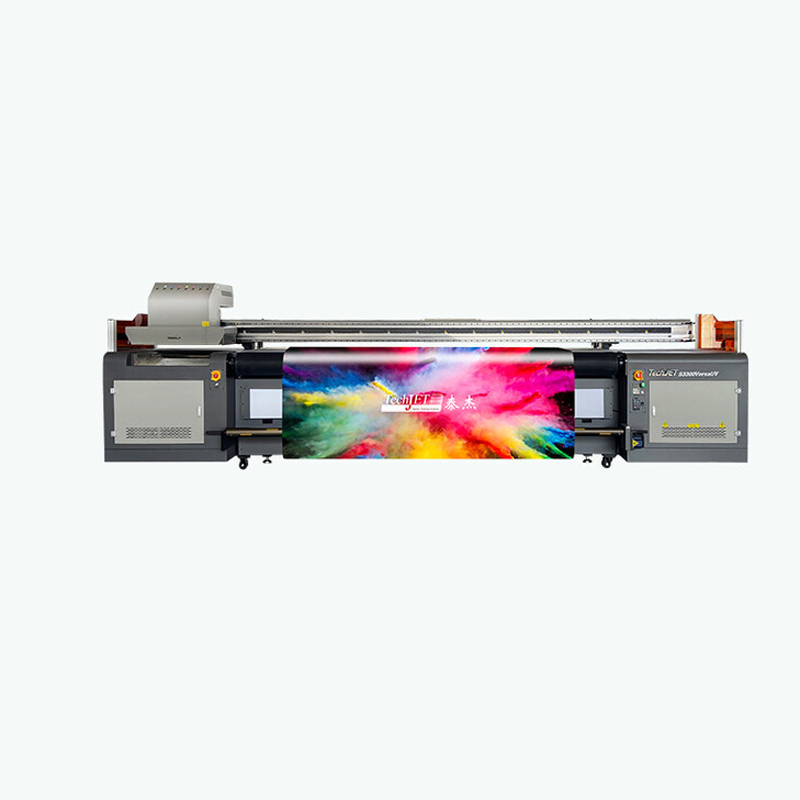

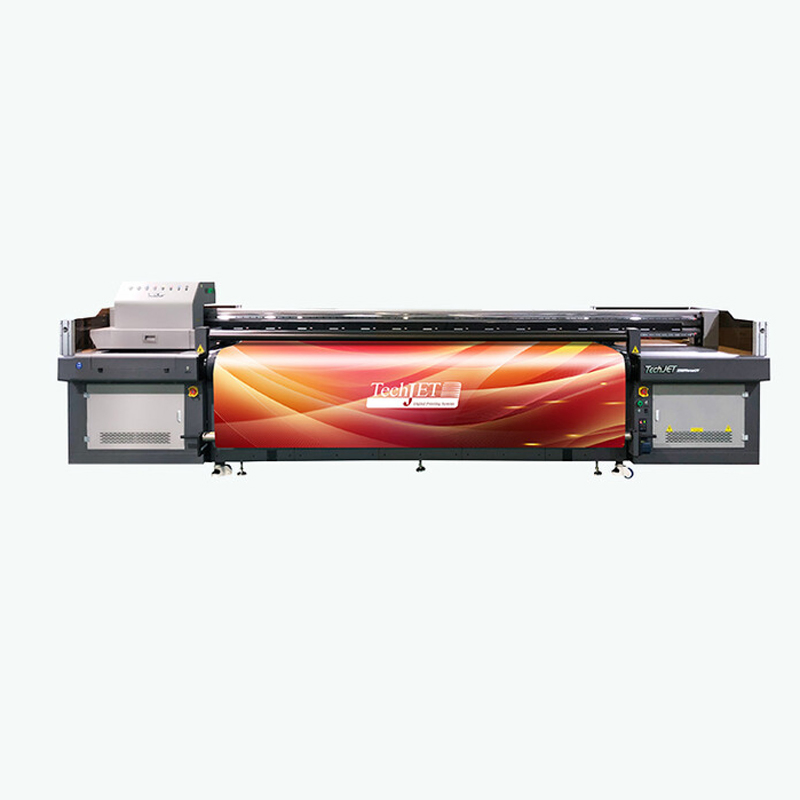

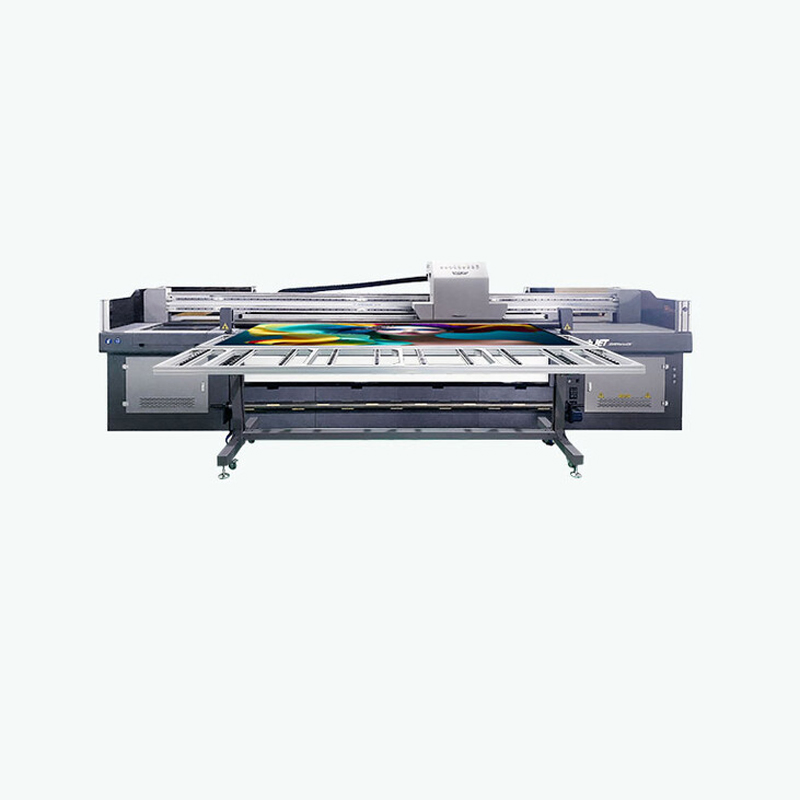

Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
1 / 5
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer
Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer

Industial Large Format Digital Inkjet Printing Machine LED UV Flatbed Printer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
5300
Plate
Lithography Printing
Structure
Flat-Bed Cylinder Press
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer
Automatic Grade
Automatic
Interface
USB 3.0
Print Speed
6.7 CPI
System
Windows XP 32
Printer Heads
Four
Package
Wooden Case
Origin
China
Industrial Large Format Digital Inkjet Printing Machine
Product Advantages

This UV printer is meticulously designed to meet modern marketing demands with several key advantages:

✓

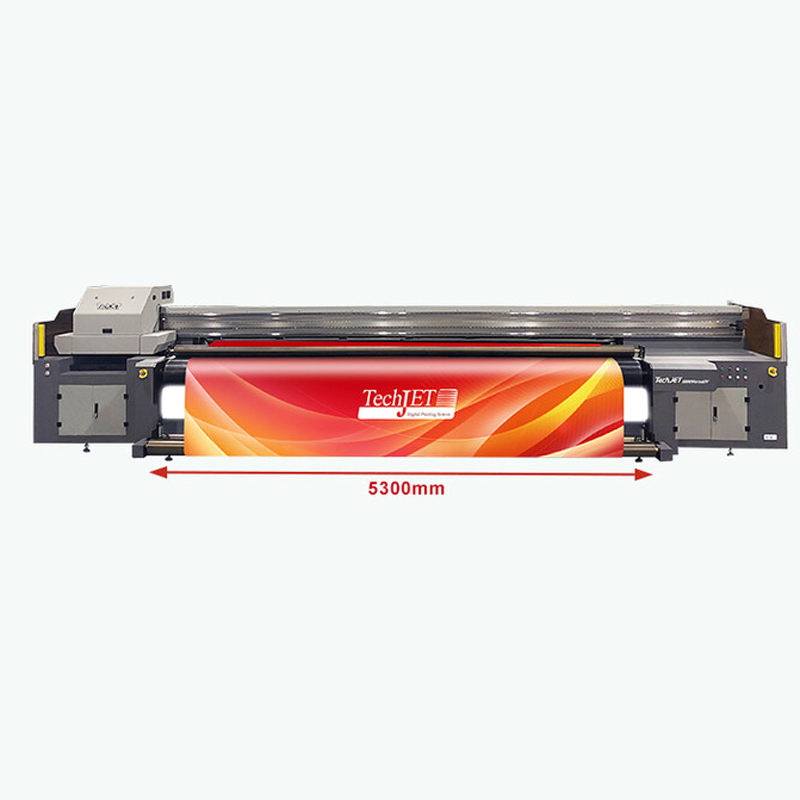

Over Wide Print Size Extra wide printing size maximum up to 5300mm with endless length, catering to specialized industrial demands.
✓
High Efficiency Convenient media loading/unloading system saves time for roll media. Supports up to 24 printheads for significantly increased speed and simultaneous color+white ink printing.
✓
Reliability & Versatility Built with high-end components for stability. The 5300mm width makes it suitable for almost all roll-to-roll media applications.
✓
Superior Quality Equipped with Konica Minolta 1024a printheads and specially developed UV inks to enhance both speed and image resolution.
Technical Parameters
Parameter Specifications
Model 5300 VersaUV
Carriage Movement Linear Motor
Print Head Konica Minolta 1024a / 6988H
Max Printheads Number 24 (configured in up to 4 rows)
Used Ink TechJet F2-1000
Colors Range CMYK / CMYKLcLm (x2 or x4)
White + Varnish Options Available
Mode Resolution 1 Row Speed 2 Rows Speed 3 Rows Speed 4 Rows Speed
Draft 4Pass-726×720 45M²/h 90M²/h 135M²/h 180M²/h
Standard 4Pass-726×720 20.57M²/h 41.13M²/h 61.7M²/h 82.3M²/h
Quality 6Pass-726×1080 13.80M²/h 27.60M²/h 41.4M²/h 55.2M²/h
Max Media Size Roll: Up to 5300mm Flat: Up to 2450×1300mm (x2)
Dimensions 8500mm × 2100mm × 1900mm
Power Requirement AC220V±10%, ≥32A, 50/60HZ (Max 8000W)
* Note: Printing speeds are measured based on specific conditions. Power consumption varies between standby and active printing. Speed data excludes white and varnish layers.
Product Display

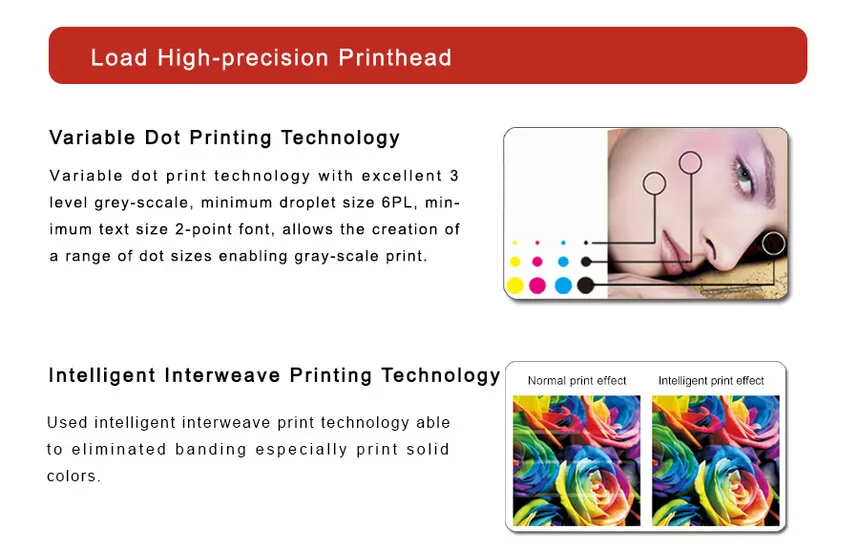

UV Flatbed Printer Detailed View
Large Format Printing Equipment
Frequently Asked Questions
What is the maximum printing width of the 5300 series?
The machine supports an extra-wide printing size of up to 5300mm with endless length for roll media.
Which print heads are utilized in this printer?
It utilizes high-performance Konica Minolta 1024a or 6988H print heads for superior quality and speed.
Can this printer handle both roll and flat media?
Yes, it is versatile. It handles roll media up to 5300mm and flat media up to two 2450x1300mm boards with thickness up to 30mm.
What is the fastest printing speed available?
In Draft Mode with a four-row print head configuration, the speed can reach up to 180M²/h.
What ink colors does the system support?
The system supports multiple configurations including 4 colors (CMYK), 6 colors (CMYKLcLm), White ink, and Varnish for special finishes.
What are the power and environmental requirements?
It requires AC220V power and operates best in temperatures between 20-30°C with 40%-60% relative humidity.
