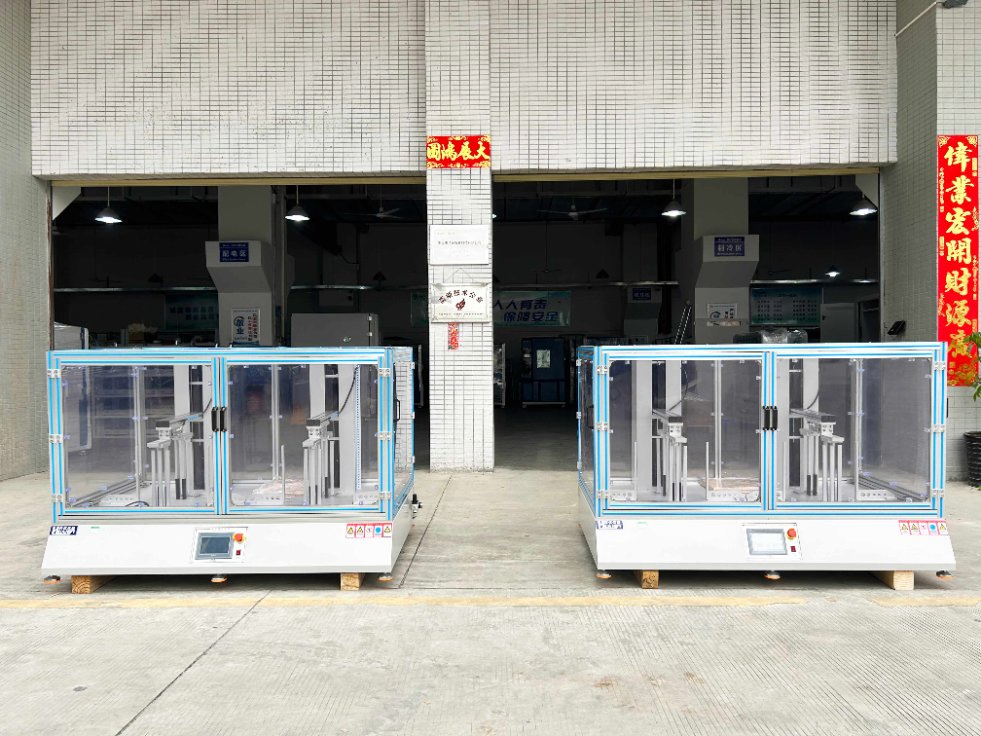

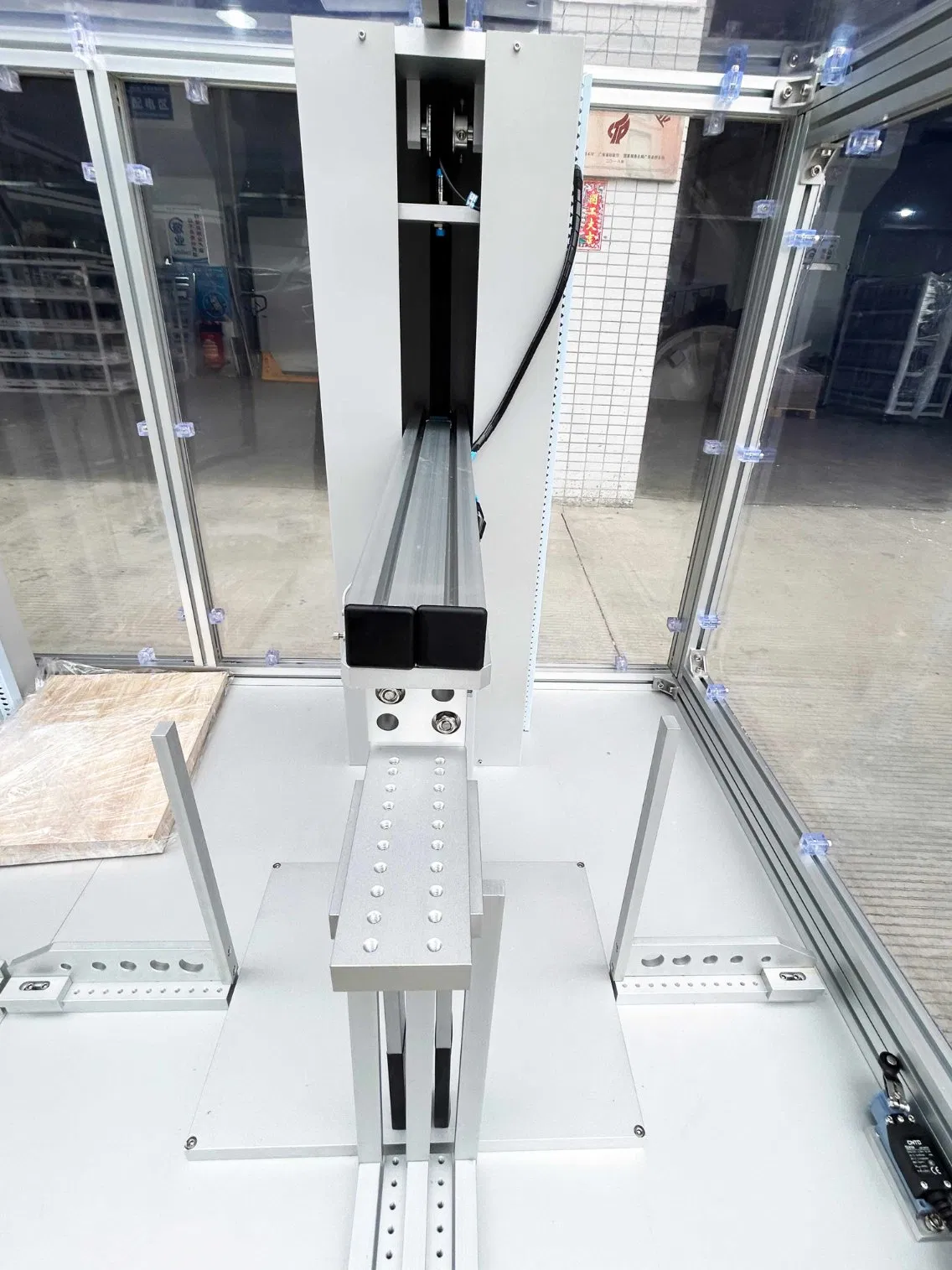

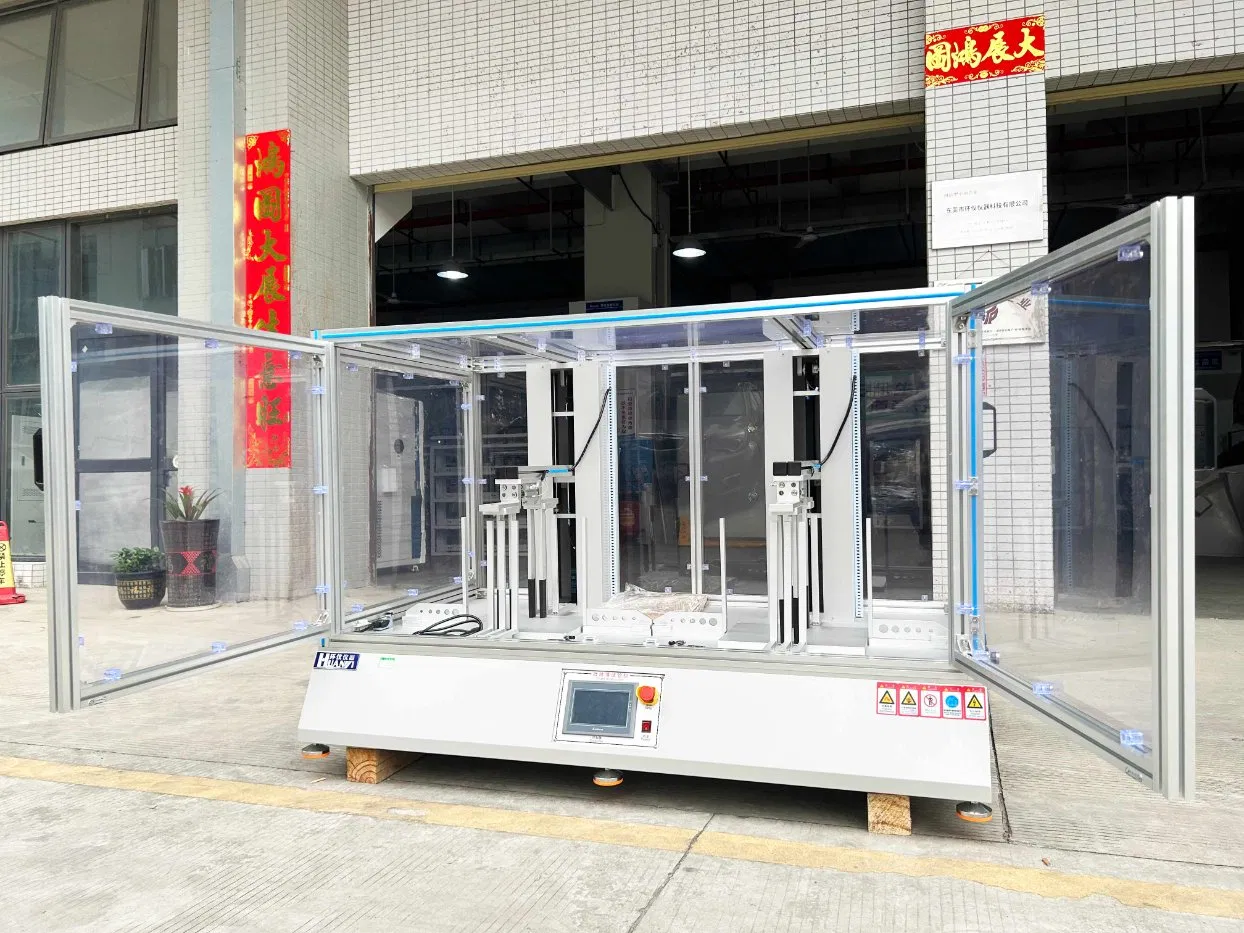

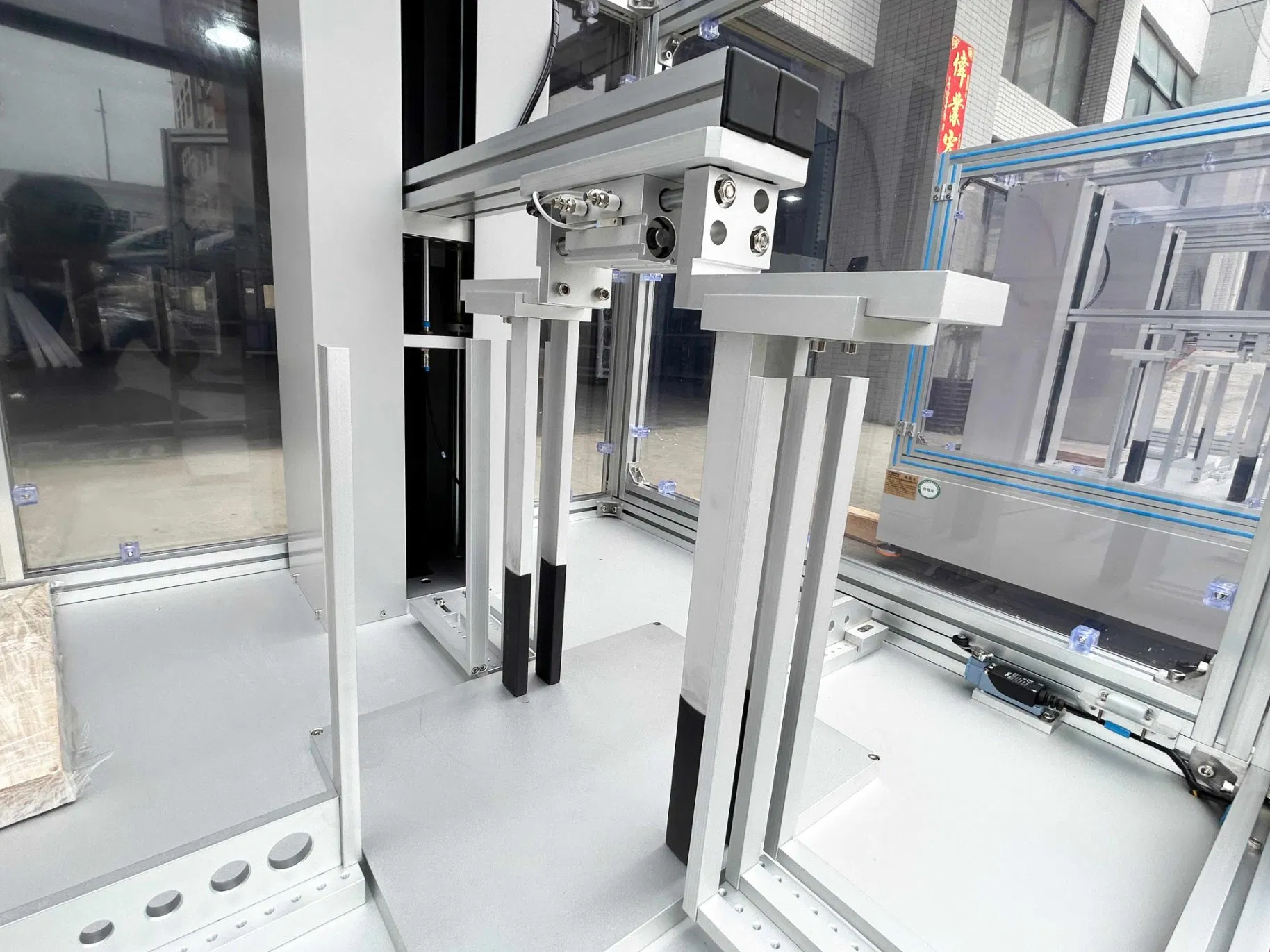

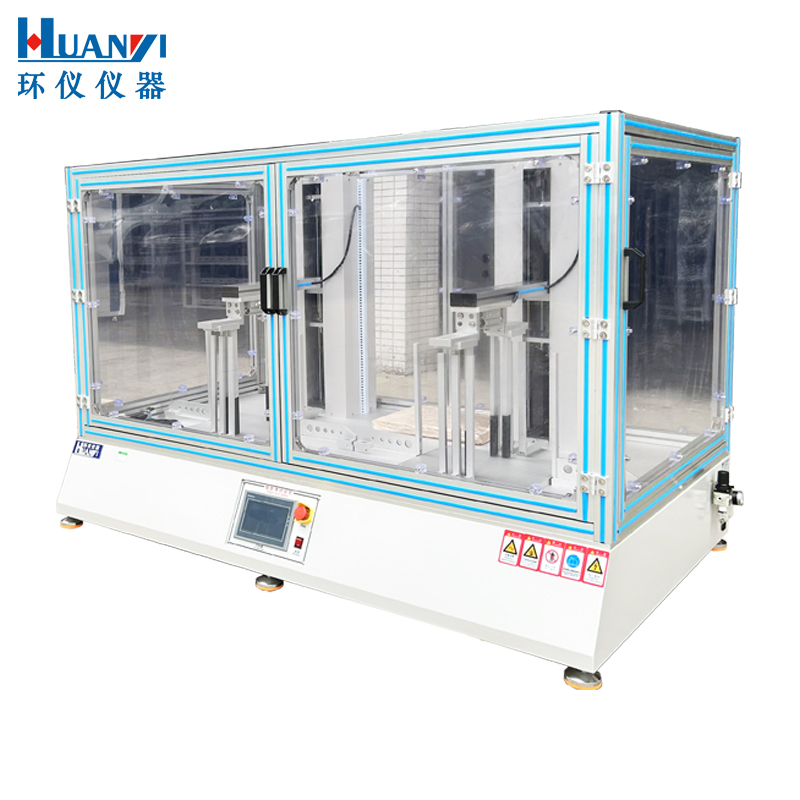

Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
1 / 5
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone
Low Height Drop Test Machine for Mobile Phone

Low Height Drop Test Machine for Mobile Phone

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📦 Basic Information
Model NO. HY
Type Drop Testing Machine
Load Way Pneumatic/Electric
Display Digital
Drop Height (mm) 300-1500 / 300-2000
Max Weight of Test Piece (Kg) 85
Max Size of Test Piece (mm) 1000 * 1000 * 800
Power Source AC 380V
Transport Package Standard Export Wooden Box
🚀 Application
The Package Impact Drop Testing Machine is designed to measure the dropping impact incidence during use, transportation, and decoration. In addition to precision plane drop testing, it performs edge and angle tests to provide a comprehensive performance evaluation for packaging.
This equipment simulates the free fall of finished products to evaluate potential damage during handling or transport. It is capable of testing all rhombohedrons, angles, and faces of the test specimen.
How Motorised Pneumatic Drop Testing Works:
Equipped with a motorised arrangement to lift a single wing structure, the pneumatic system operates the wing for release. Using a wired remote control, operators can test corrugated cartons in three ways: edge-wise, corner-wise, and flat surface. Once dropped from a specified height, the effect of the free fall is visualized to assess durability.
This motorized drop test machine reaches a maximum height of 2000mm. By assessing how materials withstand falls from specific heights, manufacturers can improve material quality and ensure products are delivered safely to customers.
⚙️ Key Features
  • Advanced structure where the cargo carrier moves rapidly downward and rotates, ensuring true free fall with minimal impact vibration.
  • Single-arm & double-column structure featuring pneumatic reset, pneumatic control drop, and electric lifting.
  • Integrated buffer device to reduce impact on the instrument parts, significantly increasing equipment lifespan.
  • Precision screw drive system replacing traditional chain transmissions for enhanced stability and accurate results.
  • User-friendly Touch Screen and PLC control for setting test height and drop frequency.
  • Stroke limit and leakage protection design to ensure maximum operator safety.
📋 Compliance Standards
Our testing equipment strictly complies with international industrial standards:
ISO-2248-1985, IEC68-2-27, GB/T4875.5, and more.
📊 Technical Specifications

Single/Dual Wing Drop Tester Series

Technical Indicators Model HY-315A Model HY-320A
Drop height (mm) 300-1500 300-2000
Max Weight (kg) 85 85
Max Sample Size (mm) 1000*1000*800 1000*1000*800
Impact Panel Size (mm) 1500*1000*20 1500*1000*20
Net weight (kg) 480 550

Zero Altitude Drop Tester Series

Technical Indicators Model HY-015 Model HY-020
Maximum load (kg) 150 300
Drop height (mm) 0-1200 0-1200
Max sample size (mm) 1000*1000*1000 1200*1200*1200
Impact surface (mm) 1850*1650 2000*1900
Power supply Three phase AC 380V ± 10%, 50Hz
📸 Product Gallery
Drop Test Machine
Testing Equipment
Package Tester
Laboratory Instrument
Industrial Testing
Quality Control
Drop Strength Tester
Packaging Solution
Impact Tester
❓ Frequently Asked Questions
1. Do you accept customized services?
Yes, we provide both standard and customized machines tailored to your specific technical requirements and testing needs.
2. What is the standard warranty period?
Each machine comes with a 14-month warranty after shipment. This includes 12 months of free maintenance plus an additional 2 months to account for shipping time.
3. What is the typical delivery timeframe?
If the item is in stock, we can ship quickly. Otherwise, the standard production time is 15-20 working days after receiving the deposit.
4. How is the product installed and operated?
Most machines are shipped as complete units. You only need to connect the power cable. We provide comprehensive English operating instructions and video guides.
5. Is the machine safely packed for international transport?
Yes, we use standard export wooden boxes for external packaging and stretch film for inner protection to ensure the equipment remains undamaged during sea or air freight.
6. How can I choose the most suitable product?
Our professional team will provide expert advice based on the type of testing you need to perform and your specific material specifications.
