Basic Information
Model NO.
Pneumatic Stamping Hot Branding Machine
Classification
Continuous Stamping Machine
Suitable Material
Plastic, Leather, Wood, Rubber
Automatic Grade
Semi-Automatic
Application
Leather, Business Card, Packaging, Electronic, Labels, Toys
Usage
Label Printer, Paper Printer
Product Description

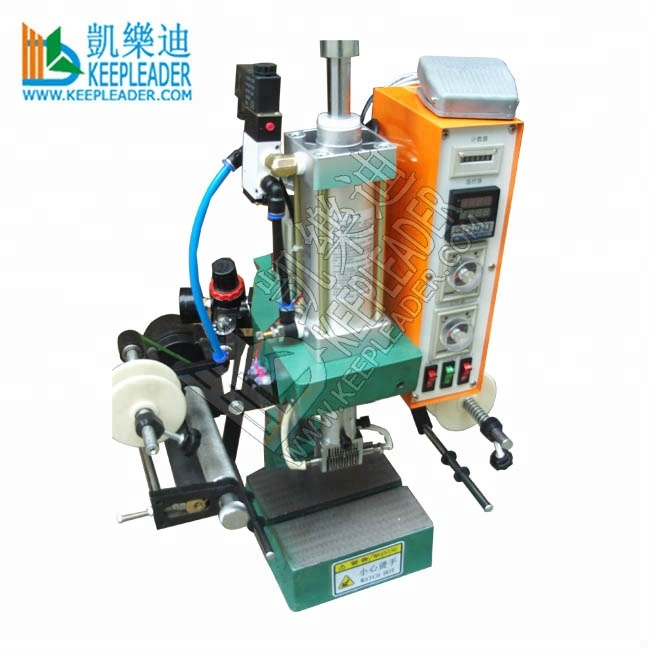

Pneumatic Stamping Hot Branding Machine is designed for heat press melting, bronzing, embossing, branding, stamping, and decorating. It works with golden, pigment, or holographic foil on materials including rubber, plastic, wood, leather, fabric cloth, and paper.
Key Features:
- Microprocessor control and pneumatic drive for easy operation.
- Suitable for both flat and cylindrical shape stamping.
- Manual, semi-auto, and auto operation modes available.
- Integrated foil winding and collecting functions.
- Adjustable pressure, temperature, and speed.
Technical Specifications
| Parameter |
Details |
| Model | KLS-1500 |
| Heating Plate Size | 150*210mm |
| Working Plate Size | 170*220mm |
| Pressure Range | 100-500kgs (Up to 800kgs) |
| Stamping Stroke | 300-500mm |
| Max Workpiece Height | 200mm |
| Heating Power | 1500W |
| Power Supply | 110/220V 60/50Hz |
| Max Printing Speed | 1000 PCS/hr |

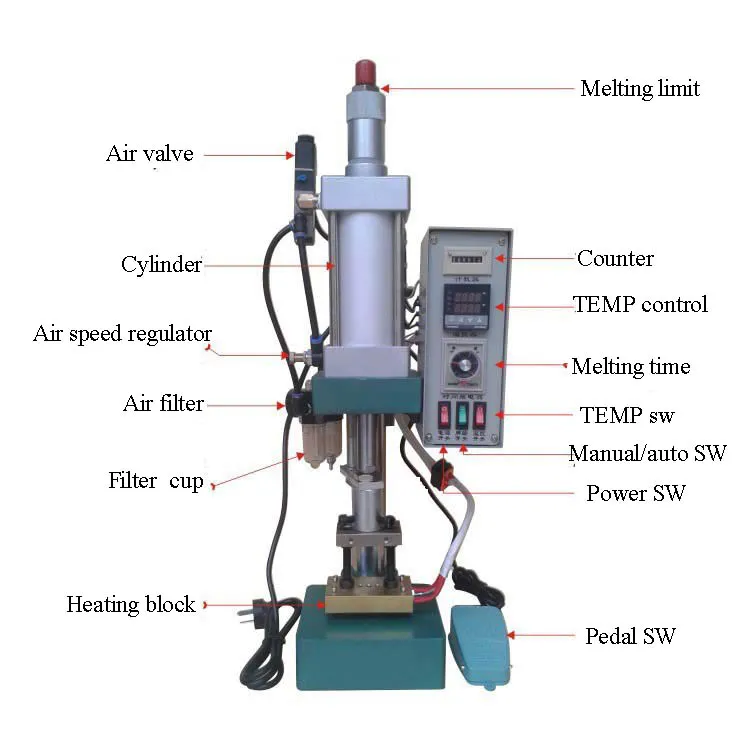

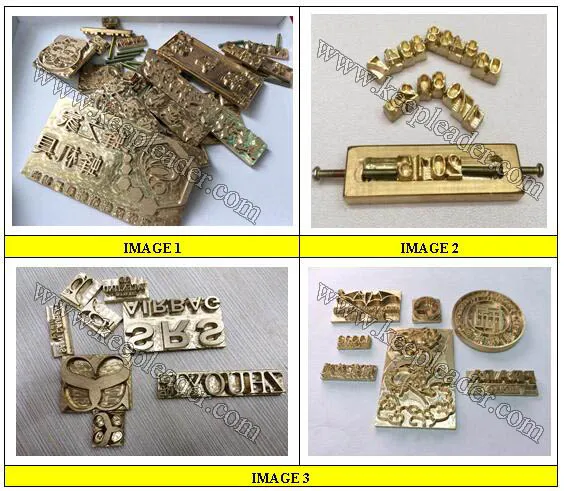

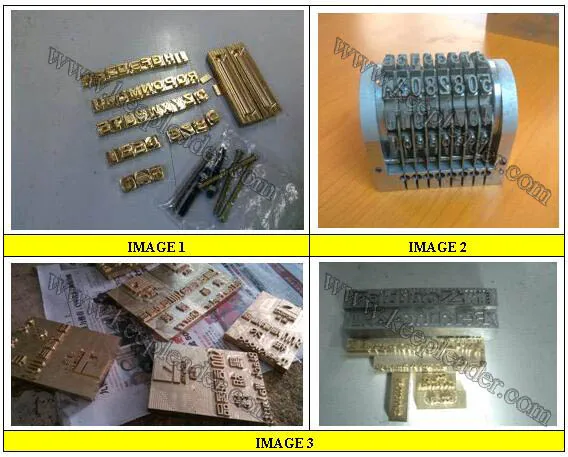

Technical Illustration & Tooling

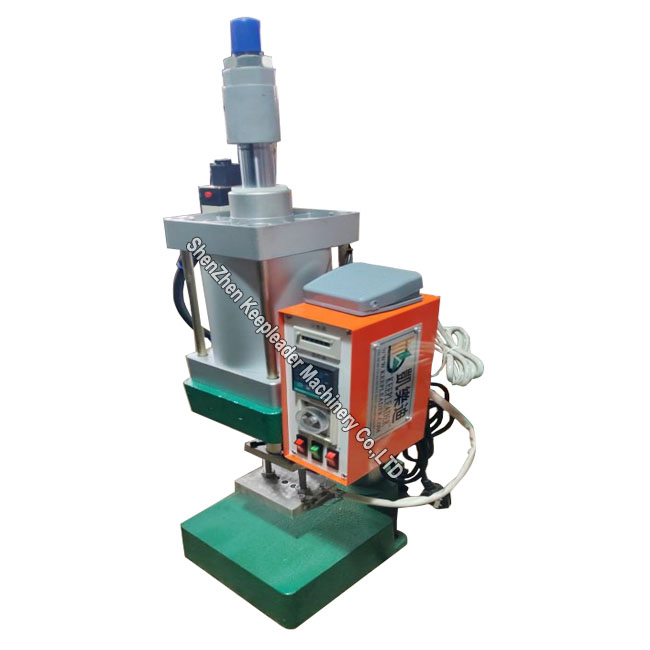

The machine uses a pneumatic driven, compact design. It triggers via a pedal valve, controlling melting pressure, time, and temperature. The manual lifting wheel with a linear rail allows for precise adjustment of the stamping head journey.

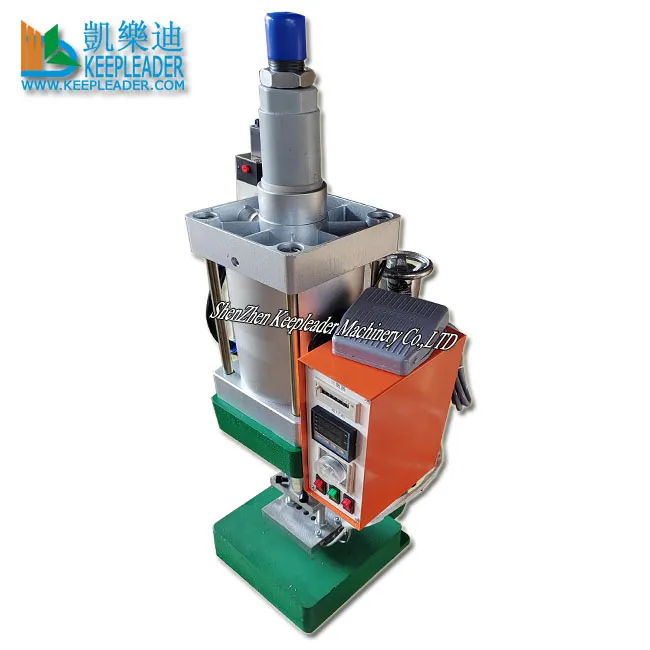

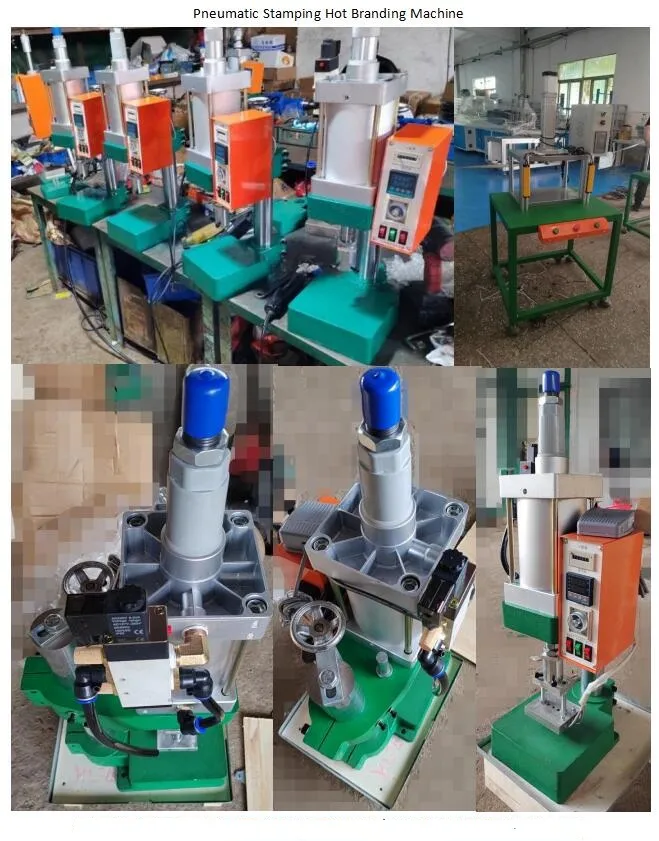

Detailed Photos
Features a robust rear column to ensure stability during heavy pressing. The digital operation panel integrates a counter, timer, and temperature controller. The high-density heating rod ensures quick heating and precise thermostat control.

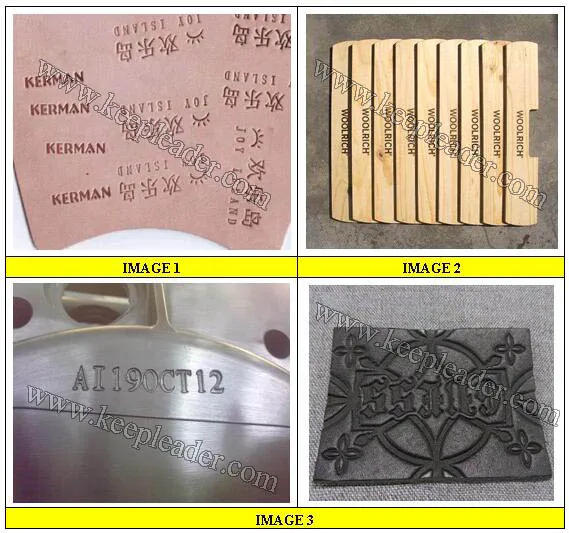

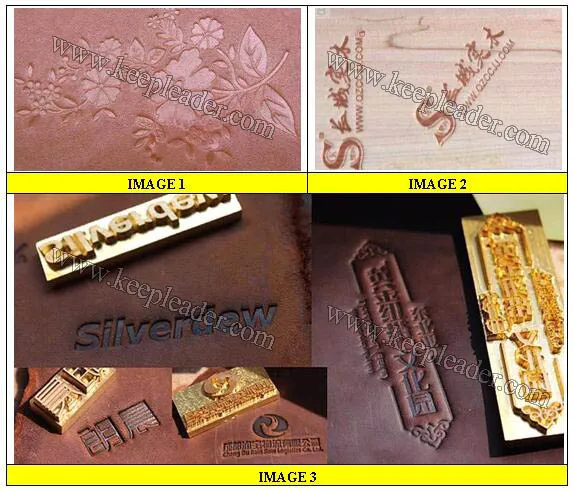

Machine Applications
This equipment is widely used for bronzing, decorative designs, patterns, and characters on paper, leather, plastic, wood, bamboo, and PVC. It meets the integrated requirements of embossing, stamping, and branding.
Service & Support
All machines come with a one-year guarantee. We provide technical support, including user manuals and training videos. In case of damaged parts, replacement components are provided for non-human damage. On-site training and electrical diagrams are available upon request.
Frequently Asked Questions
What materials can this pneumatic stamping machine handle?
The machine is versatile and can be used on plastic, rubber, wood, leather, fabric cloth, paper, and bamboo products.
Is the stamping pressure adjustable?
Yes, the standard pressure ranges from 100-500kgs, and a maximum pressure of up to 800kgs can be made-to-order.
Can it perform both flat and cylindrical stamping?
Yes, the machine is designed to accommodate both flat and cylindrical shape stamping requirements.
What are the main functions of the digital operation panel?
The panel integrates a production counter, timer, temperature controller, and controls for the high-density heating rod.
What is the maximum printing speed of this equipment?
The machine can achieve a maximum printing speed of approximately 1000 pieces per hour.
Does the machine support golden foil printing?
Yes, the machine can be installed with a paper foil feeding and rewinding system specifically for golden foil and holographic printing.
