PVC Wave Roof Plate Panel Production Line

Customization:	Available
Product Type:	PVC Board
Board Layers:	Multilayer

Send Inquiry

Product Description

Overview

Model NO.

SJSZ 65/132

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Material

PVC/ASA

Capacity

200kg/Hour +/- 10%

Speed

0.3-4m/Min

Structure

a Ab a+B+a

HS Code

84772090

Production Capacity

150sets/Year

Product Description

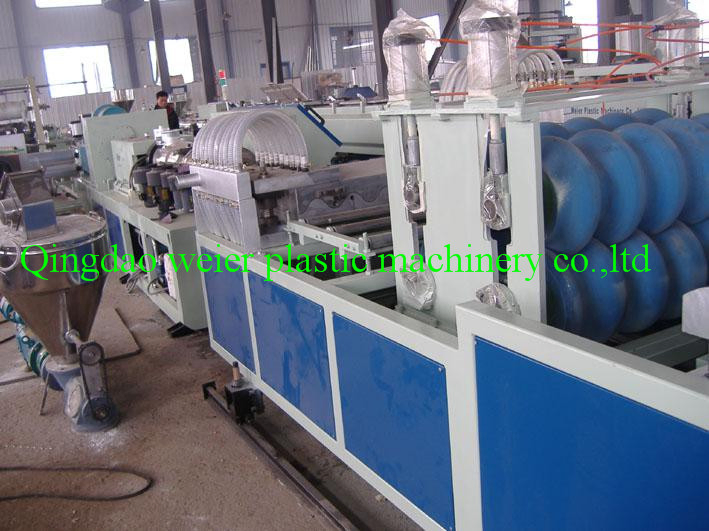

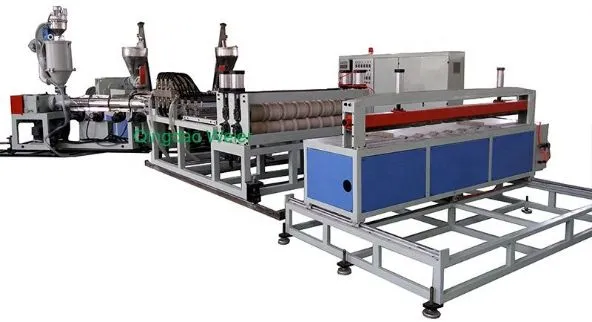

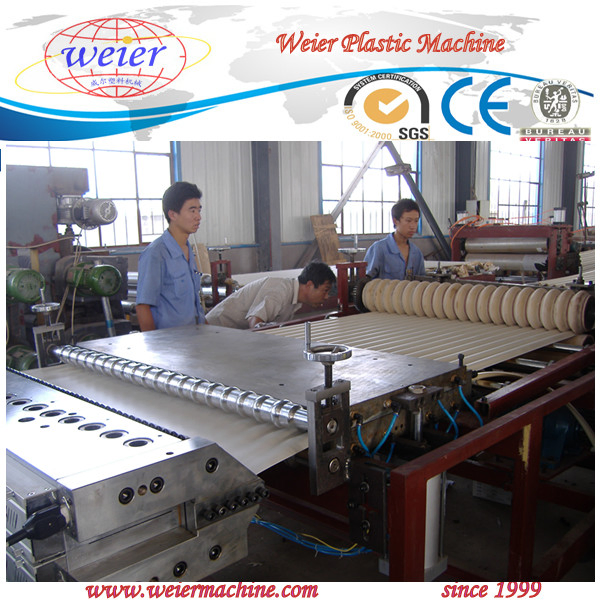

PVC Roof Tile Extrusion Line / PVC Corrugated Sheet Line

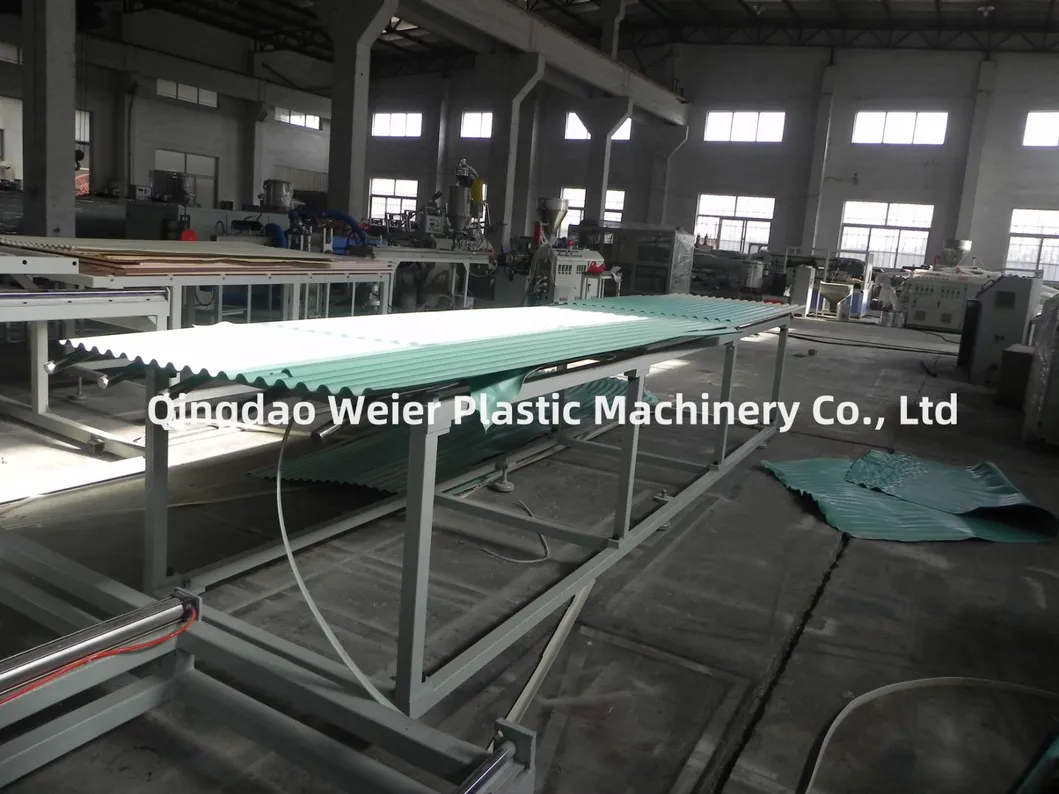

This production line adopts advanced techniques to continuously extrude single-layer or multi-layer glazed tiles (PVC/PMMA/ASA). The unit includes a twin conical screw extruder, forming machine, tractor, and cutting machine. It offers high efficiency, steady molding performance, and high automation for producing weather-resistant UPVC plastic cement wave plates.

Product Parameters

Structure	Single layer	Double layers	Triple layers 1	Triple layers 2	Four layers
Material	PVC	ASA/PMMA+PVC	ASA/PMMA+PVC+PVC	PVC+Foamed+PVC	ASA+PVC+Foamed+PVC
Width(Glazed)	880/1050mm	880/1050mm	880/1050mm	880/1050mm	880/1050mm
Thickness	2.5-3.5mm	2.5-3.5mm	2.5-3.5mm	2.5-3.5mm	2.5-3.5mm
Output	300-350kg/h	300-350kg/h	350-400kg/h	350-400kg/h	350-450kg/h

Detailed Photos

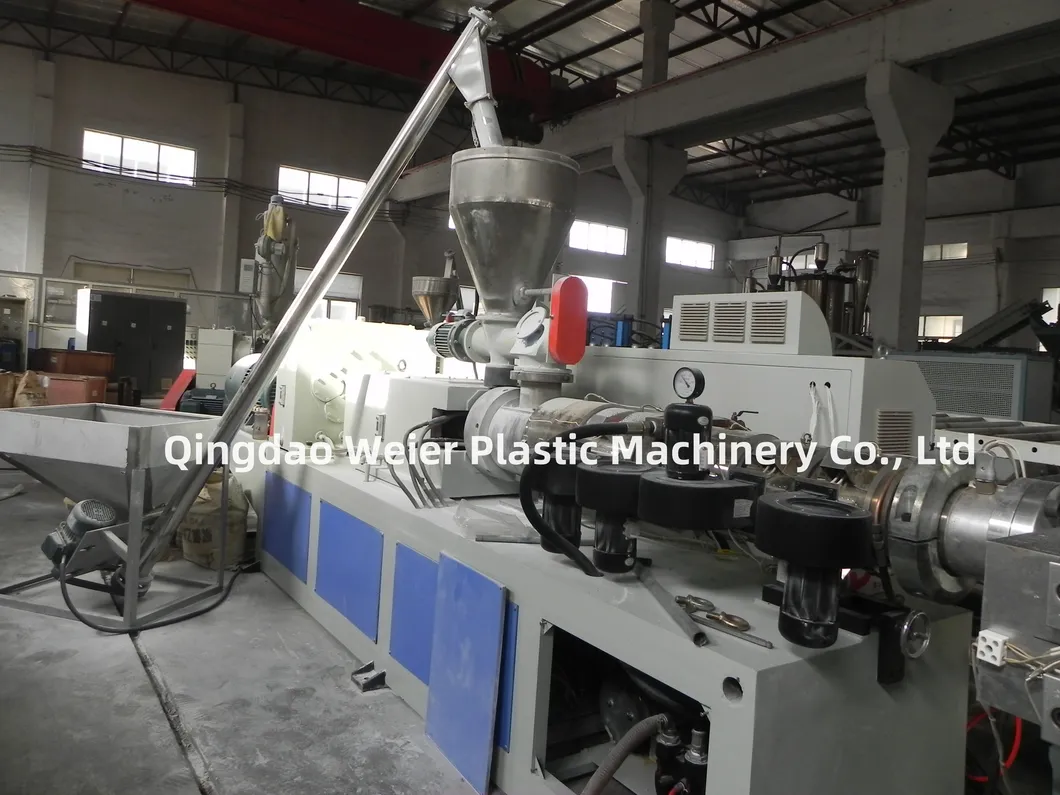

Conical twin screw extruder: 38CrMoAlA alloy steel with nitriding treatment for extended life.

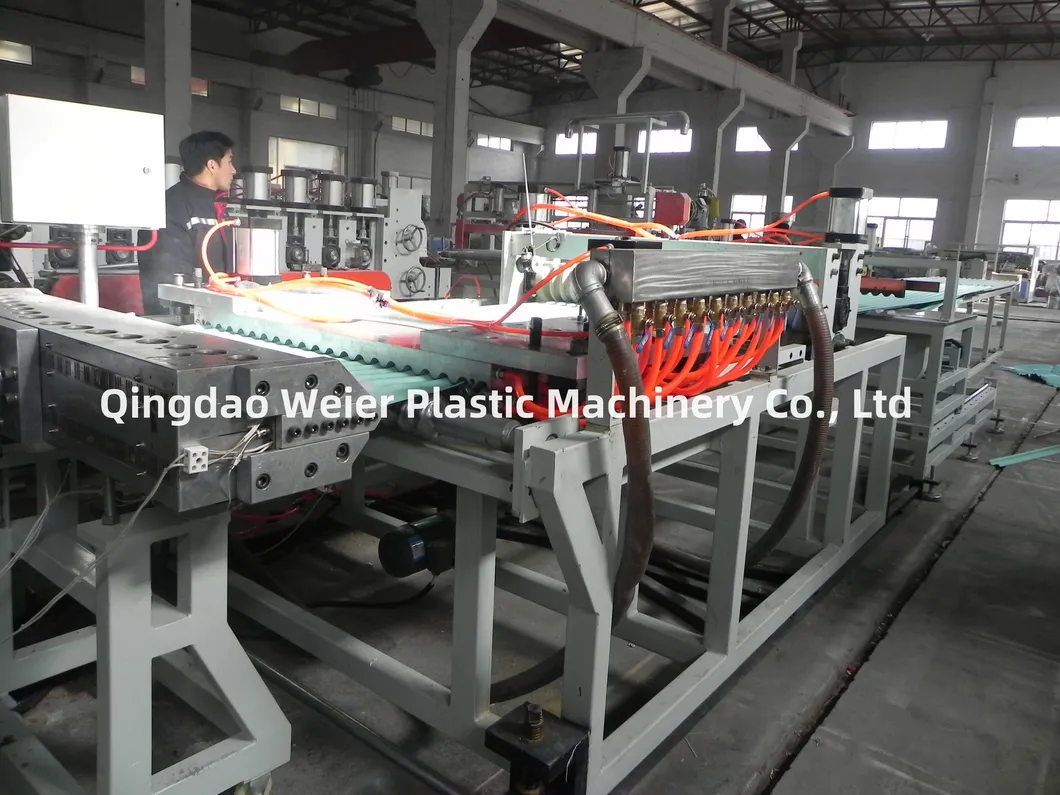

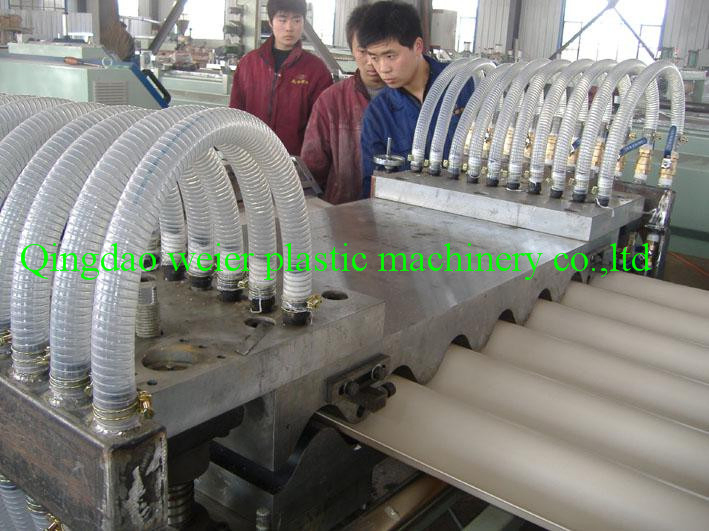

Forming machine: Vacuum negative pressure setting with high-pressure circulating cooling.

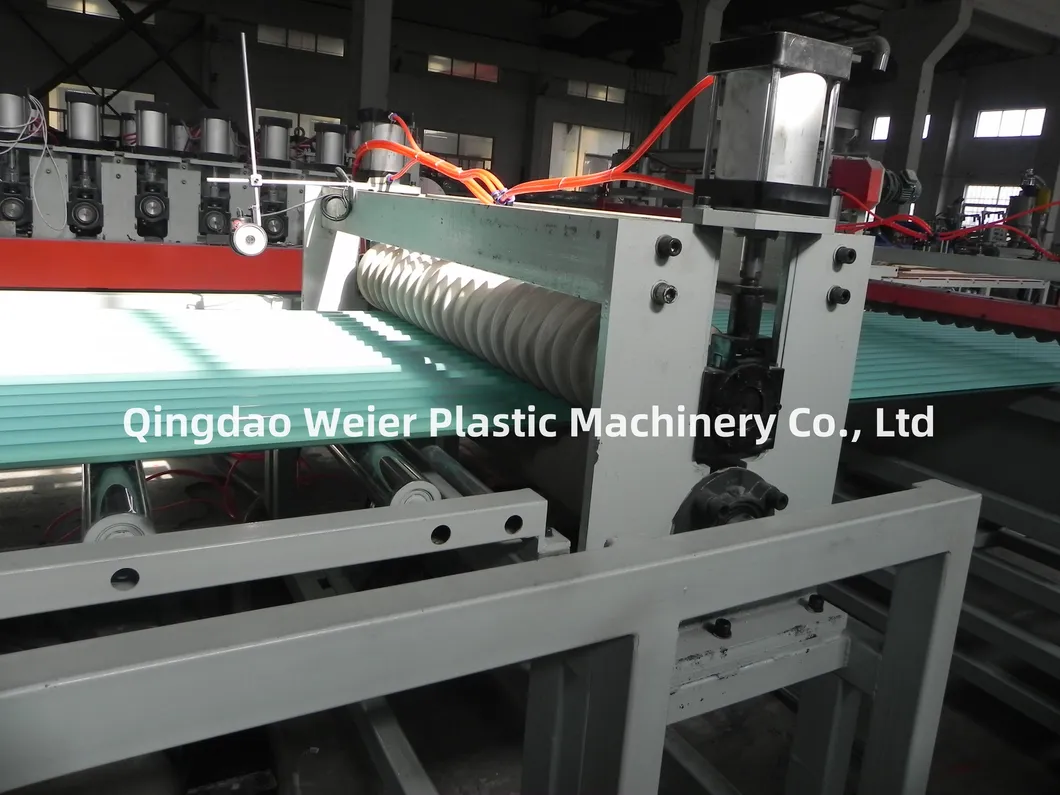

Haul-off machine: Active friction type, rubber rollers shaped to match the die head.

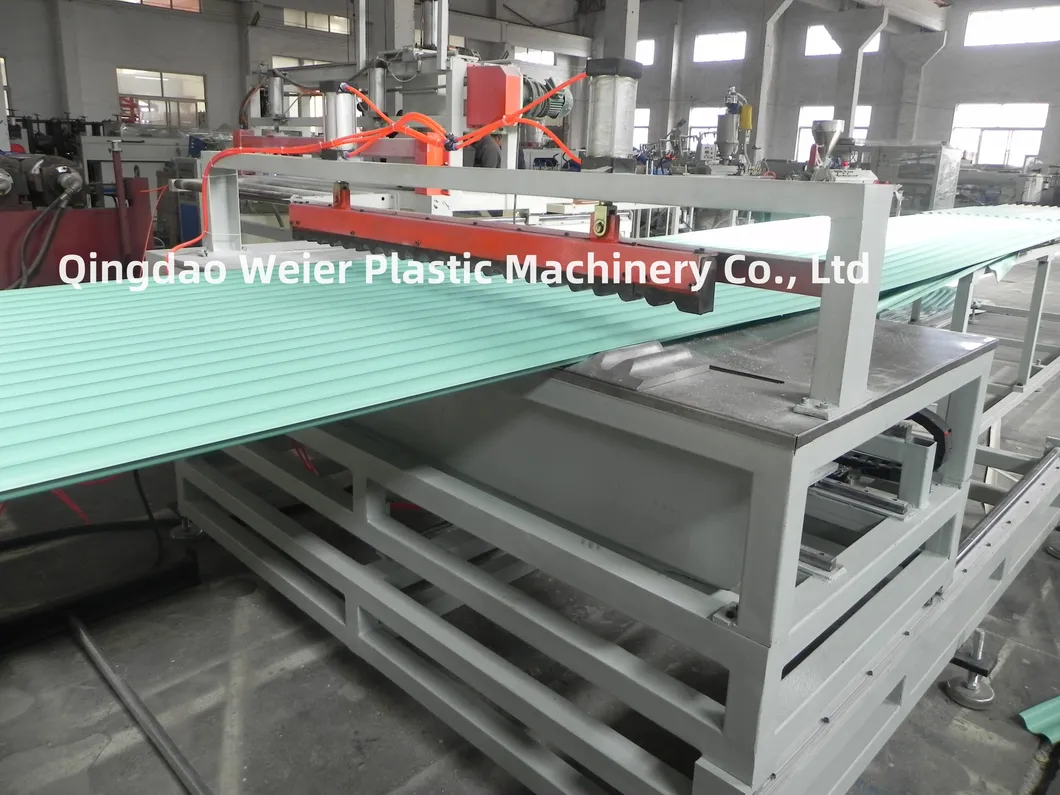

Cutter: Enables precise fixed-length cutting of finished products.

Application

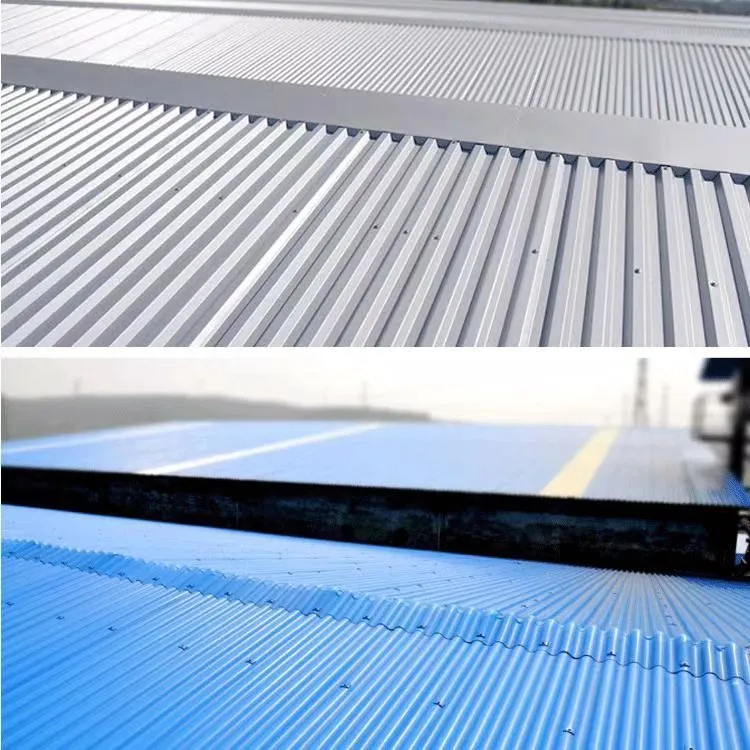

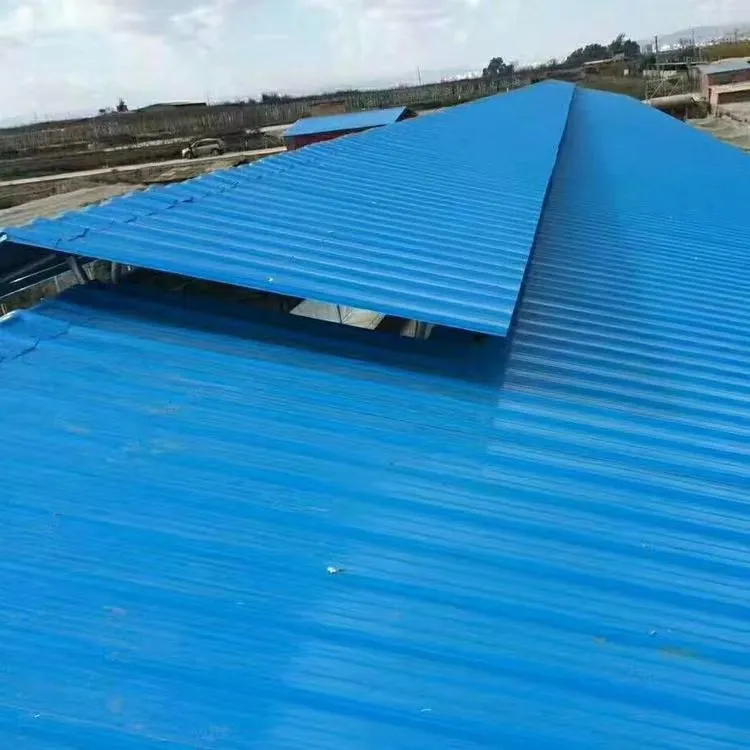

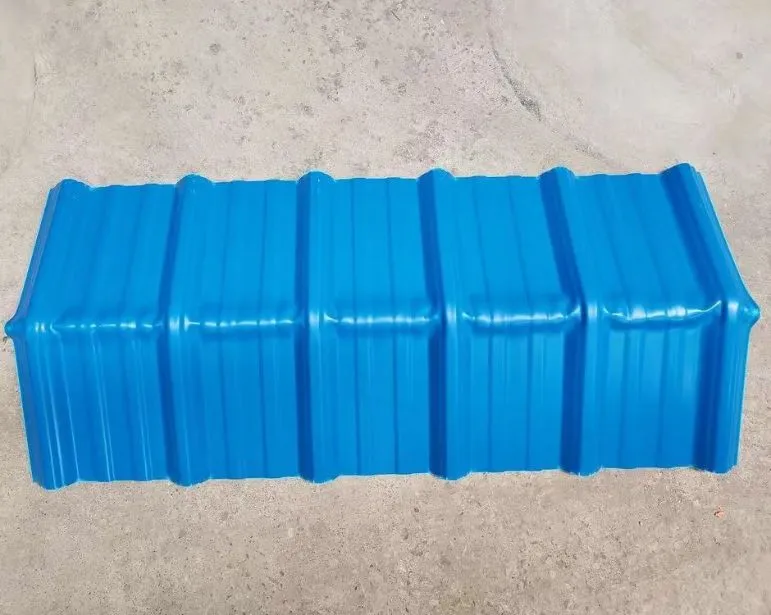

PVC roofing sheets are weather-proof, providing protection against sun, rain, hail, and snow. They are widely used in construction, industrial workshops, and residential buildings.

Key Applications:

Roofs/Canopies in low-sunlight areas.
Indoor industrial workshops with mild corrosion.
Urban-Rural shops and repair rooms.
Agricultural warehouses and farm tool rooms.
Garage and entrance canopies.

After Sales Service

✔ Technology Service: We provide service manuals, maintenance instructions, and installation drawings (water, electricity, gas).

✔ Installation & Training: The supplier is responsible for installation, debugging, and staff training.

✔ Warranty: Guarantee of repair and replacement of substandard products within one year.

✔ Spare Parts: Fittings are supplied at preferential prices after the warranty period.

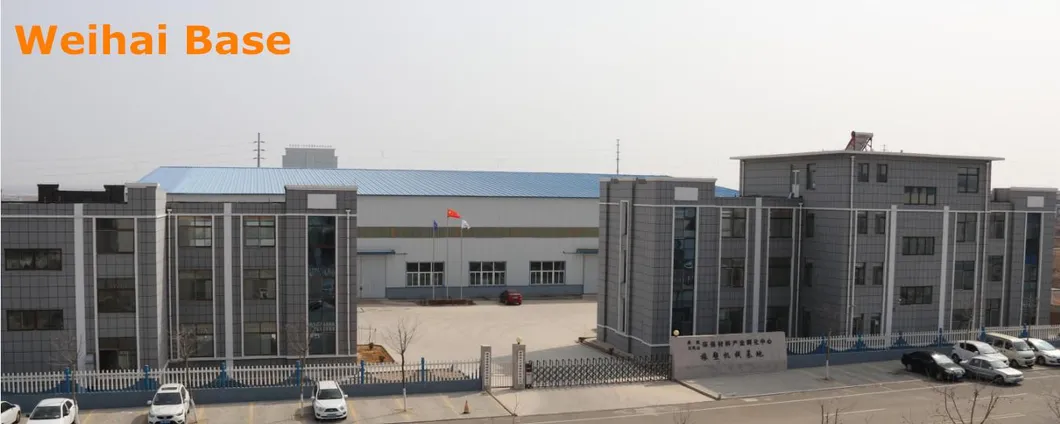

Company Profile & Exhibition

We are a professional manufacturer devoted to macromolecule science and plastic machinery. We cooperate with many domestic universities to develop specialized machines that meet international customer requirements, integrating advanced foreign processing engineering with our own technical expertise.

FAQ

How to process the payment?

30% of the total amount paid by TT as advance. After production is finished, the buyer tests the machine at our factory, followed by the 70% balance via TT or irrevocable L/C at sight.

What is the delivery time?

Standard machines take approximately 30 days. Non-standard or customized machines take approximately 45 days.

Do you arrange shipment?

Yes, for FOB or CIF price terms, we will arrange the shipment for you.

What documents are provided after shipment?

We send all original documents via DHL, including the Packing List, Commercial Invoice, Bill of Lading, and other certificates required by the client.

What is the scope of your warranty?

We provide a one-year guarantee for repairs, replacements, or refunds for substandard products (excepting damage from wrong operation). Electric parts are covered for half a year.

How is the debugging handled?

We can send technicians to the buyer's plant for debugging. The buyer covers travel expenses, board, and a daily salary for each technician.
