PVC Roof Sheet Production Line

Customization:	Available
Product Type:	PVC Board
Board Layers:	Multilayer

Basic Information

Model NO.

SJSZ 80/156

Screw No.

Double-screw

Automation

Automatic

Certification

CE, ISO9001:2008, QS, GMP

Condition

New

Material

PVC or PVC+PMMA+Additives

Machine Name

PVC Roof Tile Production Line

Power

95kw

Line Speed

Max.4m/Min

Production Capacity

100sets/Year

Product Description

The PVC sheet production line has adopted advanced production techniques from both domestic and international sources. It can continuously extrude single layer PVC glaze tile, and PVC/PMMA/ASA composite multi-layers glazed tiles.

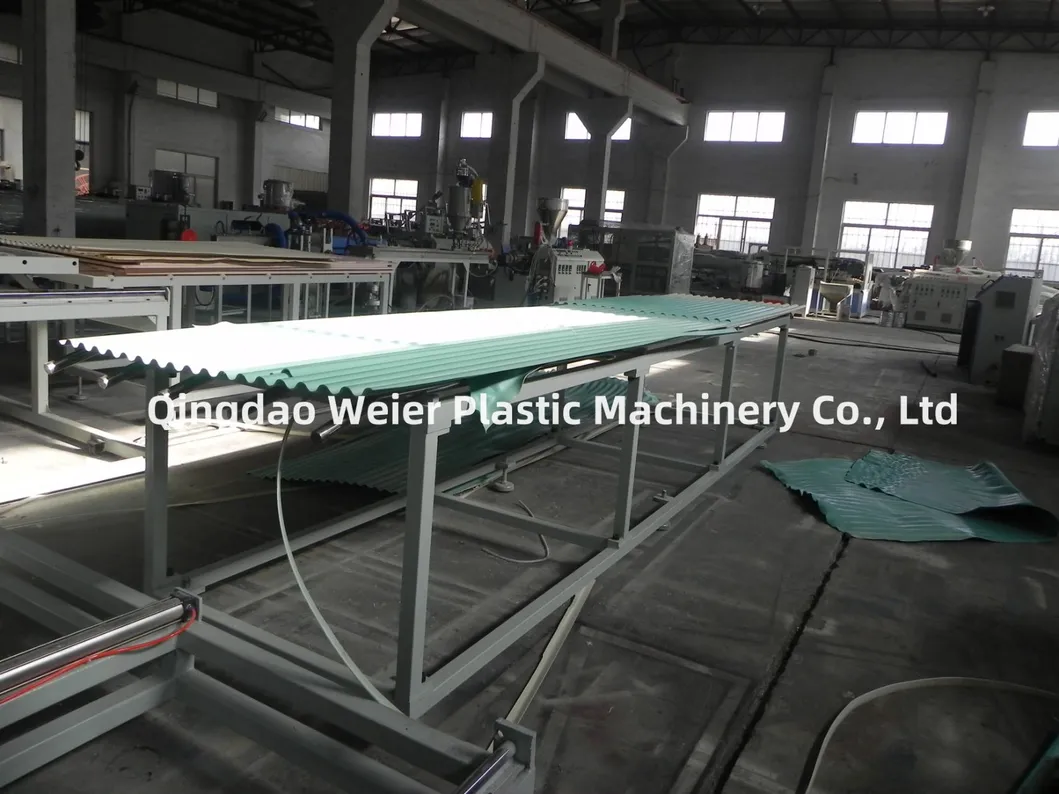

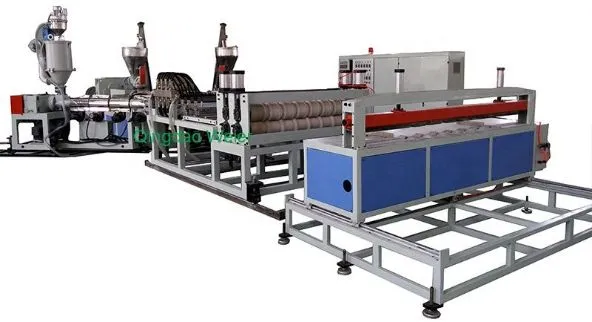

The unit is comprised of a twin conical screw extruder and corresponding wave plate forming machine, tractor, and cutting machine. It offers steady molding performance, tight structure, and high automation degree. This line provides high production efficiency, convenient operation, and long lifespan.

Product Parameters

Structure	Material	Extrusion Model	Width(Glazed)	Thickness	Output
Single layer	PVC	SJSZ80/156	880/1050mm	2.5-3.5mm	300-350kg/h
Double layers	ASA/PMMA+PVC	SJ50/30 + SJSZ80/156	880/1050mm	2.5-3.5mm	300-350kg/h
Triple layers	ASA/PMMA+PVC+PVC	SJ50/30 + SJSZ80/156 + SJSZ65/132	880/1050mm	2.5-3.5mm	350-400kg/h

Note: Daily production length reaches 1800-2000 meters. For higher output, SJSZ92/188 extrusion can be used to reach 2100-2500 meters per day.

Detailed Machine Photos

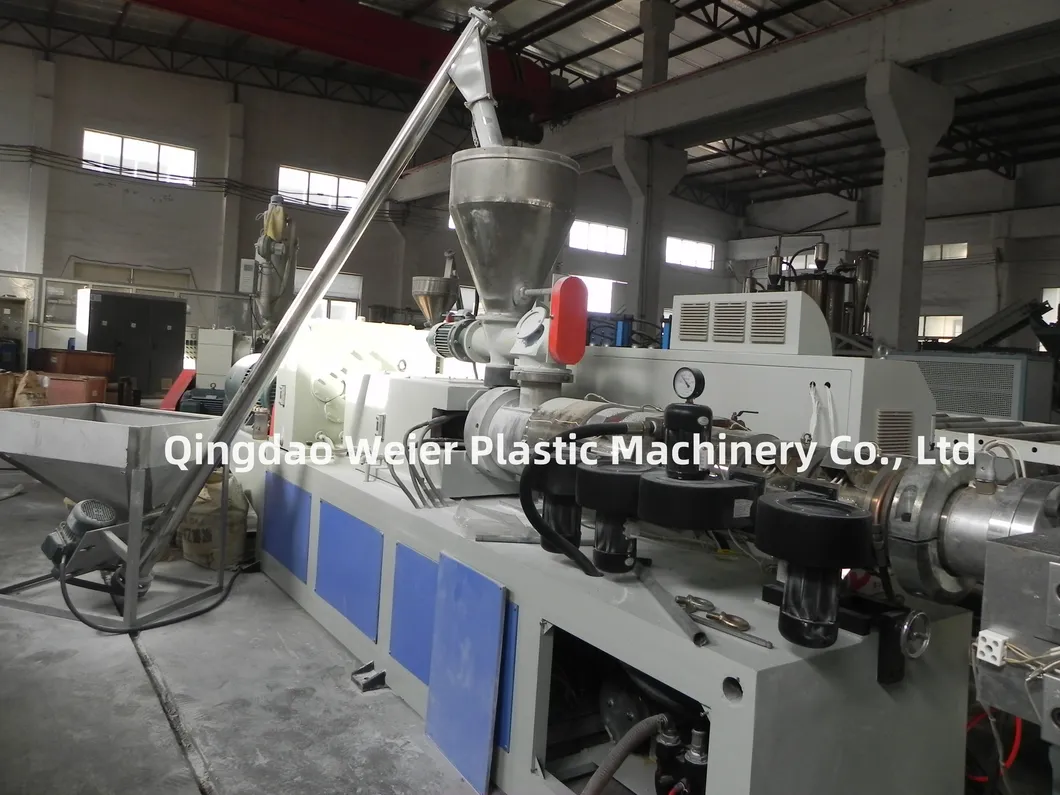

Conical Twin Screw Extruder: 38CrMoAlA alloy steel with nitriding treatment for extended service life.

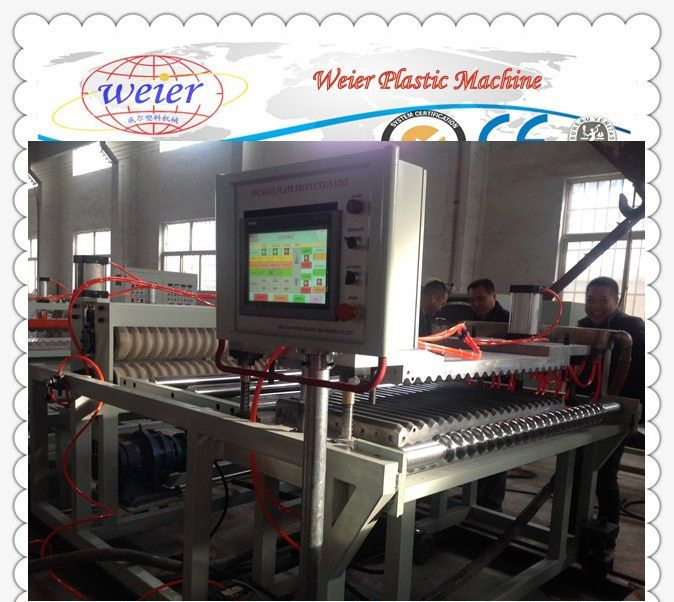

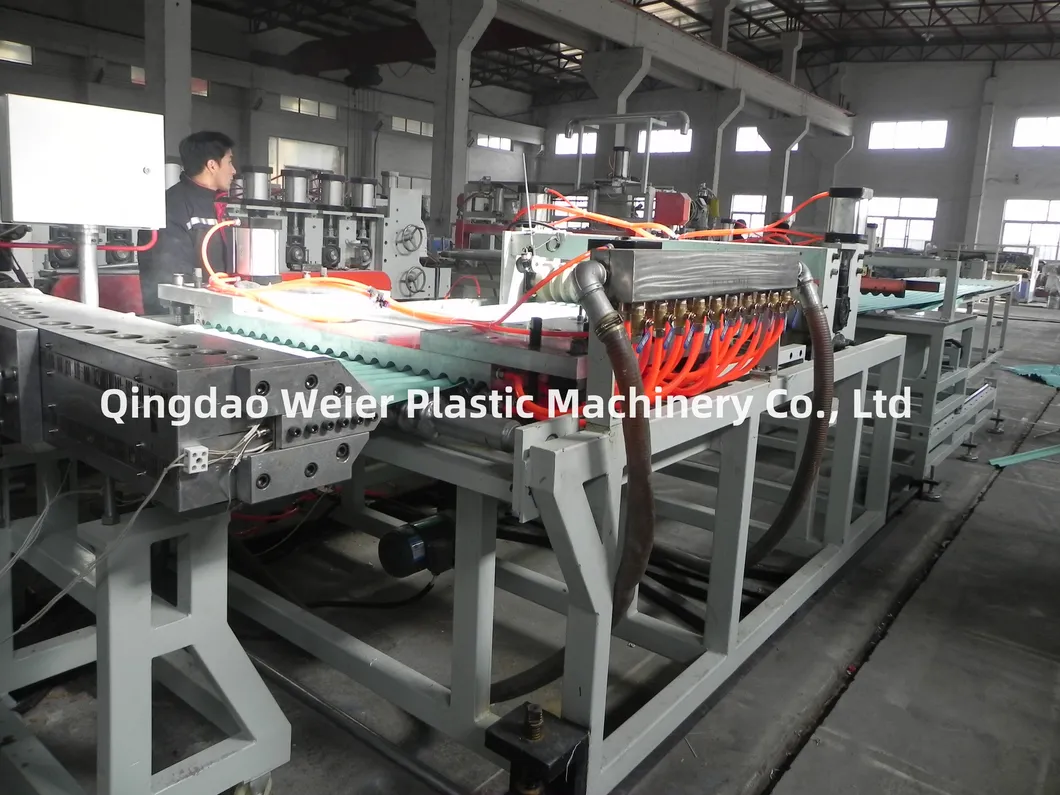

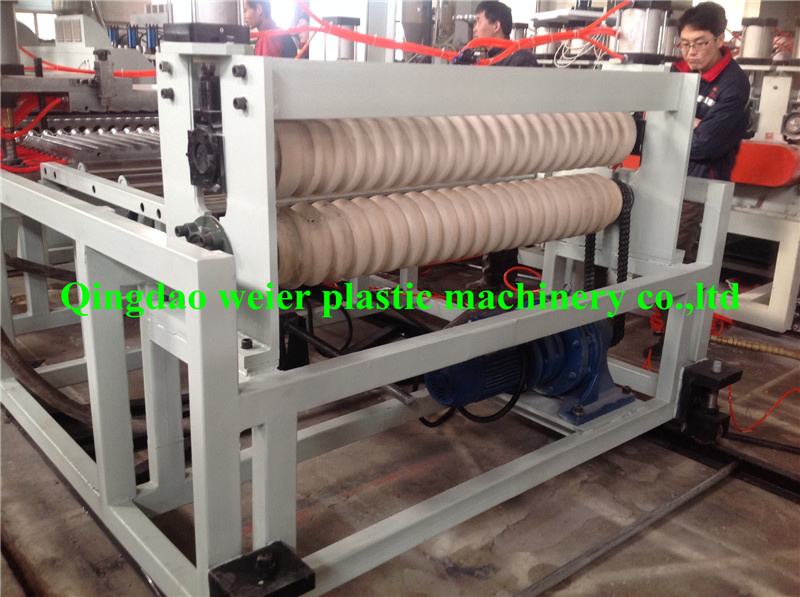

Forming Machine: Vacuum negative pressure setting with high-pressure circulating cooling.

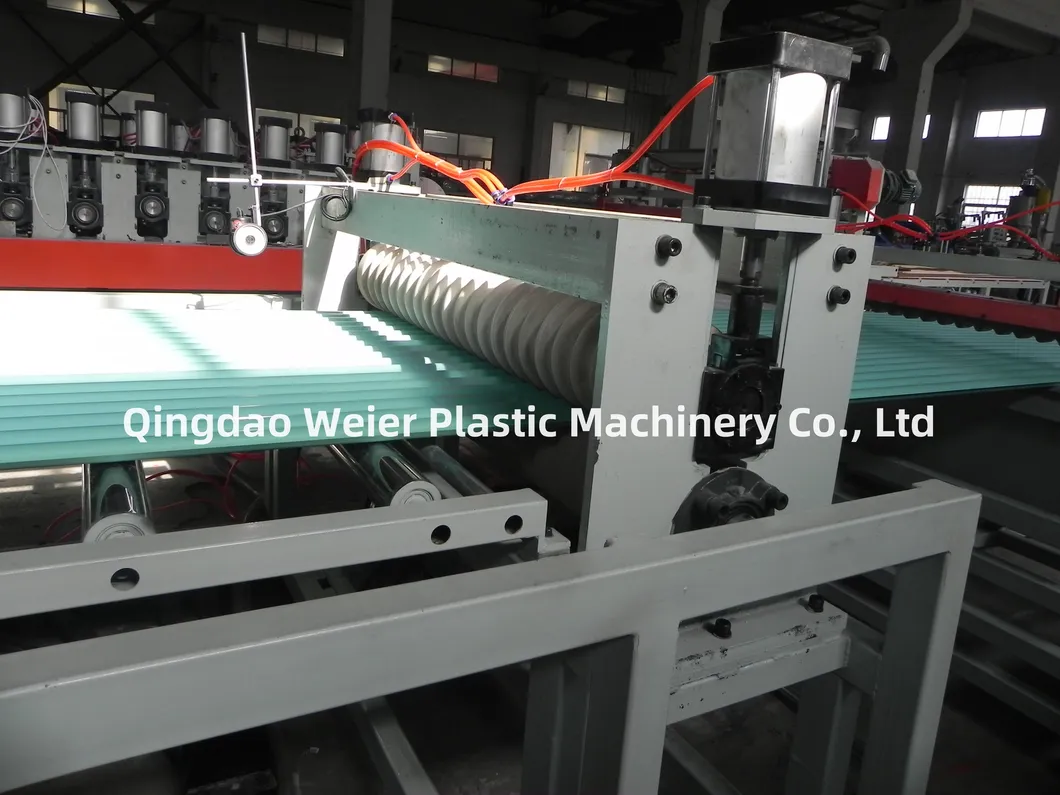

Haul-off Machine: Active friction type with rubber rollers shaped to the die head.

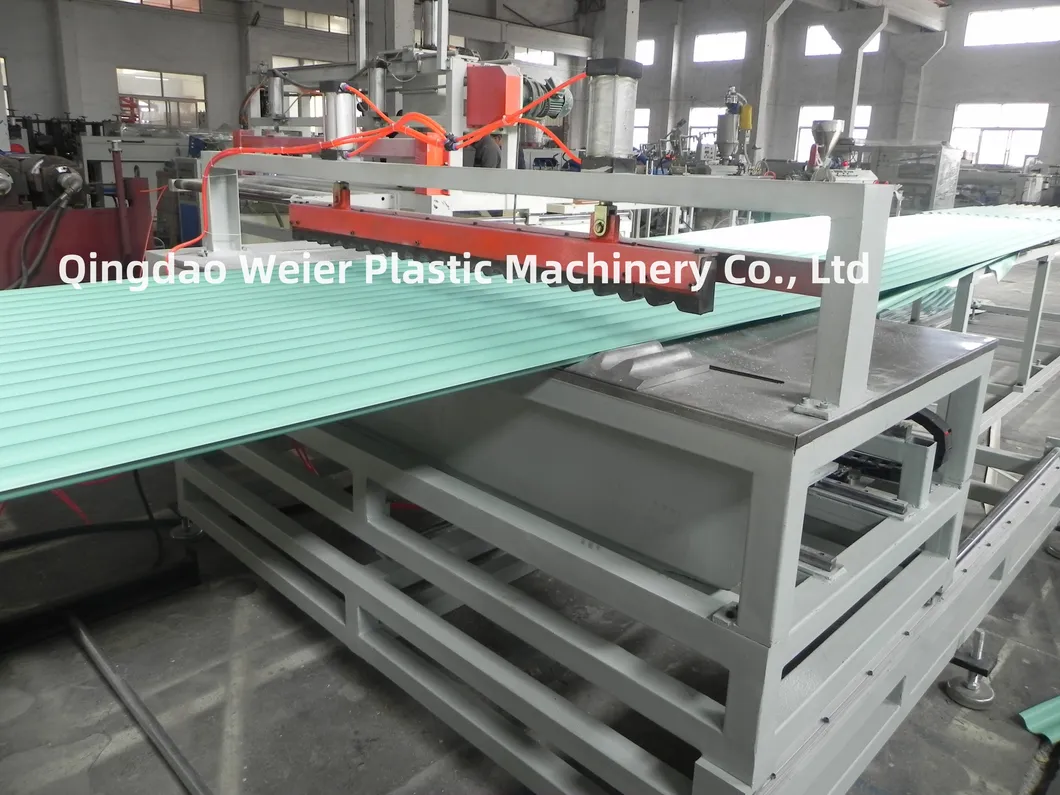

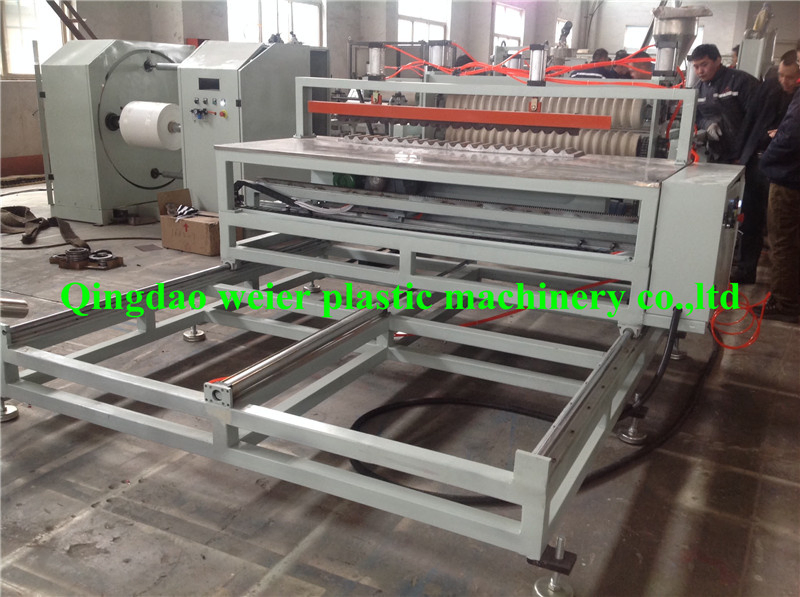

Cutter: High precision fixed-length cutting system for final products.

Applications & Features

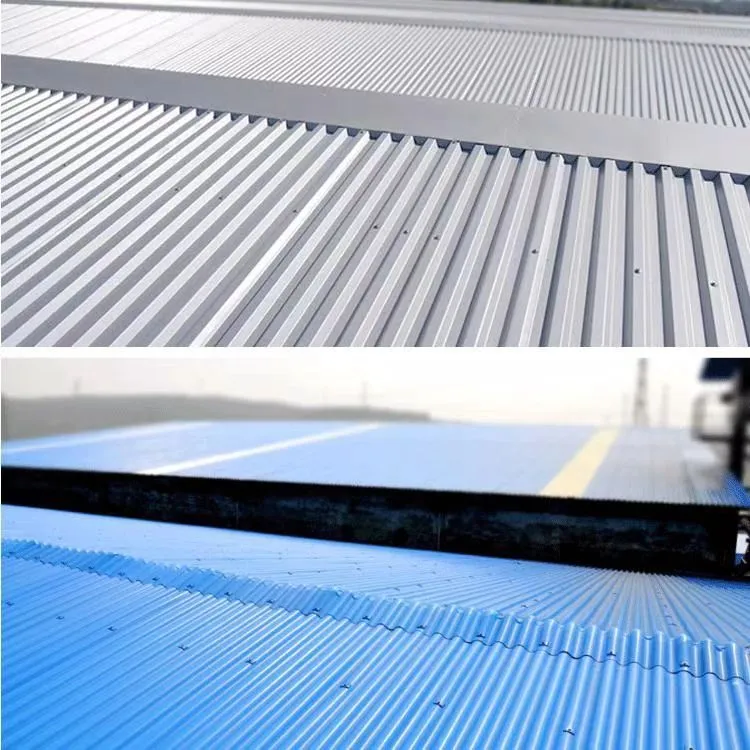

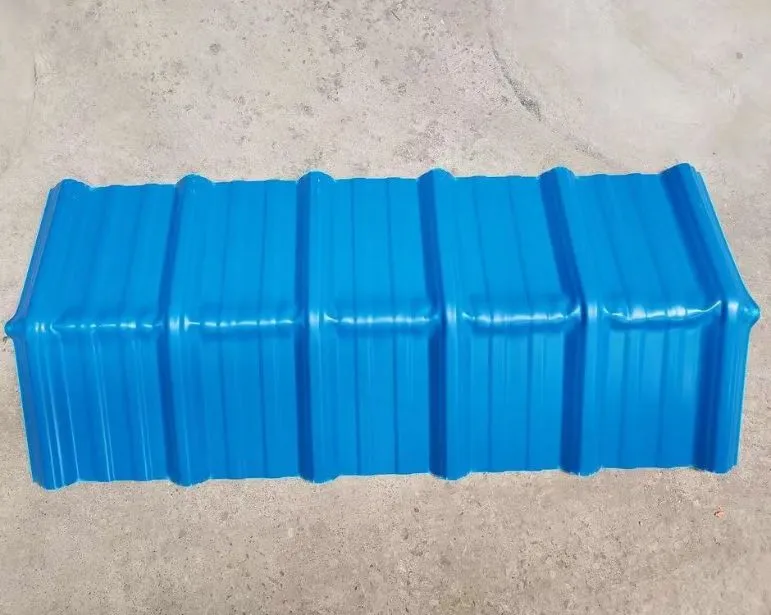

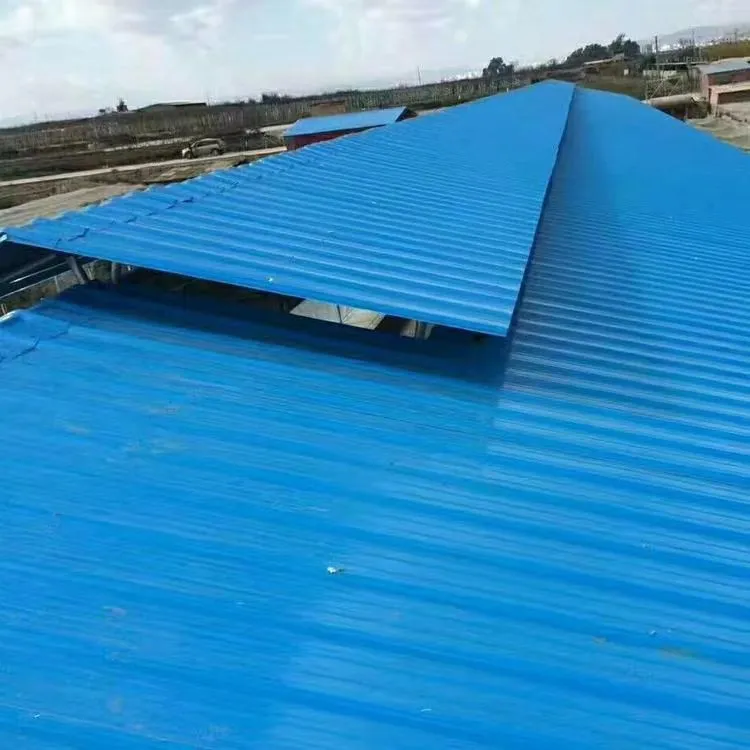

PVC roofing sheets are weather-proof, providing protection against sun, rain, hail, and snow. They are widely used in construction and industrial areas.

Outdoor Canopies

Ideal for residential compounds, passage canopies in factories, and rural storage rooms. Prevents rapid fading and embrittlement.

Corrosive Industrial Workshops

Leverages acid and alkali resistance for electroplating, hardware, and chemical auxiliary workshops.

Agricultural Warehouses

Waterproof and moisture-proof properties prevent fertilizers and farm tools from getting damp and rusty.

Service & Quality

We provide professional macromolecule science and plastic machinery equipment. Our associations with technical universities ensure advanced processing engineering and machine reliability.

Frequently Asked Questions

Q1. What are the payment terms?

A: 30% advance payment by TT to start production, and the remaining 70% balance paid after testing the machine and before shipment.

Q2. How long is the delivery time?

A: Standard machines take approximately 30 days. Customized machines based on specific requirements usually take 45 days.

Q3. Do you arrange shipment for the machines?

A: Yes, for FOB or CIF terms, we will arrange the shipment for you to the designated port.

Q4. What is the after-sales training process?

A: The supplier is responsible for installation, debugging, and training. Technicians can be sent to the buyer's plant for on-site setup.

Q5. What does the machine warranty cover?

A: We provide a one-year warranty for repair or replacement of substandard products (excluding wrong operation). Electric parts are covered for six months.

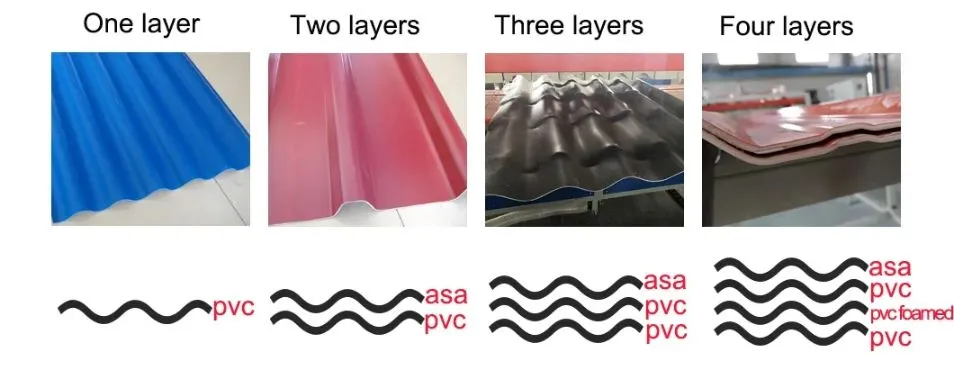

Q6. Can the line produce different layers of tiles?

A: Yes, the line can be configured for single, double, triple, or even four-layer composite tiles by changing the extruder combinations.
