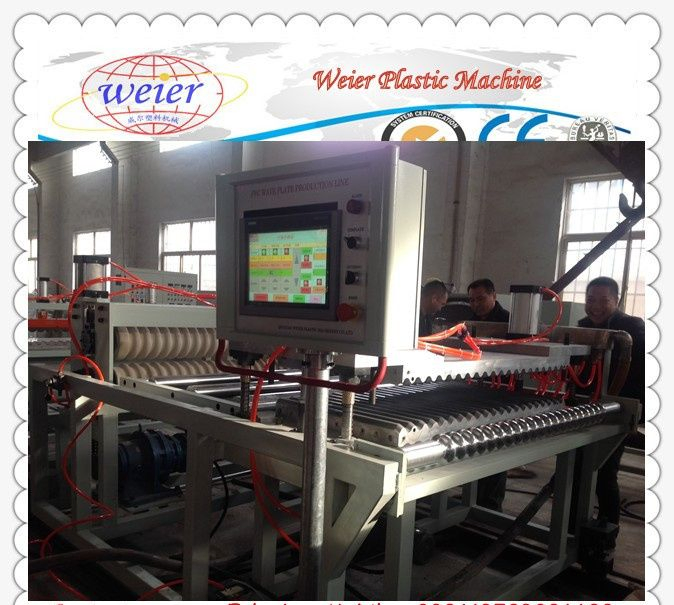

PVC Roofing Sheet Making Machine with Siemens PLC Control

Customization:	Available
After-sales Service:	Life-Long Time After-Sales Service
Warranty:	12monthes

1

Basic Information

Model NO.

SJSZ 80/156

Product Type

PVC Board

Screw No.

Double-screw

Automation

Automatic

Certification

CE, ISO9001:2008, QS, GMP

Line Speed

Max.4m/Min

Power Supply

380V 3phase 50Hz

Power

95kw

Warranty

12 Months

HS Code

84774020

2

Product Description

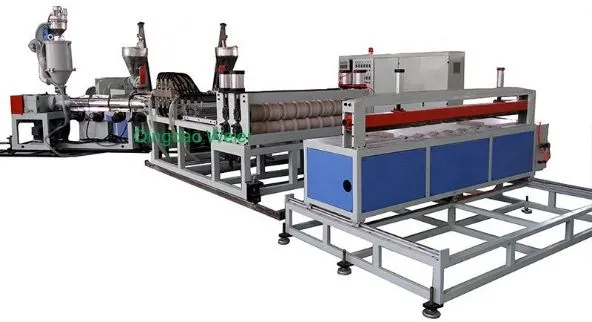

The PVC sheet production line adopts advanced production techniques from both domestic and international sources. It can continuously extrude single-layer PVC glaze tiles or PVC/PMMA/ASA composite multi-layer glazed tiles. The unit is comprised of a twin conical screw extruder and corresponding wave plate forming machine, tractor, and cutting machine.

This line is designed for continuously producing structural weather-resistant UPVC color block plastic wave plates. It features steady molding performance, tight structure, and high automation degree, offering advantages like high production efficiency, convenient operation, and a long lifespan.

3

Product Parameters

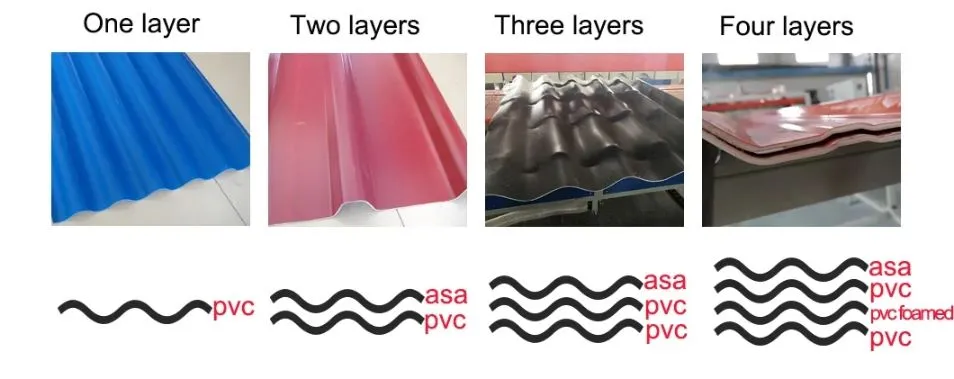

Structure	Material	Extrusion Model	Width (Glazed)	Thickness	Output
Single Layer	PVC	SJSZ80/156	880/1050mm	2.5-3.5mm	300-350kg/h
Double Layers	ASA/PMMA+PVC	SJ50/30 + SJSZ80/156	880/1050mm	2.5-3.5mm	300-350kg/h
Triple Layers	ASA/PMMA+PVC+PVC	SJ50/30 + SJSZ80/156 + SJSZ65/132	880/1050mm	2.5-3.5mm	350-400kg/h
Four Layers	ASA+PVC+Foamed+PVC	SJ50/30 + SJSZ65/132 + SJSZ80/156 + SJSZ65/132	880/1050mm	2.5-3.5mm	350-450kg/h

4

Detailed Photos

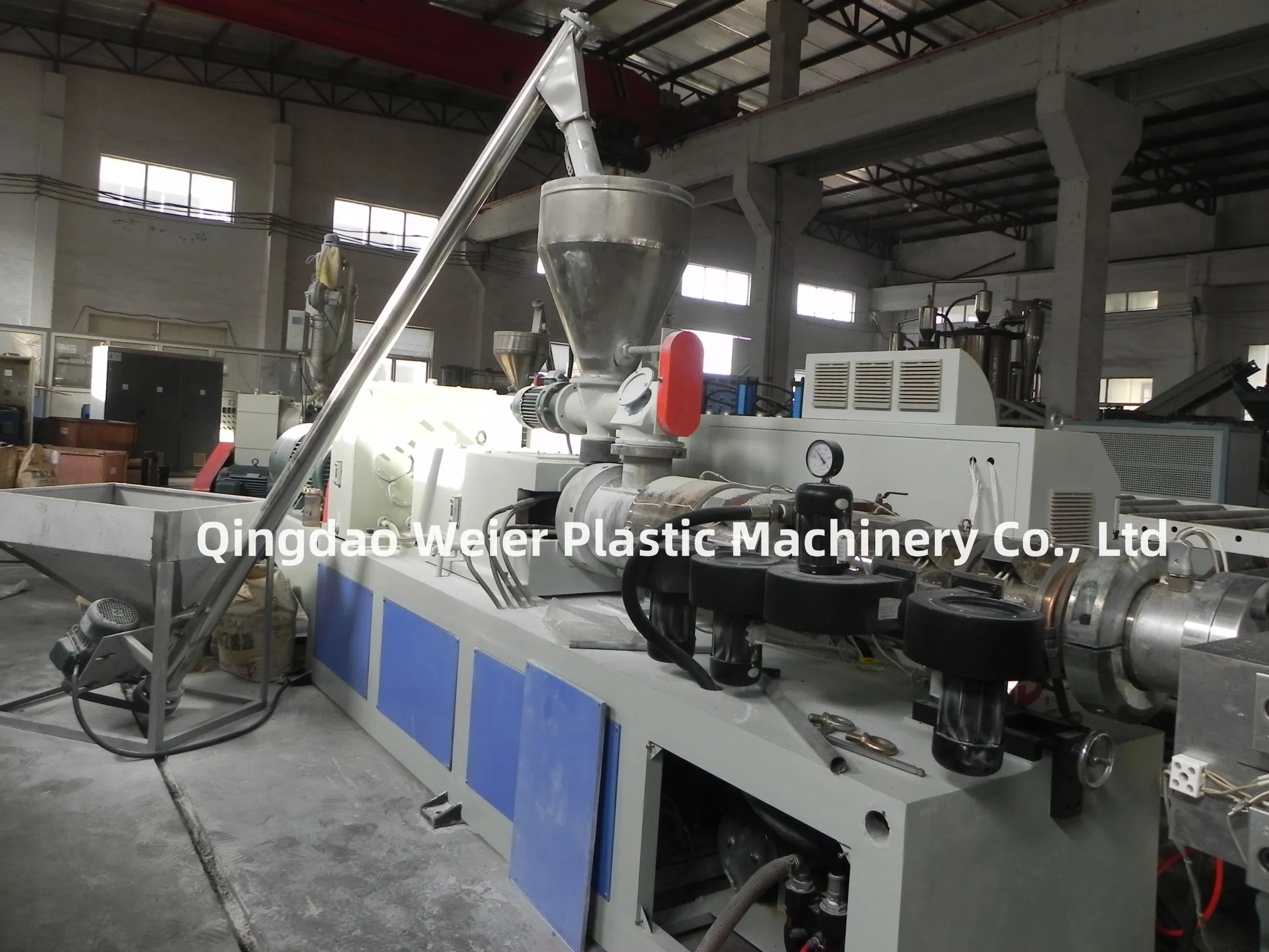

Conical Twin Screw Extruder

High-quality alloy steel 38CrMoAlA with nitriding treatment; CNC plasma bimetallic spraying for extended service life.

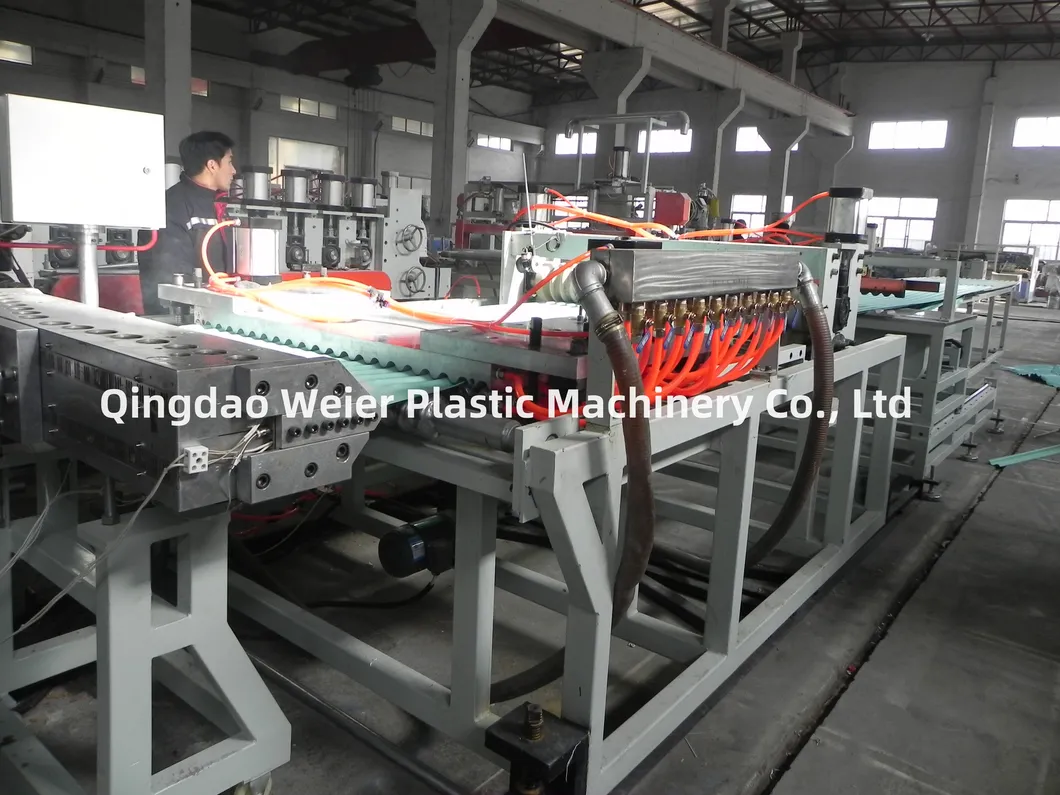

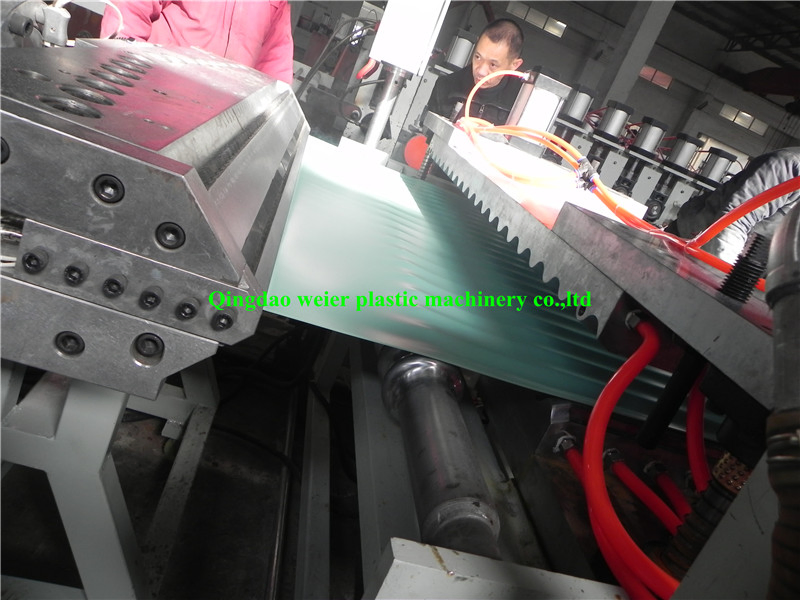

Mold & Forming Machine

Vacuum negative pressure setting with high-pressure circulating cooling. Stainless steel water tank and fasteners.

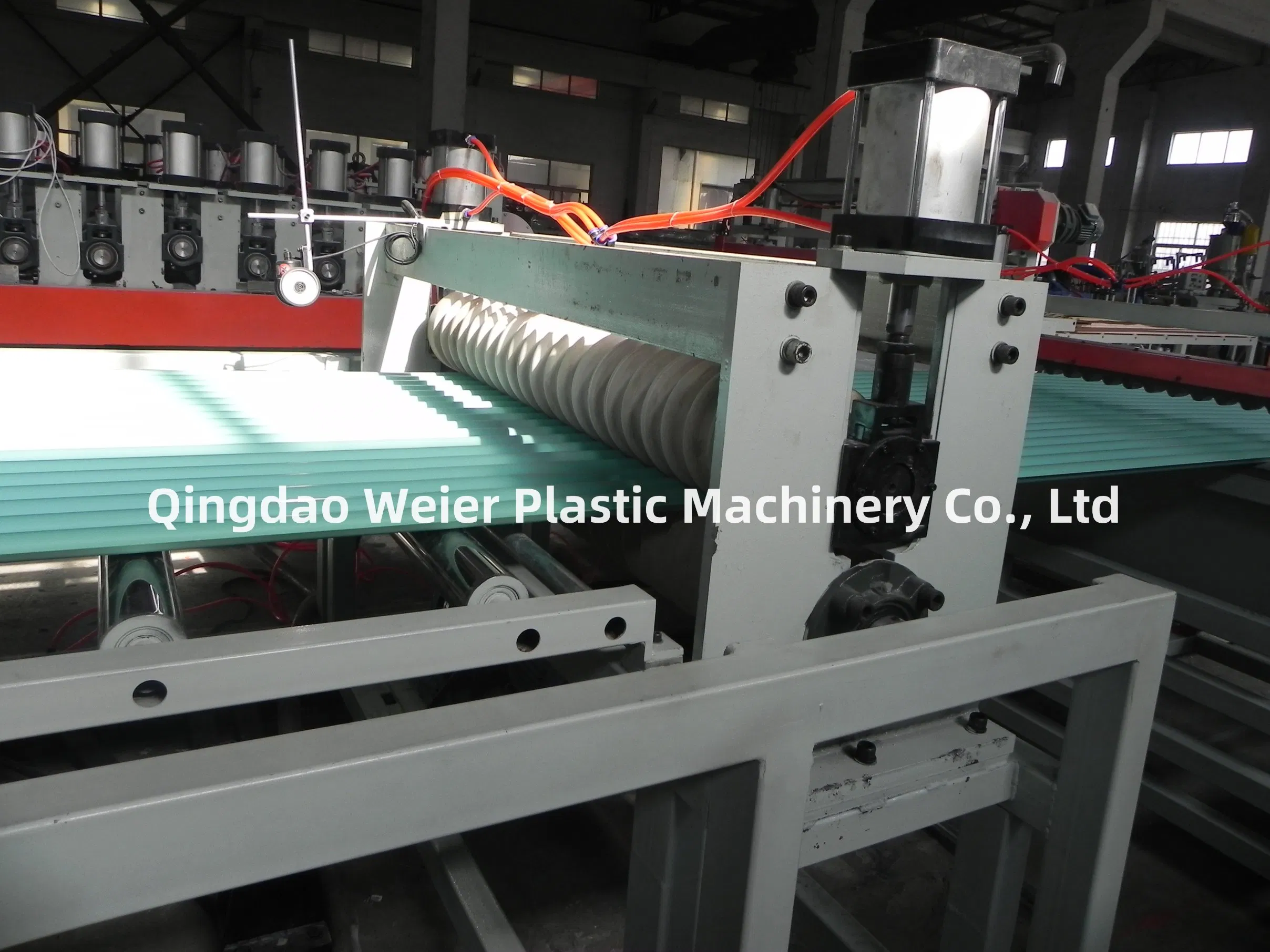

Haul-off Machine

Active friction type. Rubber rollers are shaped identically to the die head for stable traction.

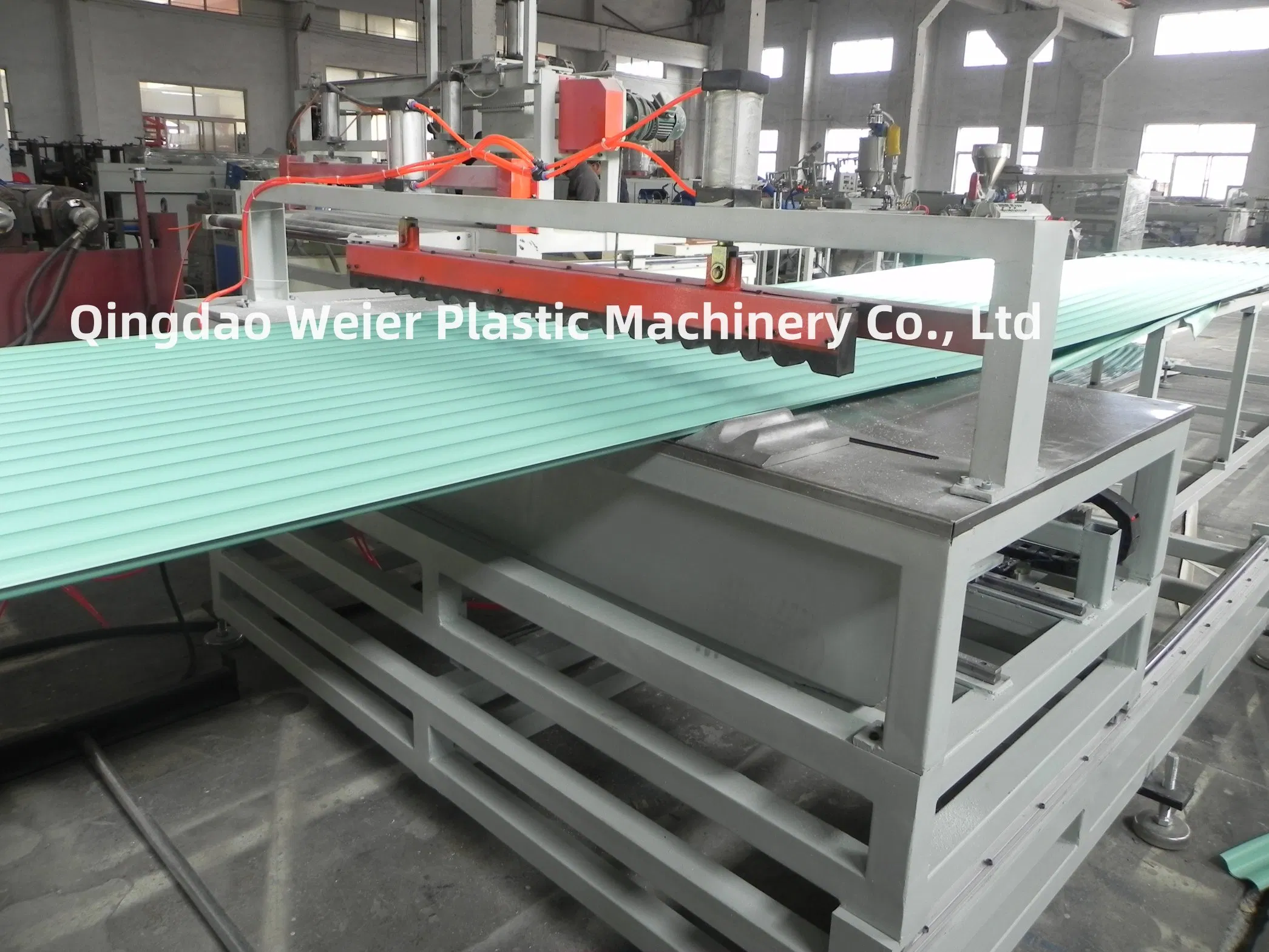

Cutting Machine

Enables precise fixed-length cutting of finished products with smooth edges.

5

Application

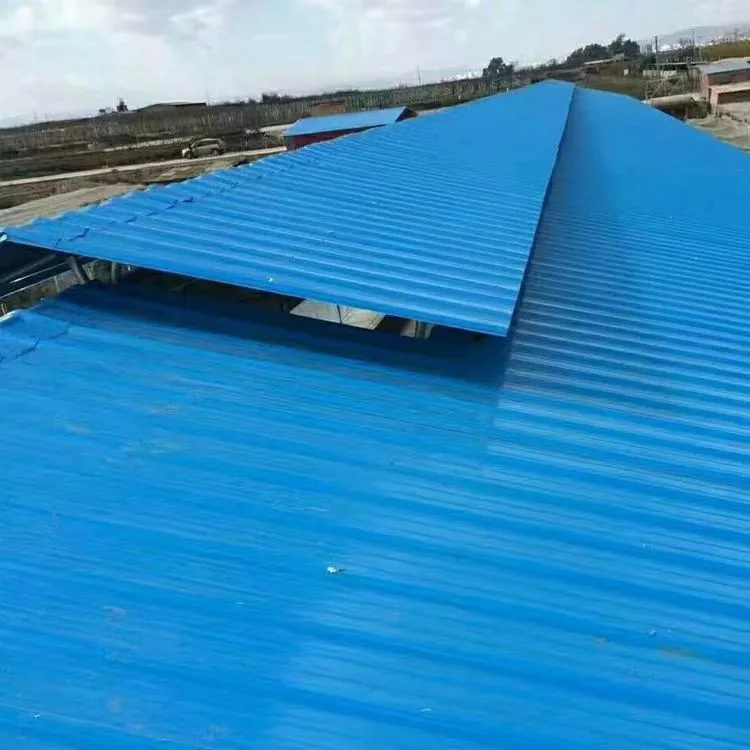

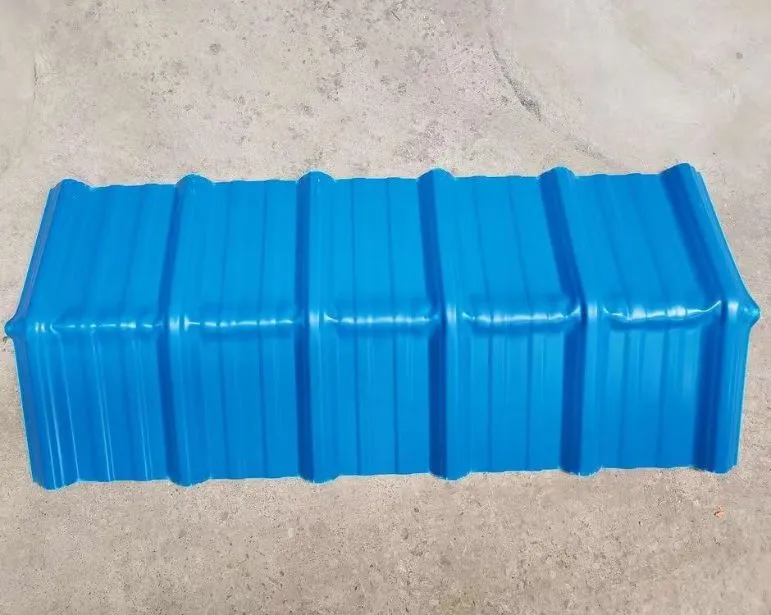

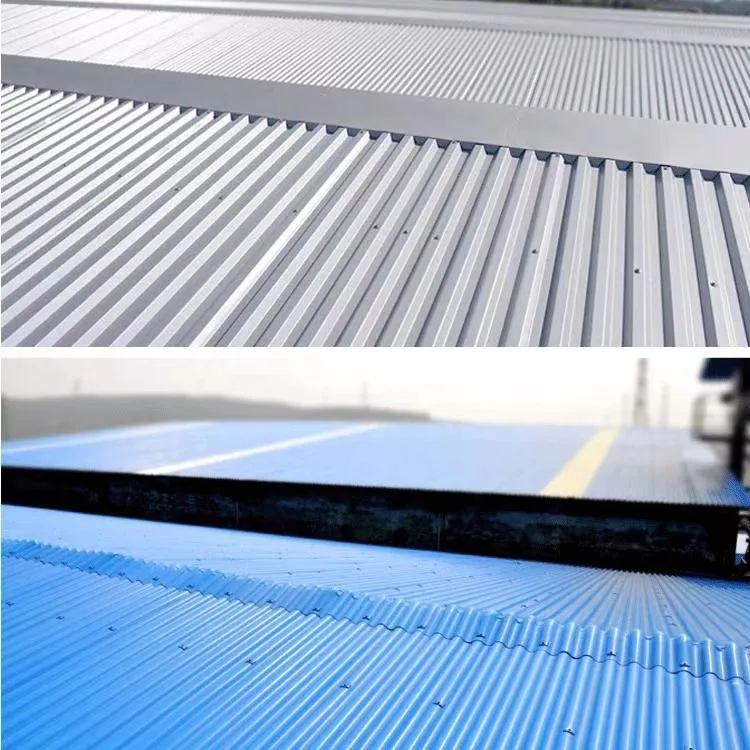

PVC roofing sheets are weather-proof and provide protection against sun, rain, hail, and snow. They transmit light softly and are available in various colors to meet architectural requirements.

Specific Usage Areas

Outdoor Canopies: Shaded sides of residential or industrial buildings.
Industrial Workshops: Acid and alkali resistance for electroplating and chemical auxiliary plants.
Agricultural Warehouses: Moisture-proof storage for fertilizers and farm tools.
Garage Entrances: Long-term rain protection with high impact resistance.

6

Technical Service & Maintenance

Tech Service

Detailed service manuals and maintenance instructions for electric appliances are provided. Installation drawings for water, electricity, and gas are included.

After-Sales

Responsible for installation, debugging, and staff training. Repair or replacement guarantee for substandard products within one year.

?

Frequently Asked Questions

How is the payment processed?

30% advance payment via TT to start production. After machine completion, the buyer tests the machine at the factory, followed by the remaining 70% balance via TT or irrevocable L/C at sight before shipment.

What is the expected delivery time?

Standard machines usually take 30 days. For non-standard or customized machines based on specific requirements, the delivery time is approximately 45 days.

Do you arrange shipment for the equipment?

Yes, for FOB or CIF price terms, we will arrange the shipment for you to your designated port.

What documents are provided after shipment?

We send all original documents via DHL, including the Packing List, Commercial Invoice, Bill of Lading (B/L), and other certificates required by the client.

What does the machine warranty cover?

We provide a one-year warranty for the machine and 6 months for electric parts. We guarantee the material of the screw and barrel against normal wear and tear.

How is the debugging handled?

One or two technicians can be sent to the buyer's plant for debugging and training. The buyer covers travel, lodging, and a daily service fee per person.
