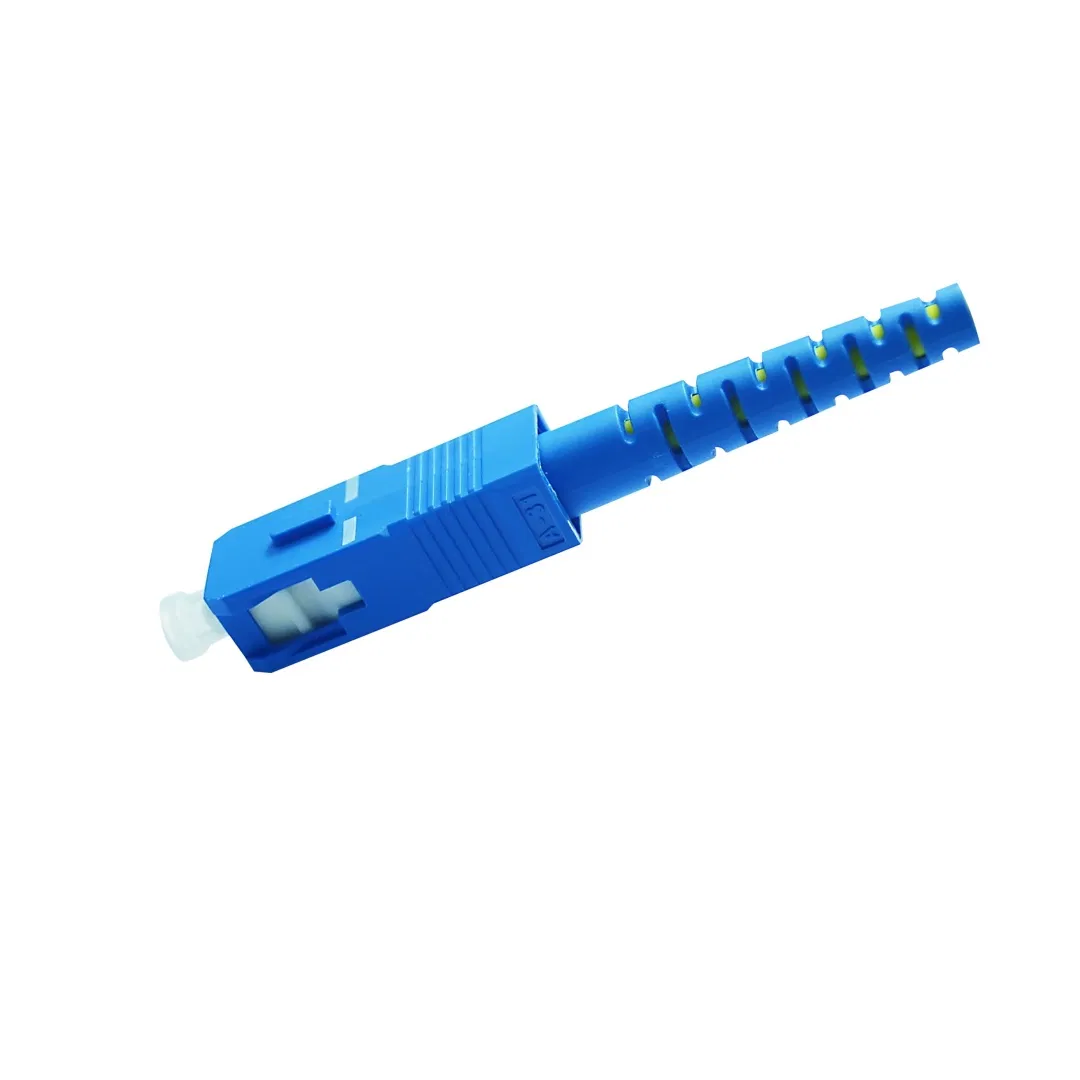

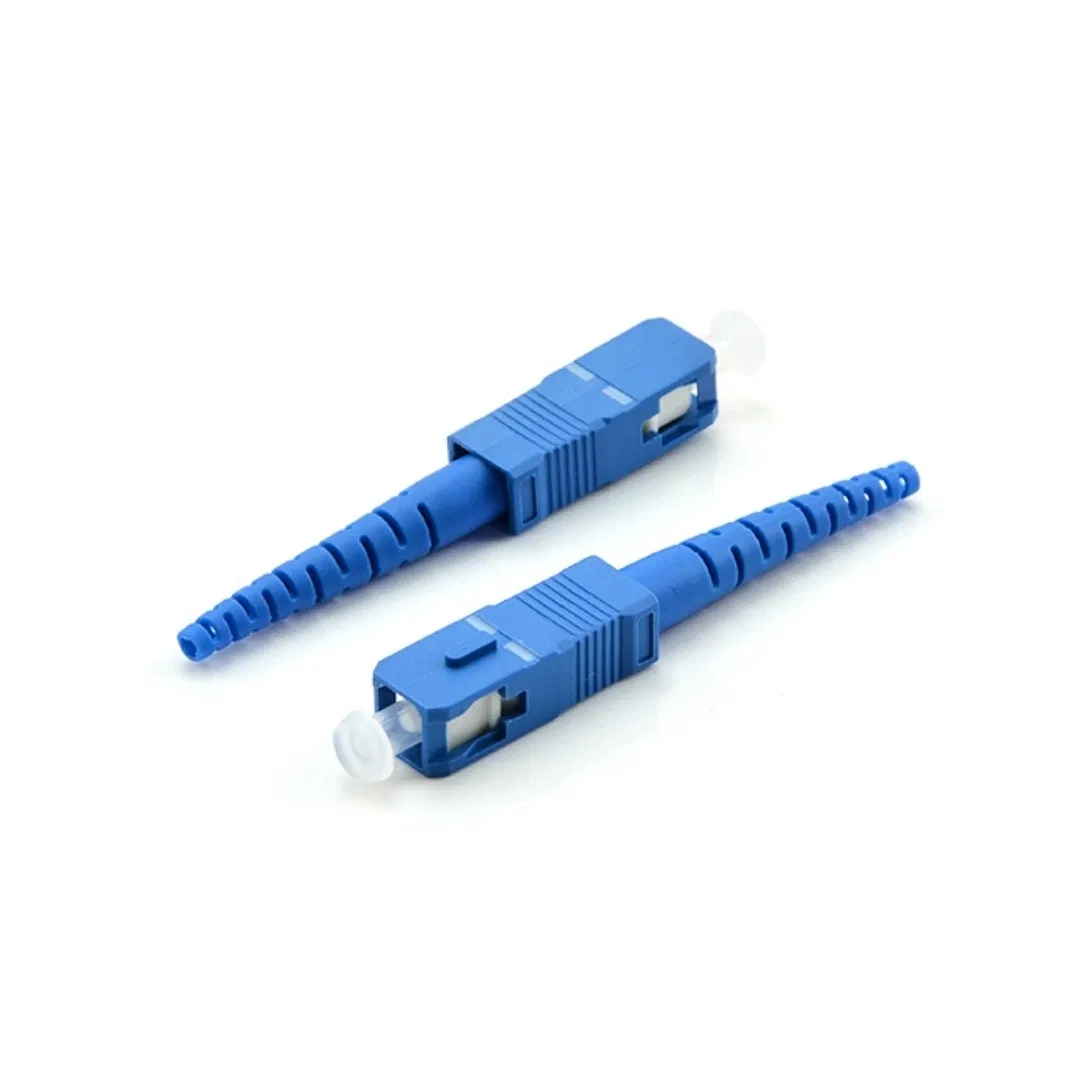

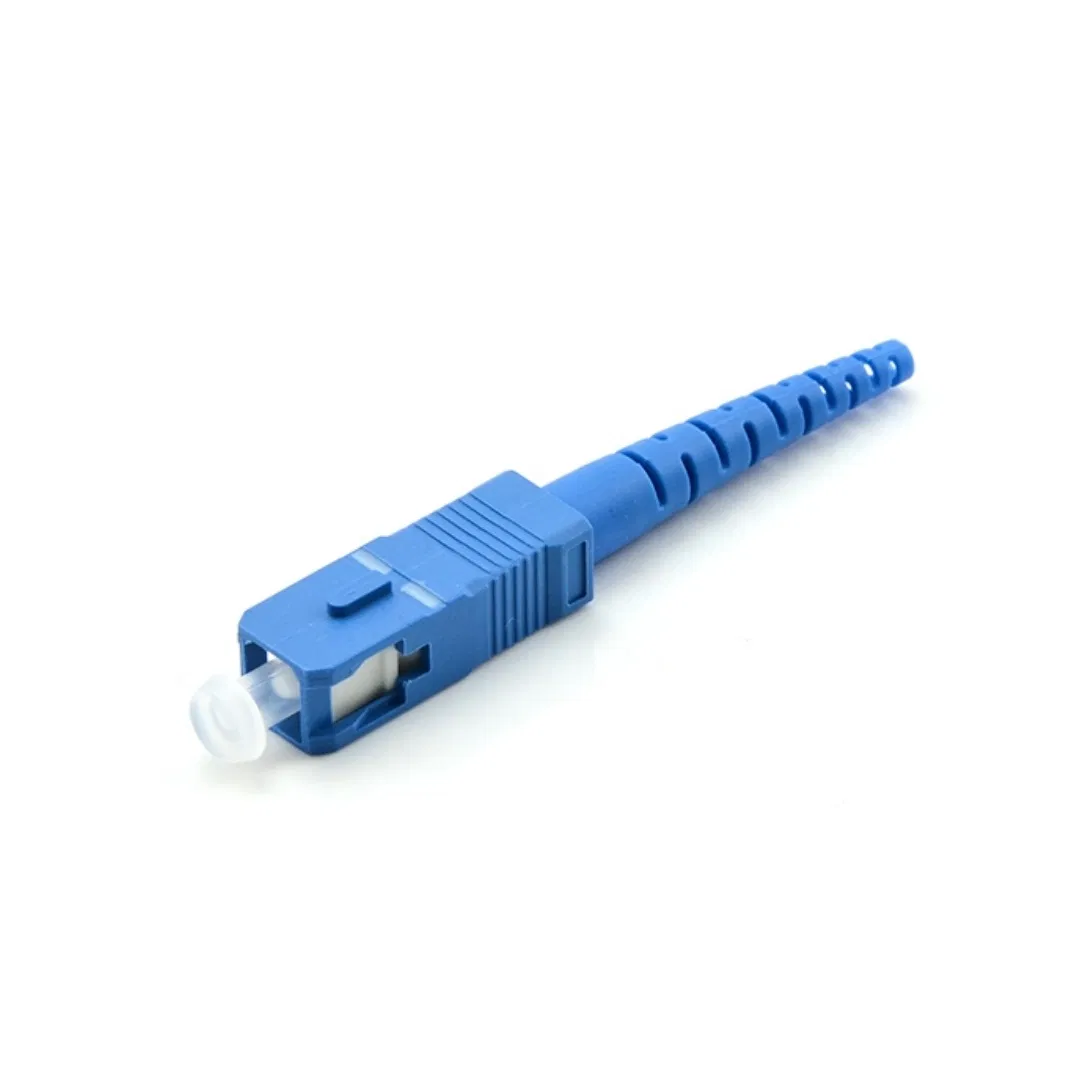

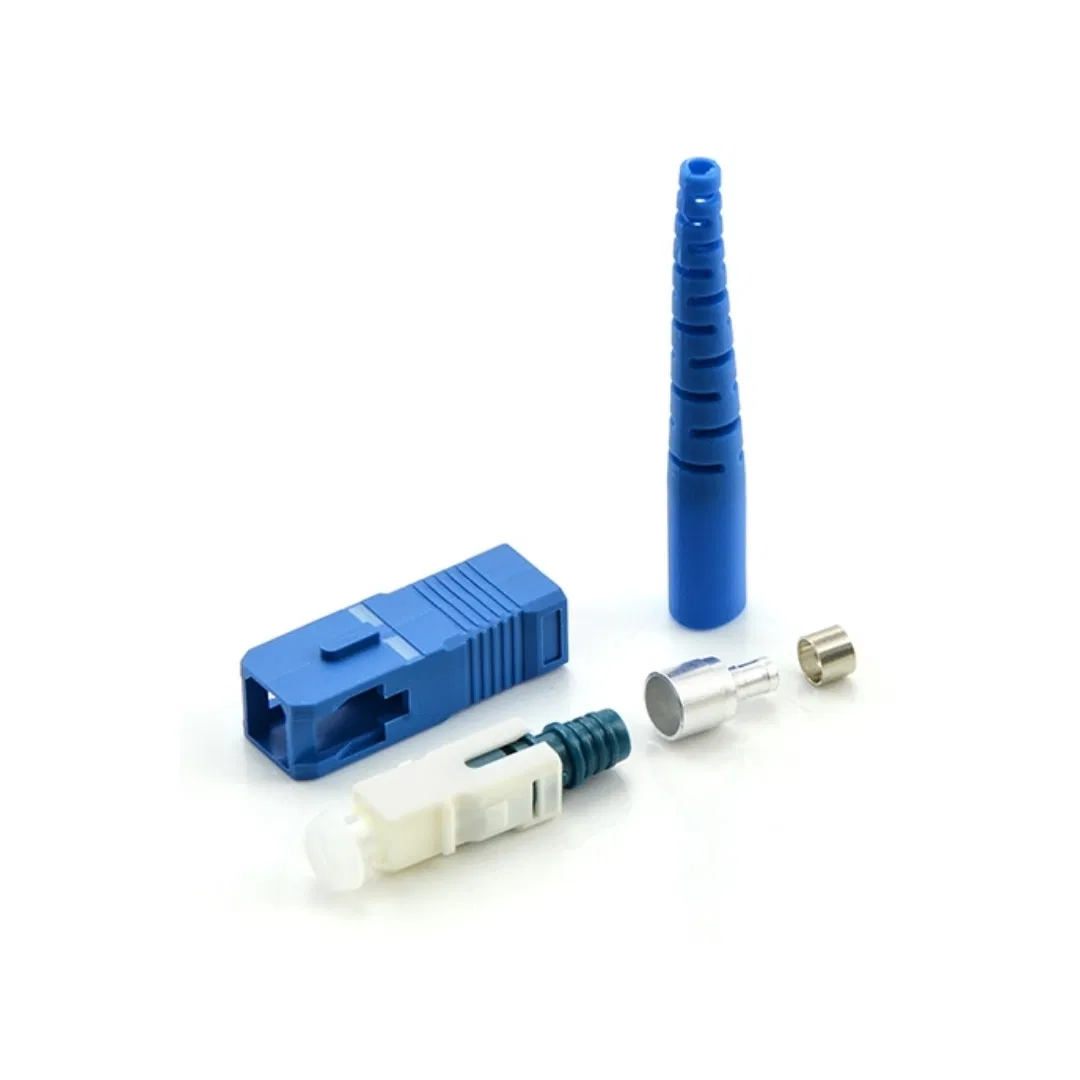

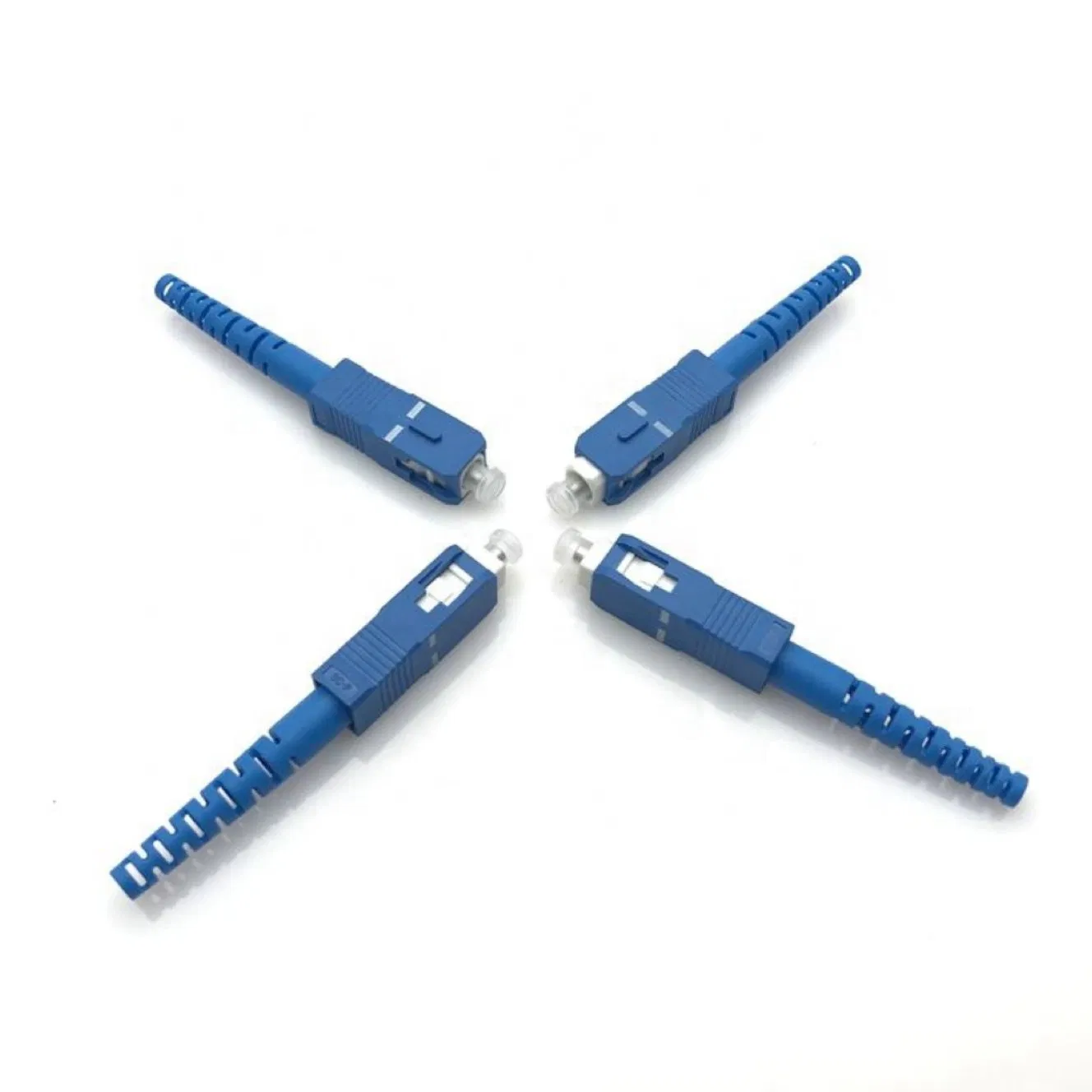

SC/APC fiber optical connectors with high-performance standards

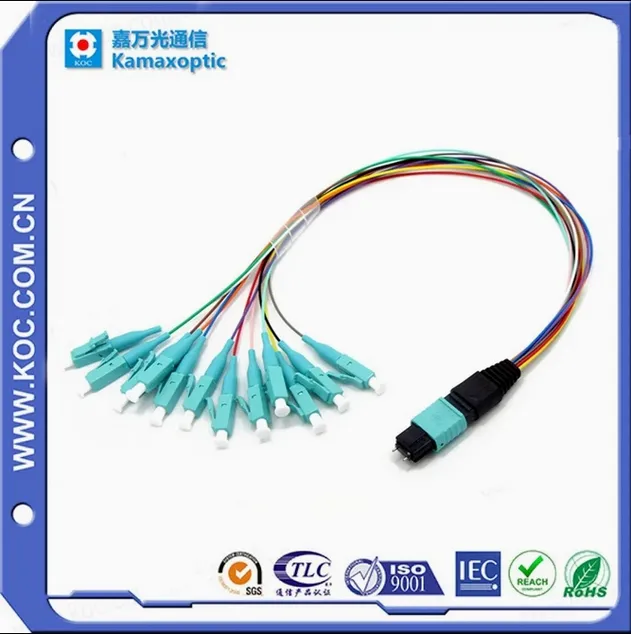

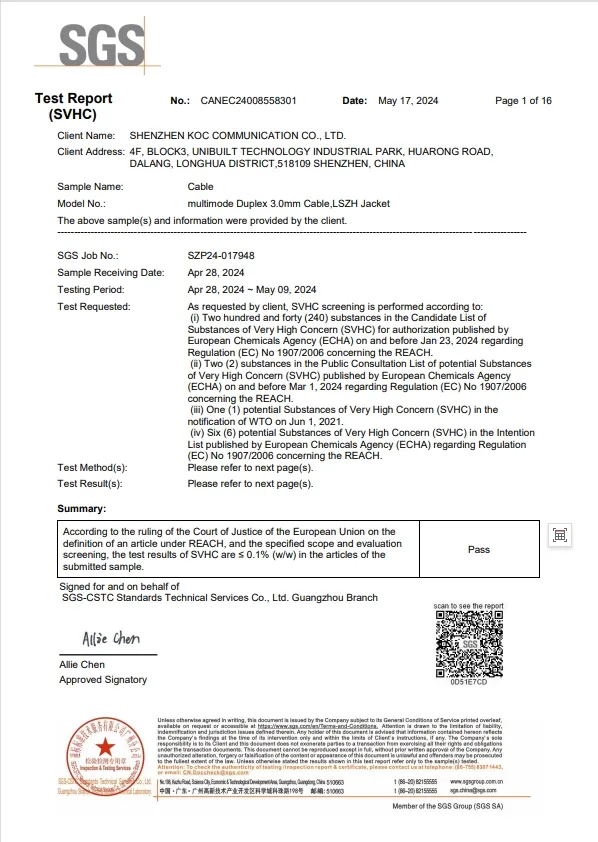

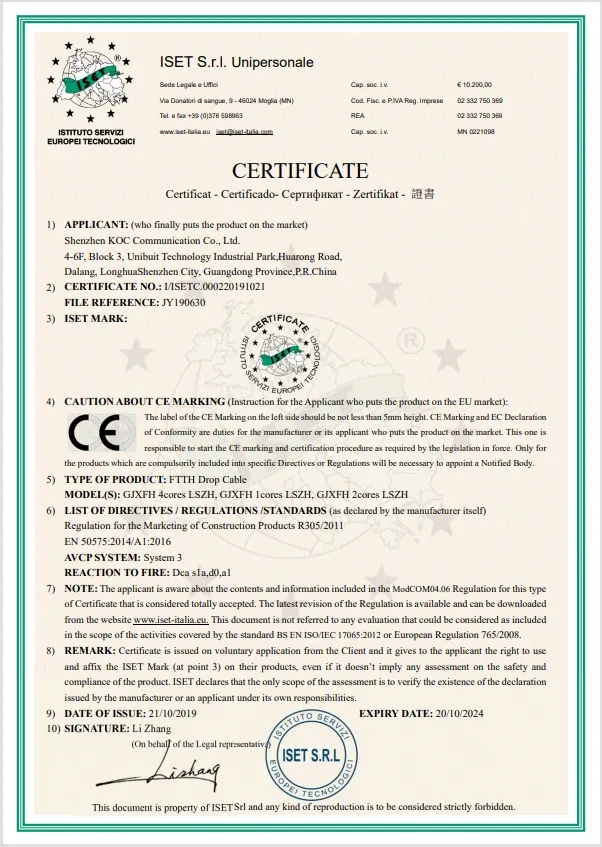

Optical fiber connectors are essential passive components in optical fiber communication. They utilize various ferrule materials (ceramic, plastic, metal) and are available in multiple body and boot colors. These connectors are integrated with fiber optic cables to create patch cords (jumpers) used in CATV systems, FTTx, LANs, and data centers. All products meet Telcordia and IEC standards, ensuring full RoHS compliance.
| ITEM | PARAMETER | |

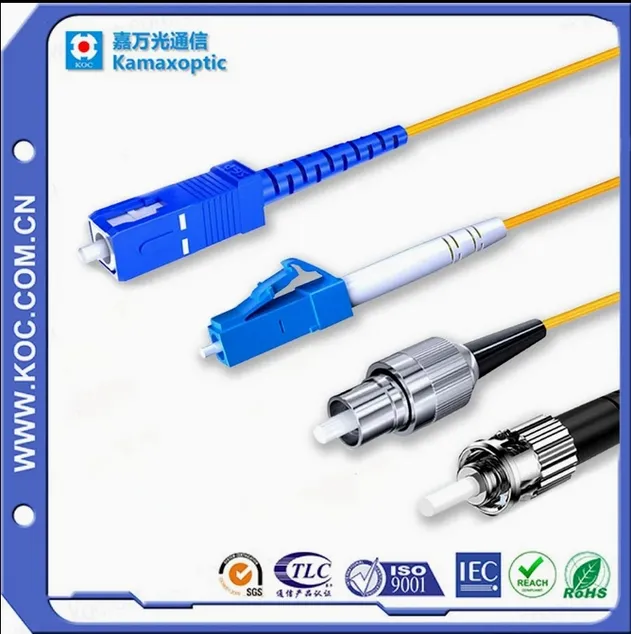

| Applicative Connector | SC, LC, FC, ST, MU, D4, DIN | |
| Fiber Mode | Single mode | Multi-mode |
| Test Wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typ≤0.20dB, Max≤0.30dB | typ≤0.15dB, Max≤0.25dB |
| Return Loss | UPC≥50.0dB, APC≥60.0dB | ≥35.0dB |
| Durability | ≤0.20dB typical change, 1000 mating cycles | |
| Cable OD. | 0.9mm / 1.8mm & 2.0mm / 3.0mm | |
| Operating Temp. | -20ºC to +70ºC | |
| Storage Temp. | -40ºC to +85ºC | |
* Note: Ferrules with or without flanges are available upon request.

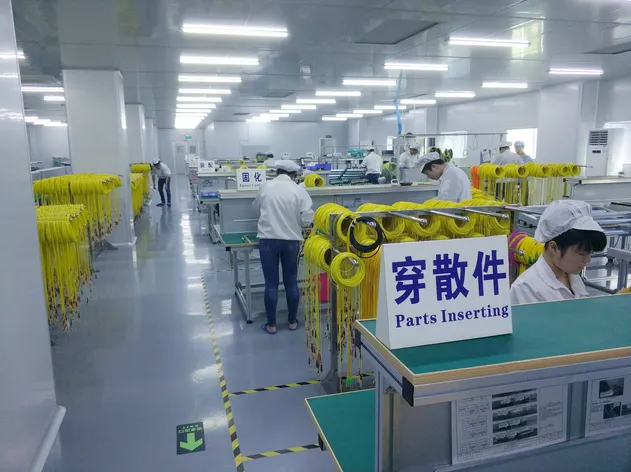

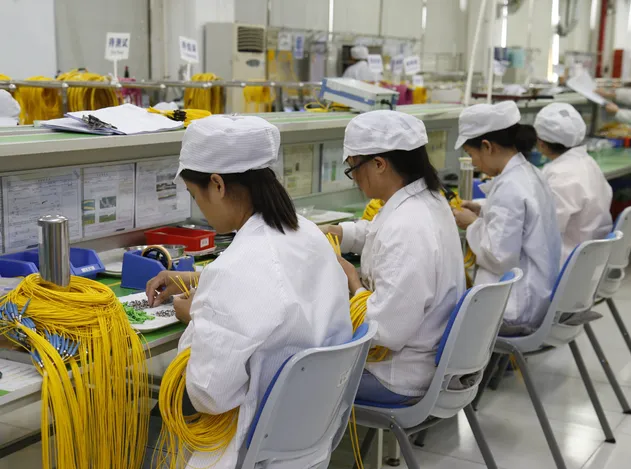

With over 24 years of experience, the group provides professional manufacturing in telecom, fiber optic network connections, passive devices, and data center cabling. Our solutions are used by operators and engineers in more than 80 countries, focused on high-quality orientation and reliable performance.
