Semi Checking Conveyor Line for Sanitary Ware Producing Plants

1 / 5

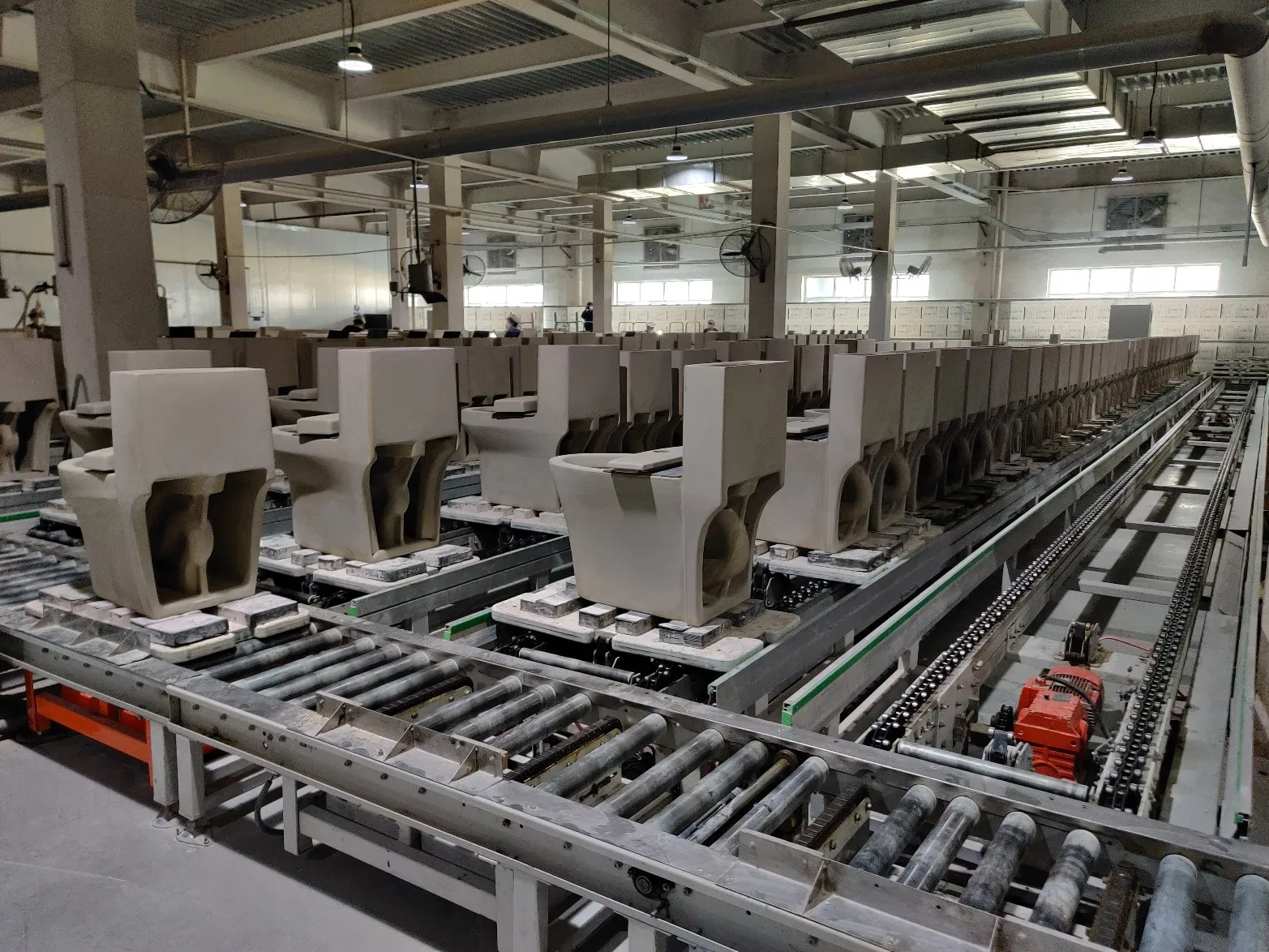

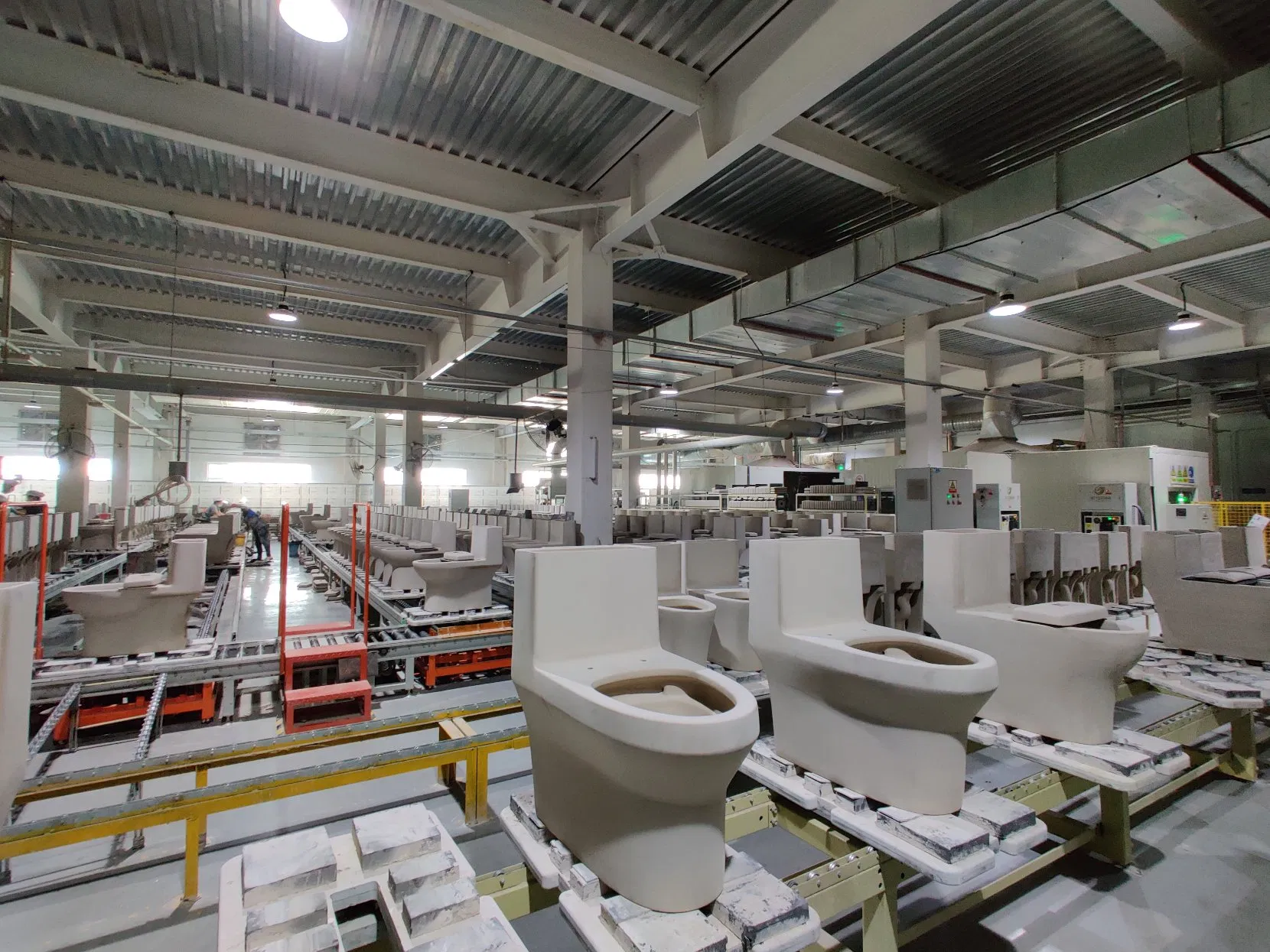

Semi Checking Conveyor Line for Sanitary Ware Producing Plants

Customization:	Available
Robot Quantity:	Robot or Convey Line
Capacity:	800-1400PCS/Day

Send Inquiry

Product Description

📊

Overview & Basic Info

Model NO.

SCS

PLC

Siemens

Electric Elements

Schneider or Omron

Dedust

Pluse Dedust or Water Curtain

Glazing Method

by Robot

Robot Brand

Fanuc From Japan

Pneumatic Elements

SMC Brand

Carry Weight

50kgs for Transport

Production Capacity

800-1400PCS

Origin

China

HS Code

8424899990

⚙️

Product Description

Body conveying system: Our advanced conveying solutions include AGV trolley conveying, multiple-speed chain conveying, side roller conveying, hanging basket conveying, and synchronous belt conveying.

Main Components:

Polishing machine
Turning table
Semi checking conveying line

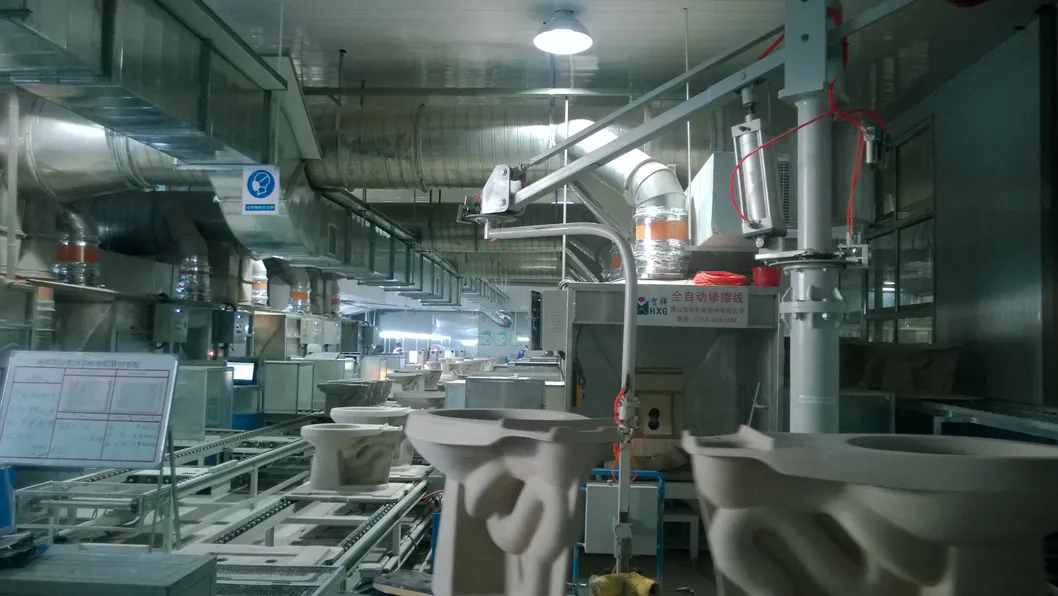

Dedust system
Electric control

The conveying line requires PLC control to realize the effect of combining both automatic conveying and human operation.

Max Capacity: 70KG per product.
Pallet Size: L880mm, W500mm, H40mm.

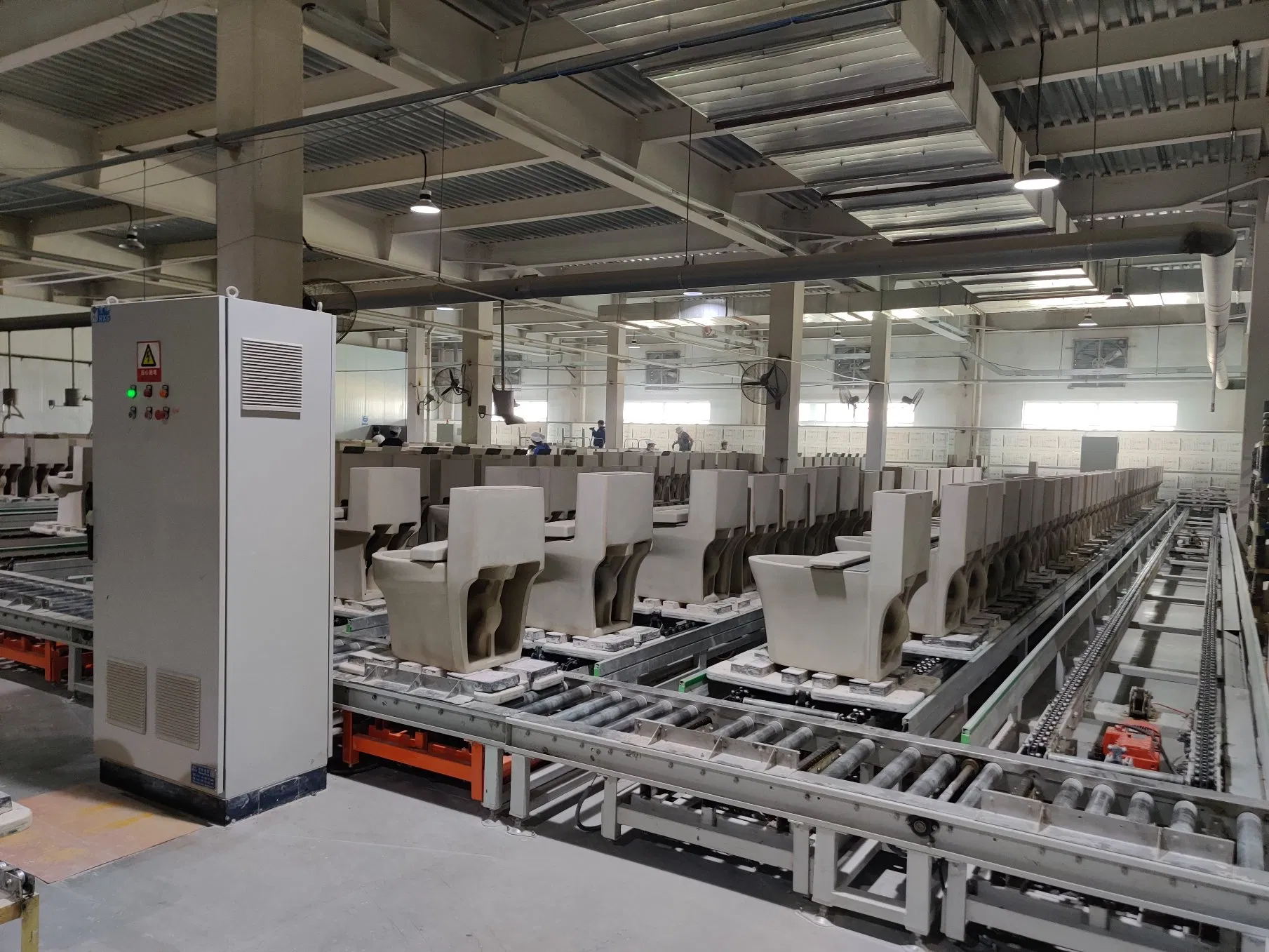

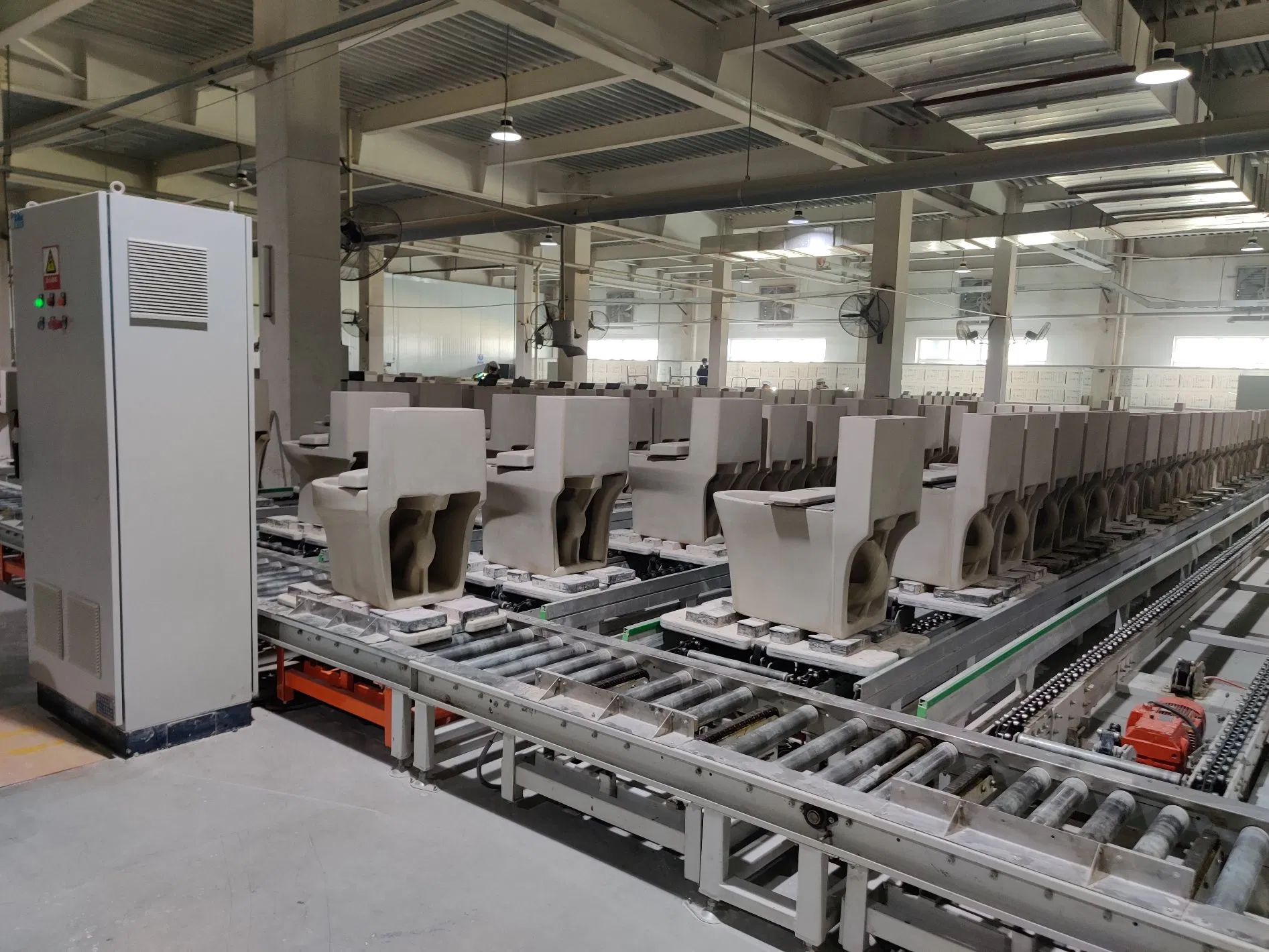

Structure: Side roller + power roller conveyor with aluminum profiles.
Speed: Adjustable 2-8 m/min (Frequency control).

📸

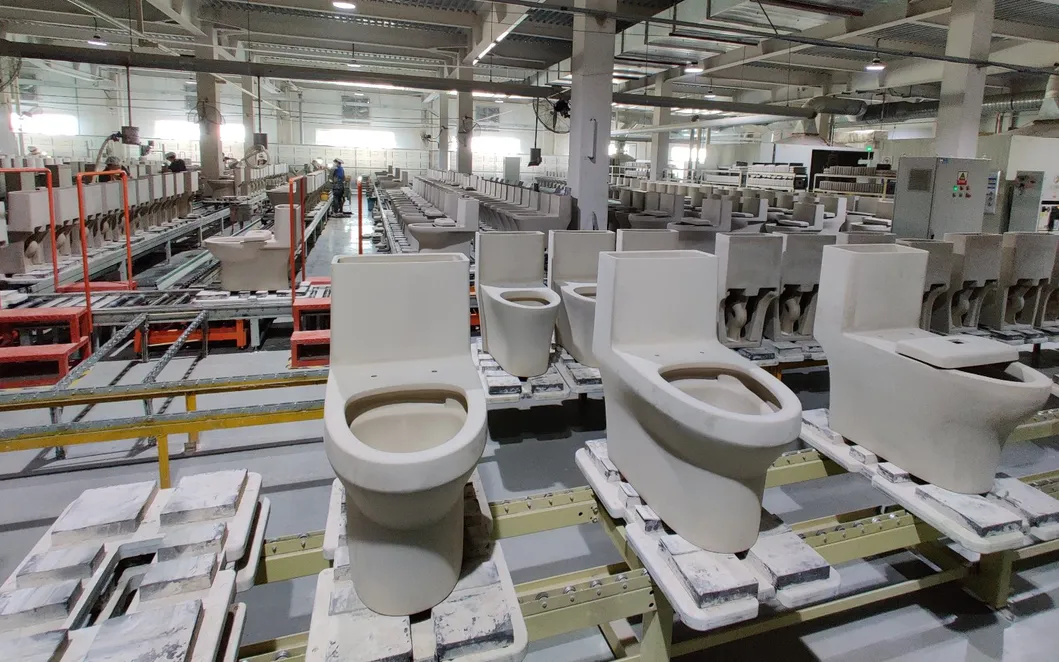

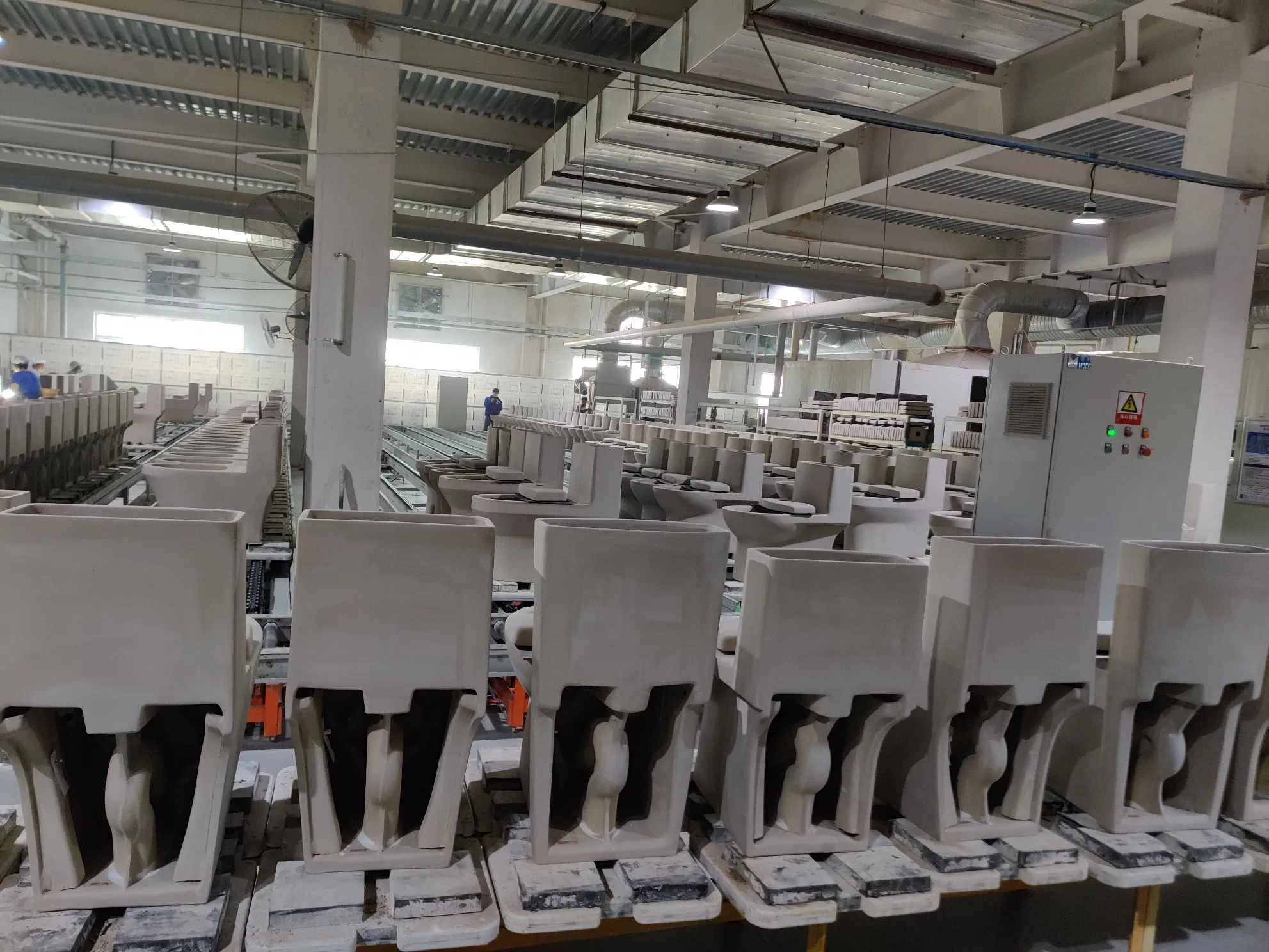

Detailed Photos

Premium Component Configuration:

✨

Product Characteristics

Short-pitch side roller chain (19.05mm) with heat-treated links for high strength.
Open type aluminum profile guide rails for easy cleaning and durability.
Transition rollers to reduce vibration and increase stability.
Standard RITTAL control cabinets for safe electrical operation.
Siemens 1500 PLC with self-check and fault alarm display.

Full data acquisition system for counting output and pass rates.
Equipped with communication devices for water, gas, and electricity mastering.
20% spare space in PLC/electrical panels for future adjustments.
Feedback system stops operation immediately upon fault detection.
High-quality transmission via CPG or CHENGMING reducers.

🏆

Our Advantages

Turnkey tailor design for sanitary ware producing lines.
Slip and glaze formula optimization services.
High-pressure casting technical training.
High-pressure mold making and support.
Professional installation and commissioning.
Team building and production management training.

🏢

Production Capability

❓

Frequently Asked Questions

What is the maximum carry weight of the conveyor system?

The system is designed to handle products with a maximum weight of up to 70KG each, specifically optimized for sanitary ware like water closets.

Which PLC system is used for equipment control?

We utilize high-end SIEMENS 1500 type PLC components with integrated self-check functions and KT900 touch screens for reliable automation.

Can the conveyor speed be adjusted?

Yes, the conveying speed is adjustable between 2 to 8 meters per minute using frequency control for precise speed regulation.

What happens if there is a mechanical fault during production?

The system is equipped with a feedback and alarm system. If a fault or overload occurs, the system will alarm and indicate the fault location on the touch screen while stopping the line to prevent losses.

Do you provide technical training for the equipment?

Absolutely. We provide comprehensive turnkey services including high-pressure casting technical training, mold making training, and production team building.

Are the pneumatic and electrical components from reputable brands?

Yes, we use globally recognized brands such as Fanuc (Robots), SMC (Pneumatics), SKF (Bearings), and Schneider/Siemens (Electrical) to ensure long-term stability.
