Variable Data in a Single Pass Inkjet Printers

Customization: Available
Type: Thermal Foam Coding Machine
Usage: Daily Industrial

Product Description

Basic Specifications

Model NO.
VDSAJET
Automatic Grade
Fully Automatic
Principle
Thermal Inkjet Technology
Application
High Resolution Ink Jet Printer
Working Patterns
On-Line
Supplies
Ink
Packaging
Box/Bag/Pipe/Paper
Multi Print Head
Accepted Seamless Joint
Ink Solution
Porous, Semi-Porous, Non-Porous
Resolution
150-600dpi
Languages
English, Japanese, French, German, Spanish, Portug
Power
AC 90V-240V/50-60Hz
Capacity
5000 Sets/Year
HS Code
8443322100

Product Overview

Variable Data Printing System - VDSAJET

It is the third generation high resolution printer based on HP TIJ2.5 tech, which adopts the most advanced control tech of LGCS. Users are easy to send command through interface to control printers and print content. It supports all fonts including True Type. What you edit and see is what will be printed out. The print content is not limited in the font, size, or lines, which is a breakthrough for traditional printers.

Key Features

  • Prints 1D or 2D variable data barcode at 30-60m/min speed.
  • Easy operation, no training required.
  • Full metal shell, industrial design for maximum durability.
  • HP original driving board for high-quality printing effects.
  • Wireless print head verify tech, stable and intelligent.

Technical Details

Printer SystemHP TIJ 2.5
Printer Height12.7mm ~ 50.8mm
Speed & Resolution30m/min@600x300DPI | 60m/min@600x300DPI
Interface TypeWIFI / USB / Sensor / Encoder / Warning light

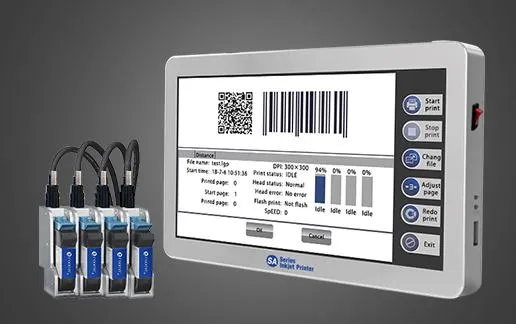

Operation10-inch touchable screen IPC
Print ContentText, Image, Counter, Date, Variable Barcode
Barcode TypesEAN8, EAN13, EAN128, CODE25, CODE39, CODE128, PDF47, PIATSDRUG, QRCODE, DATAMATRIX
Power Supply110-220VAC 50/60Hz, Max 180W

Application Market

Markets: Food, beverage, cosmetics, personal care, medicine and building materials.

Print Content: Expiration date, batch number, logo, barcode and two-dimension barcode.

Materials: Corrugated paper Coated carton Soft package Hard plastic Liquid container

Ink Options:
INK-MH01: Good color fastness & water proofing for ivory board and coated paper.
INK-MH09: For non-porous materials like plastic, metal, and PVC.

Reference Media

Reference Video Resources:

https://looglobal.en.made-in-china.com

Frequently Asked Questions

What printing technology does the VDSAJET use?
It uses the third-generation HP TIJ 2.5 (Thermal Inkjet) technology combined with advanced LGCS control technology.
What is the maximum printing height available?
The system supports variable heights ranging from 12.7mm up to 50.8mm (using up to 4 seamless joint heads).
Is the system compatible with non-porous surfaces?
Yes, with the INK-MH09 ink solution, the system can print on hard plastics, metals, PVC, and other non-porous materials.
Does it support printing variable barcodes?
Absolutely. It can print 1D and 2D variable data barcodes, including QR codes and DataMatrix, at high speeds.
What kind of operation interface does it have?
The system comes with a 10-inch industrial touch screen IPC, designed for easy operation without the need for specialized training.
Which languages are supported by the software?
It supports multiple languages including English, Japanese, French, German, Spanish, and Portuguese.
