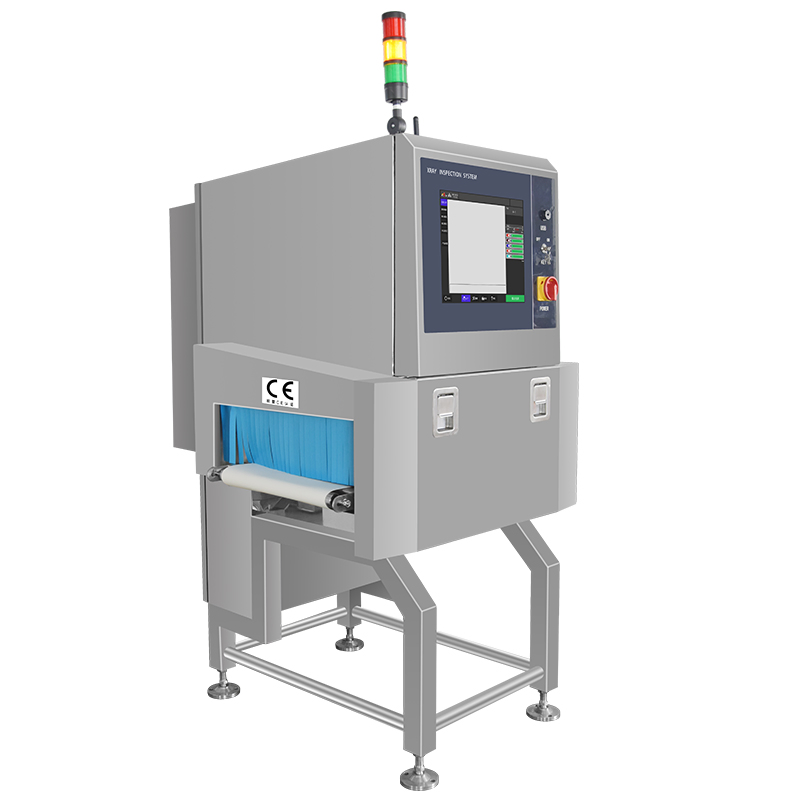

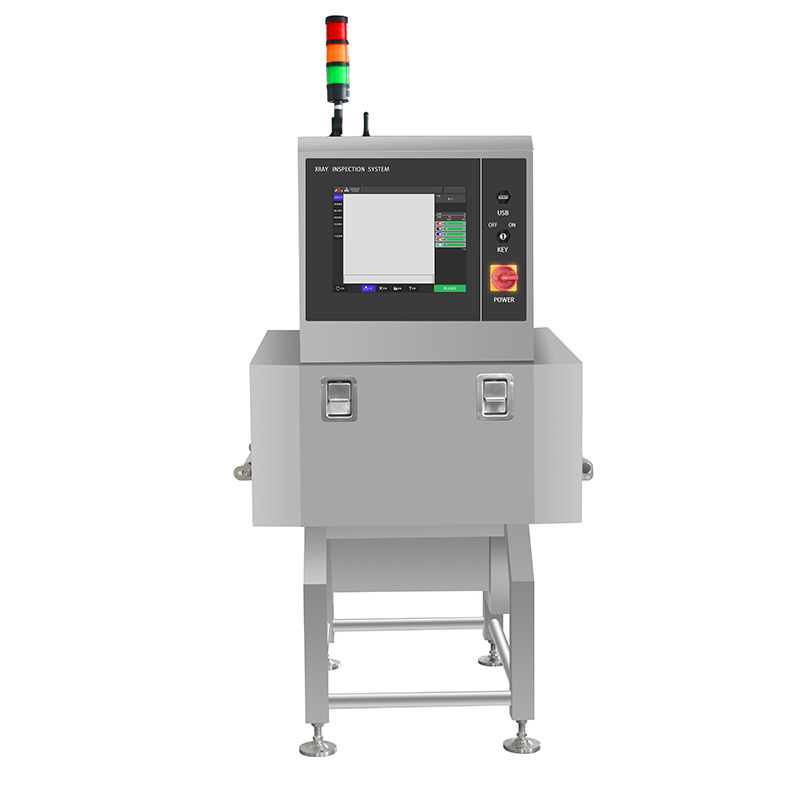

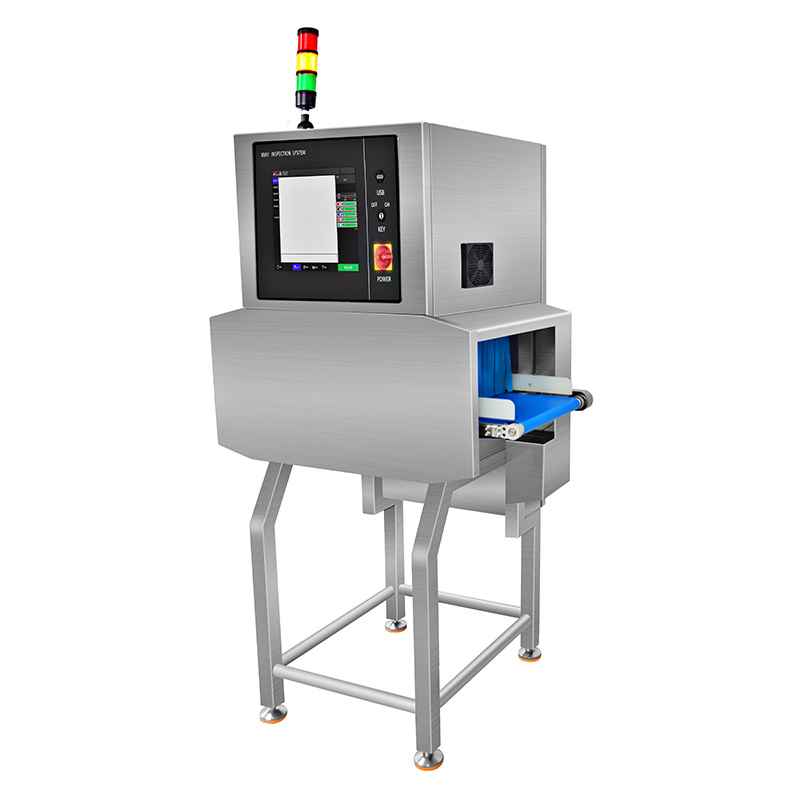

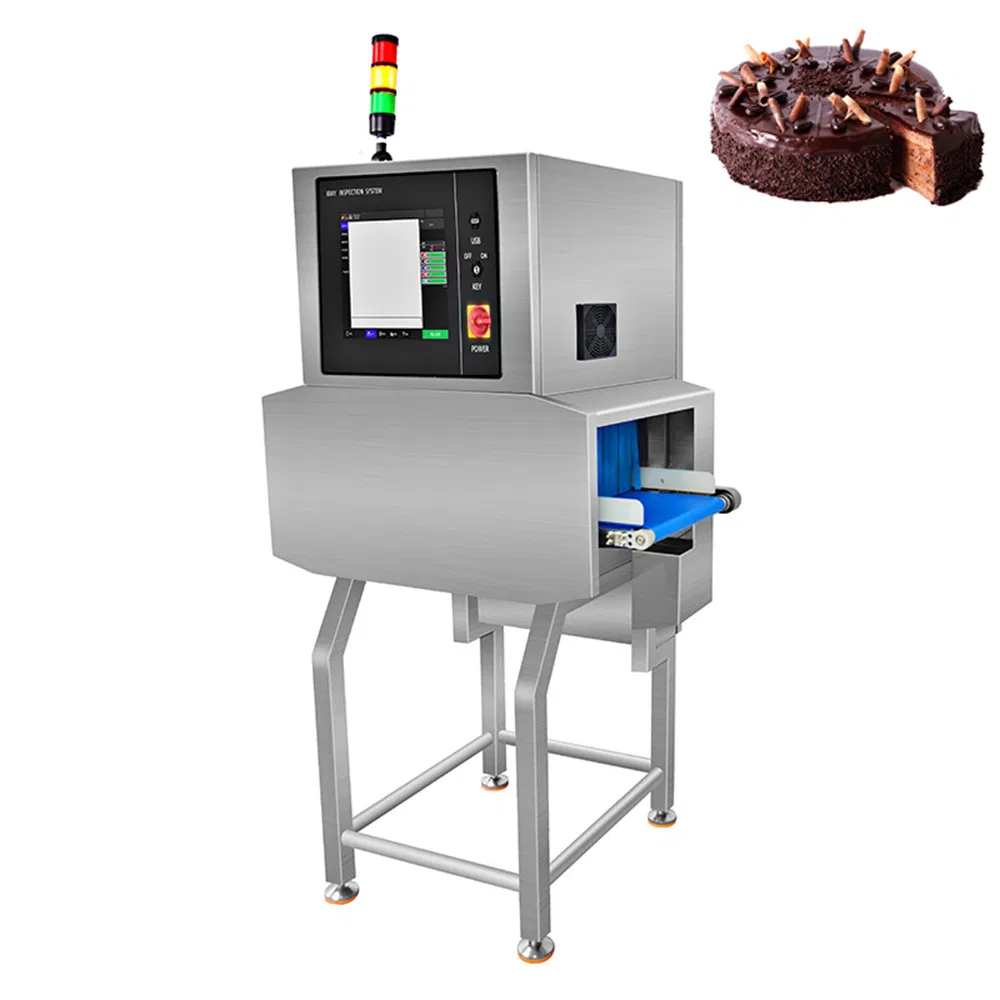

X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
1 / 5
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products
X Ray Food Inspection and Metal Detection Machine for Small Package Products

X Ray Food Inspection and Metal Detection Machine for Small Package Products

Customization: Available
Warranty: 2 Years
Portable: Non Portable
Send Inquiry

Product Description

Basic Information
Model NO.
CQ-X3815
Type
Industrial High-definition X-ray Detector
Application
Industrial Food Inspection
Certification
CE, ISO, FDA Standards
X-ray Source
65kv, 80W
Sensitivity
SUS 304 Ball Φ: 0.5 mm
Conveyor Speed
10 – 60 M/Min
Tunnel Height
150 mm
Belt Width
380 mm
Body Material
SUS304 Stainless Steel
Operating System
Windows XP Professional
Display
TFT 15-Inch Full Color Touch Screen
Detailed Photos

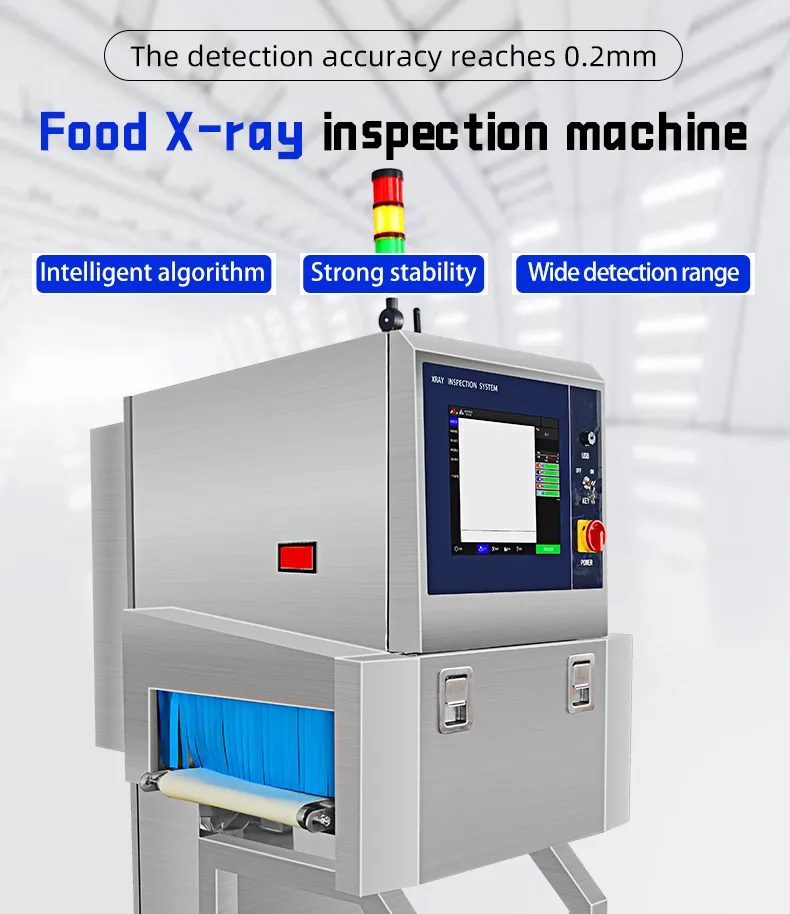

X-Ray Inspection Equipment View 1 X-Ray Inspection Equipment View 2
Product Description
✔

Detection Principle: The product image is obtained by irradiating the items with X-rays. Advanced image processing technology is used to identify foreign matter and contaminants.

✔

Wide Testing Scope: Not limited by product type or packaging. Compatible with plastic, aluminum foil, glass jars, metal cans, and bulk products.

✔

Foreign Body Detection: Effectively identifies high-density materials including stainless steel, iron, ceramics, glass, stones, bones, hard rubber, and hard plastics.

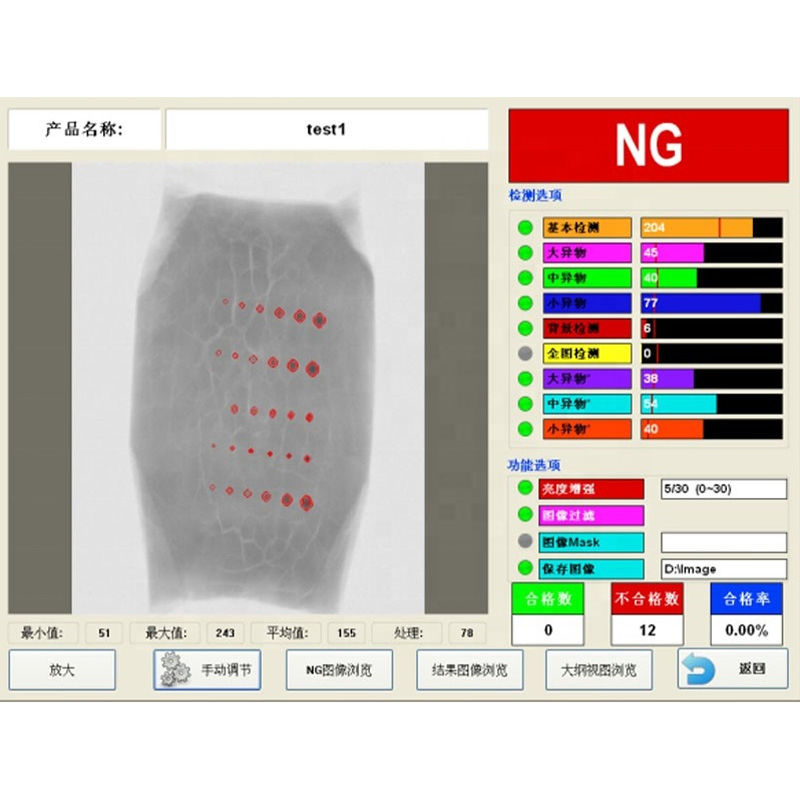

X-Ray Product Detection Display
Technical Parameters
Parameter Item Specifications
X-ray source65KV, 80W
Best Detection Sensitivity (SUS 304 Ball)Φ 0.6 mm
Best Detection Sensitivity (Ceramic Ball)Φ 2.0 mm
Conveyor Speed10 - 60 m/min
Maximum Load5 Kg
Support Data InterfaceLAN port, USB port
Image ManagementSaving / Printing / Analysis
Alarm MethodSound and Light Alarm, NG Shutdown

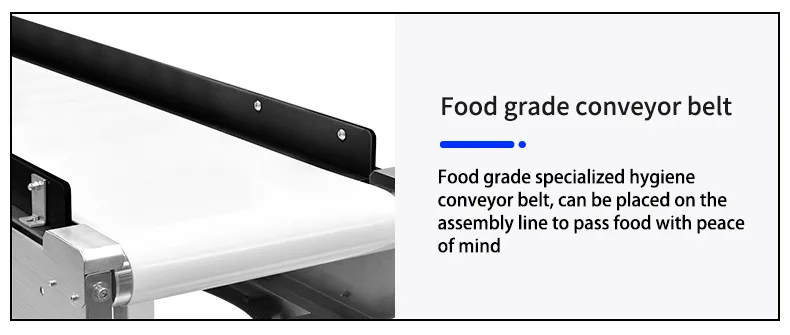

Conveyor Belt MaterialFood Grade PU
Operating Temperature0-40ºC

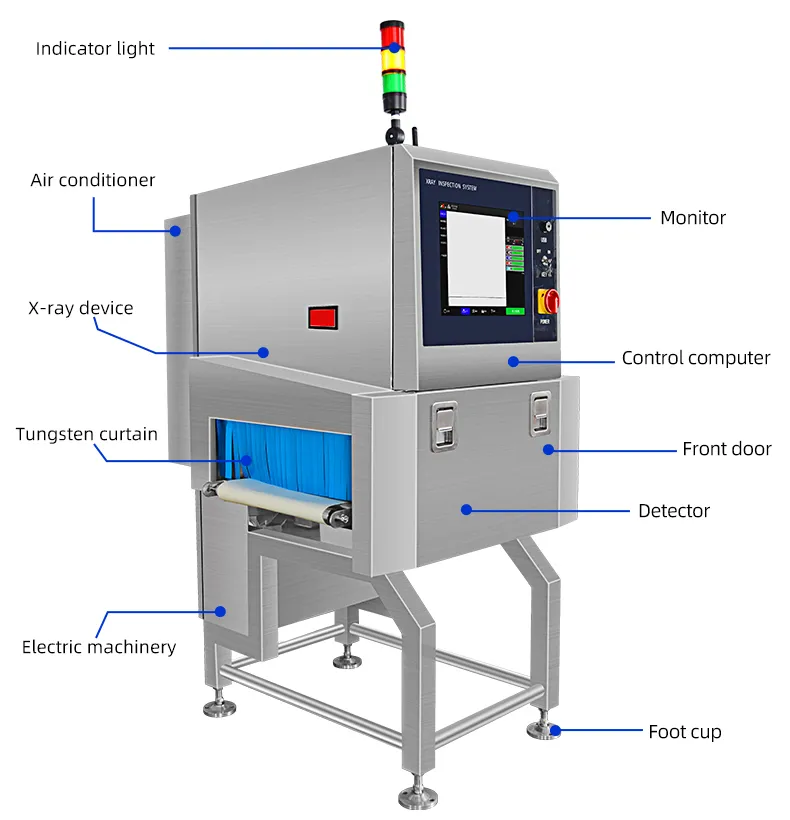

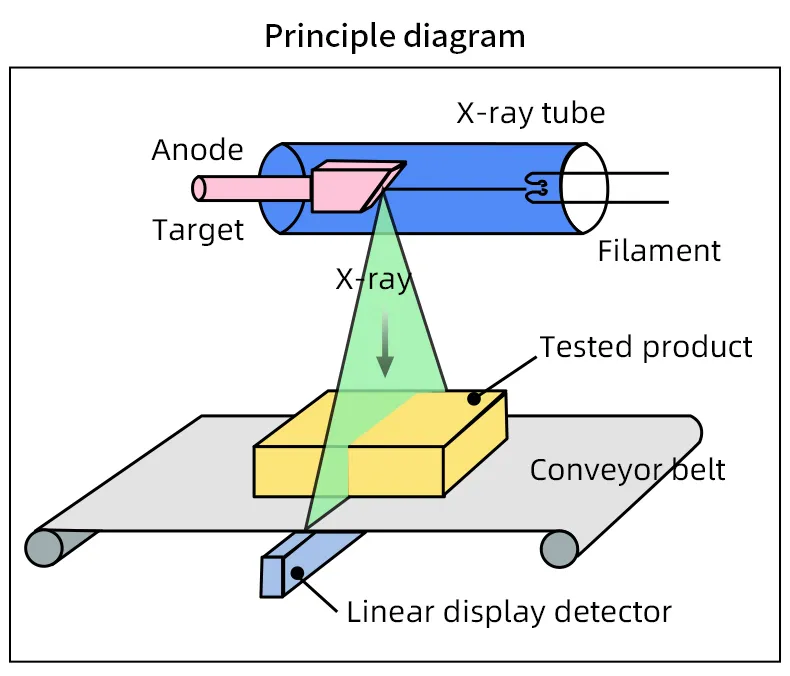

Internal Mechanism of X-Ray machine
Key Advantages
  • ★ Comprehensive Detection: Covers metal and non-metal foreign bodies in various packaging forms.
  • ★ High Precision: Detects stainless steel wires down to 0.3mm*2mm and glass/ceramic balls at 1.5mm.

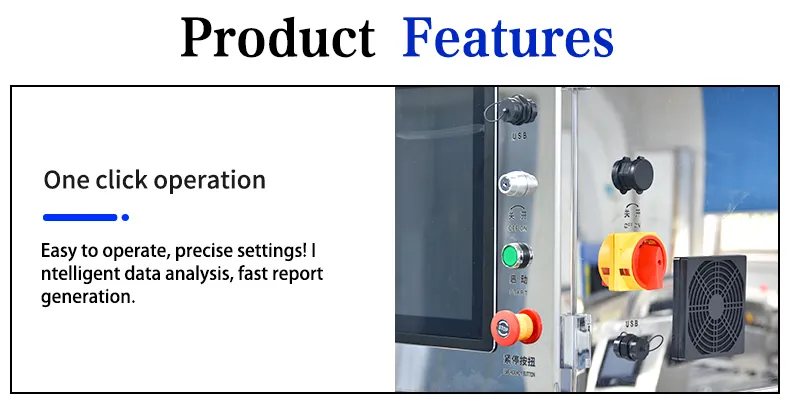

  • ★ User-Friendly: 15-inch touch screen with self-learning software functions for easy setup.
  • ★ Automatic Shielding: Ability to mask specific product areas (like aluminum clips) to maintain high accuracy elsewhere.
  • ★ Safety First: Leakage < 1μSv/h, meeting US FDA and European CE safety standards.
  • ★ Imported Components: Core detectors and sources utilize premium international brands for longevity.
Detection Sample 1 Detection Sample 2
Detection Sample 3 Detection Sample 4
Industrial Application Layout Machine Dimensions and Build Software Interface Details Detailed Component View
Frequently Asked Questions
What types of contaminants can the X-ray machine detect?
It can detect high-density foreign objects including all types of metals (ferrous, non-ferrous, stainless steel), glass, stones, bones, ceramics, and some hard plastics or rubbers.
Can it inspect products in aluminum foil packaging?
Yes. Unlike standard metal detectors, X-ray inspection is not affected by metallic packaging like aluminum foil bags or cans, allowing for high-sensitivity detection inside the package.
Is the radiation safe for food and operators?
Absolutely. The radiation levels are extremely low (less than 1 microsievert per hour), well within the safety limits of the US FDA and European CE. It does not affect the safety or nutritional value of the food.
What happens when a foreign object is detected?
The machine is equipped with a sound and light alarm. Depending on your configuration, it can also trigger an automatic NG (No-Good) shutdown or activate a rejection system to remove the contaminated product.
Does the machine require complex manual settings?
No. The software includes a self-learning function that automatically analyzes the product and sets the optimal detection parameters, significantly reducing the difficulty for operators.
How does the machine handle extreme production environments?
The unit is built with high-grade SUS304 stainless steel and features industrial-grade air conditioning to ensure stable operation regardless of external temperature or humidity fluctuations.
