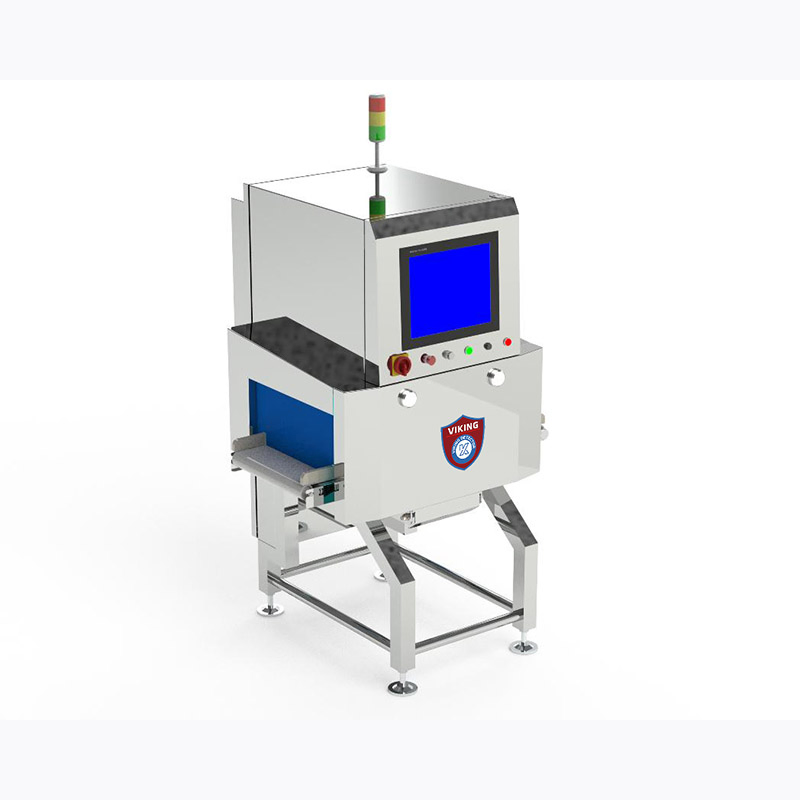

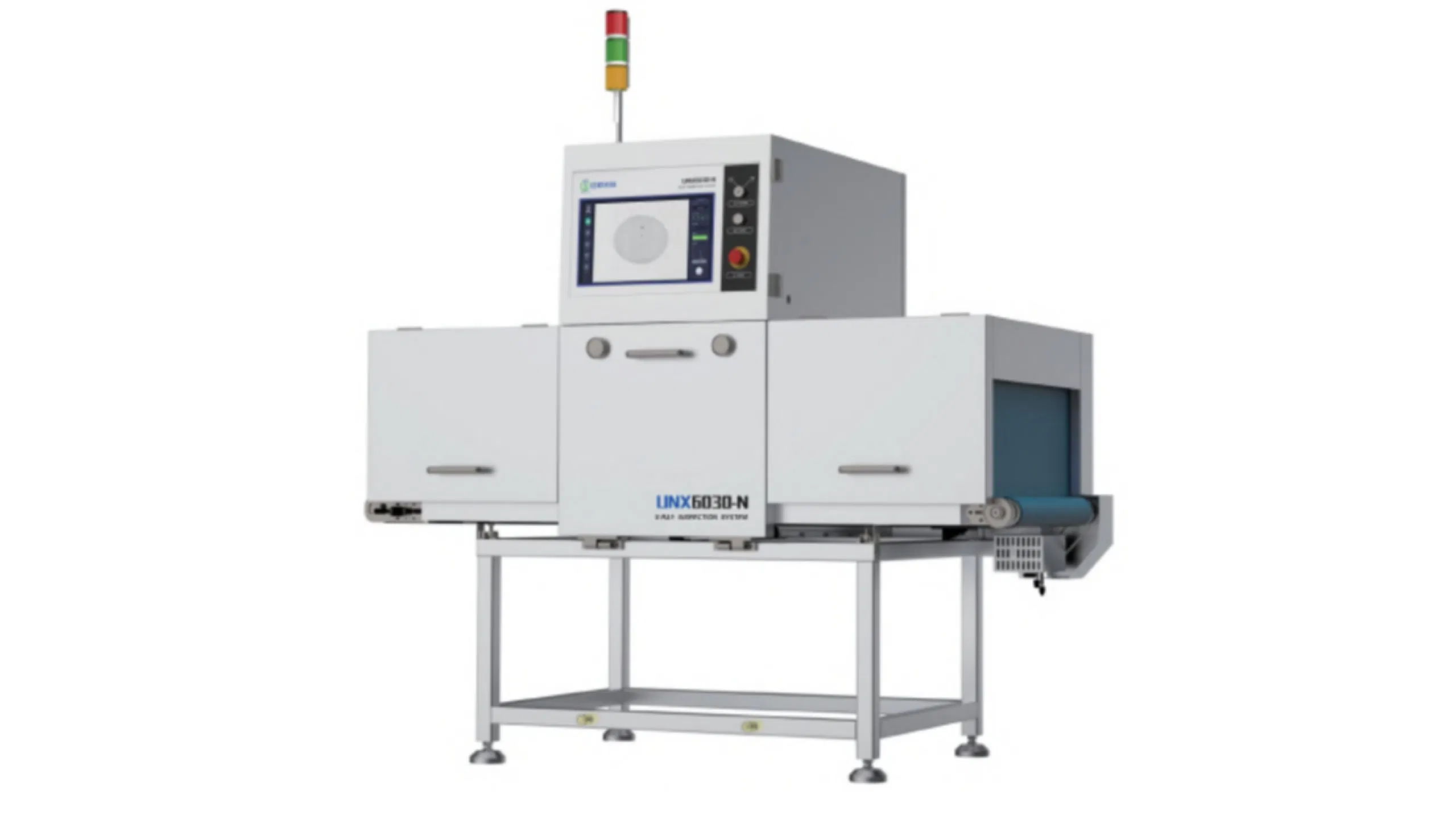

Elevate your food safety and production integrity to the highest standard with our Superior X-ray Inspection Scanner. Engineered as the definitive solution for modern food and beverage manufacturers, this system delivers unprecedented levels of detection accuracy, operational intelligence, and process control. It is an integrated quality command center designed to protect your brand and ensure every product meets the most rigorous global safety standards.
Leveraging ultra-high-resolution dual-energy imaging and deep-learning algorithms. Detects metal, glass, mineral stone, ceramic, calcified bone, and rubber.
Capable of detecting anomalies as minute as 0.3 mm, calibrated for specific product density and packaging.

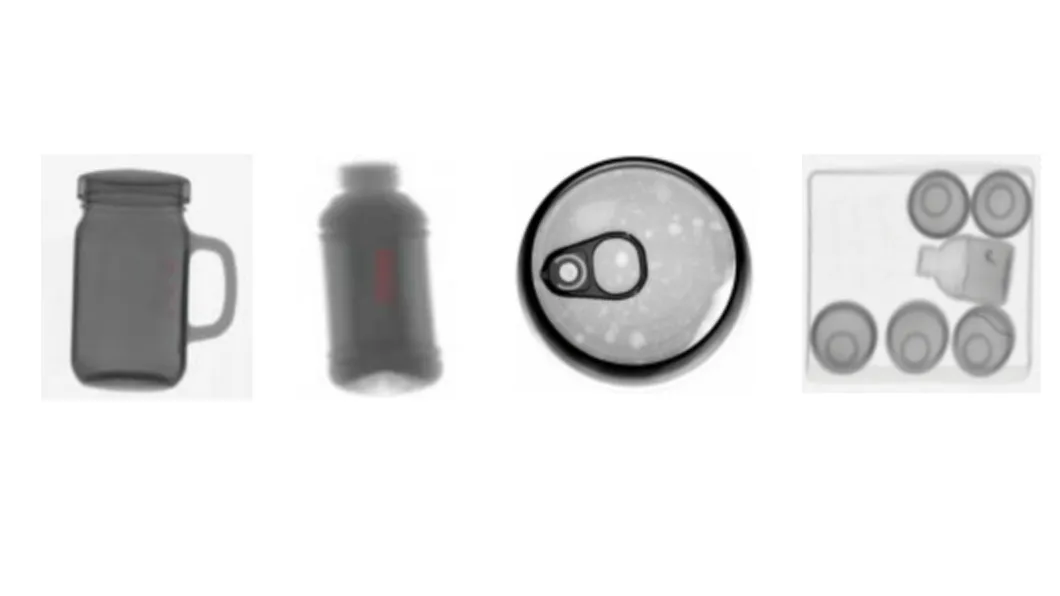

Effectively inspects products in metalized film, aluminum trays, foil-lined bags, and glass containers.
Includes in-line check-weighing, fill level monitoring, and product integrity verification (missing or broken components).

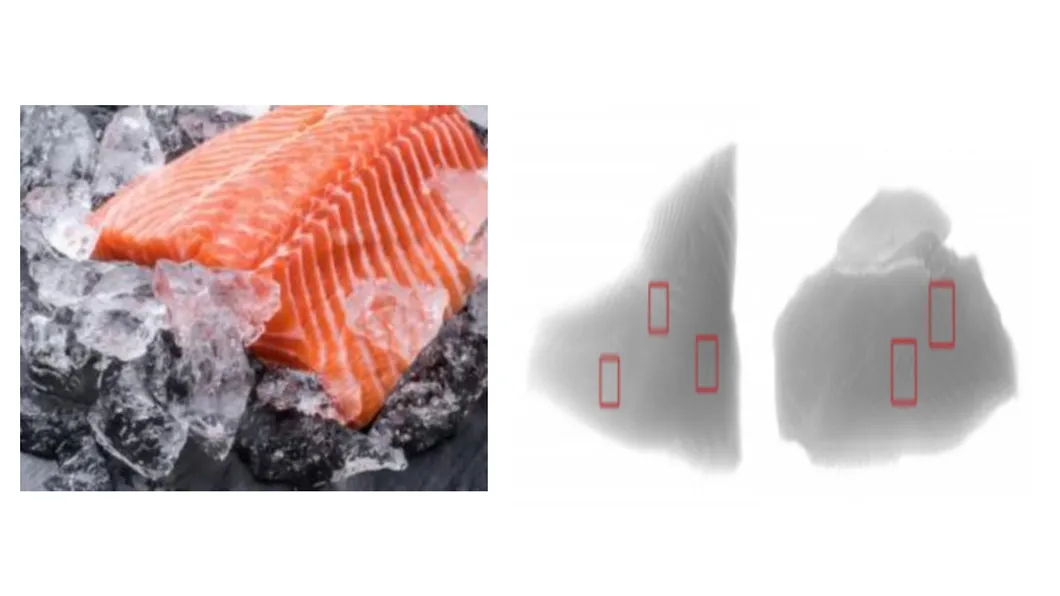

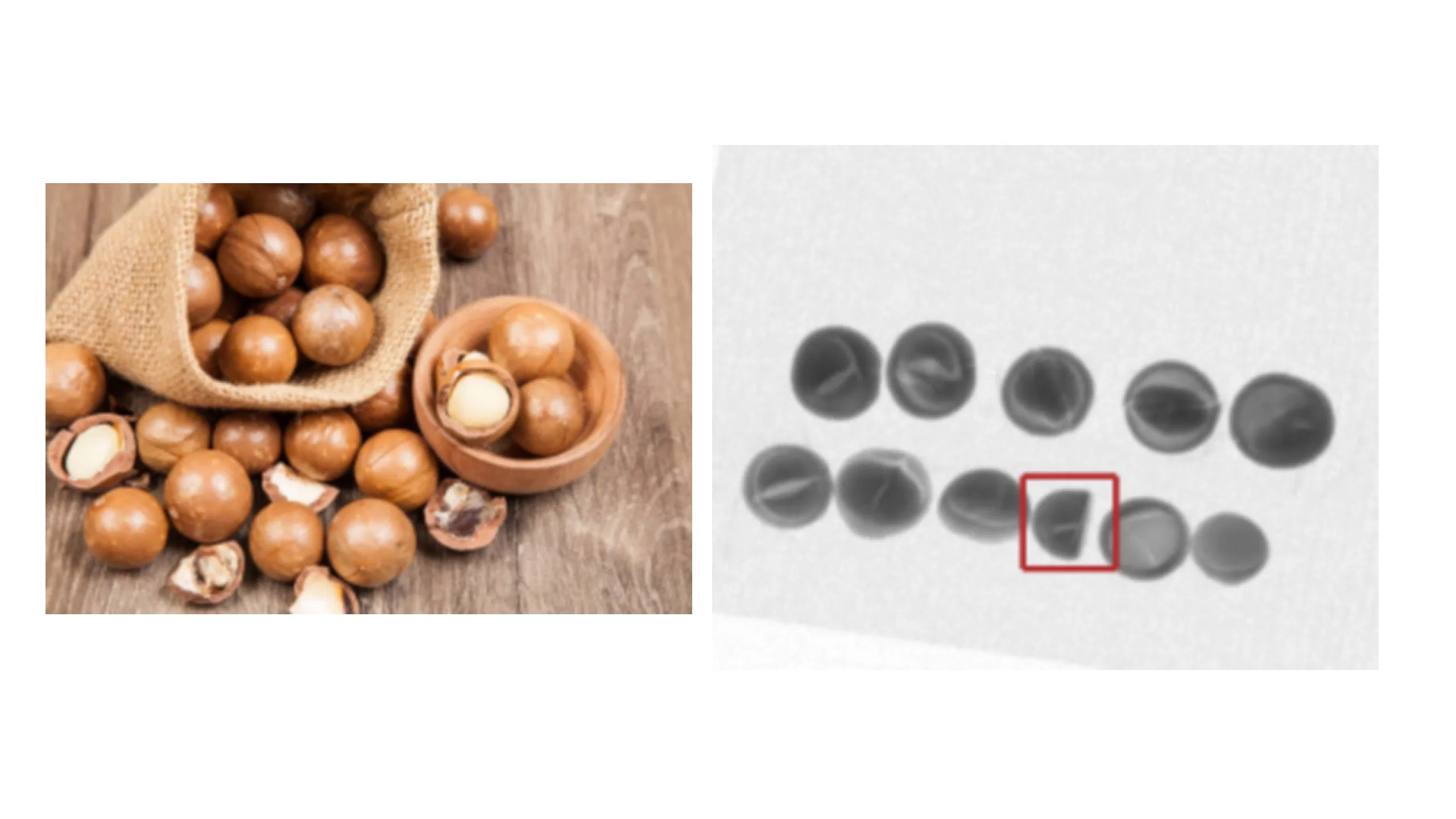

Identifies very small contaminants like metal fragments or glass shards, ensuring peak quality standards.
Adjustable power for optimal penetration and clarity through complex packaging.

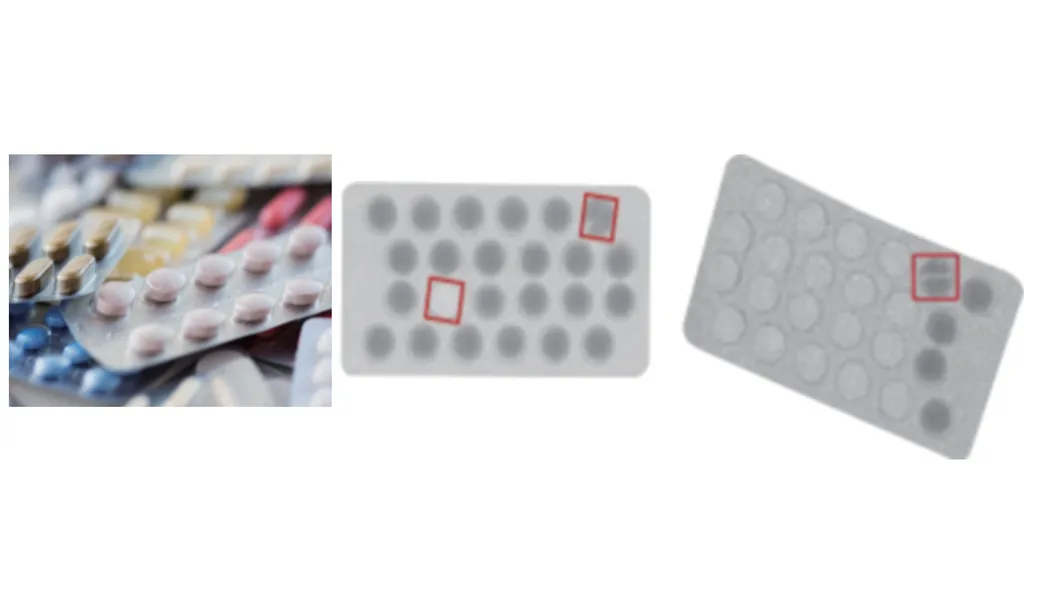

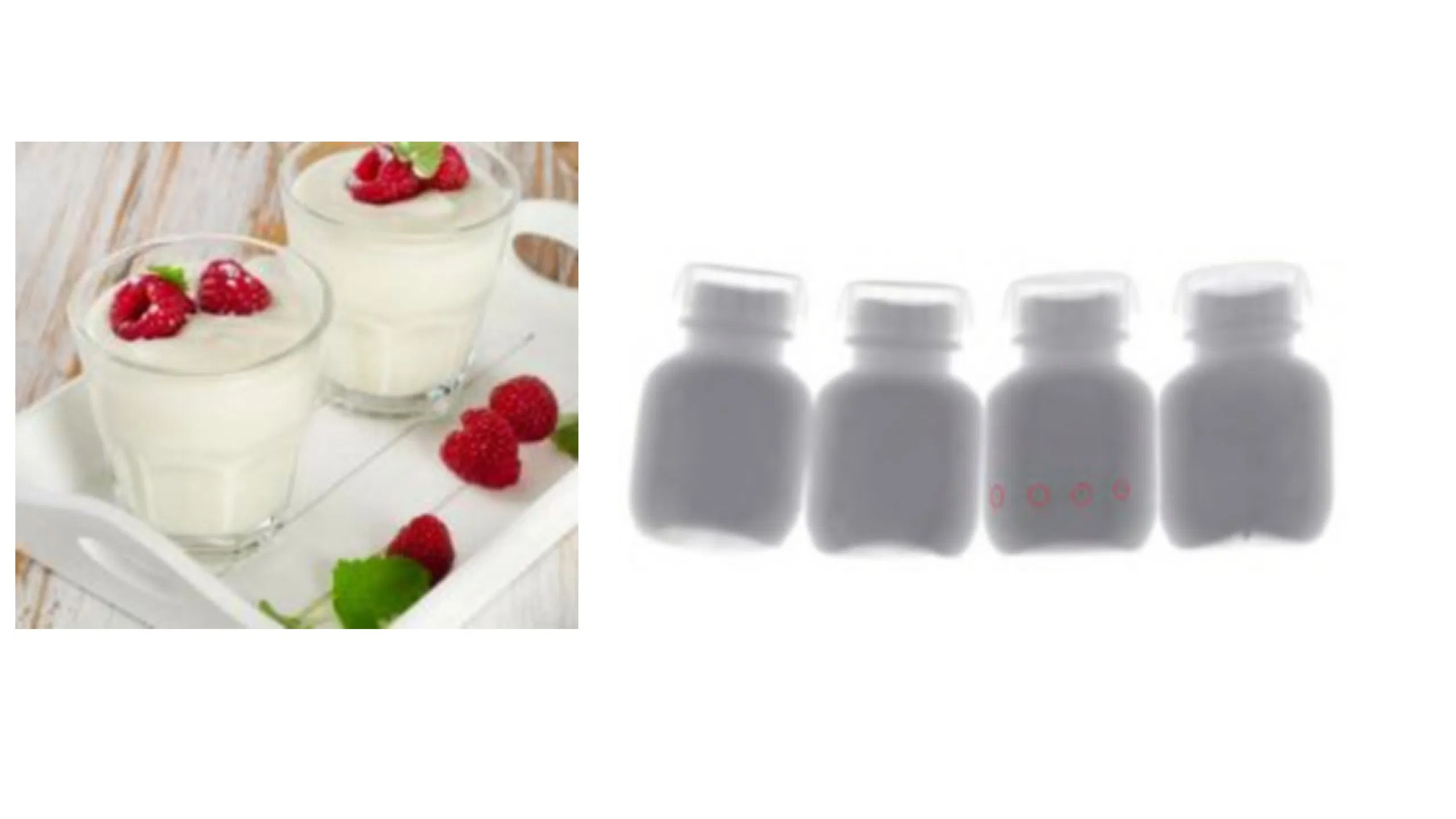

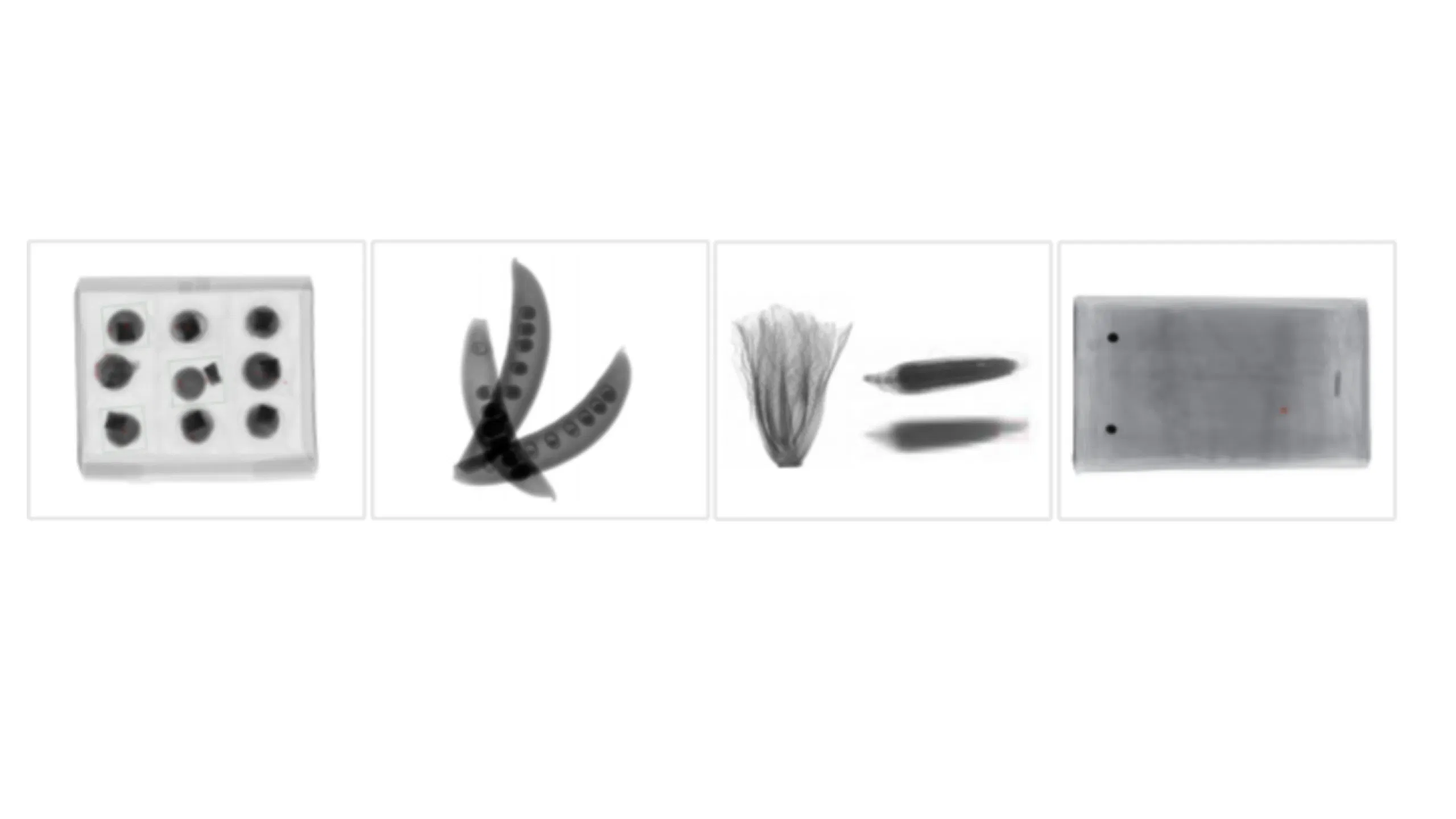

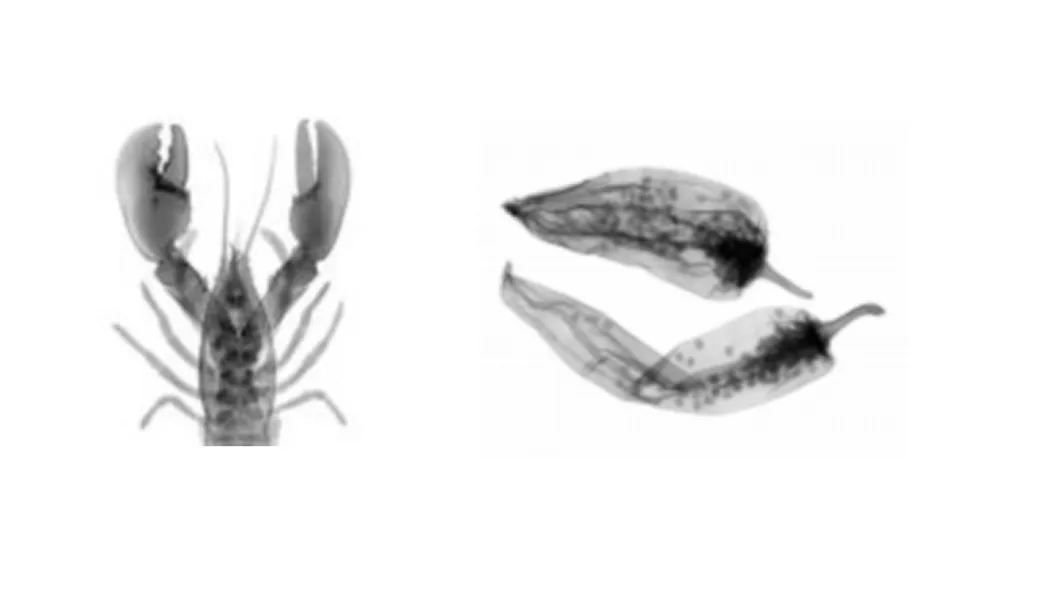

Instant visualization allows operators to quickly identify defects or contaminants.

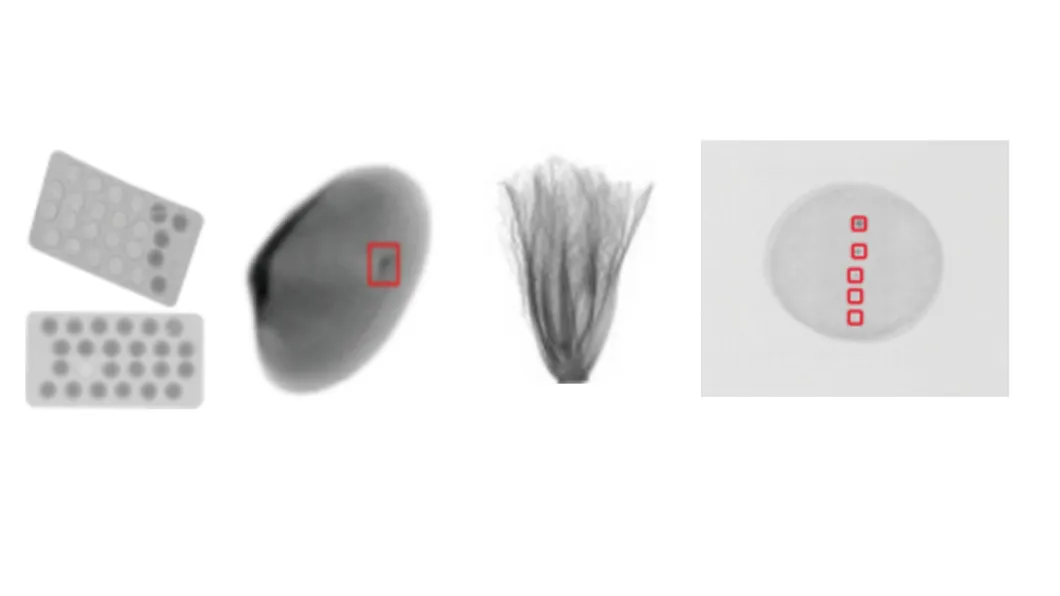

Built-in software with advanced algorithms automatically detects and marks foreign objects.
Line speeds exceeding 140 meters per minute without sacrificing inspection integrity.
Equipped with Industry 4.0 capabilities: OPC UA, Ethernet/IP, and cloud connectivity.
| Parameter Item | Specifications |
|---|---|
| Model | VNX3019 |
| Empty Machine Accuracy | Stainless steel: 0.4mm | Glass/Ceramic: 1.0mm |
| Max Detecting Size | Height: 130mm | Width: 300mm |
| Conveyor Speed | 20 ~ 70 m/min |
| Conveyor Load | Max 20KG |
| X-ray Source | 150W 80kV Single light source |
| Detector | 0.4 mm Single detector |
| Display | 17-inch full-color touch screen |
| Operating System | Windows 11 |
| Overall Material | 304 Stainless Steel |
| Protection Level | IP65 (IP69K Optional) |
| X-ray Leakage | < 1µSv/ h |
| Overall Size | 1178mm(L) * 1051mm(W) * 1854mm(H) |
